1. บทนำ
Thank you for choosing the Pipishell Floating Shelves Set of 6, Model PIFS37. This set includes six versatile shelves designed to enhance your living space with both functionality and aesthetic appeal. Crafted from natural Paulownia wood and supported by powder-coated steel brackets, these shelves offer two distinct installation methods to suit your needs. This manual provides detailed instructions for assembly, installation, usage, and care to ensure a safe and satisfying experience.

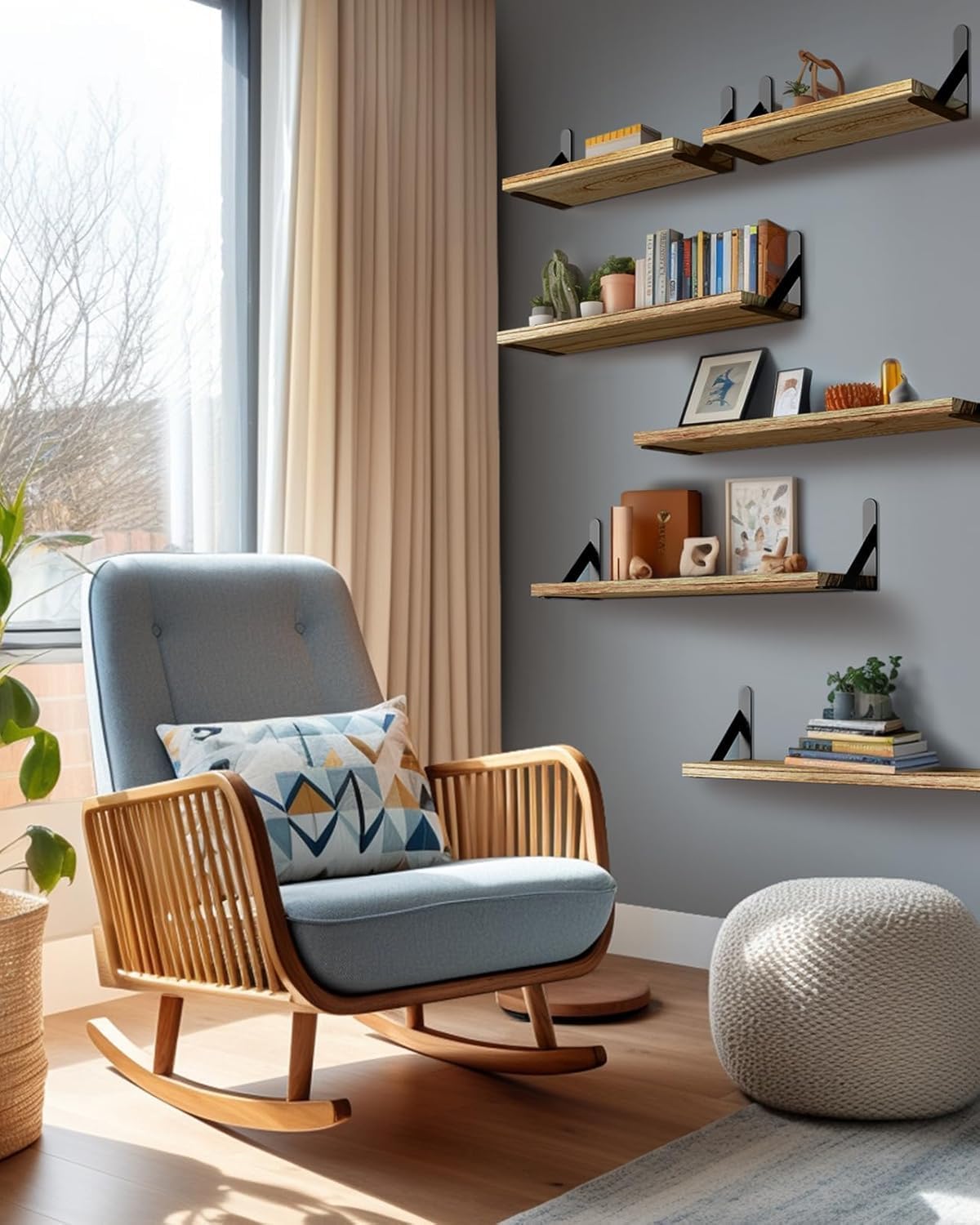

Image 1.1: Pipishell Floating Shelves installed in a room, showcasing their decorative and functional use.
2. ข้อมูลด้านความปลอดภัย
- Read all instructions carefully before assembly and installation.
- Ensure all components are present and undamaged before beginning. Do not use if any parts are missing or damaged.
- Always use appropriate tools and safety equipment during installation.
- Verify the wall material and choose suitable anchors/screws. The provided hardware is for general use; consult a professional if unsure about your wall type.
- Do not exceed the maximum weight limits specified for each installation method.
- เก็บชิ้นส่วนขนาดเล็กให้ห่างจากเด็กเพื่อป้องกันอันตรายจากการสำลัก
- Install shelves securely to prevent accidental falls and injuries.
3. เนื้อหาบรรจุภัณฑ์
Please check the package to ensure all items are included:
- Paulownia Wood Shelves (6 pieces: 2 large, 2 medium, 2 small)
- Powder-Coated Steel Brackets (12 pieces)
- ฮาร์ดแวร์สำหรับติดตั้ง (สกรู, พุกยึดผนัง)
- คู่มือการใช้งาน
Image 3.1: The product packaging box, indicating the model PIFS37.
4. ข้อมูลจำเพาะผลิตภัณฑ์
| คุณสมบัติ | รายละเอียด |
|---|---|
| หมายเลขรุ่น | PIFS37 |
| วัสดุ | Paulownia Wood, Powder-Coated Steel |
| จำนวนชั้นวาง | 6 (2 Large, 2 Medium, 2 Small) |
| Large Shelf Dimensions | 16.5" W x 4.7" D (approx.) |
| Medium Shelf Dimensions | 14.2" W x 4.7" D (approx.) |
| Small Shelf Dimensions | 11.4" W x 4.7" D (approx.) |
| Floating Installation Max Load | 10 ปอนด์ (4.5 กก.) |
| Standard Installation Max Load | 40 ปอนด์ (18 กก.) |
| คุณสมบัติพิเศษ | Moisture-Resistant, Deformation-Resistant |
Image 4.1: Detailed product dimensions for each shelf size.
Image 4.2: Illustration of the shelves' moisture and deformation resistance, suitable for various environments.
5. การตั้งค่าและการติดตั้ง
Before you begin, ensure you have the following tools (not included): pencil, measuring tape, level, drill, screwdriver, and hammer (for wall anchors).
5.1. Choosing Your Installation Method
The Pipishell Floating Shelves offer two installation options:
- Floating Shelf (Concealed Brackets): For a minimalist look, the brackets are hidden beneath the shelf. Maximum load capacity: 10 ปอนด์ (4.5 กก.).
- Standard Shelf (Visible Brackets): For increased support, the brackets are installed below the shelf, visible. Maximum load capacity: 40 ปอนด์ (18 กก.).

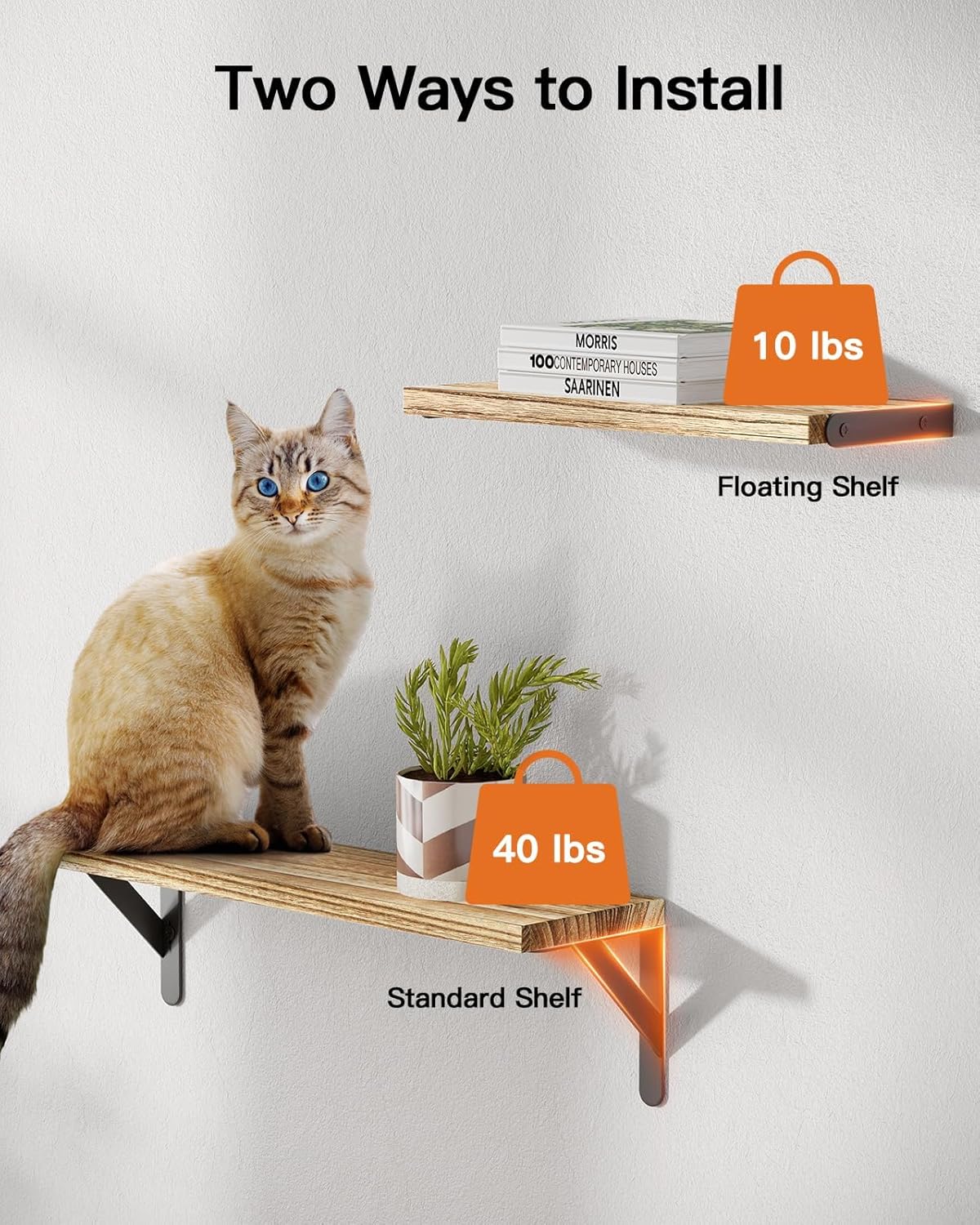

Image 5.1: Comparison of floating and standard installation methods with their respective weight limits.
5.2. General Installation Steps (Applies to both methods)
- มาร์คตำแหน่ง: Choose the desired location for your shelf. Use a level and pencil to mark the positions for the bracket holes on the wall. Ensure the marks are level and spaced correctly for the chosen shelf size.
- เจาะรู: Using an appropriate drill bit for your wall type and the provided wall anchors, drill pilot holes at the marked positions.
- แทรกจุดยึด: Gently tap the wall anchors into the drilled holes with a hammer until they are flush with the wall surface.
- ติดวงเล็บ: Align the brackets with the wall anchors and secure them to the wall using the provided screws and a screwdriver. Ensure they are firmly attached.
- ชั้นวาง:
- For Floating Installation: Place the wooden shelf onto the brackets, ensuring the brackets fit into the pre-drilled slots on the underside of the shelf. Secure the shelf to the brackets using the smaller screws provided, from the underside.
- For Standard Installation: Place the wooden shelf on top of the installed brackets. Secure the shelf to the brackets using the smaller screws provided, drilling through the pre-drilled holes on the top surface of the brackets into the underside of the shelf.
- ตรวจสอบความเสถียร: Gently test the shelf's stability before placing items on it.
ภาพที่ 5.2: อดีตample of shelves installed, demonstrating potential arrangements.
6. การใช้งาน
These shelves are designed for displaying decorative items, books, small plants, and other lightweight objects. Be mindful of the weight limits for each installation type (10 lbs for floating, 40 lbs for standard) to prevent damage or injury. The set includes three different sizes, allowing for flexible arrangement in various rooms such as living rooms, bedrooms, and bathrooms.
Image 6.1: Creative arrangement of the three different shelf sizes.
ภาพที่ 6.2: อดีตample of shelves used in a corner for optimal space utilization.
7. การบำรุงรักษา
To maintain the appearance and longevity of your Pipishell Floating Shelves:
- เช็ดชั้นวางของด้วยผ้าเนื้อนุ่มและแห้งamp ผ้าสำหรับเช็ดฝุ่นละอองและสิ่งสกปรก
- Avoid using harsh chemicals or abrasive cleaners, as these can damage the wood finish.
- Ensure the shelves are dry after cleaning to prevent moisture damage, especially in humid environments like bathrooms.
- Periodically check the mounting screws and tighten if necessary to ensure continued stability.
8 การแก้ไขปัญหา
- Shelf feels unstable after installation:
- ตรวจสอบให้แน่ใจว่าขันสกรูทั้งหมดแน่นดีแล้ว
- Verify that the wall anchors are properly seated in the wall.
- Check if the wall material is suitable for the chosen anchors. You may need different anchors for drywall, plaster, or concrete.
- Ensure you are not exceeding the specified weight limit for your installation method.
- ชั้นวางไม่เรียบ:
- Re-check your initial markings with a level before drilling.
- Adjust the bracket positions slightly if possible, or re-drill if necessary.
- ส่วนที่หายไป:
- Carefully check all packaging materials. If parts are genuinely missing, contact Pipishell customer support.
9. การรับประกันและการสนับสนุน
Pipishell products are designed for quality and durability. For any questions, concerns, or warranty claims regarding your Floating Shelves Set, please refer to the contact information provided with your purchase or visit the official Pipishell website for customer support. Please have your model number (PIFS37) and purchase details ready when contacting support.
10. ข้อมูลการกำจัด
When the product reaches the end of its useful life, please dispose of it responsibly according to local regulations. The wood components can typically be recycled or disposed of as general waste, while metal brackets may be recyclable at designated facilities.
