VASAGLE Electric Standing Desk LSD174N01 User Manual

การแนะนำ

Thank you for choosing the VASAGLE Electric Standing Desk LSD174N01. This desk is designed to enhance your workspace with its versatile height adjustment, memory functions, and integrated storage solutions. Please read this manual carefully before assembly and use to ensure safe operation and optimal performance.

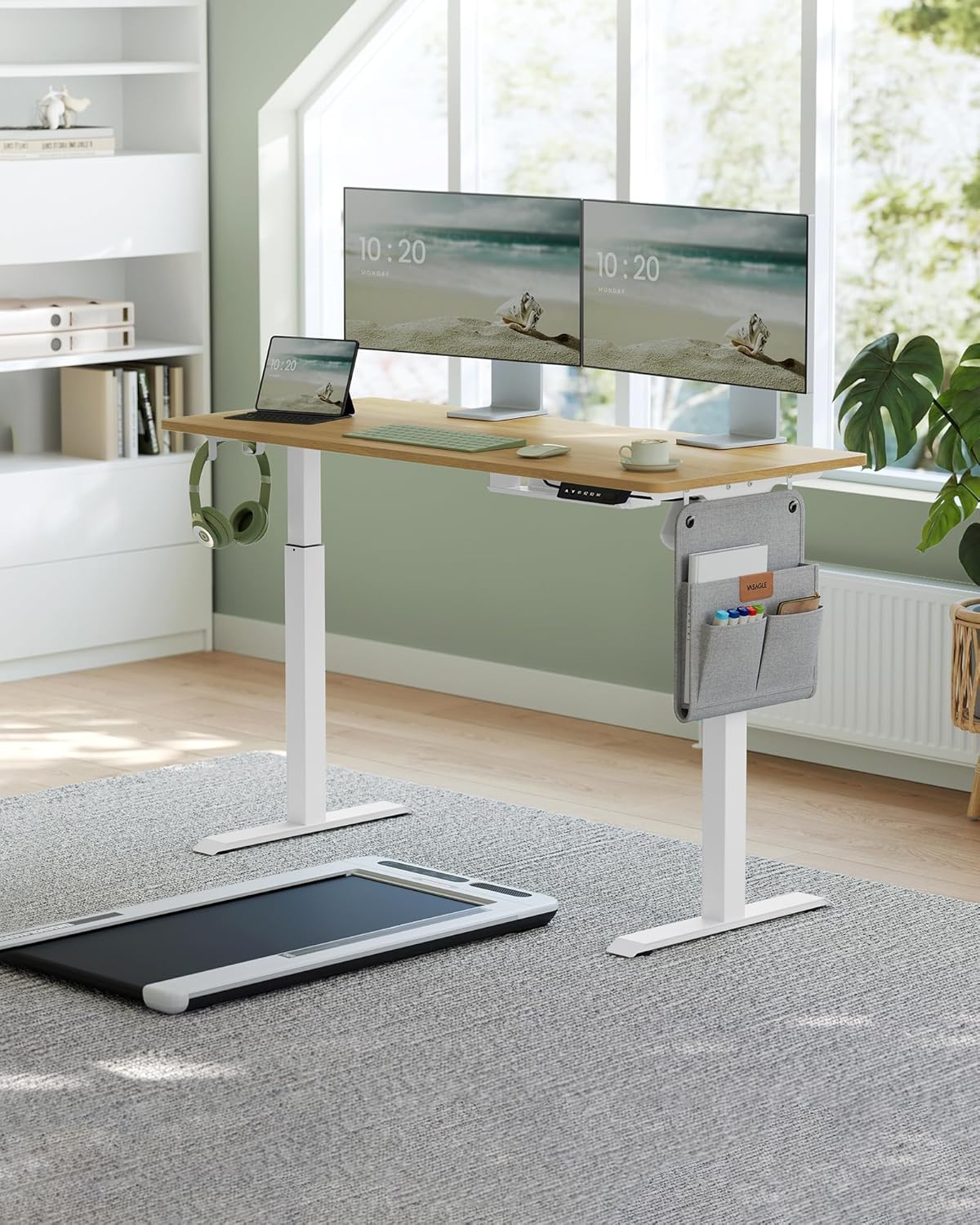

VASAGLE Electric Standing Desk in a modern office setting with two monitors, a laptop, and a treadmill underneath.

The VASAGLE Electric Standing Desk LSD174N01 provides a flexible and ergonomic workspace.

การติดตั้งและการประกอบ

Before beginning assembly, ensure all parts listed in the packaging contents are present. Follow the clear instructions and use the labeled parts provided in the assembly tool bag. It is recommended to assemble the desk on a soft, clean surface to prevent scratches.

เนื้อหาแพ็คเกจ:

  • 1 x Electric Standing Desk
  • อะแดปเตอร์ 1 ตัว
  • 1 x แผงควบคุม
  • 1 x Fabric Storage Pocket
  • 1 x Double Hook
  • 1 x Assembly Tool Bag
  • 1 x คู่มือการใช้งาน

ขั้นตอนการประกอบ:

  1. แกะส่วนประกอบทั้งหมดออกและตรวจสอบกับรายการชิ้นส่วน
  2. Assemble the desk frame according to the provided diagrams. Ensure all screws are tightened securely.
  3. Attach the desktop to the assembled frame.
  4. Install the control panel, adapter, and connect all necessary cables.
  5. Attach the fabric storage pocket and double hook to your preferred side (left or right).
  6. Choose between installing the adjustable feet or the universal wheels for mobility.
Diagram showing the dimensions of the VASAGLE Electric Standing Desk: 140 cm length, 60 cm width, and adjustable height from 72-120 cm.

Detailed dimensions of the desk for proper placement and assembly.

Image showing two options for desk feet: universal wheels for mobility and adjustable feet for stability.

Choose between universal wheels for easy movement or adjustable feet for enhanced stability.

คำแนะนำการใช้งาน

การปรับความสูง:

The desk's height can be adjusted steplessly from 72 cm to 120 cm using the up and down buttons on the control panel. Press and hold the up or down arrow to move the desk to your desired height.

ฟังก์ชั่นหน่วยความจำ:

The control panel allows you to save up to four preferred height settings. To save a height:

  1. ปรับโต๊ะให้อยู่ในระดับความสูงที่คุณต้องการ
  2. Press the 'M' button, then press one of the memory buttons (M1, M2, M3, or M4) within 3 seconds. The height is now saved.
  3. To recall a saved height, simply press the corresponding memory button (M1-M4).

พอร์ตชาร์จ USB:

A convenient USB port is integrated into the control panel for charging mobile phones and other compatible devices.

Close-up of the multifunctional control panel with USB connection, height adjustment buttons, memory function buttons (M1-M4), and an LED display showing the current height.

The multifunctional control panel offers height adjustment, memory presets, and a USB charging port.

Storage Pocket and Hooks:

The desk includes a reversible fabric storage pocket for books and stationery, and a double hook for headphones or bags. These can be attached to either the left or right side of the desk frame to suit your preference.

Image showing the flexible fabric organizer pocket and practical hooks attached to the desk, holding notebooks, pens, headphones, and a bag.

Utilize the fabric organizer and hooks to keep your workspace tidy and organized.

การซ่อมบำรุง

  • การทำความสะอาด: เช็ดพื้นโต๊ะด้วยผ้านุ่มๆamp cloth. Avoid using harsh chemicals or abrasive cleaners that may damage the finish.
  • ชิ้นส่วนอิเล็กทรอนิกส์: Ensure all electronic parts remain dry and do not come into contact with liquids.
  • การป้องกันมอเตอร์: After 2 minutes of continuous stepless adjustment, allow the motor to rest for at least 18 minutes to prevent damage.
  • การตรวจสอบปกติ: ตรวจสอบสกรูและการเชื่อมต่อทั้งหมดเป็นระยะๆ เพื่อให้แน่ใจว่าแน่นหนาและปลอดภัย

การแก้ไขปัญหา

If you encounter any issues with your VASAGLE Electric Standing Desk, please refer to the following common solutions:

  • โต๊ะไม่เคลื่อนไหว: Check all cable connections, especially the power adapter and control panel cables. Ensure the power outlet is functional.
  • การเคลื่อนไหวที่ไม่สม่ำเสมอ: Ensure the desk is not overloaded and that all items on the desk are evenly distributed. Check if the adjustable feet are properly leveled.
  • รหัสข้อผิดพลาด: If the LED display shows an error code, consult the specific troubleshooting section in the full manual (if available) or contact customer support.
  • Collision Protection Triggered: If the desk stops and retracts slightly, it means the anti-collision sensor detected an obstacle. Remove the obstacle and try adjusting the height again.

For persistent issues or technical support, please contact VASAGLE customer service.

ข้อมูลจำเพาะผลิตภัณฑ์

คุณสมบัติรายละเอียด
หมายเลขรุ่นLSD174N01
สีไม้โอ๊คธรรมชาติ
วัสดุParticleboard, Steel, Oxford Fabric
ขนาด (กว้าง x ยาว x สูง)140 x 60 x (72-120) ซม
ช่วงการปรับความสูง72 ซม. - 120 ซม.
ความสามารถในการรับน้ำหนักคงที่80 กก.
ระดับเสียง< 50 เดซิเบล
ความเร็วในการปรับ35 มม./วินาที
คุณสมบัติ4 Memory Presets, USB Charging Port, Anti-Collision System, Storage Pocket, Hooks
Image illustrating the robust construction of the desk with an 80 kg weight placed on it, demonstrating its load capacity.

The desk features a robust construction with a static load capacity of up to 80 kg.

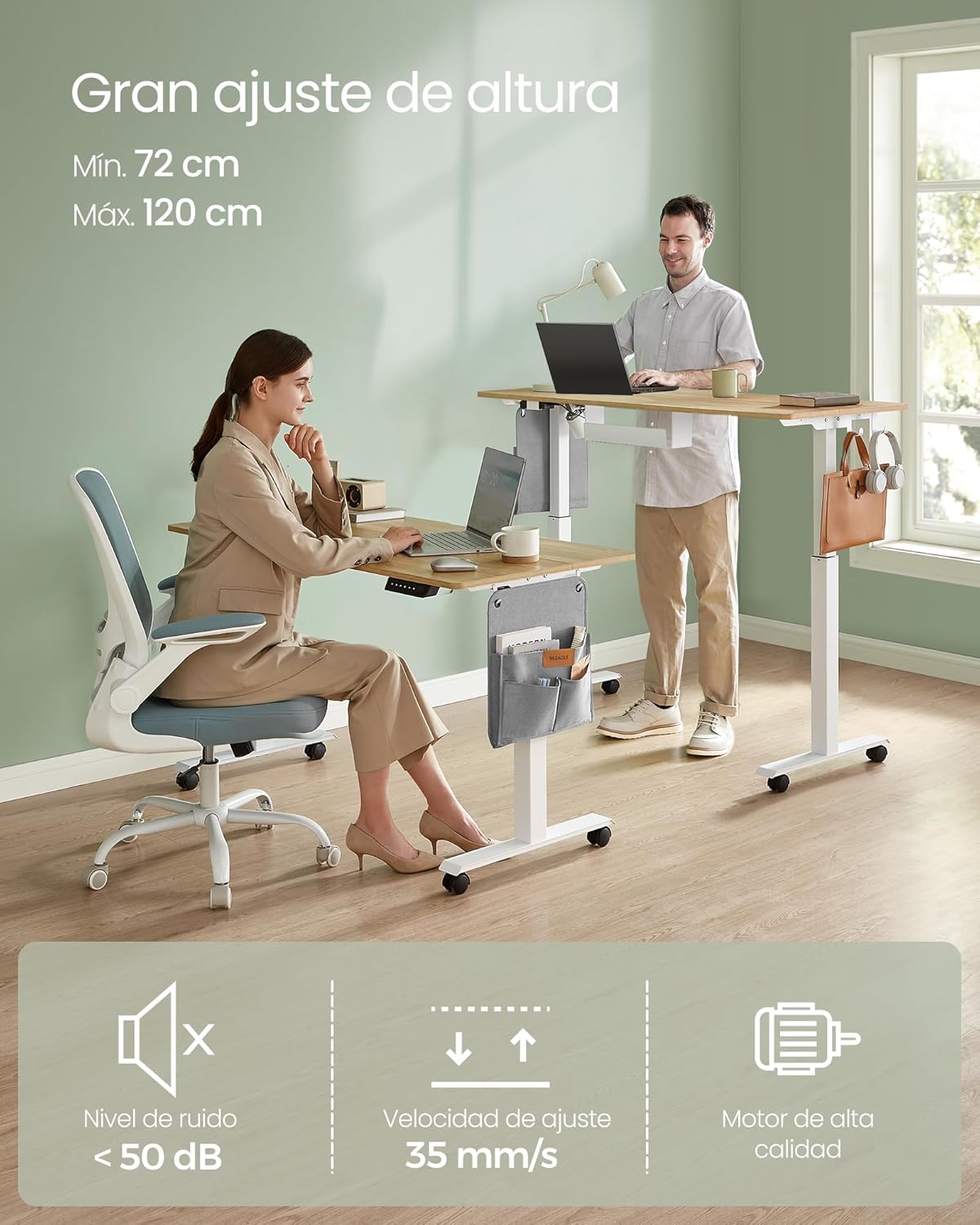

Image showing a person sitting and another standing at the desk, highlighting features like low noise level (<50 dB), adjustment speed (35 mm/s), and high-quality motor.

Experience quiet and smooth height adjustments with the high-quality motor.

ข้อมูลด้านความปลอดภัย

  • Do not place the desk directly against a wall during lifting or lowering to prevent scratches.
  • This product is designed for indoor use only. Keep all electronic parts away from liquids.
  • Do not disassemble this product without professional advice.
  • Do not place heavy objects exceeding the 80 kg load capacity on the desk.
  • Avoid using a power outlet or adapter with excessively high voltage.
  • ระบบป้องกันการชน: For safety, the height adjustment mechanism will stop and slightly retract if it encounters a hard obstacle during movement. To protect the desktop from impacts and scratches, set the internal sensor to a higher sensitivity level during height adjustment.
Diagram illustrating the anti-collision protection feature, showing the desk stopping and retracting when an obstacle is detected during height adjustment.

The anti-collision mechanism ensures safety by stopping movement upon detecting obstacles.

การรับประกันและการสนับสนุน

For warranty information, technical support, or any questions regarding your VASAGLE Electric Standing Desk LSD174N01, please refer to the warranty card included with your purchase or visit the official VASAGLE webเว็บไซต์สำหรับรายละเอียดการติดต่อฝ่ายบริการลูกค้า

โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ในกรณีเรียกร้องการรับประกัน
