GAOMON 24 Inch Compost Spreader Instruction Manual

1. บทนำ

Thank you for choosing the GAOMON 24 Inch Compost Spreader. This manual provides essential information for the safe assembly, efficient operation, and proper maintenance of your new compost spreader. Please read these instructions thoroughly before use to ensure optimal performance and longevity of the product.

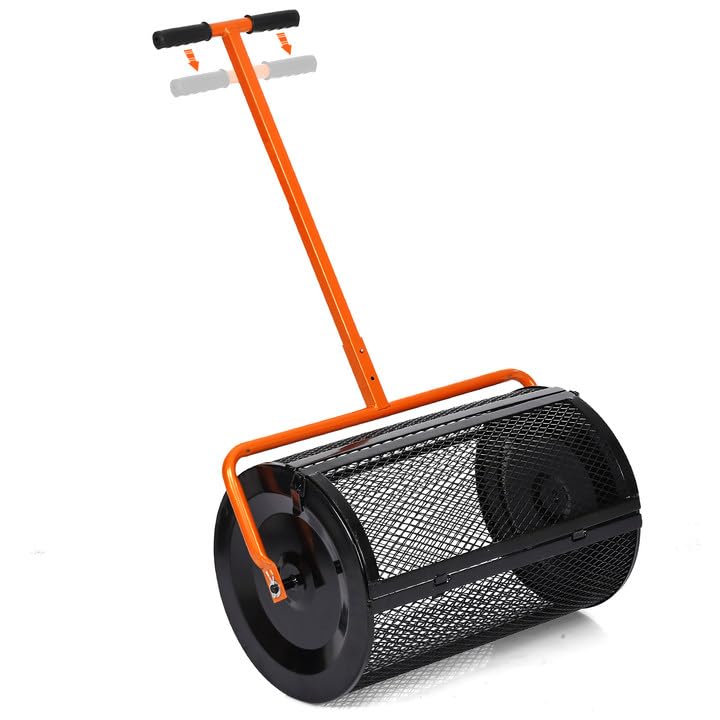

Figure 1: The fully assembled GAOMON 24 Inch Compost Spreader, featuring its mesh drum and T-handle.

2. ข้อมูลด้านความปลอดภัย

Always observe basic safety precautions when using this product to reduce the risk of injury or damage. Keep this manual for future reference.

• อ่านคำแนะนำทั้งหมด: โปรดทำความคุ้นเคยกับปุ่มควบคุมและวิธีการใช้งานอุปกรณ์อย่างถูกต้อง
• Wear appropriate attire: Always wear sturdy footwear and eye protection. Avoid loose clothing that could get caught in moving parts.
• เคลียร์พื้นที่: Ensure the area where you are working is free of obstacles, children, and pets.
• ตรวจสอบก่อนใช้งาน: Before each use, check the spreader for any loose parts, damage, or wear. Do not operate if damaged.
• จัดการด้วยความระมัดระวัง: The spreader can be heavy when loaded. Use proper lifting techniques and maintain a firm grip on the handle.
• เก็บอย่างปลอดภัย: เก็บอุปกรณ์ทาเนยไว้ในที่แห้งและปลอดภัย ให้พ้นมือเด็ก

3. เนื้อหาบรรจุภัณฑ์

Upon opening the package, verify that all components are present and undamaged. If any parts are missing or damaged, contact GAOMON customer support.

• Mesh Spreader Drum (1)
• Adjustable T-Handle Assembly (1)
• Side Panels/Wheels (2)
• Hardware Kit (bolts, nuts, washers, lock buckles) (1 set)
• คู่มือการใช้งาน (1)

4. การติดตั้งและการประกอบ

The GAOMON Compost Spreader is designed for easy assembly. Follow these step-by-step instructions. No additional professional tools are required.

1. แกะส่วนประกอบ: ถอดชิ้นส่วนทั้งหมดออกจากบรรจุภัณฑ์อย่างระมัดระวังและวางบนพื้นผิวที่สะอาดและเรียบ
2. ติดแผงด้านข้าง: Align the side panels (which include the wheels) with the ends of the mesh spreader drum. Secure them using the provided bolts, washers, and nuts. Ensure the lock buckles are correctly positioned for stable operation.
3. Assemble T-Handle: Connect the sections of the T-handle assembly. Insert the lower part of the handle into the designated slots on the side panels. Secure with the appropriate hardware.
4. ปรับความสูงของด้ามจับ: The T-handle is adjustable. Loosen the adjustment knobs, set the handle to a comfortable height, and then tighten the knobs securely.
5. การตรวจสอบขั้นสุดท้าย: Before use, ensure all connections are tight and secure. Verify that the mesh drum rotates freely.

Figure 2: An illustration detailing the various components and assembly steps for the GAOMON Compost Spreader.

5. คู่มือการใช้งาน

The GAOMON Compost Spreader is designed for efficient and even distribution of various materials. Follow these steps for optimal results.

5.1 Preparing the Material

• The spreader is suitable for compost, peat moss, manure, dirt, topsoil fertilizer, and mulch.
• Ensure the material is relatively dry and free of large clumps, rocks, or debris that could obstruct the mesh basket. The dense mesh is designed to filter out larger debris, but pre-sifting can improve flow.

5.2 Loading the Spreader

1. Locate the hinging door on the mesh basket.
2. Open the door. The 2.7 cu.ft. capacity allows for ampวัสดุเลอ
3. Fill the mesh basket with your desired material. Do not overfill, as this can hinder rotation and even spreading.
4. Close the hinging door securely, ensuring the lock buckles are engaged to prevent accidental opening during operation.

5.3 Spreading the Material

1. Grip the T-handle firmly.
2. Push the spreader across the lawn or garden area where you wish to apply the material.
3. As you push, the mesh drum will rotate, breaking up lumpy material and allowing it to fall through the mesh, distributing it evenly.
4. Maintain a consistent walking speed for uniform coverage. Overlap passes slightly to avoid missed spots.
5. For best results, spread in a crosshatch pattern (e.g., once horizontally, then once vertically).

Figure 3: A person operating the GAOMON Compost Spreader on a lawn, demonstrating its function in distributing material.

Figure 4: An image illustrating the visual difference on a lawn before and after using the GAOMON Compost Spreader, showing even material distribution.

6. การบำรุงรักษา

Regular maintenance ensures the longevity and continued performance of your GAOMON Compost Spreader.

• การทำความสะอาด: After each use, empty any remaining material from the mesh basket. Rinse the drum and frame with water to remove dirt and debris. Allow all parts to dry completely to prevent rust.
• การหล่อลื่น: Periodically apply a light lubricant to the axle points where the drum rotates to ensure smooth operation.
• การตรวจสอบ: Regularly check all bolts, nuts, and connections for tightness. Tighten any loose fasteners. Inspect the mesh basket for any signs of damage or excessive wear.
• พื้นที่จัดเก็บ: Store the spreader in a dry, covered area to protect it from weather elements. If storing for extended periods, ensure it is clean and dry.

7 การแก้ไขปัญหา

โปรดดูหัวข้อนี้เพื่อดูวิธีแก้ไขปัญหาทั่วไปที่คุณอาจพบเจอ

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

GAOMON stands behind the quality of its products. For specific warranty details and to register your product, please refer to the warranty card included in your package or visit our official website. For technical assistance, replacement parts, or any questions not covered in this manual, please contact GAOMON customer support.

ติดต่อฝ่ายสนับสนุนลูกค้า:

• Webเว็บไซต์: www.gaomon.com (อดีตamp(กรุณาแทนที่ด้วยลิงก์จริงหากมี)
• Email: support@gaomon.com (Examp(กรุณาแทนที่ด้วยอีเมลจริงหากมี)
• Phone: 1-800-XXX-XXXX (Example phone, replace with actual if available)
