คู่มือการใช้งานมอเตอร์เก้าอี้ปรับเอนไฟฟ้า Okin รุ่น JLDQ-11 และ JLDQ-11.156.333A

1. บทนำ

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Okin Model JLDQ-11 & JLDQ.11.156.333A Power Recliner Motor. This electric actuator is designed as a replacement part for various power recliners and lift chairs. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.

2. ข้อมูลด้านความปลอดภัย

การปฏิบัติตามแนวทางด้านความปลอดภัยต่อไปนี้มีความสำคัญอย่างยิ่งในการป้องกันการบาดเจ็บและความเสียหายต่อผลิตภัณฑ์

• Always unplug the power supply before handling the motor. This prevents accidental activation and electrical hazards.
• Be cautious of moving parts when installing or replacing the motor. Keep hands and loose clothing clear.
• Do not exceed the maximum load capacity of 750N push/pull force. Overloading can damage the motor and lead to failure.
• Ensure all connections are secure and correctly wired before restoring power.
• ผลิตภัณฑ์นี้มีวัตถุประสงค์สำหรับใช้ภายในอาคารเท่านั้น

3. สินค้าหมดview

The Okin JLDQ.11.156.333A is an original Okin JLDQ series motor designed for power recliners. It features a robust design for reliable performance.

คุณสมบัติหลัก:

• Constructed with 1 motor and 2 connectors.
• Appearance: Black (PA) and Silver White (Aluminum).
• Stroke: 333 mm, designed to move with a slide block.
• Load Capacity: Push force: 750 N, Pull force: 750 N.
• Operation Frequency: On 1 min / Off 8 min.
• Minimum Installation Size (shrink): 156 mm.
• Maximum Installation Size: 489 mm.

ภาพที่ 3.1: จากบนลงล่าง view of the Okin JLDQ.11.156.333A Power Recliner Motor, showing its linear actuator design.

ภาพที่ 3.2: มุม view of the Okin JLDQ.11.156.333A motor, highlighting its compact design.

Motor Identification:

The motor's model number is typically located on a label on the motor housing. Verify this matches your existing motor or the required replacement model.

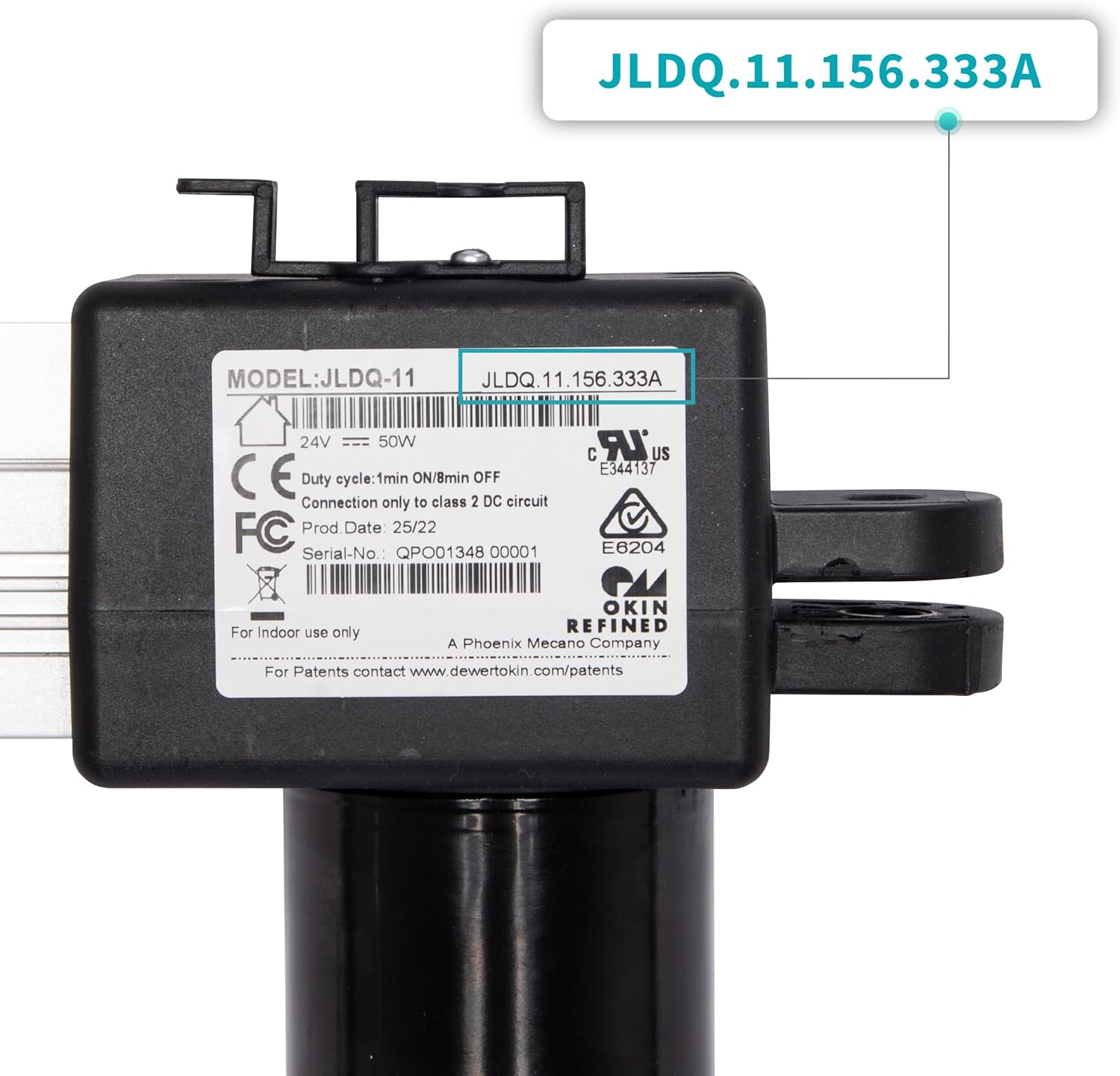

Image 3.3: Close-up of the motor label, clearly showing the model number JLDQ.11.156.333A and serial number QPO01348 00001.

รายละเอียดตัวเชื่อมต่อ:

The actuator motor set includes two types of connectors:

• A 5-pin inside-the-motor round plug for the switch hand control.
• A 2-pin square plug for the power supply.

Image 3.4: Illustration of the 5-pin round plug for hand control and the 2-pin square plug for power supply.

4. ข้อมูลจำเพาะทางเทคนิค

5. ความเข้ากันได้และการใช้งาน

This Okin JLDQ.11.156.333A motor is specifically designed to replace the original Okin JLDQ.11.156.333A model. It can also serve as a replacement for JLDQ.11.156.333 and JLDQ.11.156.333D series motors.

สำคัญ: Different actuator/motors may not be compatible with all recliner frames. The frame has specific requirements for the actuator's minimum installation dimension, stroke, and plug types. Always verify your existing motor's brand, model, stroke, and connector types against the specifications provided in this manual before purchasinจีและการติดตั้ง

6. คู่มือการติดตั้ง

Installation of the Okin recliner motor is generally straightforward for individuals with basic mechanical aptitude. However, if you are unsure, it is recommended to seek professional assistance.

เครื่องมือที่จำเป็น:

• ชุดประแจกระบอก
• Hex keys (Allen wrenches)
• Pliers (optional, for cable management)

ขั้นตอนการติดตั้ง:

1. ตัดการเชื่อมต่อไฟฟ้า: Ensure the recliner is completely unplugged from the wall outlet.
2. Position Recliner: Carefully turn the recliner over or tilt it back to access the motor assembly.
3. ถอดมอเตอร์เก่าออก: Disconnect the power supply and hand control cables from the old motor. Note their positions for re-connection.
4. ถอดมอเตอร์เก่าออก: Using appropriate tools, unbolt the old motor from the recliner frame. Retain all existing bolts, nuts, and washers as the new unit typically does not include mounting hardware.
5. ติดตั้งมอเตอร์ใหม่: Position the new Okin JLDQ.11.156.333A motor in the same location as the old one. Secure it to the recliner frame using the retained hardware. Ensure it is firmly attached.
6. เชื่อมต่อสายเคเบิล: Connect the 5-pin round plug from the hand control to the corresponding port on the motor. Connect the 2-pin square plug from the power supply to its designated port. Ensure connections are snug.
7. ทดสอบฟังก์ชันการทำงาน: Carefully return the recliner to its upright position. Plug the recliner back into a power outlet. Test the hand control to ensure the motor operates smoothly through its full range of motion.
8. การตรวจสอบขั้นสุดท้าย: Inspect all connections and mounting points to ensure everything is secure before regular use.

7. การดำเนินการ

Once installed and connected, the Okin JLDQ.11.156.333A power recliner motor operates via the recliner's hand control. Pressing the appropriate buttons on the hand control will extend or retract the linear actuator, moving the recliner mechanism.

• Ensure the recliner is plugged into a functional power outlet.
• Use the hand control buttons to adjust the recliner to your desired position.
• Avoid continuous operation for more than 1 minute to prevent overheating. Allow an 8-minute rest period after 1 minute of continuous use.

8. การบำรุงรักษาและการดูแล

Regular maintenance helps ensure the longevity and smooth operation of your Okin recliner motor.

• การทำความสะอาด: Wipe clean the motor and surrounding areas with a dry or slightly damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no liquids enter the motor housing.
• การตรวจสอบ: Periodically check all electrical connections for looseness or damage. Inspect the motor's mounting bolts to ensure they remain tight.
• การหล่อลื่น: The motor is factory-lubricated and generally does not require additional lubrication. If you notice unusual friction or noise, consult a professional.
• สายไฟ: Ensure the power cord is not pinched, cut, or damaged. Replace if necessary.

9. การแก้ไขปัญหาทั่วไป

If your recliner motor is not functioning as expected, follow these troubleshooting steps:

1. ไม่มีไฟฟ้า:
   • Check if the recliner is securely plugged into a working electrical outlet.
   • Verify the power supply unit (transformer) is receiving power and its indicator light (if present) is on.
   • ตรวจสอบสายไฟเพื่อดูความเสียหายที่มองเห็นได้
2. Motor Not Responding to Hand Control:
   • First, troubleshoot the hand control switch. Ensure its cable is securely connected to the motor.
   • If possible, test the hand control with a known working motor or test the motor with a known working hand control to isolate the issue.
   • Check the 5-pin round plug connection for any looseness or damage.
3. Motor Makes Noise but Does Not Move:
   • Ensure there are no obstructions preventing the recliner mechanism from moving.
   • Check if the motor's mounting bolts are too tight, causing binding.
   • Verify the motor's stroke is not fully extended or retracted and hitting a limit.
4. การทำงานเป็นระยะ:
   • Check all connections for intermittent contact.
   • Ensure the motor is not overheating due to continuous use (refer to operation frequency).

หากขั้นตอนเหล่านี้ไม่สามารถแก้ไขปัญหาได้ โปรดติดต่อฝ่ายบริการลูกค้าเพื่อขอความช่วยเหลือเพิ่มเติม

10. การรับประกันและการสนับสนุนลูกค้า

ข้อมูลการรับประกัน:

This Okin recliner motor is covered by a manufacturer's warranty. Please refer to the product packaging or contact the seller for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.

การสนับสนุนลูกค้า:

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact the seller or the manufacturer directly. Provide your product model number (JLDQ.11.156.333A) and serial number (if available) when seeking support.

You can visit the Okin store for more information: ร้าน Okin บน Amazon
