1. บทนำ
The ROBOTIME Magic Piano AMK81 is a mechanical 3D wooden puzzle music box. This kit allows you to construct a miniature piano that functions as a music box, featuring self-playing keys and visible gear mechanisms. It is designed for enthusiasts who enjoy detailed assembly projects and appreciate musical instruments.
Upon completion, the model serves as an elegant decorative item for various settings, including homes, offices, cafes, and bookstores. The music box operates via a clockwork mechanism, requiring no batteries.

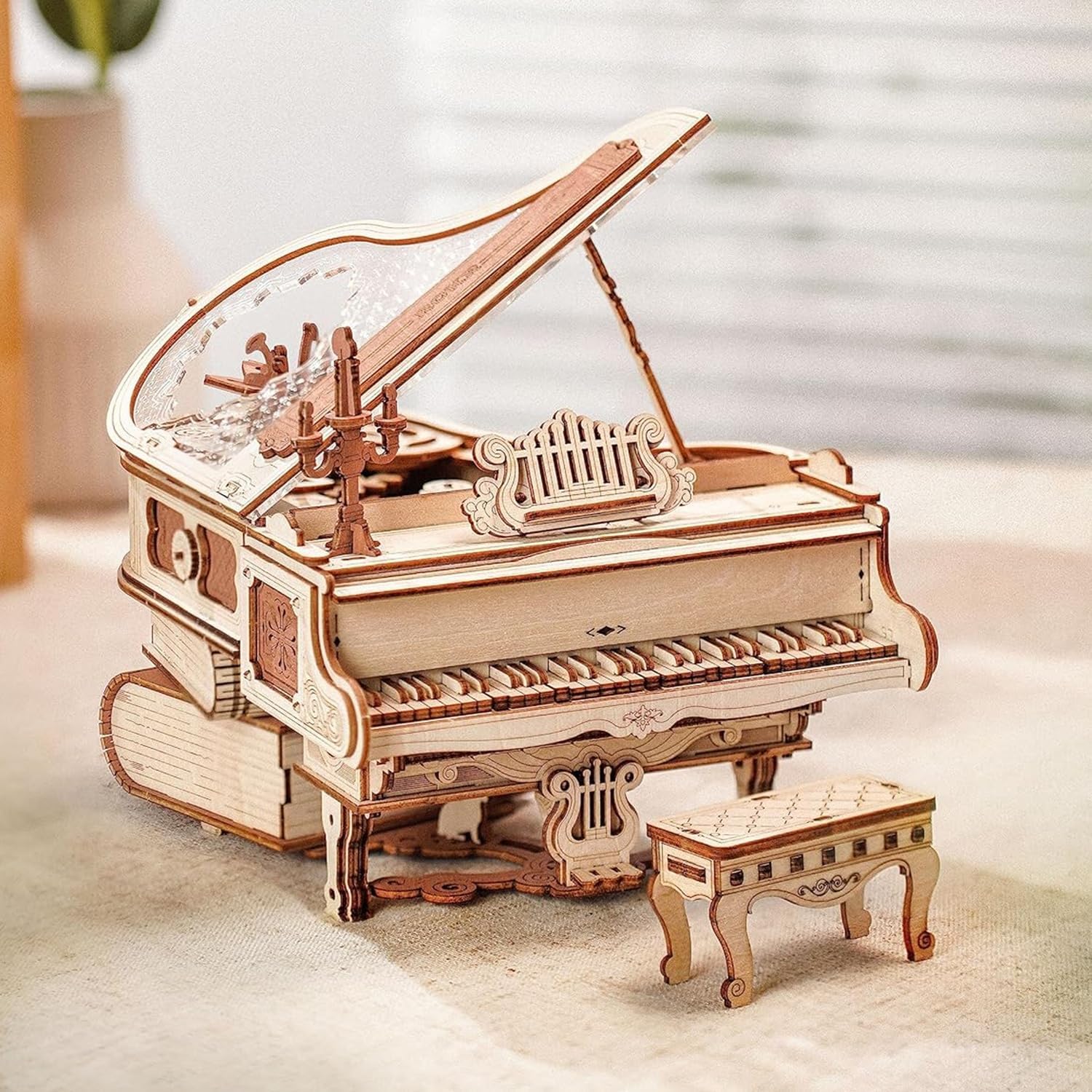

Image 1: The fully assembled ROBOTIME Magic Piano AMK81 3D Wooden Puzzle Music Box.
2. คำเตือนด้านความปลอดภัย
- อายุที่แนะนำ: This product is recommended for individuals 14 years of age and older. It contains small parts and intricate components that may not be suitable for younger children.
- อันตรายจากการสำลัก: Keep small pieces away from young children to prevent choking.
- จัดการด้วยความระมัดระวัง: The wooden pieces are delicate. Apply gentle pressure during assembly to avoid breakage.
- ขอบที่คมชัด: Some laser-cut edges may be sharp. Handle with care to prevent cuts.
- การระบายอากาศ : Assemble in a well-ventilated area.
3. อะไรอยู่ในกล่อง
Your ROBOTIME Magic Piano AMK81 kit includes all necessary components for assembly:
- Laser-cut wooden sheets containing 223 puzzle pieces.
- Instruction Book with detailed assembly steps.
- Music box mechanism.
- Wax for lubricating gears.
- Any additional small parts or tools required for assembly.
4. การติดตั้งและการประกอบ
Follow these steps to assemble your Magic Piano AMK81 music box. No glue is required for assembly.
- เปิดแพ็คเกจ: Carefully unbox all components and ensure all parts are present according to the parts list in the instruction manual.
- อ่านคำแนะนำ: Before beginning, thoroughly read the entire instruction manual to familiarize yourself with the assembly process and identify all pieces.
- Take Out the Pieces: Gently detach the laser-cut wooden pieces from their sheets. It is recommended to sand the corners of the cut-out pieces for smoother operation and fit.
- Build Up Step by Step: Follow the detailed, illustrated instructions provided in the manual. Assemble the model piece by piece, ensuring each component fits securely. Be gentle when connecting pieces to avoid breakage.
- Gear Assembly: Pay close attention to the gear mechanisms. Apply the provided wax to the gears as instructed to ensure smooth rotation and proper function of the self-playing keys. Spend time ensuring all gears turn properly before proceeding.
ภาพที่ 2: จบแล้วview of the initial assembly steps, from unboxing to starting the build.
Image 3: A close-up of the assembly process, highlighting the detailed nature of the puzzle.
5. Operating the Music Box
Once fully assembled, your Magic Piano AMK81 is ready to play its melody.
- Wind-up Mechanism: Locate the wind-up spring key, typically on the side or bottom of the music box. Gently turn the key clockwise to wind the internal clockwork mechanism. Do not overwind.
- Enjoy the Melody: As the mechanism unwinds, the music box will play its tune. Observe the self-playing piano keys and the visible gear transmission as they move in sync with the music.
Image 4: Key operational features of the Magic Piano AMK81, including the wind-up mechanism.
6. การบำรุงรักษา
To ensure the longevity and smooth operation of your ROBOTIME Magic Piano AMK81, consider the following maintenance tips:
- ปัดฝุ่น: Regularly dust the model with a soft, dry cloth to prevent dust accumulation in the gears and on the surface.
- Gear Lubrication: If the gears begin to stick or operate less smoothly over time, reapply a small amount of the provided wax (or a suitable alternative lubricant for wooden mechanisms) to the contact points of the gears.
- หลีกเลี่ยงความชื้น: Keep the wooden puzzle away from excessive moisture or humidity, which can cause the wood to warp or swell.
- หลีกเลี่ยงแสงแดดโดยตรง: Prolonged exposure to direct sunlight can cause the wood to fade or become brittle.
7 การแก้ไขปัญหา
If you encounter issues with your Magic Piano AMK81, refer to these common solutions:
- Music Box Not Playing or Sticking:
- Ensure the wind-up key is fully wound (without over-tightening).
- Check all gear connections. Sometimes, pieces may not be fully seated or aligned. Gently adjust any misaligned gears.
- Reapply wax to the gears, especially if they feel stiff. Ensure the wax is evenly distributed.
- Inspect for any broken or warped pieces that might be obstructing movement.
- ชิ้นส่วนไม่พอดีกัน:
- Verify you are using the correct pieces for the current step by cross-referencing with the instruction manual.
- Ensure the edges of the pieces are smooth. If not, gently sand them to remove any burrs from the laser-cutting process.
- Apply gentle, even pressure. Avoid forcing pieces, as this can cause them to break.
- ชิ้นส่วนที่แตกหัก:
- Some kits include spare copies of particularly fragile or intricate pieces. Check your kit for these.
- For minor breaks, wood glue can be used to repair pieces, but ensure it does not interfere with moving parts.
8. ข้อมูลจำเพาะ
| หมายเลขรุ่น | เอเอ็มเค81 |
| ขนาดสินค้า (กว้าง x ยาว x สูง) | 6.7 x 5.5 x 5 นิ้ว |
| น้ำหนักสินค้า | 1 ปอนด์ |
| จำนวนชิ้น | 223 |
| เวลาประกอบโดยประมาณ | 4.5 ชั่วโมง |
| อายุที่แนะนำโดยผู้ผลิต | 14 ปีขึ้นไป |
| แหล่งพลังงาน | Clockwork mechanism (no batteries required) |
9. การรับประกันและการสนับสนุน
Specific warranty details for the ROBOTIME Magic Piano AMK81 are not provided in the product information. For any warranty inquiries, missing parts, or technical support, please contact ROBOTIME customer service directly or visit the official ROBOTIME store on Amazon.
