คู่มือการใช้งานยางรถตัดหญ้าแบบไม่ใช้ยางใน SUNROAD ขนาด 18x6.50-8 4 ชั้น

1. สูงกว่าview

This manual provides essential information for the proper installation, operation, and maintenance of your SUNROAD 18x6.50-8 4-Ply Tubeless Lawn Mower Tractor Turf Tires. These tires are designed for various lawn and garden equipment, offering durability and performance for turf applications.

Figure 1: SUNROAD 18x6.50-8 4-Ply Tubeless Lawn Mower Tractor Turf Tires.

คุณสมบัติหลัก:

• Heavy 4-ply rated construction for puncture and abrasion resistance.
• Durable, powerful smooth rolling design for high performance.
• Tubeless design for convenience.
• Turf-friendly pattern for superior traction without damaging lawns.

Figure 2: Key features of the SUNROAD turf tires.

2. การตั้งค่าและการติดตั้ง

2.1 Identifying the Correct Tire Size

Before installation, ensure you have the correct tire size for your equipment. The tire size is typically molded into the sidewall of your existing tire. For this product, the size is 18x6.50-8, indicating an 18-inch outer diameter, 6.50-inch section width, and an 8-inch rim diameter.

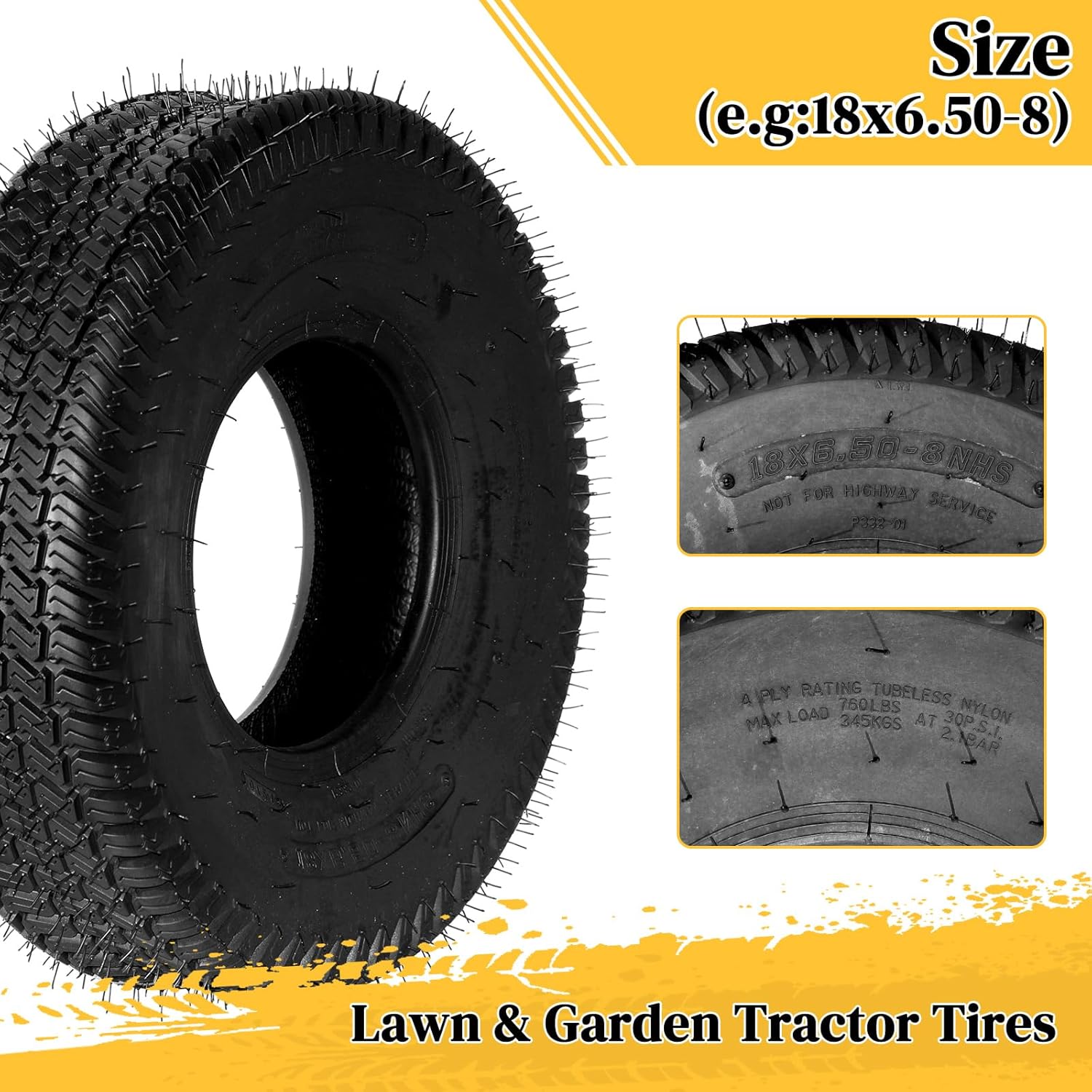

Figure 3: Understanding tire size measurements.

รูปที่ 4: อดีตample of tire size markings on the sidewall.

2.2 เนื้อหาบรรจุภัณฑ์

Each package includes two (2) lawn mower tires. Rims are NOT included. If you ordered multiple sets, they may arrive in separate packages.

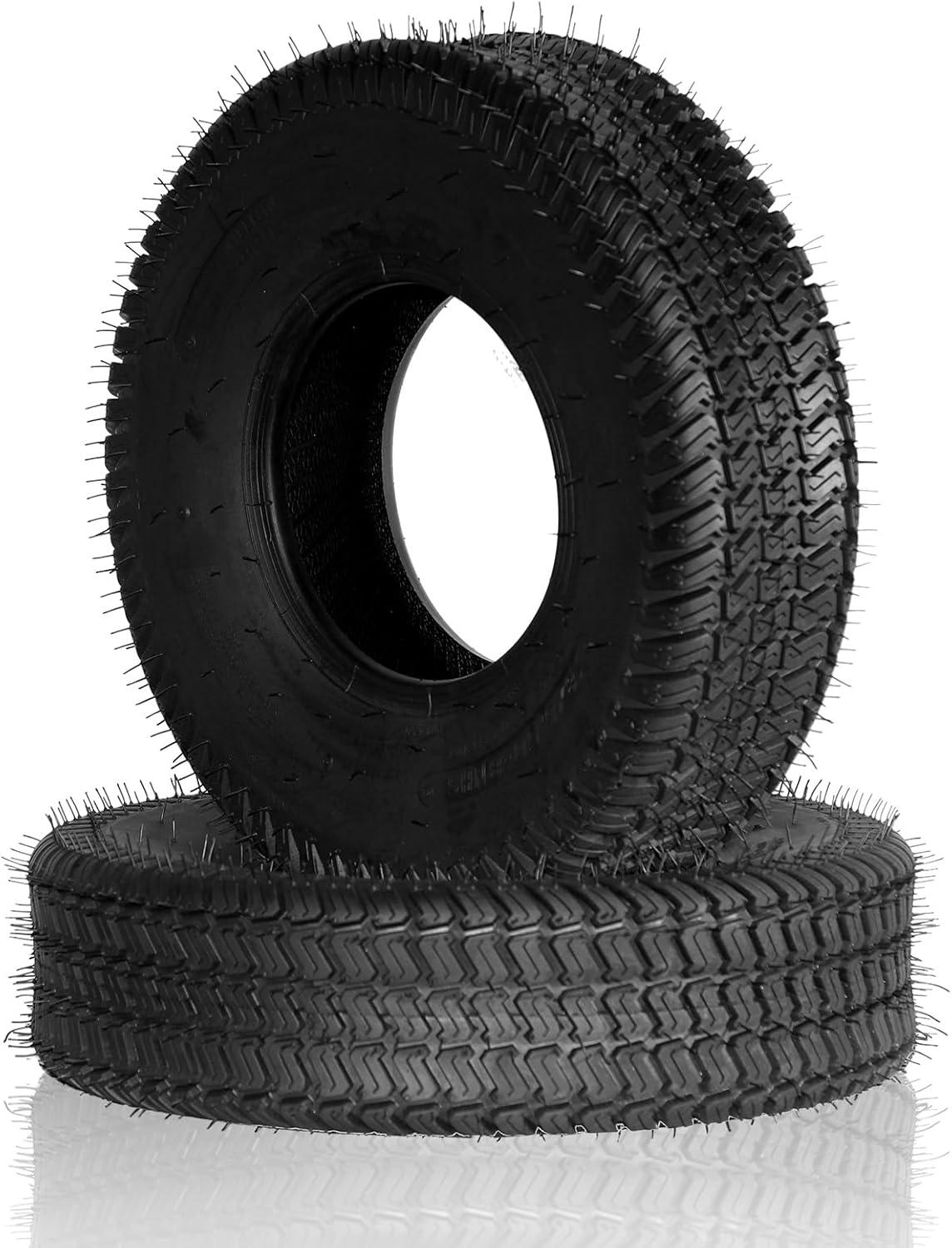

Figure 5: Package contents typically include two tires.

การติดตั้ง 2.3 ทั่วไปหมายเหตุ

Installation of tires requires appropriate tools and safety precautions. It is recommended to have tires installed by a qualified professional. Ensure the tire beads are properly seated on the rim during inflation to prevent air leaks. Refer to your equipment's manual for specific tire pressure recommendations.

Figure 6: Important safety marking: 'NOT FOR HIGHWAY SERVICE'.

3. คู่มือการใช้งาน

These tires are designed for optimal performance on lawn mowers, riding lawn mowers, lawn tractors, garden tractors, and other various grass cutting and farm equipment. They are not intended for highway use.

Figure 7: Major applications for SUNROAD turf tires.

3.1 แรงดันลมยาง

Maintain the recommended tire pressure for safe and efficient operation. The maximum pressure for these tires is 28 PSI. Proper inflation ensures the tire maintains its intended contact area and grip.

Figure 8: Sidewall marking indicating maximum load and pressure.

3.2 Load Capacity and Speed

• โหลดสูงสุด: 770 lbs (345 kg) at 28 PSI.
• จำกัดความเร็ว: These tires are not designed for high-speed applications. The tire speed cannot exceed 80 km/h (approximately 50 mph). They are specifically marked 'NOT FOR HIGHWAY SERVICE'.

4. การบำรุงรักษา

Regular maintenance extends the life and performance of your tires. Inspect your tires periodically for signs of wear, damage, and proper inflation.

4.1 การตรวจสอบ

• Check tire pressure regularly and adjust to the recommended PSI.
• Examine the tread for excessive wear, cuts, or embedded objects.
• Inspect sidewalls for cracks, bulges, or punctures.

รูปที่ 9: อดีตamples of tire wear and damage requiring attention.

4.2 พื้นที่จัดเก็บ

When not in use for extended periods, store tires in a cool, dry place away from direct sunlight and harsh chemicals to prevent premature aging.

5 การแก้ไขปัญหา

5.1 Loss of Air Pressure

• สาเหตุ: Puncture, improper bead seating, valve stem leak.
• สารละลาย: Inspect for punctures and repair if possible. Re-seat tire beads or replace valve stem. Seek professional assistance if the leak persists.

5.2 Uneven Wear

• สาเหตุ: Incorrect tire pressure, misalignment of equipment, or worn suspension components.
• สารละลาย: Ensure tires are inflated to the correct PSI. Check equipment for alignment issues or worn parts.

5.3 Difficulty Seating Beads

• สาเหตุ: Tire deformation from shipping, dry beads.
• สารละลาย: Apply a tire lubricant to the beads and rim. Use a ratchet strap around the tire circumference to help push the beads outwards while inflating. If issues persist, professional mounting is recommended.

6. ข้อมูลจำเพาะ

Figure 10: Detailed tire specifications.

7. ข้อมูลการรับประกัน

Specific warranty details for this product are not provided in the available information. Please refer to the product packaging or contact the manufacturer directly for warranty terms and conditions.

8. การสนับสนุน

For further assistance or inquiries regarding your SUNROAD tires, please refer to the contact information provided on the product packaging or the official SUNROAD website. Specific customer support contact details are not available in this document.
