คู่มือการใช้งานเครื่องยกแผง Scheppach TBL400

การแนะนำ

Thank you for choosing the Scheppach TBL400 Panel Lift. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your panel lift. Please read this manual thoroughly before assembly or operation to ensure proper use and to prevent injury or damage.

The Scheppach TBL400 Panel Lift is designed to assist with overhead work, making the installation of drywall, chipboard, wood, and metal panels easier and safer. Its robust design and versatile features make it an indispensable tool for both professional and DIY applications.

คำแนะนำเพื่อความปลอดภัย

ปฏิบัติตามข้อควรระวังด้านความปลอดภัยต่อไปนี้เสมอเพื่อป้องกันการบาดเจ็บส่วนบุคคลและความเสียหายต่ออุปกรณ์:

• Read and understand all instructions before operating the panel lift.
• ตรวจสอบให้แน่ใจว่าพื้นที่ทำงานไม่มีสิ่งกีดขวางและมีแสงสว่างเพียงพอ
• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and a hard hat.
• ไม่เกินความสามารถในการรับน้ำหนักสูงสุด 68 กก. (150 ปอนด์)
• Ensure the panel lift is on a stable, level surface before loading or lifting.
• Engage the wheel brakes when the lift is in position and before lifting.
• เก็บมือและเสื้อผ้าให้ห่างจากชิ้นส่วนที่กำลังเคลื่อนไหวในระหว่างการทำงาน
• Do not attempt to modify the panel lift. Use only original replacement parts.
• Store the panel lift in a dry, secure location when not in use.

ส่วนประกอบมากกว่าview

Familiarize yourself with the main components of your Scheppach TBL400 Panel Lift:

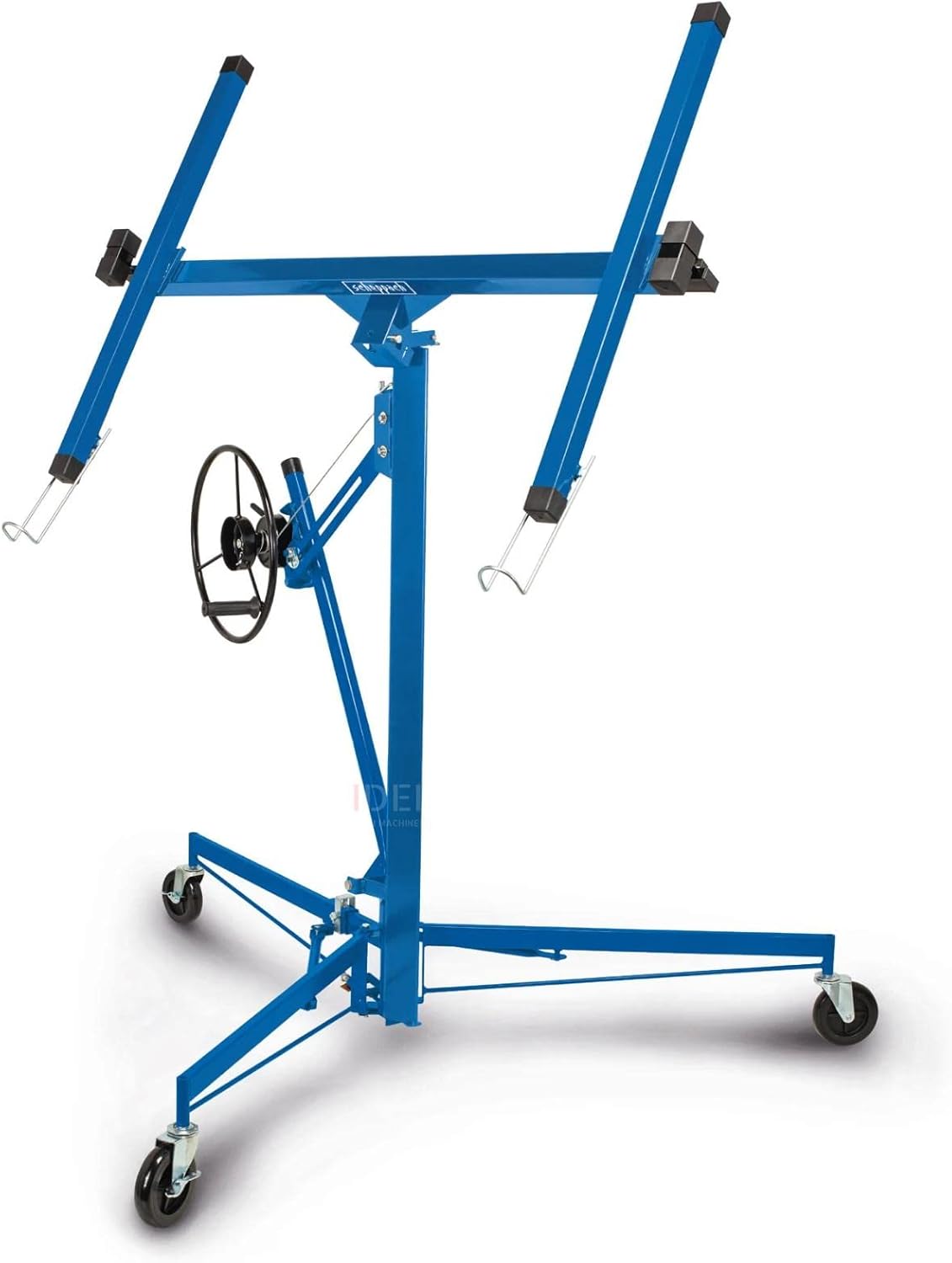

Figure 1: Fully assembled Scheppach TBL400 Panel Lift, showing the main frame, lifting mechanism, panel support arms, and swivel wheels.

• เฟรมหลัก: The central support structure of the lift.
• กลไกการยก: Includes the hand wheel and cable system for raising and lowering panels.
• Panel Support Arms: Two extendable arms with protective caps and stop hooks to hold panels securely.
• Swivel Wheels with Brakes: Three 360-degree rotating wheels for easy maneuverability, each equipped with a brake.
• ฐาน: The wide, stable base provides support and balance.

การติดตั้งและการประกอบ

The Scheppach TBL400 Panel Lift is designed for easy assembly and disassembly for transport and storage.

Figure 2: The panel lift disassembled into its main components for compact storage and transport.

ขั้นตอนการประกอบ:

1. Unpack all components and verify against the parts list (refer to packaging for full list).
2. Assemble the main frame and base according to the diagrams in the separate assembly guide (if provided). Ensure all bolts and fasteners are securely tightened.
3. Attach the panel support arms to the main frame. Ensure they are correctly oriented and secured.
4. Verify that the hand wheel and lifting cable system operate smoothly.
5. Ensure all three swivel wheels are properly attached and their brakes function correctly.

คำแนะนำการใช้งาน

Follow these steps for safe and effective operation of your panel lift:

1. Positioning the Lift:

• Roll the panel lift to the desired working area.
• Ensure the floor is level and free of debris.
• Engage the brakes on all three swivel wheels to secure the lift in place.

2. Loading the Panel:

Figure 3: A worker carefully positioning a large panel onto the support arms of the lift.

• Lower the panel support arms to a comfortable height using the hand wheel.
• Carefully place the panel onto the support arms, ensuring it rests securely against the stop hooks.
• Adjust the extension arms to match the panel size, ensuring even support. The arms extend in 3 stages (1280 / 2340 / 2950 mm).

3. Lifting and Tilting:

Figure 4: The panel lift with a panel raised to ceiling height and tilted for angled installation.

• Slowly turn the hand wheel to raise the panel to the desired height. The automatic brake will hold the panel in position when you stop turning.
• The lift has a large lifting range from 1220 mm to 3350 mm.
• For sloped ceilings or walls, the panel can be tilted up to 60 degrees. Adjust the tilt mechanism as needed.
• Once the panel is in position, secure it to the ceiling or wall.

4. Lowering and Unloading:

• After securing the panel, slowly turn the hand wheel in the opposite direction to lower the support arms.
• Once the arms are fully lowered, carefully remove any remaining panel pieces or the lift itself.

การซ่อมบำรุง

Regular maintenance ensures the longevity and safe operation of your Scheppach TBL400 Panel Lift:

• การทำความสะอาด: Wipe down the lift after each use to remove dust and debris. Use a damp ผ้าและผงซักฟอกอ่อน ๆ หากจำเป็น
• การหล่อลื่น: Periodically lubricate moving parts, such as the lifting cable, pulleys, and wheel axles, with a suitable lubricant.
• การตรวจสอบ: Before each use, inspect the lift for any signs of wear, damage, or loose fasteners. Pay close attention to the lifting cable, support arms, and wheel brakes.
• พื้นที่จัดเก็บ: When not in use, store the panel lift in a dry, protected area. It can be disassembled for compact storage (refer to Figure 2).

การแก้ไขปัญหา

If you encounter issues with your panel lift, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Scheppach customer service.

ข้อมูลจำเพาะ

Key technical specifications for the Scheppach TBL400 Panel Lift:

ข้อมูลการรับประกัน

Scheppach products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Scheppach webไซต์ เก็บหลักฐานการซื้อของคุณไว้เพื่อใช้ในกรณีเรียกร้องการรับประกัน

การสนับสนุนลูกค้า

If you have any questions, require technical assistance, or need to order replacement parts, please contact Scheppach customer service. Contact information can typically be found on the official Scheppach webไซต์หรือบนบรรจุภัณฑ์ผลิตภัณฑ์ของคุณ
