คู่มือการใช้งานจักรยานไฟฟ้า DYU FF500

1. บทนำ

Welcome to the DYU FF500 Electric Bicycle. This manual provides essential information for safe operation, maintenance, and optimal performance of your new electric bike. Please read it thoroughly before your first ride.

2. การติดตั้งและการประกอบ

Your DYU FF500 electric bike comes partially assembled. Follow these steps to complete the setup.

2.1. การพับและการกางออก

The bike features a convenient folding mechanism for easy storage and transport. Ensure all locking mechanisms are securely engaged when unfolding for riding.

2.2. การปรับแฮนด์

The handlebar height can be adjusted for rider comfort. While adjustable, the range is approximately 6-7 inches. Loosen the quick-release lever, adjust to desired height, and secure firmly.

3. การใช้งานจักรยานไฟฟ้าของคุณ

The DYU FF500 offers three riding modes and three speed assist levels, controlled via the LCD display on the handlebars.

3.1. ฟังก์ชั่นการแสดงผล LCD

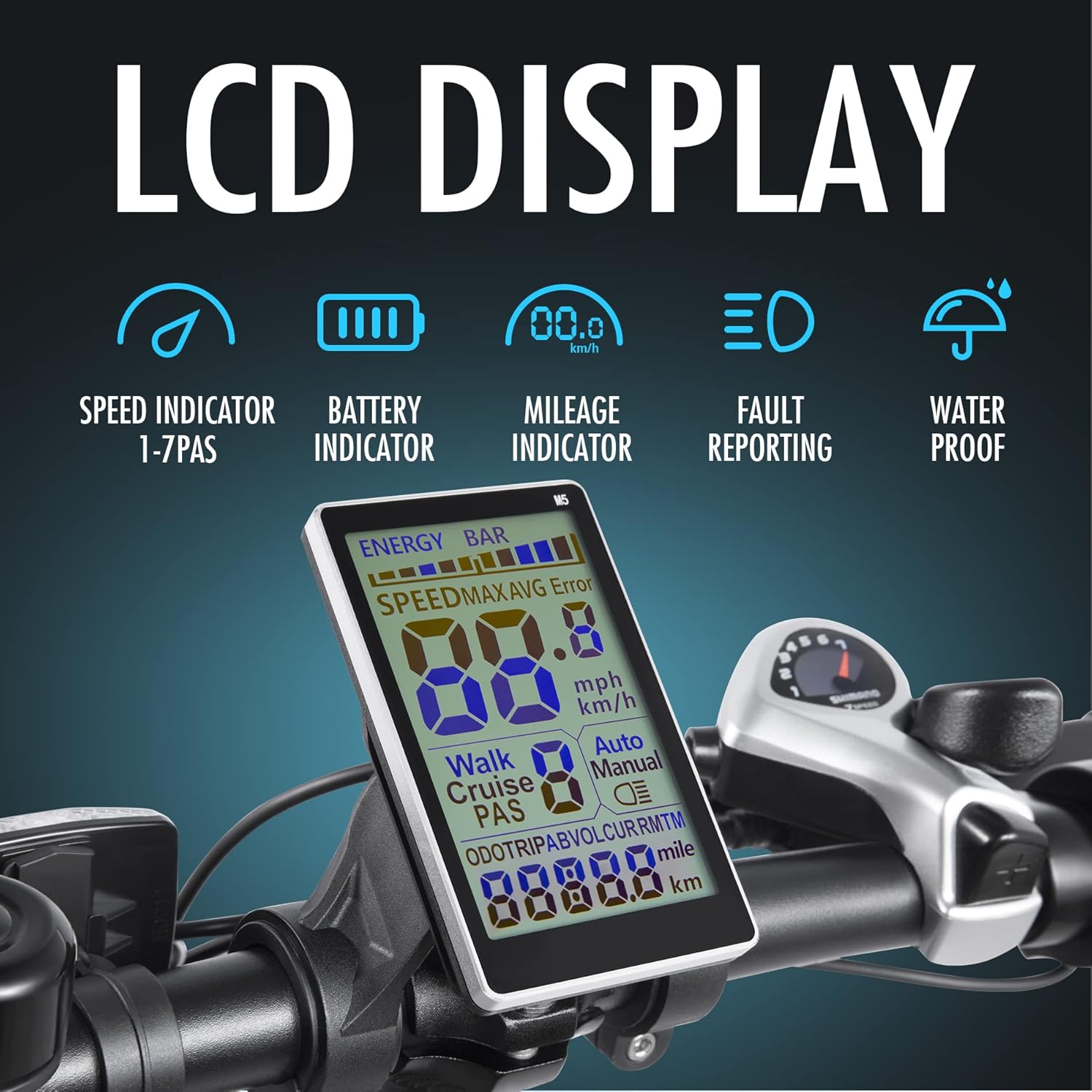

The integrated LCD display provides real-time information including speed, battery level, distance covered, and fault reporting. Use the control pad to navigate through modes and assist levels.

3.2. มอเตอร์และคันเร่ง

Equipped with a 48V 500W high-speed brushless gear motor, the bike can reach speeds of up to 20 MPH. The throttle provides responsive power delivery, engaging quickly when pressed.

4. Comfort and Ride Performance

Experience a comfortable ride thanks to the dual suspension system and an air-filled saddle.

4.1. Dual Shock Absorbers

The bike features both a front suspension fork with lockout and a suspension seat post, significantly improving ride comfort over varied terrain.

4.2. Air-Filled Saddle

The air-filled saddle can be adjusted for firmness using the integrated air pump and release valve located at the rear of the saddle, allowing for personalized comfort.

5. Off-Road Use

The 26x4 inch fat tires and dual suspension allow the DYU FF500 to handle various terrains, including snow, beaches, and rugged mountain roads. While capable, tight single-track trails may be challenging due to the bike's upright posture and high center of gravity. Wider trails are recommended for off-road exploration.

6. Power and Range

The 48V 14Ah LG removable battery provides a range of up to 48 miles per charge, suitable for daily commuting and work. The battery can be charged while installed on the bike or removed for charging.

The bike demonstrates strong hill-climbing ability, capable of assisting a 185lb rider up a 26% grade hill with minimal additional effort.

7. ส่วนประกอบและคุณสมบัติหลัก

• เบรค : Dual disc brakes ensure reliable stopping power in various conditions.
• เกียร์: A 7-speed Shimano derailleur system allows for versatile riding across different terrains and inclines.
• แสงสว่าง: A bright LED headlight is integrated for improved visibility during low-light conditions.



• แร็คท้ายรถ: An integrated rear shelf provides convenient cargo carrying capability.

8. การบำรุงรักษา

การบำรุงรักษาตามปกติจะช่วยให้จักรยานไฟฟ้าของคุณมีอายุการใช้งานยาวนานและปลอดภัย

• การดูแลแบตเตอรี่ Charge the battery regularly, even when not in daily use, to prolong its lifespan. Store the battery in a cool, dry place away from direct sunlight.
• แรงดันลมยาง: Maintain recommended tire pressure as indicated on the tire sidewall for optimal performance, efficiency, and safety.
• การตรวจสอบเบรค: Regularly check brake pads and cables for wear and proper function. Adjust or replace as needed.
• การหล่อลื่นโซ่: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust. Apply lubricant after every few rides or when the chain appears dry.
• การทำความสะอาดทั่วไป: ทำความสะอาดจักรยานเป็นประจำด้วยโฆษณาamp cloth. Avoid high-pressure washing directly on electrical components to prevent damage.

9 การแก้ไขปัญหา

ต่อไปนี้คือปัญหาทั่วไปบางประการและแนวทางแก้ไขที่เป็นไปได้:

• จักรยานไม่เปิด: Check battery connection and ensure it is fully charged. Verify that the power button on the LCD display is pressed firmly.
• มอเตอร์ไม่ช่วย: Confirm the pedal assist level on the display is not set to zero. Check for any error codes displayed on the LCD. Ensure brake levers are not partially engaged.
• เสียงเบรกดังเอี๊ยด: Clean brake rotors and pads with a suitable brake cleaner. If persistent, the brake pads may need to be replaced or the calipers professionally adjusted.
• เสียงผิดปกติ: Inspect for any loose components, especially around the folding mechanism, suspension, or wheel axles. Tighten any loose bolts or connections.

10. ข้อมูลจำเพาะ

11. การรับประกันและการสนับสนุน

DYU offers a one-month free return and exchange service. A one-year warranty is provided on the electric motor, battery, and charger. For any issues or inquiries, please feel free to contact customer service.

For further assistance, visit the official DYU Store: DYU Smart E-Bikes Store.
