WOLFSTORM Truck Bed Roll Bar Instruction Manual

1. บทนำ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your WOLFSTORM Truck Bed Roll Bar. Designed for durability and enhanced vehicle utility, this roll bar is a robust addition to your truck, offering both aesthetic appeal and functional benefits for off-road and utility applications.

Please read this manual thoroughly before beginning installation to ensure proper fitment and safe operation.

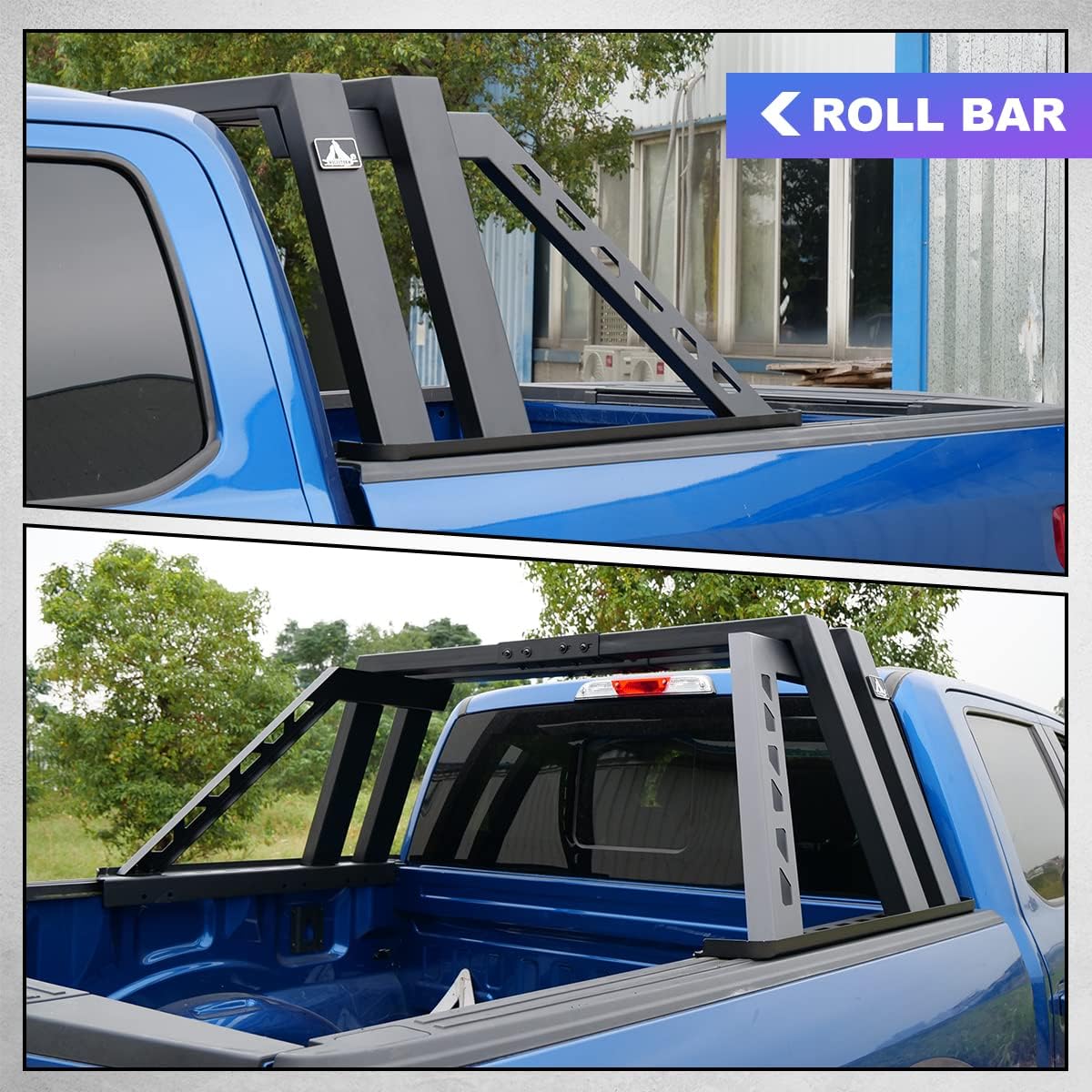

Figure 1.1: WOLFSTORM Truck Bed Roll Bar and its application on a Ford F-150.

2. ความเข้ากันได้ของผลิตภัณฑ์

The WOLFSTORM Truck Bed Roll Bar is specifically designed for the following vehicle models:

• 2018 Ford F150 4-Doors
• 2019 Ford F150 4-Doors
• 2020 Ford F150 4-Doors

It is crucial to verify that this Truck Roll Bar fits your specific vehicle model and year before proceeding with purchase or installation. Compatibility ensures proper fitment and safe operation.

Figure 2.1: Compatibility details for the WOLFSTORM Truck Bed Roll Bar.

3. ข้อมูลด้านความปลอดภัย

Always prioritize safety during installation and use. Adhere to the following guidelines:

• ตรวจสอบให้แน่ใจว่ารถจอดอยู่บนพื้นราบและดึงเบรกมือไว้
• สวมอุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสม เช่น ถุงมือและอุปกรณ์ป้องกันดวงตาในระหว่างการติดตั้ง
• Do not overtighten fasteners, as this can damage components. Refer to torque specifications if available.
• Regularly inspect the roll bar and all mounting hardware for signs of wear, damage, or loosening.
• Do not exceed the vehicle's gross vehicle weight rating (GVWR) or gross axle weight rating (GAWR) after installation.
• หากคุณไม่แน่ใจเกี่ยวกับขั้นตอนใด ๆ ของกระบวนการติดตั้ง โปรดขอความช่วยเหลือจากผู้เชี่ยวชาญ

4. รายการชิ้นส่วน

Before beginning installation, verify that all components listed below are present and undamaged:

• 1 x WOLFSTORM Truck Bed Roll Bar Assembly
• All necessary Mounting Hardware (bolts, nuts, washers, etc.)

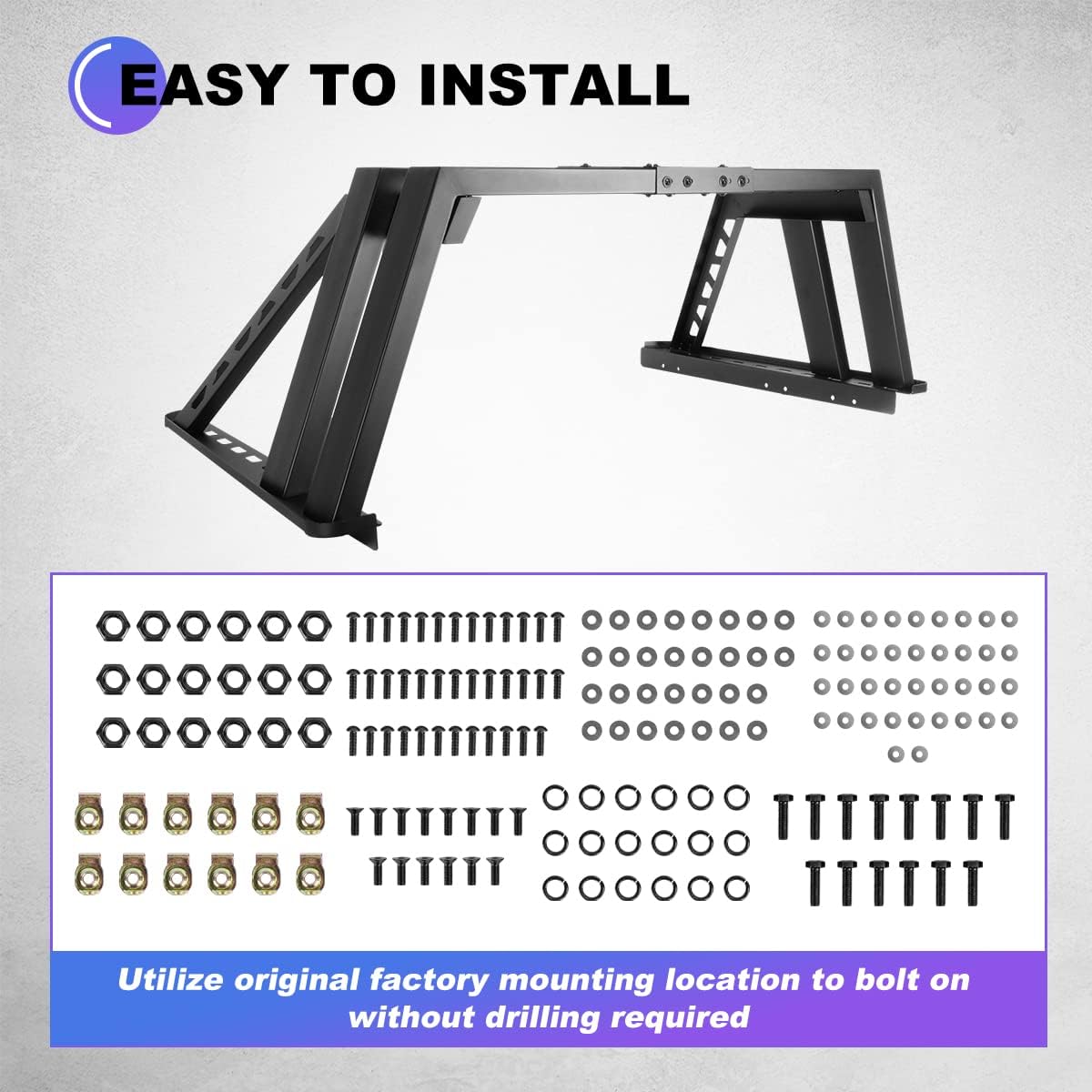

Figure 4.1: Included components and mounting hardware.

5. คำแนะนำในการติดตั้ง

The WOLFSTORM Truck Bed Roll Bar is designed for a straightforward, bolt-on installation without the need for drilling. Follow these steps carefully:

1. การตระเตรียม: Park your Ford F-150 on a flat, stable surface. Engage the parking brake and turn off the engine.
2. แกะส่วนประกอบ: Carefully remove all parts from the packaging and lay them out to ensure all items from the parts list are present.
3. จัดตำแหน่งโครงเหล็กกันกระแทก: Carefully lift the roll bar assembly and position it onto the truck bed rails. Align the mounting points of the roll bar with the factory-installed mounting locations on your truck bed.
4. ปลอดภัยด้วยฮาร์ดแวร์: Using the provided mounting hardware, insert the bolts through the aligned holes. Hand-tighten all nuts and bolts initially to allow for minor adjustments.
5. การขันขั้นสุดท้าย: Once the roll bar is properly aligned and seated, progressively tighten all nuts and bolts using appropriate tools. Ensure all fasteners are securely tightened to prevent movement during vehicle operation. Do not overtighten.
6. การตรวจสอบขั้นสุดท้าย: After tightening all hardware, visually inspect the entire installation to confirm that the roll bar is securely mounted and all components are properly aligned.

Figure 5.1: Key design elements relevant to installation and stability.

Figure 5.2: Roll bar installed on a truck bed.

6. การใช้งานและการใช้งาน

The WOLFSTORM Truck Bed Roll Bar enhances the utility and aesthetic of your Ford F-150. Its primary functions include:

• Cargo Management: Provides additional tie-down points and structural support for securing oversized cargo in the truck bed.
• การติดตั้งอุปกรณ์เสริม: Can serve as a robust platform for mounting various off-road accessories such as auxiliary lights, antennas, or other equipment.
• การป้องกันยานพาหนะ: Contributes to the overall protection of the vehicle's cab area, particularly in off-road conditions, by strengthening the vehicle's structure.
• การเสริมความงาม: The matte black powder-coated finish and hollow-carved design add a rugged and aggressive appearance to your truck.

Always ensure any mounted accessories or cargo are securely fastened and do not obstruct your view or interfere with safe driving.

7. การบำรุงรักษา

To ensure the longevity and appearance of your WOLFSTORM Truck Bed Roll Bar, follow these maintenance guidelines:

• การทำความสะอาดปกติ: Clean the roll bar regularly with mild soap and water to remove dirt, dust, and road grime. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
• ตรวจสอบตัวยึด: Periodically check all mounting bolts and nuts to ensure they remain tight. Vibrations from driving can cause fasteners to loosen over time.
• การตรวจสอบการกัดกร่อน: Although the roll bar features a durable powder-coated finish and E-coat for corrosion resistance, regularly inspect for any signs of rust, especially in areas where the coating might be chipped or scratched. Touch up any damaged areas promptly to prevent further corrosion.
• ความสมบูรณ์ของโครงสร้าง: After any significant off-road use or impact, inspect the roll bar for any bends, cracks, or structural damage. Do not use a damaged roll bar.

Figure 7.1: Rust resistance features of the roll bar.

8 การแก้ไขปัญหา

หัวข้อนี้จะกล่าวถึงปัญหาทั่วไปที่คุณอาจพบเจอ:

• ปัญหา: The roll bar does not seem to fit my truck.

  สารละลาย: Double-check the product compatibility section (Section 2) to ensure your vehicle's make, model, and year match the specified fitment. Verify that you have a 4-door Ford F-150 from 2018, 2019, or 2020. If your vehicle matches and there are still fitment issues, contact customer support.

• ปัญหา: The roll bar feels loose after installation.

  สารละลาย: Re-check all mounting hardware. Ensure all bolts and nuts are securely tightened according to the installation instructions. Over time, vibrations can cause fasteners to loosen, so regular inspection is recommended.

• ปัญหา: The powder coating is chipping or showing signs of rust.

  สารละลาย: While the product is designed for excellent rust resistance, physical impacts can damage the coating. Clean the affected area and apply a rust-inhibiting primer and a matching matte black paint to prevent further corrosion. For significant damage, contact customer support.

9. ข้อมูลจำเพาะ

Figure 9.1: Dimensions of the Truck Bed Roll Bar.

รูปที่ 9.2: รายละเอียด view of the roll bar construction.

10. ข้อมูลการรับประกัน

All WOLFSTORM products, including this Truck Bed Roll Bar, come with a รับประกันหนึ่งปี ตั้งแต่วันที่ซื้อ การรับประกันนี้ครอบคลุมถึงข้อบกพร่องในวัสดุและฝีมือการผลิตภายใต้การใช้งานปกติ

The warranty does not cover damage resulting from improper installation, misuse, abuse, accidents, modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

11. การสนับสนุนลูกค้า

If you have any questions regarding the installation, operation, maintenance, or warranty of your WOLFSTORM Truck Bed Roll Bar, please do not hesitate to contact our customer service team.

For assistance, please visit the official WOLFSTORM store on Amazon or refer to the contact information provided with your product packaging. We are committed to providing professional and attentive support to ensure your satisfaction.

คุณยังสามารถเยี่ยมชม WOLFSTORM Store on Amazon สำหรับข้อมูลเพิ่มเติมและทรัพยากรสนับสนุน
