1. สินค้าหมดview
The VOOPOO Drag 4 is the fourth generation of the popular Drag series, designed for an enhanced vaping experience. It features a robust design with a maximum output of 177W and an innovative UFORCE-L Tank with leakproof top airflow. The device supports various power modes including RBA, Smart, TC, and Eco, offering flexibility and efficiency.
Image: The VOOPOO Drag 4 Vaping Kit, showcasing its sleek design and two available color variations.
คุณสมบัติที่สำคัญ ได้แก่:
- Maximum output of 177W.
- Adjustable power modes: RBA, Smart, TC, and Eco.
- UFORCE-L Tank with leakproof top airflow.
- Compatibility with PnP Dual In One coils for dense clouds and rich flavors.
- Type-C charging for faster battery replenishment.
2. คู่มือการติดตั้ง
2.1. การติดตั้งแบตเตอรี่
The VOOPOO Drag 4 requires 18650 batteries, which are sold separately. Ensure you use high-drain 18650 batteries suitable for vaping devices. Open the battery compartment cover, insert the batteries according to the polarity indicators (+/-), and close the cover securely.
2.2. การติดตั้งคอยล์
The kit includes two PnP coils: one 0.2Ω (preinstalled) and one 0.15Ω (spare). To install or replace a coil:
- Unscrew the base of the UFORCE-L Tank.
- Pull out the old coil (if replacing).
- Push the new PnP coil firmly into the tank base.
- Screw the tank base back onto the tank.

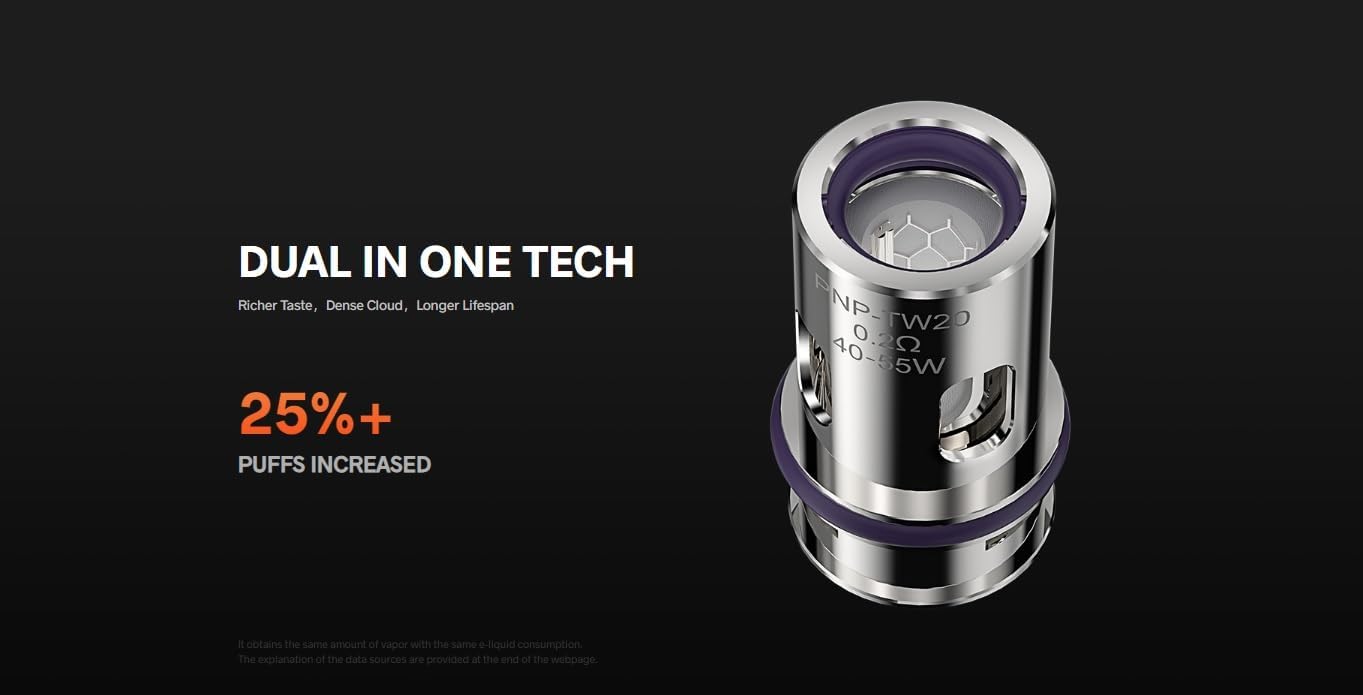

ภาพ: ระยะใกล้ view of the VOOPOO PnP Dual In One coils, highlighting their design for enhanced flavor and vapor production.
2.3. การเติมน้ำยาบุหรี่ไฟฟ้า
The UFORCE-L Tank features a convenient top-fill design. To fill with e-liquid:
- Unscrew the mouthpiece of the UFORCE-L Tank.
- Carefully fill the tank with your preferred e-liquid through the filling ports, avoiding the central airflow tube.
- Screw the mouthpiece back on securely.
- Allow the coil to prime for 5-10 minutes after the first fill or coil replacement to ensure the cotton is fully saturated.
3. คู่มือการใช้งาน
3.1. เปิด/ปิดเครื่อง
กดปุ่มยิง 5 ครั้งอย่างรวดเร็วเพื่อเปิดหรือปิดอุปกรณ์
3.2. การเลือกโหมด
The Drag 4 offers four adjustable power modes:
- โหมด RBA: Provides full control over wattage output, ideal for experienced users.
- โหมดอัจฉริยะ: Automatically selects the optimal wattage for your installed coil, simplifying operation.
- โหมด TC: Temperature Control mode for specific coil materials (e.g., Ni, Ti, SS).
- โหมดอีโค: Conserves battery life when the battery level drops to 40% or below.
Refer to the device's screen and buttons to navigate and select your desired mode. Typically, pressing the fire button 3 times rapidly allows you to cycle through modes.
3.3. วัดtagการปรับแต่ง
Use the adjustment buttons (usually '+' and '-') located below the screen to increase or decrease the wattage output. The current wattage is displayed on the OLED screen.
Image: The VOOPOO Drag 4 device, showing its OLED screen with a 177W power output display and control buttons.
3.4. การปรับการไหลเวียนของอากาศ
The UFORCE-L Tank features an airflow control wheel. Simply twist this wheel to adjust the airflow, allowing you to customize the tightness or looseness of your inhale to suit your preference for MTL (Mouth-to-Lung) or DTL (Direct-to-Lung) vaping.
Image: The VOOPOO UFORCE-L Tank, illustrating its innovative 3-hole top airflow system designed to prevent leaks and enhance flavor.
3.5. การชาร์จไฟ
Connect the included Type-C charging cable to the device's charging port and a suitable USB power source. The OLED screen will display the charging status. For optimal battery life, it is recommended to charge batteries externally with a dedicated charger.
Image: The VOOPOO Drag 4 device connected for charging via its USB-C port, with the screen indicating battery levels.
4. การบำรุงรักษา
4.1. Tank Cleaning
Regular cleaning of your UFORCE-L Tank is essential for optimal performance and flavor. Disassemble the tank by unscrewing the mouthpiece, top cap, glass tube, and base. Rinse all components (except the coil) with warm water. For thorough cleaning, use a soft brush or cloth. Ensure all parts are completely dry before reassembly.
4.2. การเปลี่ยนคอยล์
Coils have a limited lifespan and should be replaced when you notice a burnt taste, reduced vapor production, or diminished flavor. Follow the coil installation steps in Section 2.2. The PnP Dual In One coils are designed for extended use, but replacement frequency depends on usage habits and e-liquid type.
4.3. การดูแลทั่วไป
- Keep the device clean and free from e-liquid residue, especially around the 510 connection and charging port.
- เก็บอุปกรณ์ไว้ในที่แห้งและเย็น หลีกเลี่ยงแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป
- Avoid dropping the device or exposing it to water.
5 การแก้ไขปัญหา
If you encounter issues with your VOOPOO Drag 4, refer to the following common problems and solutions:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| อุปกรณ์ไม่เปิด | แบตเตอรี่อ่อน; ใส่แบตเตอรี่ไม่ถูกต้อง; อุปกรณ์ปิดอยู่ | Charge batteries; Reinstall batteries correctly; Press fire button 5 times rapidly to turn on. |
| ไม่มีการผลิตไอระเหย | Coil not installed correctly; Coil burnt out; No e-liquid; Low battery; Device locked | Ensure coil is seated firmly; Replace coil; Refill tank; Charge batteries; Unlock device (if applicable). |
| ถังรั่ว | Coil not installed correctly; O-rings damaged/missing; Overfilling; Tank components loose | Ensure coil is fully seated; Check/replace O-rings; Do not overfill; Tighten all tank components. |
| รสไหม้ | Coil burnt out; Insufficient e-liquid (dry hit); Wattagอีสูงเกินไป | Replace coil; Refill tank and allow to prime; Reduce wattage. |
| หน้าจอไม่ทำงาน | Software issue; Hardware malfunction | Try turning the device off and on. If the issue persists, contact VOOPOO customer support. |
If the problem persists after attempting these solutions, please contact VOOPOO customer support or refer to the official VOOPOO webเว็บไซต์เพื่อขอความช่วยเหลือเพิ่มเติม
6. ข้อมูลจำเพาะ
Detailed specifications for the VOOPOO Drag 4 Vaping Kit:
- ขนาดสินค้า : 5.24 x 2.54 x 0.9 ซม.
- น้ำหนักสินค้า: 400 กรัม
- วัดtage: 177 วัตต์ (สูงสุด)
- ปริมาณถัง: 2 Millilitres (TPD compliant)
- สี: Black & Walnut
- คุณสมบัติพิเศษ: Nicotine Free (when used with nicotine-free e-liquid)
- ผู้ผลิต: วอปู
- ASIN: B0BSR3333J
- วันที่พร้อมใช้งานครั้งแรก: 20 ม.ค.2023

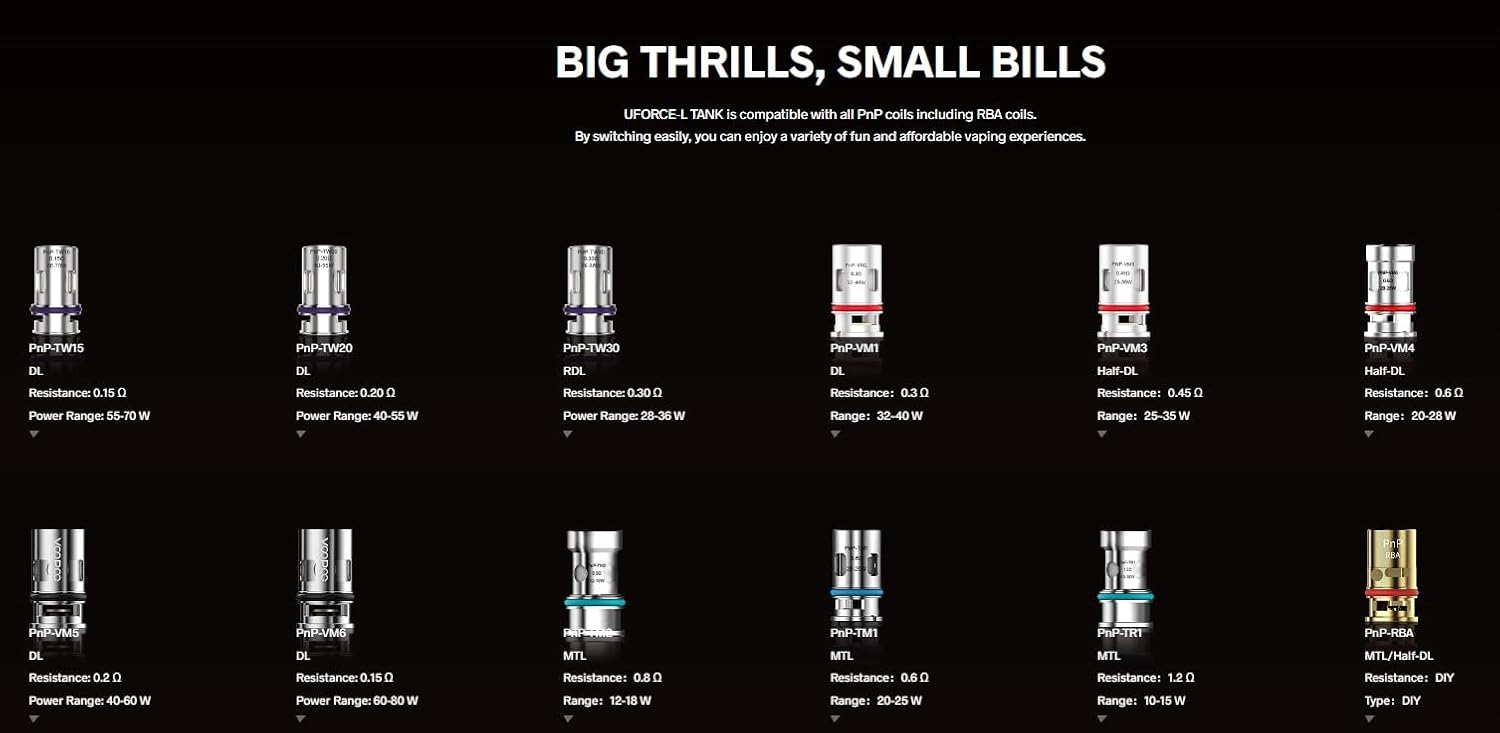

Image: A comprehensive chart displaying the various VOOPOO PnP coils compatible with the UFORCE-L Tank, including their resistance and recommended power ranges.
7. อะไรอยู่ในกล่อง
Your VOOPOO Drag 4 Vaping Kit package includes:
- 1 x Drag 4 Mod
- 1 x UFORCE-L Tank (2ml)
- 1 x PnP-TW20 Coil (0.2Ω, preinstalled)
- 1 x PnP-TW15 Coil (0.15Ω, spare)
- 1 x สายชาร์จ (Type-C)
- 1 x คู่มือผู้ใช้
- 1 x Straight Glass (2ml)
- 1 x Silicon Rubber Pack
Image: An illustration of the VOOPOO Drag 4 kit contents, including the mod, tank, coils, charging cable, and user manual.
8. Important Safety Information & Legal Disclaimer
คำเตือน: The following warning only applies when the product is used with nicotine-containing e-liquid: this product contains nicotine which is a highly addictive substance. Keep this product out of the reach of children. Size of cartridge (not exceeding 2ml).
- Do not use the device if it is damaged or has been tampเอเรดด้วย
- Use only genuine VOOPOO coils and accessories.
- ห้ามให้อุปกรณ์สัมผัสกับอุณหภูมิที่สูงหรือต่ำเกินไป แสงแดดโดยตรง หรือน้ำ
- กำจัดแบตเตอรี่และส่วนประกอบอิเล็กทรอนิกส์อย่างมีความรับผิดชอบตามกฎระเบียบท้องถิ่น
9. การรับประกันและการสนับสนุน
For warranty information and customer support, please refer to the official VOOPOO website or contact the retailer from whom you purchased the product. Warranty terms and conditions may vary by region and retailer.
Official VOOPOO Webเว็บไซต์: www.vopoo.com
