คู่มือการใช้งานมอเตอร์เก้าอี้ปรับเอนไฟฟ้า Okin JLDQ.18.134.329D01

1. บทนำ

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Okin JLDQ.18.134.329D01 Power Recliner Motor. This motor is designed as a replacement actuator for electric lift chairs, reclining couches, and sofas. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. ข้อมูลด้านความปลอดภัย

• Always disconnect power to the recliner or lift chair before attempting any installation, maintenance, or repair.
• ตรวจสอบให้แน่ใจว่าการเชื่อมต่อทั้งหมดมีความปลอดภัยและวางแนวอย่างถูกต้องก่อนที่จะคืนพลังงาน
• Do not operate the motor if any part is damaged or appears to be malfunctioning.
• ในระหว่างการใช้งาน ควรระวังอย่าให้มือหรือเสื้อผ้าที่หลวมอยู่ใกล้ชิ้นส่วนที่กำลังเคลื่อนไหว
• This motor is intended for indoor use only. Avoid exposure to moisture or extreme temperatures.

3. สินค้าหมดview

The Okin JLDQ.18.134.329D01 is a robust linear actuator designed for power reclining furniture. It consists of a motor unit, an extendable shaft (stroke), and integrated wiring with specific connectors for power and control.

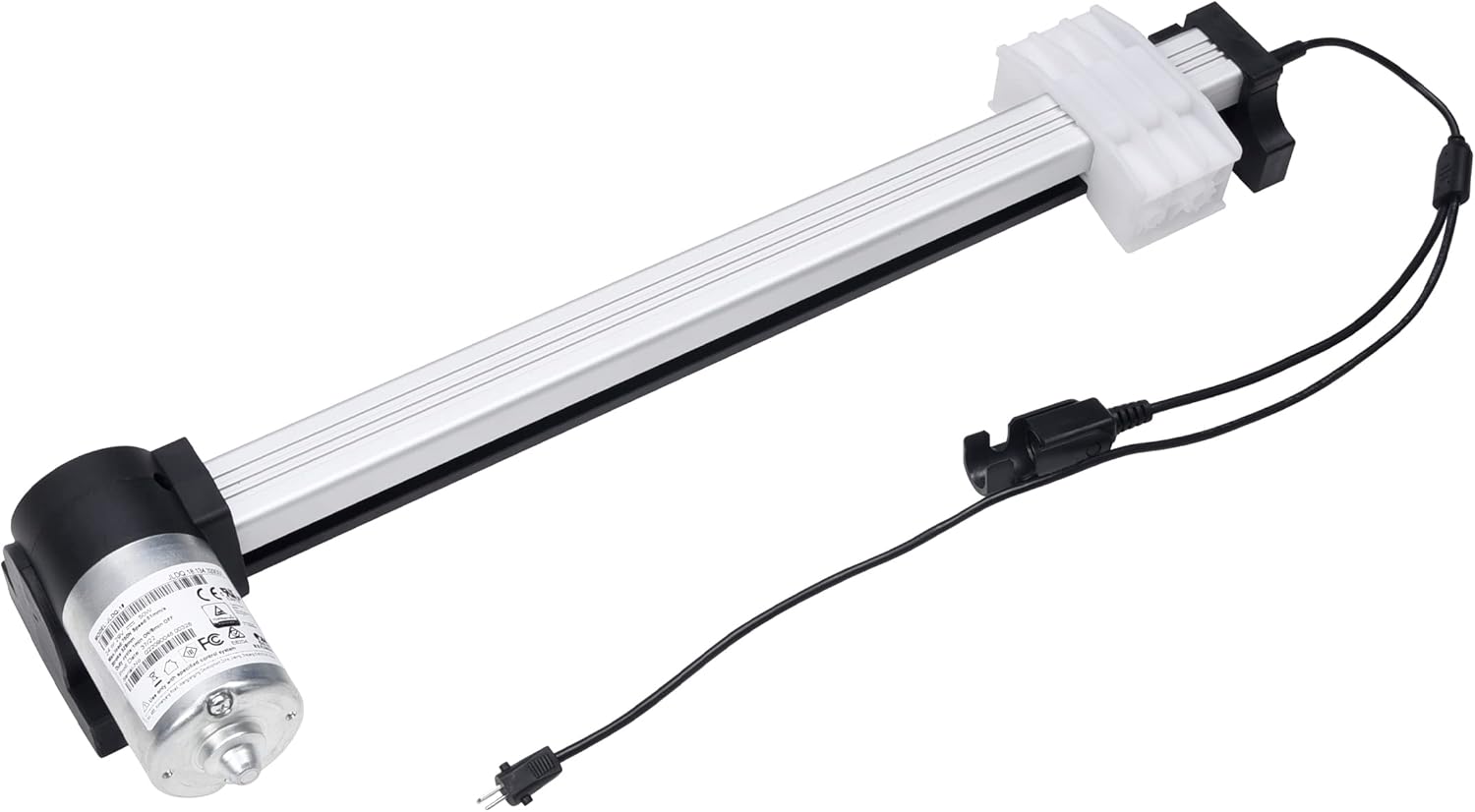

Image 3.1: Overall view of the Okin JLDQ.18.134.329D01 Power Recliner Motor, showing the motor housing, linear shaft, and attached cables.

3.1 Identifying Your Motor Model

It is crucial to verify the model number of your existing motor to ensure compatibility. The model number is typically located on a label on the motor housing.

ภาพที่ 3.2: ภาพระยะใกล้ view of the motor label, highlighting the model number JLDQ.18.134.329D01. This label also contains other technical data such as serial number ไตรมาสที่ 22090048 ปี 00328.

3.2 ขั้วต่อ

The actuator motor set includes two main connectors:

• 5-pin round plug: For connecting to the recliner's hand control switch.
• 2-pin square plug: สำหรับเชื่อมต่อกับแหล่งจ่ายไฟ

ภาพที่ 3.3: รายละเอียด view of the 2-pin plug for power supply and the 5-pin plug for the recliner switch, essential for proper connection.

4. คู่มือการติดตั้ง

Follow these steps carefully to replace your recliner motor. If you are unsure about any step, consult a qualified technician.

1. เตรียมความพร้อมสำหรับการติดตั้ง: Disconnect the recliner from the main power outlet. Position the recliner to allow easy access to the motor area, often by tilting it onto its front or side.
2. Identify and Disconnect Old Motor: Locate the existing motor. Disconnect the 2-pin power supply plug and the 5-pin hand control switch plug from the old motor. Note their positions for re-connection.
3. ถอดมอเตอร์เก่าออก: Unbolt or unclip the old motor from the recliner frame. Carefully remove it, noting how it was mounted.
4. ติดตั้งมอเตอร์ใหม่: Position the new Okin JLDQ.18.134.329D01 motor in the same location as the old one. Secure it to the recliner frame using the appropriate bolts or clips. Ensure it is firmly attached and aligned correctly.
5. การเชื่อมต่อสายไฟ: Connect the 2-pin square plug from the new motor to the recliner's power supply cable. Connect the 5-pin round plug to the hand control switch cable. Ensure all connections are snug and correctly seated.
6. ทดสอบฟังก์ชันการทำงาน: Once the motor is securely installed and all connections are made, carefully return the recliner to its upright position. Reconnect the recliner to the main power outlet. Test the hand control switch to ensure the motor extends and retracts smoothly.
7. การตรวจสอบขั้นสุดท้าย: Observe the motor's operation for any unusual noises or movements. Ensure no wires are pinched or obstructing the motor's movement.

Image 4.1: The Okin JLDQ.18.134.329D01 motor with its power and control cables ready for installation.

ภาพที่ 4.2: ด้านข้าง view of the Okin JLDQ.18.134.329D01 motor, illustrating its compact design for recliner integration.

5. การดำเนินการ

Once installed, the Okin JLDQ.18.134.329D01 motor operates in conjunction with your recliner's existing hand control switch. Pressing the appropriate buttons on the hand control will cause the motor to extend or retract, moving the recliner mechanism to your desired position.

• ตรวจสอบให้แน่ใจว่าเก้าอี้ปรับเอนได้เสียบปลั๊กไฟที่ใช้งานได้แล้ว
• Use the hand control to smoothly adjust the recliner's position. Avoid abrupt or forceful movements.
• The motor has an operation frequency of 1 minute ON / 8 minutes OFF. This duty cycle prevents overheating and prolongs motor life. Allow the motor to rest if it has been continuously operated for an extended period.

6. การบำรุงรักษา

Regular maintenance helps ensure the longevity and smooth operation of your recliner motor.

• การทำความสะอาด: Periodically wipe down the motor housing and shaft with a dry, soft cloth to remove dust and debris. Do not use liquid cleaners directly on the motor.
• การหล่อลื่น: The linear shaft mechanism is generally self-lubricating. Avoid applying excessive lubricants unless specifically recommended by the manufacturer, as this can attract dirt.
• การตรวจสอบสายเคเบิล: Regularly inspect all cables and connections for signs of wear, fraying, or damage. Replace any damaged cables immediately.
• ฮาร์ดแวร์สำหรับติดตั้ง: Check that all mounting bolts and screws are tight and secure.

7 การแก้ไขปัญหา

If your recliner motor is not functioning correctly, perform the following checks before seeking professional assistance:

• ไม่มีการเคลื่อนไหว:
  • Ensure the recliner is plugged into a live power outlet.
  • Check all cable connections (power supply and hand control switch) to ensure they are secure.
  • Test the power supply unit (transformer) if possible, or try a known working power supply.
  • Inspect the hand control switch for damage or malfunction.
• Partial Movement or Stuttering:
  • Check for any obstructions preventing the recliner mechanism or motor shaft from moving freely.
  • Ensure the motor is securely mounted and not binding.
  • Verify the power supply is providing adequate voltage.
• เสียงที่ผิดปกติ:
  • Disconnect power and inspect the motor and recliner mechanism for loose parts or foreign objects.
  • If the noise persists and is significant, the motor may require replacement.

บันทึก: Please troubleshoot the switch and power supply first, then check the motor and plug, to confirm it matches your recliner motor's requirements.

8. ข้อมูลจำเพาะทางเทคนิค

Image 8.1: Visual summary of key product features and dimensions.

9. การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Okin customer service. Ensure you have your product model number and purchase details available when contacting support.
