คู่มือการใช้งานโต๊ะยืนทำงานไม้ไผ่ FLEXISPOT Q8 ขนาด 55 นิ้ว

1. บทนำ

Thank you for choosing the FLEXISPOT Q8 55-inch Bamboo Standing Desk. This electric height-adjustable desk is designed to enhance your workspace with its durable bamboo tabletop, powerful dual motors, integrated wireless charging, and convenient storage drawer. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your desk.

2. ข้อมูลด้านความปลอดภัยที่สำคัญ

• ความจุน้ำหนัก: Do not exceed the maximum weight limit of 220 lbs (100 kg) on the desktop. Overloading can cause damage and pose a safety risk.
• ความเสถียร: Ensure the desk is placed on a level surface. For taller heights, proper anchoring or counterweighting may be necessary to maintain stability.
• การประกอบ: Follow all assembly instructions carefully. Incorrect assembly can lead to instability and potential injury. It is recommended that two people assemble this desk due to its weight.
• เด็กและสัตว์เลี้ยง: ควรกันเด็กและสัตว์เลี้ยงให้อยู่ห่างจากโต๊ะทำงานขณะทำการผ่าตัด เพื่อป้องกันอุบัติเหตุ
• ของเหลว: Avoid spilling liquids on the control panel or electrical components. In case of spillage, immediately unplug the desk and allow it to dry completely before use.
• สายไฟ: Ensure the power cord is not pinched or damaged. Do not operate the desk with a damaged power cord.
• Movement Clearance: Ensure there are no obstructions above or below the desk when adjusting its height.

3. เนื้อหาบรรจุภัณฑ์

Your FLEXISPOT Q8 desk is shipped in two separate boxes. Please verify that all components are present before beginning assembly.

• Bamboo Desktop with Integrated Drawer and Control Panel (Pre-assembled)
• ขาโต๊ะ (2)
• Desk Feet (2)
• ถาดการจัดการสายเคเบิล
• อะแดปเตอร์แปลงไฟและสายเคเบิล
• Assembly Hardware and Tools (Screwdriver, Allen wrenches)
• คู่มือการใช้งาน

This image illustrates the desk's dimensions (55.3 inches wide, 27.7 inches deep) and its robust 220 lbs weight capacity. It also highlights that the product ships in two separate packages.

4. การติดตั้งและการประกอบ

The FLEXISPOT Q8 desk features a quick-install design, allowing for assembly in approximately 15 minutes. The tabletop and drawer come pre-assembled, simplifying the process.

The desk components are shown ready for assembly, emphasizing the quick 15-minute installation process with included tools and instructions.

ขั้นตอนการประกอบ:

1. แกะส่วนประกอบ: Carefully remove all parts from the packaging. Lay the desktop upside down on a soft, clean surface to prevent scratches.
2. ติดขา: Securely attach the two desk legs to the pre-drilled holes on the underside of the desktop using the provided hardware.
3. ติดขา: Connect the desk feet to the bottom of each leg column.
4. เชื่อมต่อสายเคเบิล: Connect the motor cables from the legs to the control box, and then connect the control panel cable to the control box. Ensure all connections are firm.
5. ติดตั้งถาดจัดระเบียบสายเคเบิล: Attach the cable management tray to the designated area under the desk to organize wires.
6. Flip Desk Upright: With assistance, carefully flip the assembled desk upright and move it to its desired location. Due to the desk's weight (approximately 85 lbs / 38.7 kg), two people are recommended for this step.
7. เชื่อมต่อพลังงาน: Plug the power adapter into the control box, then connect the power cable to a wall outlet.
8. Initial Calibration (if needed): Upon first power-on, the desk may perform a brief calibration cycle, moving to its lowest point and then slightly up. This is normal. If the desk does not respond, refer to the troubleshooting section for reset procedures.

A visual representation of the desk's main components, demonstrating the simplified assembly process.

5. คู่มือการใช้งาน

5.1 Smart Control Panel

The integrated control panel allows for easy height adjustment and includes memory presets for your preferred sitting and standing positions.

The smart control panel is detailed, showing buttons for height adjustment, four programmable memory presets, and integrated USB-A and USB-C charging ports.

• ปุ่มขึ้น/ลง (▲ / ▼): Press and hold to smoothly adjust the desk height upwards or downwards. Release the button to stop at the desired height.
• ค่าที่ตั้งไว้ล่วงหน้าของหน่วยความจำ (1, 2, 3, 4): These buttons allow you to save and recall up to four different height settings.
1. ปรับความสูงของโต๊ะตามต้องการโดยใช้ปุ่มขึ้น/ลง
2. Press the 'M' button (or similar memory set button, if present, otherwise directly press the number).
3. Within 3 seconds, press the desired number button (1, 2, 3, or 4) to save the current height. The display will show 'S-' followed by the number to confirm.
4. To recall a saved height, simply press the corresponding number button (1, 2, 3, or 4). The desk will automatically move to that preset height.

5.2 Integrated Charging Features

The FLEXISPOT Q8 desk offers multiple charging options for your devices.

• การชาร์จแบบไร้สาย: A 10W wireless charging pad is discreetly integrated under the tabletop. Place your compatible smartphone or other Qi-enabled device directly on the designated area on the desktop (indicated by a subtle marking) to begin charging.

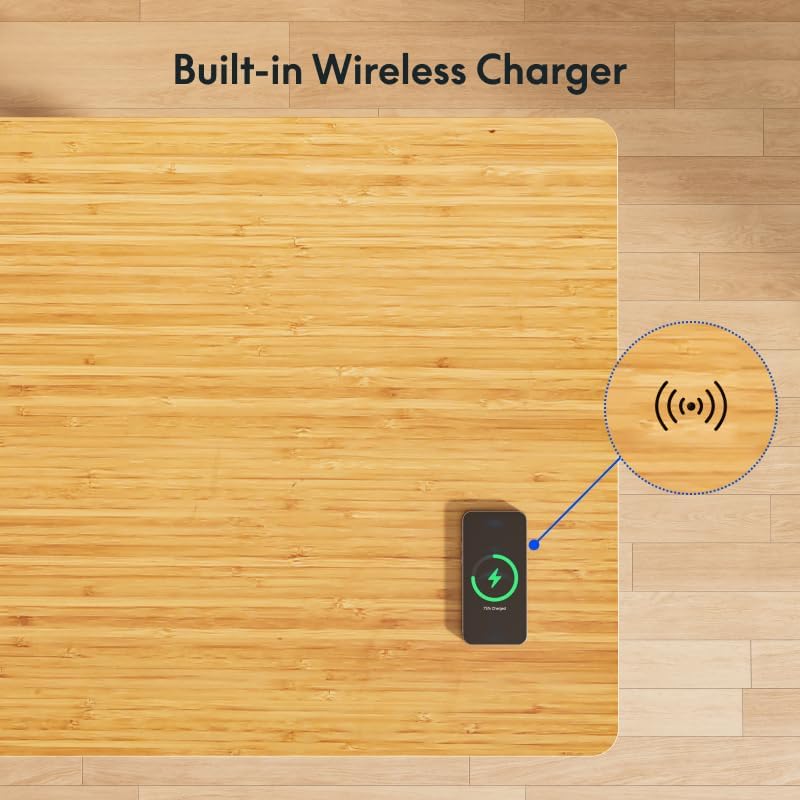

A smartphone is shown charging wirelessly on the desk's surface, illustrating the convenient built-in wireless charging feature.

• Wired Charging Ports: The control panel includes a Type-A (18W) and a Type-C (45W) port for fast wired charging of smartphones, tablets, and laptops.

5.3 Spacious Desk Drawer

The desk features an embedded drawer for convenient storage of your desktop essentials, helping to keep your workspace tidy.

The integrated drawer is displayed open, demonstrating its capacity for storing notebooks, pens, and other small office supplies.

6. การบำรุงรักษา

• การทำความสะอาดเดสก์ท็อป: ใช้แบบนุ่มๆamp cloth to clean the bamboo surface. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Wipe spills immediately.
• การทำความสะอาดเฟรม: เช็ดกรอบโลหะด้วยผ้าแห้งนุ่มๆ
• การจัดการสายเคเบิล: Periodically check the cable management tray and ensure all cables are neatly organized and not pinched.
• ตรวจสอบการเชื่อมต่อ: Occasionally inspect all electrical connections to ensure they are secure.

7 การแก้ไขปัญหา

ขั้นตอนการรีเซ็ต:

If the desk encounters an issue or displays an error code, a reset may resolve the problem:

1. Unplug the desk from the power outlet.
2. Wait for at least 10-15 seconds.
3. Plug the desk back into the power outlet.
4. Press and hold the down (▼) button until the desk reaches its lowest position and then slightly rises. This indicates a successful reset.

8. ข้อมูลจำเพาะ

This image highlights the desk's quiet operation, comparing its noise level (45dB) to common sounds like falling leaves (10dB) and normal voice (60dB).

This image focuses on the desk's genuine bamboo tabletop, emphasizing its eco-friendly nature, durability, and unique grain pattern.

9. การรับประกันและการสนับสนุน

9.1 การรับประกันแบบจำกัด

The FLEXISPOT Q8 55-inch Bamboo Standing Desk comes with a limited warranty. Please refer to the warranty card included with your product or visit the official FLEXISPOT webเข้าชมเว็บไซต์เพื่อดูรายละเอียดข้อกำหนดและเงื่อนไขทั้งหมด รวมถึงความคุ้มครอง ระยะเวลา และขั้นตอนการเรียกร้องค่าสินไหมทดแทน

9.2 การสนับสนุนลูกค้า

For any questions, technical assistance, or warranty claims, please contact FLEXISPOT customer support. You can find contact information on the official FLEXISPOT webเว็บไซต์หรือผ่านแพลตฟอร์มการซื้อของคุณ
