1. บทนำ
The Elna eXtend Covermax is a versatile coverstitch machine designed for professional seam finishing. It specializes in creating durable and aesthetically pleasing cover hems and chain stitches on various fabrics, particularly knits and stretch materials. This machine is an essential tool for garment construction, offering a range of stitching possibilities and user-friendly features.
The Elna eXtend Covermax combines up to 5-thread sewing with the use of 1, 2, or 3 needles, providing a variety of stitch programs for professional-looking hems. Its features include a unique top cover stitch, an exclusive built-in spreader for easy operation, and options for triple cover stitch, wide or narrow cover hem, and chain stitch.
วิดีโอนี้มีเนื้อหาเกี่ยวกับview of the key features and capabilities of the Elna eXtend Covermax Coverstitch Machine, demonstrating its use for professional seam finishing.
2. การตั้งค่า
Before operating your Elna eXtend Covermax, ensure it is placed on a stable, flat surface. Connect the foot controller and power cord to the machine and a suitable power outlet. Familiarize yourself with the machine's components, including the thread guides, tension dials, and needle area.
2.1 การร้อยด้ายเครื่องจักร
The Elna eXtend Covermax features color-coded guides and a release system for the looper, simplifying the threading process. Follow the numbered and colored paths indicated on the machine for each thread. The built-in needle threader further assists in quickly threading the needles.
The Elna eXtend Covermax with its side panel open, revealing the internal threading paths and mechanisms.
2.2 การติดตั้งเข็ม
The machine uses EL x 705 needles. Ensure needles are inserted correctly and securely. The built-in needle threader has a selection lever for all three needles (left, middle, right) to facilitate easy threading.
ภาพระยะใกล้ view of the built-in needle threader, designed for easy and precise needle threading.
3. คู่มือการใช้งาน
3.1 Sewing Space and Lighting
The Elna eXtend Covermax offers 5.5 inches of sewing space to the right of the needle, providing ample room for various projects. It is equipped with two LED lights and an additional retractable front light to illuminate the sewing area, ensuring clear visibility of your work.
The retractable sewing light illuminates the needle area for improved visibility during operation.
3.2 Top Cover Stitch Function
An exclusive feature of this machine is the top cover stitch function, which allows for industrial-quality top cover hem stitches. This function is easily activated and can be switched back to normal cover stitches as needed. The machine includes an exclusive built-in spreader for simplified operation of this feature.
A close-up of the needle and presser foot area, demonstrating the precision of the coverstitch.
3.3 Free Arm Capability
The Elna eXtend Covermax features a convertible flat bed to free arm design. This allows for convenient sewing of tubular items such as pant legs, cuffs, and shirt sleeves, enhancing the machine's versatility for various garment projects.
The free arm feature allows for easy sewing of cylindrical items like sleeves and pant legs.
3.4 Tension Level Control (TLC)
The Tension Level Control (TLC) system provides automatic thread tension adjustment, ensuring precise stitching on both fine and standard fabrics. A simple switch lever allows you to easily transition between 'Fine' and 'Standard' modes, optimizing tension for different material types without manual adjustments.
The Tension Level Control (TLC) knob allows for easy adjustment between fine and standard fabric settings.
3.5 Stitch Programs
The Elna eXtend Covermax offers a variety of stitch programs:
- 5 Thread / 3 Needle programs: Triple top cover stitch
- 4 Thread / 2 Needle programs: Top cover stitch wide (6mm) and narrow (3mm)
- 4 Thread / 3 Needle programs: Triple cover stitch
- 3 Thread / 2 Needle programs: Cover stitch wide (6mm) and narrow (3mm)
- 2 Thread / 1 Needle programs: การเย็บแบบลูกโซ่
Adjustable stitch length from 1 to 4 mm and an adjustable differential feed ratio from 0.5 to 2.25 allow for further customization of your stitches.
4. การบำรุงรักษา
Regular maintenance ensures the longevity and optimal performance of your Elna eXtend Covermax. Keep the machine clean and free of lint and dust, especially around the needle plate, feed dogs, and looper area. Use the provided lint brush and screwdrivers for cleaning and minor adjustments.
4.1 การทำความสะอาด
Periodically remove the needle plate and clean out any accumulated lint with the lint brush. Ensure all thread paths are clear. Avoid using harsh chemicals for cleaning; a soft, dry cloth is usually sufficient for external surfaces.
4.2 การหล่อลื่น
Refer to the detailed instruction manual for specific oiling points and frequency. Use only high-quality sewing machine oil as recommended by Elna.

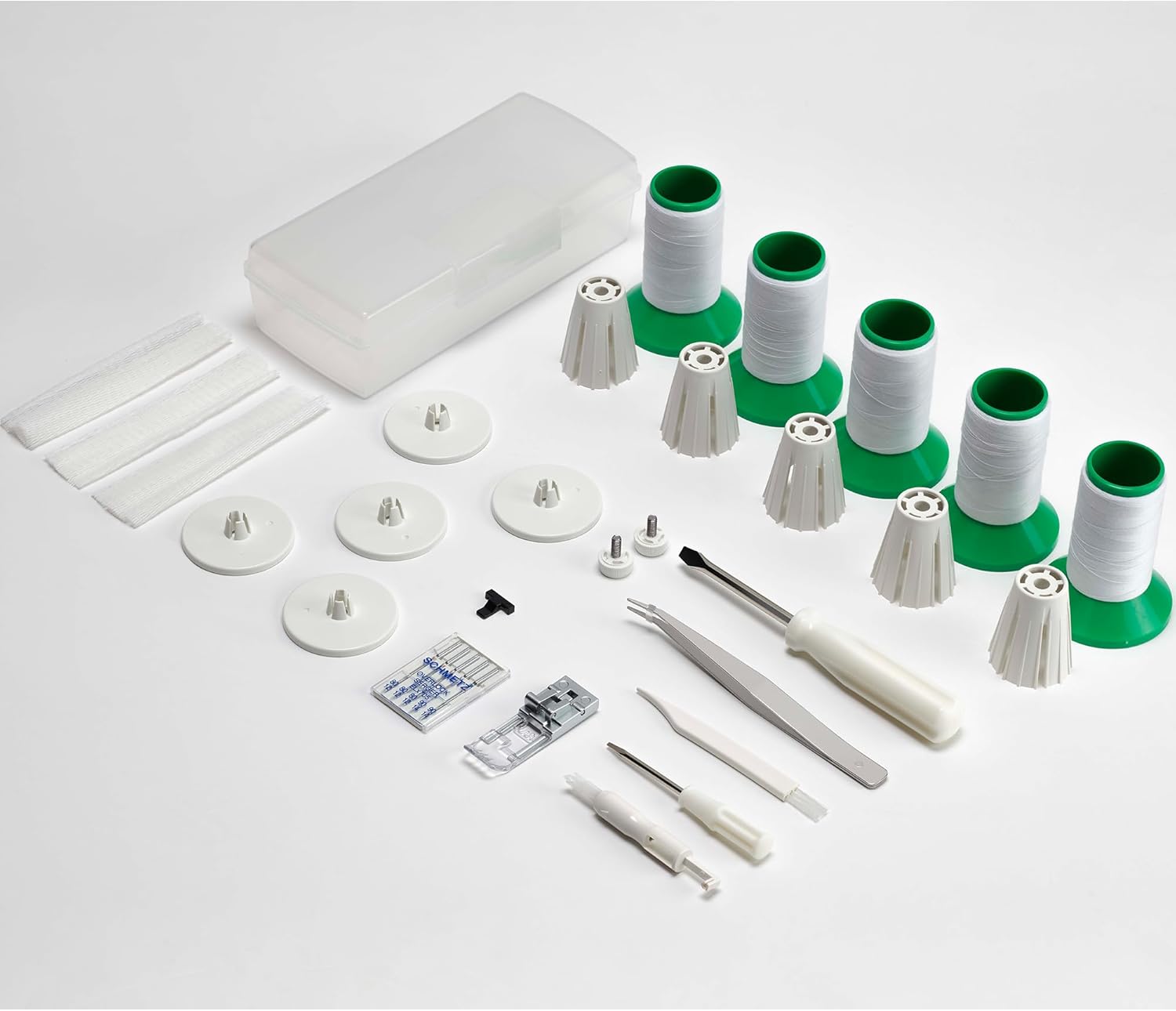

The accessory case contains essential tools for maintenance, including screwdrivers and a lint brush.
5 การแก้ไขปัญหา
This section addresses common issues you might encounter during operation. For more detailed troubleshooting, consult the full instruction manual.
- ข้ามตะเข็บ: Check needle installation (ensure it's fully inserted and facing correctly), use the correct needle type (EL x 705) and size for your fabric, and verify threading.
- การขาดของเส้นด้าย: Inspect for incorrect threading, damaged needles, burrs on the needle plate or looper, or excessive thread tension.
- เย็บไม่เท่ากัน: Adjust thread tension using the TLC system or individual tension dials. Ensure the differential feed is set appropriately for your fabric type to prevent stretching or puckering.
- เครื่องไม่สตาร์ท: Confirm the power cord and foot controller are securely connected and the power switch is on.
6. ข้อมูลจำเพาะ
| คุณสมบัติ | ข้อมูลจำเพาะ |
|---|---|
| ขนาดสินค้า | 9.6 x 16.2 x 13.1 นิ้ว (ลึก 9.6 นิ้ว x กว้าง 16.2 นิ้ว x สูง 13.1 นิ้ว) |
| น้ำหนักสินค้า | 18.9 ปอนด์ |
| ผู้ผลิต | เอลน่า |
| หมายเลขรุ่นสินค้า | eXtend Covermax |
| ยูพีซี | 732212422140 |
| สี | สีขาว |
| Stitch Width (3-needle) | 6 มม. |
| Stitch Width (2-needle) | 6 mm (wide) / 3 mm (narrow) |
| ปรับความยาวตะเข็บได้ | 1 ถึง 4 มม. |
| Adjustable Differential Feed Ratio | 0.5 ถึง 2.25 |
| ความเร็วในการเย็บสูงสุด | 1,000 ฝีเข็มต่อนาที |
| ส่วนประกอบที่รวมอยู่ | ชัดเจน-view foot, Tension release clip, Screw driver large, Screw driver small, Lint brush, Needle set, Spool holders large, Nets, Tweezers, Needle threader, Foot controller, Soft cover, Accessory case, Quick-start video available online, Instruction Manual, Elna eXtend Covermax coverstitch machine |
7. การรับประกันและการสนับสนุน
For information regarding product warranty, service, or technical support, please contact your local authorized Elna dealer. They can provide assistance with any questions or issues you may have concerning your Elna eXtend Covermax Coverstitch Serger.
