Dual-Flush Actuator Plate User Manual

1. บทนำ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your TECETOOL Dual-Flush Actuator Plate. This product is designed for use with TOTO In-Wall Tank Systems (WT151M or WT152M) and certain Duravit tankless toilets, offering a reliable and efficient dual-flush mechanism.

The actuator plate features a clean white finish and is constructed from durable plastic, engineered to resist fingerprints and maintain its aesthetic appeal over time. Its design allows for easy access to the inner tank for maintenance.

2. คุณสมบัติของผลิตภัณฑ์

• Front Actuation: Designed with dual buttons for front actuation, compatible with TOTO In-Wall Tank System (WT151M or WT152M) or Duravit tankless toilets.
• สีและวัสดุ: White plastic construction that resists fingerprints.
• Dual Flush Compatibility: Compatible with TOTO YT800#WH Rectangle Push Plate Dual Button and some Duravit Wall Mounted Toilets. Please verify size before purchase.
• ติดตั้งง่าย: Features a large flush actuator plate opening that can be removed for convenient access to the inner tank.
• หมายเหตุสำคัญ: Always measure dimensions and confirm compatibility with your toilet tank fittings before purchasing เพื่อให้แน่ใจว่าสวมใส่ได้พอดี

3. ข้อมูลจำเพาะ

4. การตั้งค่าและการติดตั้ง

The TECETOOL Dual-Flush Actuator Plate is designed for straightforward installation. Please follow these general guidelines. For specific tank system instructions, refer to your toilet tank's manual.

1. ตรวจสอบความเข้ากันได้: Before beginning, ensure the actuator plate dimensions and your toilet tank fittings are compatible. This plate is designed for TOTO In-Wall Tank System (WT151M or WT152M) or Duravit tankless toilets.
2. Access Tank Opening: The large flush actuator plate opening is designed to be removed for easy access to the inner tank. Carefully remove the existing plate or cover if present.
3. Connect Levers/Rods: Connect the provided installment fixed levers (2) and screw kit to the appropriate mechanisms within your toilet tank system. Ensure they are securely fastened and aligned with the actuator buttons.
4. Mount the Plate: Position the new TECETOOL actuator plate onto the mounting frame. Ensure it sits flush against the wall or mounting surface.
5. ยึดแผ่น: Use the provided screws or mounting hardware to secure the actuator plate firmly in place. Do not overtighten.
6. ทดสอบฟังก์ชันการทำงาน: After installation, test both flush buttons (full and half flush) to ensure proper operation and water flow.

รูปที่ 4.1 : ด้านหน้า view of the TECETOOL Dual-Flush Actuator Plate.

Figure 4.2: Dimensions of the actuator plate, showing approximate measurements of 8.43 inches (21.4 cm) in width and 5.7 inches (14.5 cm) in height.

Figure 4.3: The actuator plate shown with the included installment fixed levers (2) and screw kit, essential for mounting.

Figure 4.4: Reverse side and side profile of the actuator plate, illustrating the internal structure and mounting points.

Figure 4.5: The actuator plate installed on a wall above a toilet, demonstrating its appearance in a typical bathroom setting.

5. คู่มือการใช้งาน

The TECETOOL Dual-Flush Actuator Plate provides two flushing options to conserve water:

• ฟลัชแบบเต็ม: Press the larger button (typically on the left) for a full flush, suitable for solid waste.
• ฮาล์ฟฟลัช: Press the smaller button (typically on the right) for a half flush, suitable for liquid waste, saving water.

Ensure a firm, complete press of the desired button for optimal flushing performance.

6. การบำรุงรักษา

To ensure the longevity and appearance of your TECETOOL Dual-Flush Actuator Plate, follow these maintenance guidelines:

• การทำความสะอาด: Clean the surface of the actuator plate regularly with a soft, damp cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive scrubbers, as they can damage the plastic finish.
• ป้องกันรอยนิ้วมือ: The plastic material is designed to resist fingerprints, making it easy to keep clean with minimal effort.
• การเข้าถึงภายใน: The large flush actuator plate opening can be removed for easy access to the inner tank for any necessary internal maintenance or repairs of the toilet mechanism.

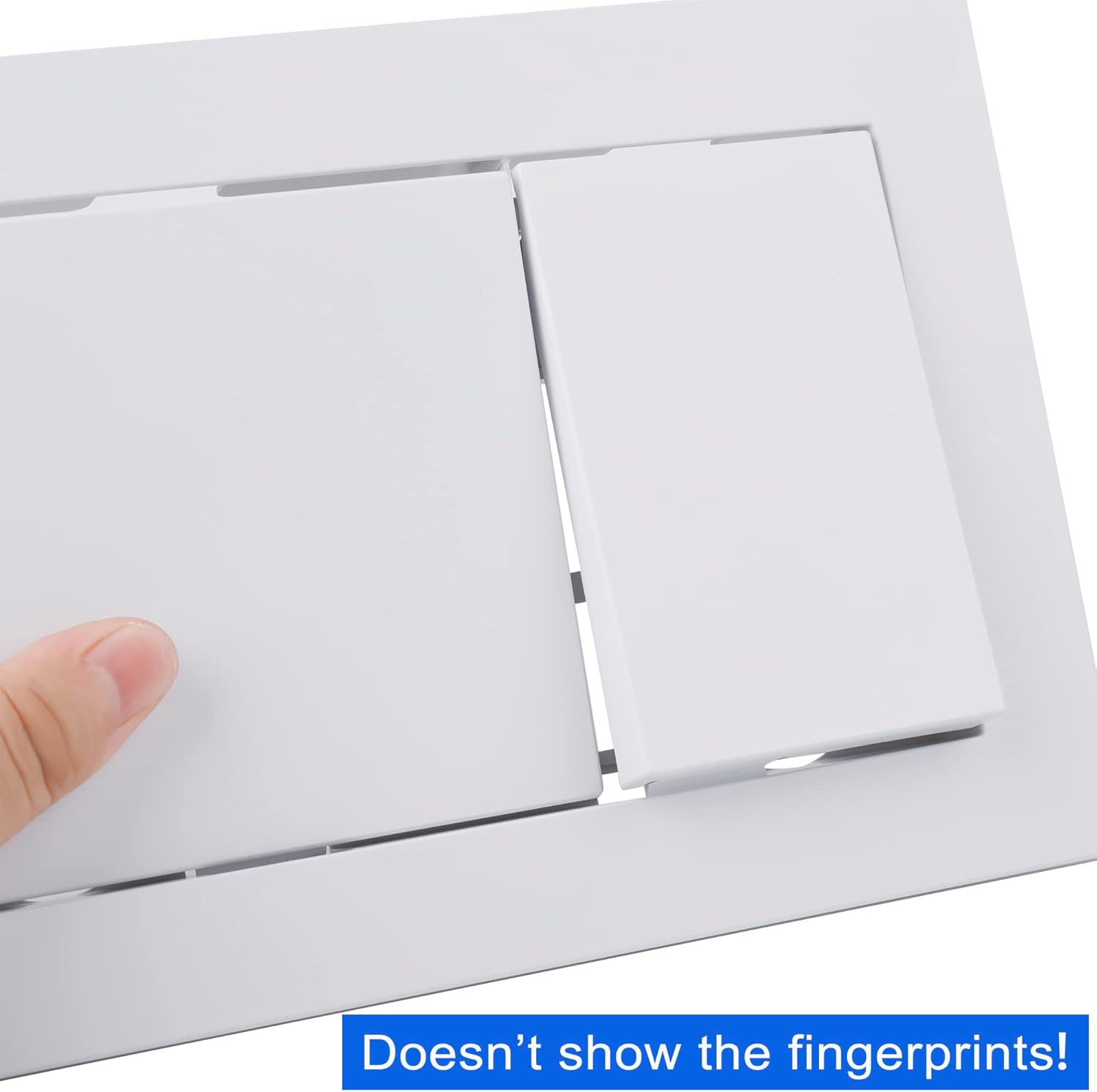

Figure 6.1: A hand touching the actuator plate, illustrating its fingerprint-resistant surface.

7 การแก้ไขปัญหา

If you encounter issues with your TECETOOL Dual-Flush Actuator Plate, consider the following:

• Buttons Not Actuating:
  • Ensure the plate is securely mounted and not obstructing the button movement.
  • Verify that the internal levers/rods are correctly connected to the toilet tank mechanism and are not dislodged.
  • Check if the toilet tank fittings are compatible with the actuator plate. If not, a new button or compatible fittings may be required.
• การล้างไม่สมบูรณ์:
  • Ensure the buttons are pressed fully and released.
  • Inspect the internal toilet tank mechanism for any obstructions or issues that might prevent a full flush.

For persistent issues, it is recommended to consult a qualified plumber or contact TECETOOL customer support.

8. การรับประกันและการสนับสนุน

For information regarding product warranty, returns, or technical support, please refer to the official TECETOOL brand store or contact their customer service directly.

Visit the official TECETOOL Store: TECETOOL Store on Amazon

TECETOOL is committed to providing quality products and support for your home improvement needs.
