CAS CL3000-P Barcode Label Printing Scale User Manual

1. บทนำ

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of the CAS CL3000-P Networking Barcode Label Printing Scale. This device is designed for commercial use in environments such as grocery stores, butcher shops, and supermarkets, offering integrated weighing, price computing, and barcode label printing capabilities.

คุณสมบัติหลัก:

• Integrated Barcode Label Printer for item-specific labels.
• Networking Ready (LAN) for central price updates and data synchronization.
• High-Speed Printing with 202 dpi resolution.
• Dual LCD Display for operator and customer viewการไอเอ็นจี
• User-Friendly PLU Management, storing up to 10,000 PLUs.
• Durable Aluminum Body Construction.

2. การแกะกล่องและการตั้งค่า

Carefully unpack all components and ensure all items are present before proceeding with setup.

2.1. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่ามีรายการต่อไปนี้อยู่ในแพ็คเกจของคุณ:

• CAS CL3000-P Scale Unit
• สายไฟ
• Label Roll Starter Pack
• คู่มือการใช้งาน (เอกสารนี้)

2.2 การวาง

Place the scale on a stable, level surface, away from direct sunlight, excessive heat, or strong vibrations. Ensure adequate space for operation and label printing.

2.3. การเชื่อมต่อไฟฟ้า

1. Connect the power cable to the scale's power input port.
2. เสียบปลายสายไฟอีกด้านหนึ่งเข้ากับเต้ารับไฟฟ้าที่มีสายดิน
3. Turn on the scale using the power switch, typically located on the rear or side of the unit.

2.4. Network Connection (LAN)

For networking capabilities, connect an Ethernet cable from the scale's LAN port to your network router or switch. Refer to your network administrator for specific IP address configuration if required.

2.5. Label Roll Installation

Open the printer cover and carefully load the label roll according to the diagram inside the printer compartment. Ensure the labels feed smoothly and are correctly aligned for printing.

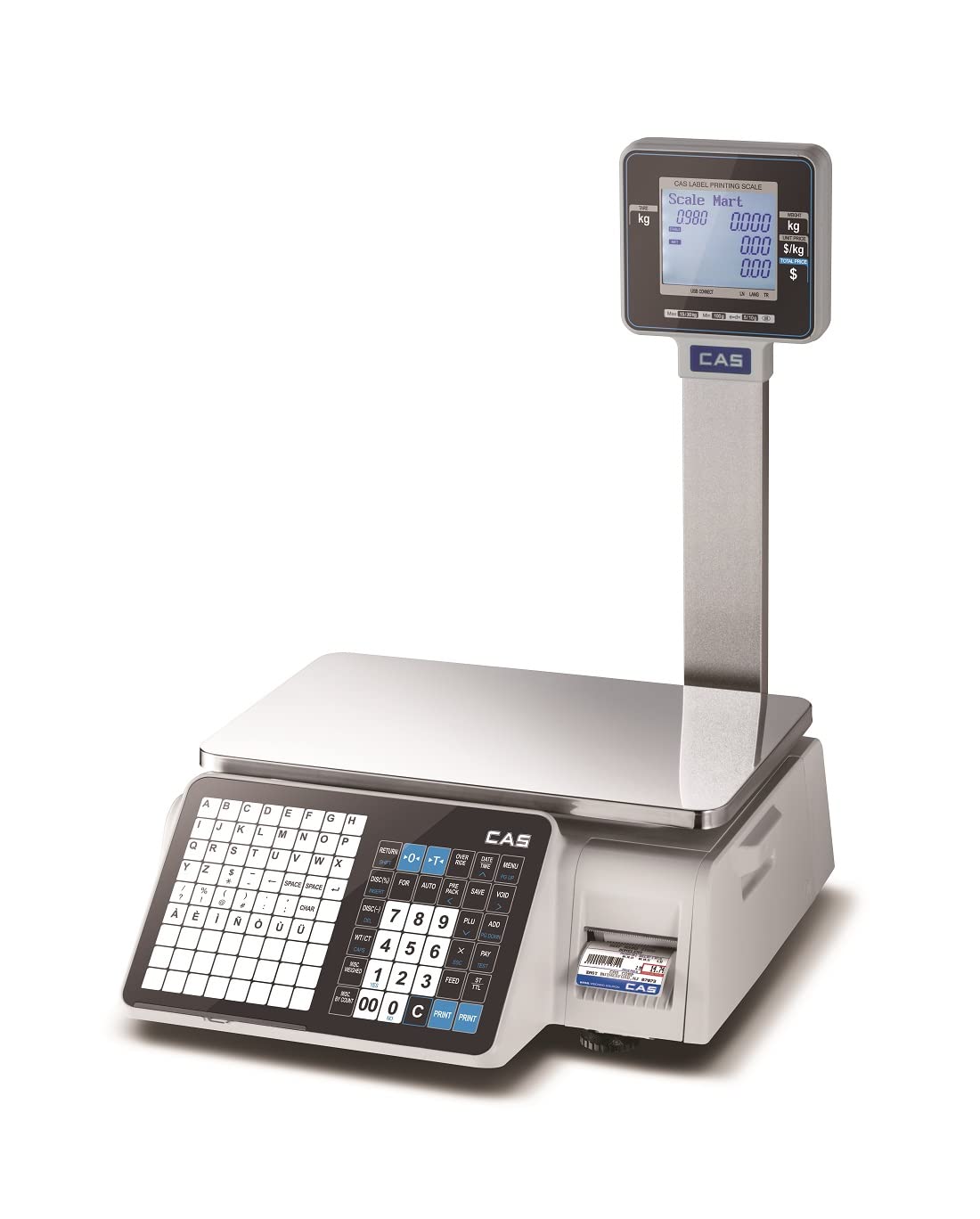

Figure 2.1: CAS CL3000-P Barcode Label Printing Scale with dual display and integrated printer.

3. คู่มือการใช้งาน

This section details the basic operation of the CAS CL3000-P scale for weighing, price computing, and label printing.

3.1 การชั่งน้ำหนักพื้นฐาน

1. Ensure the scale displays "0.000 kg" before placing any item. If not, press the ศูนย์ ปุ่ม.
2. Place the item to be weighed on the weighing platter.
3. The weight will be displayed on both the operator and customer LCD screens.

3.2. Price Computing and Label Printing

The scale supports up to 10,000 PLUs (Price Look-Up units) for efficient operation.

1. Place the item on the weighing platter.
2. Enter the PLU code for the item using the numeric keypad.
3. Alternatively, if a PLU is not set, enter the unit price directly using the numeric keypad.
4. กดปุ่ม พิมพ์ button to generate a barcode label. The label will include weight, unit price, total price, and barcode.

Figure 3.1: Close-up of the dual LCD display, featuring a scrolling message bar for enhanced communication.

Figure 3.2: Detail of the integrated printer, capable of linerless printing for efficiency.

3.3. PLU Management

The CL3000-P allows for easy management of up to 10,000 PLUs. Refer to the detailed programming guide (separate document or advanced settings menu) for adding, editing, or deleting PLUs.

Figure 3.3: The scale's internal memory supports storage for up to 10,000 product PLUs.

4. การบำรุงรักษา

Regular maintenance ensures the longevity and accuracy of your CAS CL3000-P scale.

4.1. การทำความสะอาด

• ถอดสายไฟออกก่อนทำความสะอาด
• Wipe the scale's exterior and weighing platter with a soft, damp ผ้า.
• ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อน สารละลาย หรือแช่เครื่องในน้ำ
• Ensure no liquids enter the display or printer openings.

4.2. การบำรุงรักษาเครื่องพิมพ์

• Regularly check the printer head for debris or adhesive residue. Clean gently with a lint-free cloth and isopropyl alcohol if necessary.
• Ensure label rolls are stored in a cool, dry place to prevent adhesive degradation.

4.3. การสอบเทียบ

The scale is factory-calibrated. If you suspect accuracy issues, contact authorized CAS service personnel for re-calibration. Do not attempt to calibrate the scale yourself unless specifically instructed by a qualified technician.

5 การแก้ไขปัญหา

This section provides solutions to common issues you might encounter with your CAS CL3000-P scale.

If the problem persists after attempting these solutions, please contact CAS customer support.

6. ข้อมูลจำเพาะ

7. การรับประกันและการสนับสนุน

7.1. ข้อมูลการรับประกัน

The CAS CL3000-P scale comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact CAS customer service. Extended warranty options may be available.

7.2. การสนับสนุนลูกค้า

For technical assistance, service requests, or any inquiries regarding your CAS CL3000-P scale, please contact CAS Weighing India Pvt Ltd. Their contact information can typically be found on the product packaging or their official webเว็บไซต์.

ข้อมูลติดต่อ:

• Manufacturer: CAS Corportaion
• Packer: CAS Weighing India Pvt Ltd
• Importer: CAS Corportation
• โทรศัพท์ : 9212559707
