UBeesize 10-inch Ring Light with 62-inch Tripod User Manual

1. บทนำ

Thank you for choosing the UBeesize 10-inch Ring Light with 62-inch Tripod. This product is designed to provide optimal lighting for various applications, including photography, video recording, live streaming, and video conferencing. Its versatile design allows for use as a standalone ring light with a tripod or as a selfie stick. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your device.

Image: The UBeesize 10-inch Ring Light mounted on its extendable tripod, with a smartphone in the center and the Bluetooth remote control positioned to the right.

2. เนื้อหาบรรจุภัณฑ์

โปรดตรวจสอบเนื้อหาในแพ็คเกจเมื่อแกะกล่องเพื่อให้แน่ใจว่ามีส่วนประกอบครบทั้งหมด:

• 1 x 10-inch LED Ring Light
• 1 x 62-inch Extendable Tripod Stand
• 1 x Adjustable Phone Holder
• 1 x Wireless Bluetooth Remote Control
• 1 x AC/DC Power Adapter (USB cable with wired control)

Image: A visual representation of the kit's components, including the USB plug, easy-to-use phone clip, wireless remote control, 240 light beads, 3 color temperature options, robust ABS plastic housing, improved light transmission, and high color rendering index.

3. คู่มือการติดตั้ง

3.1 การประกอบขาตั้งกล้อง

1. Unfold the tripod legs until they are fully extended and stable.
2. Extend the telescopic sections of the tripod to your desired height. Secure each section by twisting the locking collars clockwise. The tripod can extend up to 62 inches (approximately 157.5 cm).

Image: A visual guide illustrating the extendable tripod stand, showing its compact size and various extended heights up to 63 inches.

3.2 การติดตั้งไฟวงแหวน

1. หาตำแหน่งน็อตยึดที่อยู่ด้านบนของขาตั้งกล้อง
2. Align the ring light's mounting hole with the tripod screw and gently twist the ring light clockwise until it is securely fastened.

3.3 Installing the Phone Holder

1. Insert the phone holder into the cold shoe mount located in the center of the ring light.
2. Tighten the locking knob on the phone holder to secure it in place.
3. Adjust the phone holder's angle as needed. The holder supports smartphones with widths from 2.3 inches to 4.5 inches.

Image: Illustrations demonstrating the versatility of the tripod, showing its use with smartphones (up to 4.5 inches wide), the ring light itself, and various cameras.

3.4 การเชื่อมต่อสายไฟ

1. Connect the USB cable from the ring light to the provided AC/DC power adapter.
2. Plug the power adapter into a standard wall outlet. Alternatively, the USB cable can be connected to any compatible USB power source (e.g., power bank, computer USB port).

4. คู่มือการใช้งาน

4.1 การเปิด/ปิดเครื่อง

The ring light features a redesigned touch-pad control on the front for easy operation.

• To turn on the ring light, press the เปิด/ปิด button on the touch-pad.
• To turn off the ring light, press the เปิด/ปิด ปุ่มอีกครั้ง

ภาพ: รายละเอียด view of the ring light's touch-pad, highlighting the ON/OFF button, brightness adjustment buttons (+/-), and light color selection button.

4.2 การปรับความสว่าง

The ring light offers 10 levels of brightness for each color mode.

• กดปุ่ม ความสว่าง+ button to increase the light intensity.
• กดปุ่ม ความสว่าง - button to decrease the light intensity.

4.3 Changing Light Color

The ring light provides three distinct light color modes: Warm White, Cool White, and White Light.

• กดปุ่ม สีอ่อน button to cycle through the available color temperatures.

Image: A series of portraits demonstrating the effect of different light color temperatures (3000K, 4500K, 6000K) and brightness levels (10% to 100%) on a subject's appearance.

4.4 Using the Bluetooth Remote Control

The wireless Bluetooth remote control allows for convenient remote operation, compatible with both iOS and Android phones.

1. ตรวจสอบให้แน่ใจว่าได้เปิดใช้งาน Bluetooth บนสมาร์ทโฟนของคุณแล้ว
2. Turn on the Bluetooth remote control. It will enter pairing mode.
3. On your smartphone, search for Bluetooth devices and select "UBeesize Remote" (or similar) to pair.
4. Once paired, you can use the remote to trigger photos or start/stop video recording from a distance of up to 10 meters.

4.5 Using the Wired Control

The USB cable includes an inline wired control for quick adjustments.

• The wired control allows you to adjust brightness, switch light colors, and power the unit on/off.

Image: A detailed illustration of the upgraded phone clamp, showing its adjustable width from 2.3 to 4.5 inches. Also depicted are the USB plug with its inline wire control for brightness and color adjustments, and the wireless Bluetooth remote control for iOS and Android devices, with an operational range of up to 10 meters.

5. Recommended Usage Scenarios

The UBeesize Ring Light is highly versatile and suitable for a wide range of applications:

• ถ่ายทอดสด: Provides consistent and flattering illumination for live broadcasts on various platforms.
• ถ่ายภาพ: Ideal for portraits, product photography, and macro shots, eliminating harsh shadows.
• การบันทึกวิดีโอ: Ensures professional-quality lighting for vlogs, tutorials, and interviews.
• การประชุมทางวิดีโอ: Enhances your appearance during online meetings, making you look clear and well-lit.
• แอปพลิเคชั่นแต่งหน้า: Offers bright, even light for precise makeup application.
• การท่องเที่ยว: The compact design allows for easy portability, making it perfect for on-the-go content creation.

Image: A collage of four scenarios demonstrating the ring light's utility: a photographer capturing food, a videographer filming, a content creator applying makeup, and a traveler using it outdoors.

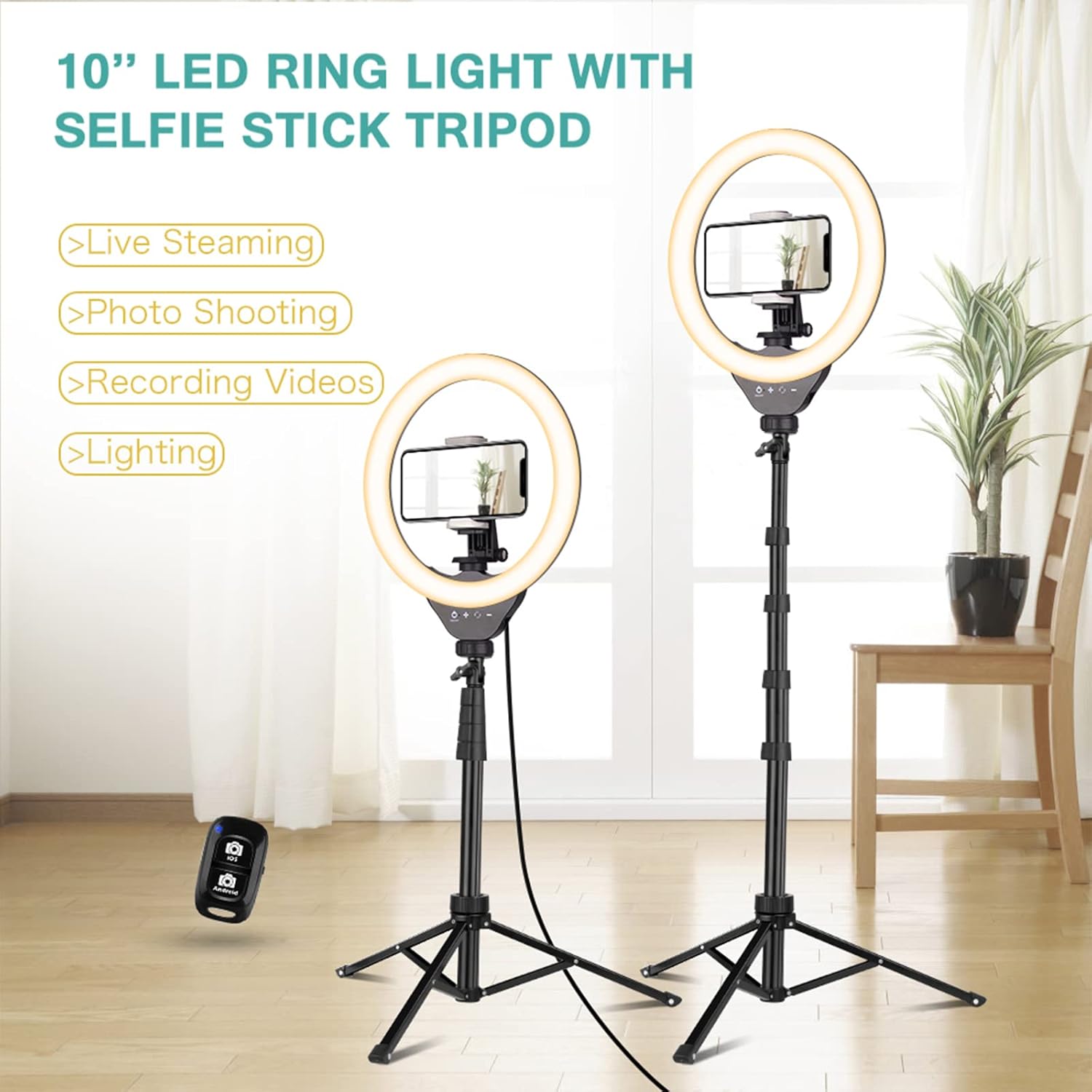

Image: Two UBeesize 10-inch LED ring lights with selfie stick tripods set up, one with a phone for live streaming/photo shooting and the other for general lighting, showcasing ความหลากหลายในการใช้งาน

Image: Two individuals engaged in a video conference, with the UBeesize ring light providing optimal illumination for their online communication.

6. การดูแลรักษา

Proper care and maintenance will extend the lifespan of your UBeesize Ring Light.

• การทำความสะอาด: Use a soft, dry cloth to wipe down the ring light and tripod. For stubborn marks, a slightly damp cloth can be used, but ensure the device is unplugged and completely dry before reconnecting power. Do not use abrasive cleaners or solvents.
• พื้นที่จัดเก็บ: When not in use, collapse the tripod to its minimum height (20 inches) for easy storage. Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
• การจัดการ: Avoid dropping the device or subjecting it to strong impacts. Do not attempt to disassemble the ring light or tripod, as this may void the warranty and cause damage.

7 การแก้ไขปัญหา

If you encounter any issues with your UBeesize Ring Light, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact UBeesize customer support for further assistance.

8. ข้อมูลจำเพาะผลิตภัณฑ์

9. การรับประกันและการสนับสนุน

UBeesize is committed to providing high-quality products and excellent customer service.

• การรับประกัน: This product is covered by a 24-month replacement service from the date of purchase.
• บริการลูกค้า: We offer friendly lifetime customer service. If you have any questions, concerns, or require assistance with your UBeesize Ring Light, please do not hesitate to contact our support team. Refer to the product packaging or the UBeesize official webไซต์สำหรับรายละเอียดการติดต่อที่เฉพาะเจาะจง
