การแนะนำ
This manual provides detailed instructions for the Mohard BC61 Bluetooth FM Transmitter. Please read this manual thoroughly before use to ensure proper operation and to maximize the device's features, including quick charging, hands-free calling, and Hi-Fi music streaming.
ข้อมูลด้านความปลอดภัยที่สำคัญ
คำเตือน:
- This device contains a lithium-ion battery. Do not expose to extreme temperatures.
- Use only with compatible vehicles and charging systems.
- Disconnect the device immediately in case of malfunction.
- Refer to this user manual for proper usage and disposal instructions.
คุณสมบัติผลิตภัณฑ์

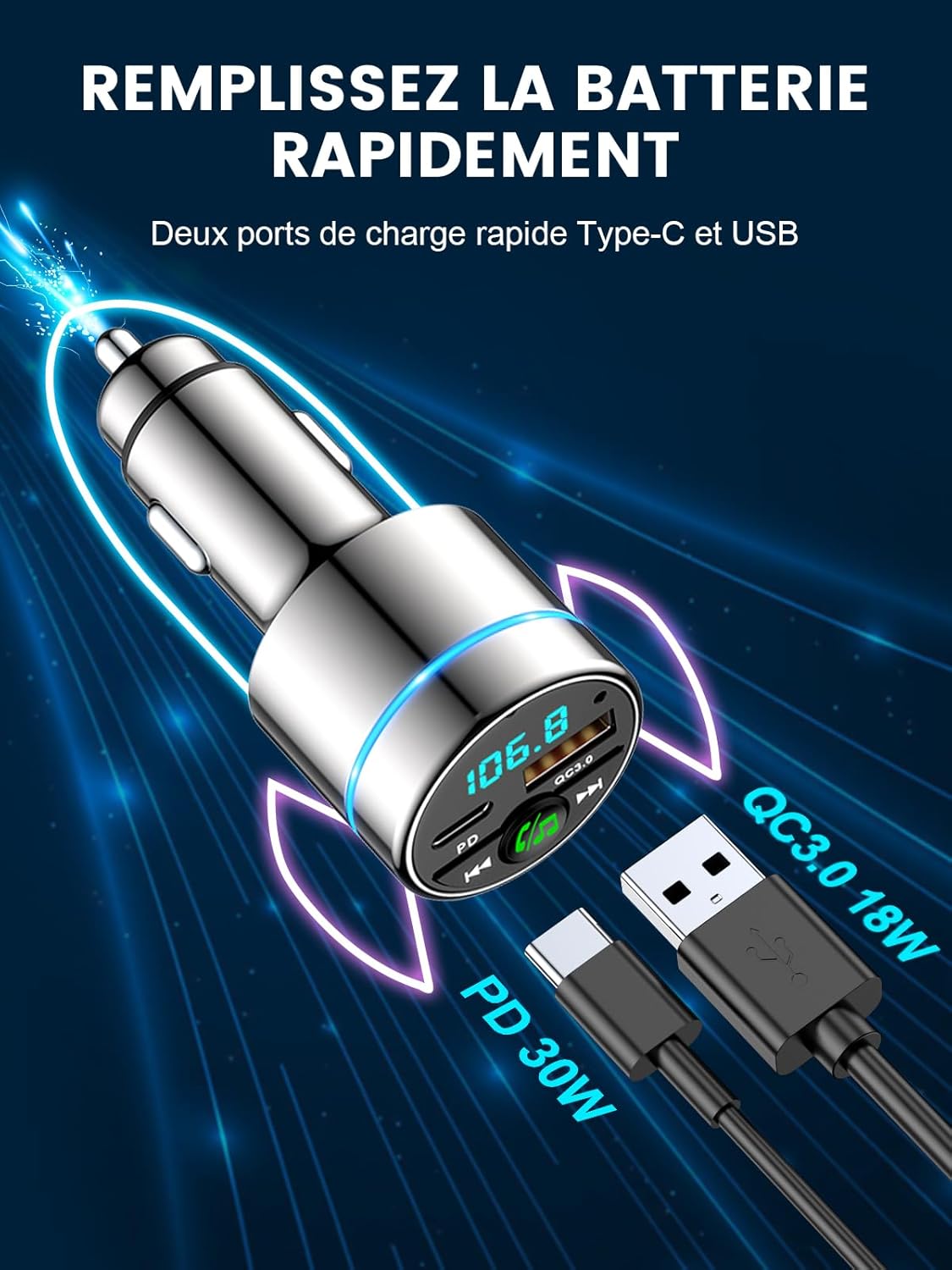

- Dual Fast Charging Ports: Equipped with 18W USB-A QC3.0 and 30W USB-C PD ports for simultaneous fast charging of multiple devices. Intelligent circuits protect against overcurrent, short-circuit, overheating, and overcharging.
- Bluetooth 5.3 & Hi-Fi Music: Advanced Bluetooth 5.3 ensures stable, fast pairing and transmission for seamless, lossless music streaming from any Bluetooth-enabled device.
- คอมแพ็ค เมทัล ซีasing: Features an attractive, elegant unibody design made entirely of highly durable zinc alloy for superior heat dissipation and long-lasting use, offering enhanced safety compared to plastic alternatives.
- High-Performance Hands-Free Calling: Integrated high-sensitivity microphone with CVC noise suppression technology ensures clear calls for both driver and caller. Answer and reject calls with a single button press.
- ประสบการณ์การขับขี่ที่ดีขึ้น: Monitors car voltage and features a blue ambient light ring for easy location in the dark, adding a stylish touch. Transmits phone audio, including navigation and voice assistant, to your car's system.
คู่มือการติดตั้ง
Follow these steps to set up your Mohard BC61 Bluetooth FM Transmitter:
- Insert into Car Lighter Socket: Plug the Mohard BC61 into your car's 12V/24V cigarette lighter socket. The device will power on automatically.
- ปรับคลื่นวิทยุรถยนต์: Set your car radio to an unused FM frequency (e.g., 87.5 MHz - 108.0 MHz). Choose a frequency with no strong broadcast signal to minimize interference.
- ตั้งค่าความถี่เครื่องส่งสัญญาณ: Long-press the MFB (Multi-Function Button) on the transmitter to enter FM mode. Rotate the MFB to match the transmitter's frequency to the one selected on your car radio.
- จับคู่บลูทูธ: เปิดใช้งานบลูทูธบนสมาร์ทโฟนของคุณ ค้นหา "BC61" in the list of available devices and connect. Once paired, the device will confirm the connection.

คำแนะนำการใช้งาน
การเล่นเพลง
- Once connected via Bluetooth, open your preferred music application on your smartphone.
- Music will stream wirelessly through the FM transmitter to your car's audio system.
- Use the "Previous Track" and "Next Track" buttons on the transmitter to control playback.
- Adjust volume via your smartphone or car radio.

การโทรแบบแฮนด์ฟรี
- When a call comes in, press the MFB once to answer.
- To reject an incoming call, long-press the MFB.
- To end an ongoing call, press the MFB once.
- To redial the last number, double-press the MFB.

อุปกรณ์ชาร์จไฟ
- Connect your device's charging cable to either the USB-A QC3.0 port (18W) or the USB-C PD port (30W) on the transmitter.
- The device supports fast charging for compatible smartphones, tablets, and other USB-powered devices.

รถรุ่นtage การตรวจสอบ
- The LED display on the transmitter shows your car's real-time voltage.
- ติดตามความเคลื่อนไหวtage to ensure your car battery is in good condition.
- บันทึก: Refer to your car's manual for normal voltagอีช่วง

การซ่อมบำรุง
- Keep the device dry and clean. Avoid exposure to moisture or extreme temperatures.
- อย่าพยายามถอดประกอบหรือดัดแปลงอุปกรณ์ การกระทำเช่นนี้จะทำให้การรับประกันเป็นโมฆะ
- ทำความสะอาดพื้นผิวด้วยผ้านุ่มและแห้ง ห้ามใช้สารเคมีรุนแรงหรือน้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อน
- ตรวจสอบให้แน่ใจว่าช่องเสียบที่จุดบุหรี่สะอาดและปราศจากสิ่งสกปรก เพื่อการเชื่อมต่อที่ดีที่สุด
การแก้ไขปัญหา
| ปัญหา | สารละลาย |
|---|---|
| ไม่มีพลังงาน/อุปกรณ์ไม่เปิด | Ensure the device is fully inserted into the car's cigarette lighter socket. Check if the car's socket is functioning (e.g., by testing with another device). |
| Poor audio quality/Static noise. |
|
| บลูทูธไม่เชื่อมต่อ |
|
| Slow charging or no charging. |
|
ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| ยี่ห้อ | โมฮาร์ด |
| หมายเลขรุ่น | พ.ศ.61 |
| สี | เงิน |
| เทคโนโลยีการเชื่อมต่อ | พอร์ต USB, บลูทูธ 5.3 |
| แหล่งพลังงาน | Vehicle Powered (12V/24V cigarette lighter) |
| วัสดุ | Metal (Zinc Alloy) |
| ขนาดสินค้า | กว้าง 8.4 ยาว 4.7 สูง 4.2 เซนติเมตร |
| น้ำหนักสินค้า | 36 กรัม |
| คุณสมบัติพิเศษ | Bluetooth Car Adapter, Fast Car Charger (PD 30W Type C + QC3.0), All Metal Construction, FM Transmitter Bluetooth 5.3 |
| พอร์ต USB รวม | 2 |
| อุปกรณ์ที่รองรับ | Smartphones (e.g., iPhone, Samsung Galaxy), Tablets, and other Bluetooth-compatible devices. |
การรับประกันและการสนับสนุน
การรับประกันของผู้ผลิต: One year after-sales service is provided by Mohard.
For technical support, warranty claims, or further assistance, please contact Mohard customer service through the retailer where the product was purchased or visit the official Mohard webเว็บไซต์.
