คู่มือการใช้งานชุดประแจซ็อกเก็ต Meister 8429600

การแนะนำ

This instruction manual provides essential information for the safe and effective use of your Meister 8429600 Socket Wrench Set. This 38-piece set is designed for various screwing tasks in DIY projects, workshops, garages, and similar environments. It features a wide range of socket inserts, bits, and accessories, making it an ideal basic equipment for many applications.

The components are crafted from robust carbon steel for socket inserts and professional-grade silicon molybdenum steel (S2) for bits, ensuring high quality and durability. The set is supplied in a practical plastic case for organized storage.

สินค้าเกินview และส่วนประกอบ

The Meister 8429600 Socket Wrench Set includes 38 essential tools for various fastening needs. All components are neatly organized within a durable plastic storage case with a transparent lid.

รูปที่ 1: The Meister 8429600 Socket Wrench Set, showcasing all 38 pieces securely stored in its robust red and black plastic case. Each tool has a designated slot for easy organization and retrieval.

ชุดประกอบด้วยส่วนประกอบดังต่อไปนี้:

• 1 x 1/4" Reversible Ratchet (48 teeth): For efficient tightening and loosening of fasteners.
• 1 x 1/4" Screwdriver Handle with Plastic Grip: For manual bit and socket operation.
• 9 x 1/4" Socket Inserts: Sizes 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm.
• 24 x 25 mm S2 Steel Bits:
  • Slotted: 3 mm, 4 mm, 5 mm, 6 mm, 7 mm
  • Phillips: PH1, PH2
  • Pozidriv: PZ1, PZ2, PZ3
  • Torx: T10, T15, T20, T25, T30, T40
  • Hexagonal: 3 mm, 4 mm, 5 mm, 6 mm
• 2 x 1/4" Extensions: 50 mm and 100 mm lengths, for reaching fasteners in confined spaces.
• 1 x 1/4" Universal Joint: For angled access to fasteners.

รูปที่ 2: ครอบคลุม view of all 38 individual components included in the Meister Socket Wrench Set, arranged for clear identification of each tool type.

การตั้งค่า

The Meister 8429600 set is designed for immediate use. No assembly is required for the main tools. To begin, select the appropriate bit or socket for your task.

1. Selecting a Bit or Socket: Identify the correct size and type of bit (e.g., Phillips, Torx, Hex) or socket (e.g., 8mm, 10mm) required for your fastener.
2. Attaching to Screwdriver Handle: For bits, simply insert the bit into the hexagonal opening of the screwdriver handle. For sockets, press the socket onto the square drive of the handle until it clicks into place.
3. Attaching to Ratchet: For sockets, press the socket onto the square drive of the ratchet until it clicks into place. For bits, use an appropriate bit adapter (not included in this set, but compatible with the 1/4" drive).
4. Using Extensions and Universal Joint: If additional reach or angled access is needed, attach the desired extension(s) or the universal joint between the handle/ratchet and the bit/socket. Ensure all connections are secure.

คำแนะนำการใช้งาน

The tools in this set are designed for manual operation. Always ensure you are using the correct tool for the job to prevent damage to the fastener or the tool itself.

Using the Screwdriver Handle

The screwdriver handle is ideal for tasks requiring precise control or when less torque is needed. Insert the chosen bit into the handle. Apply firm, steady pressure while turning the handle clockwise to tighten or counter-clockwise to loosen fasteners.

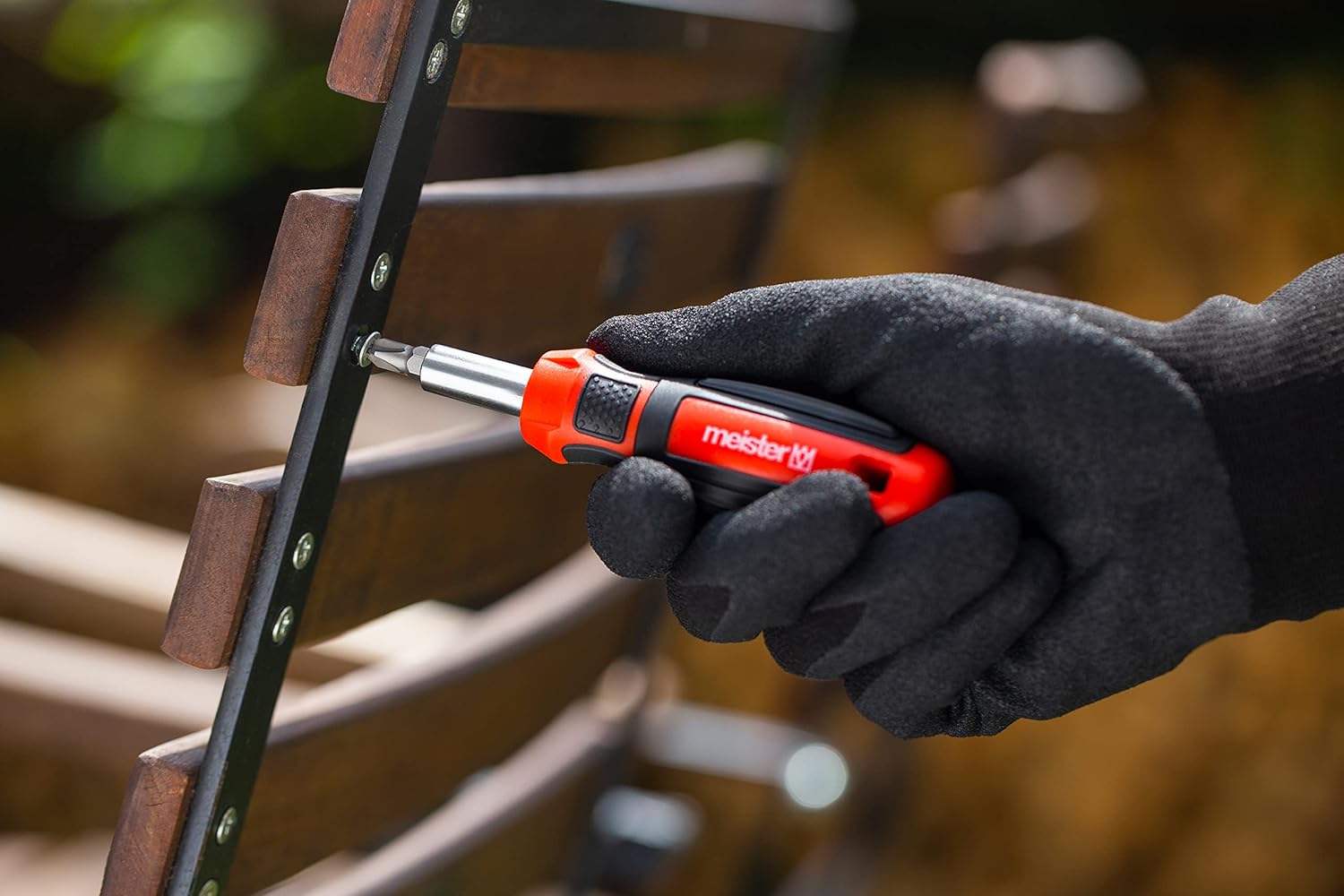

รูปที่ 3: Demonstrating the use of the screwdriver handle for precise fastening tasks, such as assembling furniture.

Using the Reversible Ratchet

The reversible ratchet allows for efficient tightening and loosening of fasteners without repositioning the tool. Attach the appropriate socket. The small lever on the ratchet head controls the direction of rotation. Flip the lever to switch between tightening (clockwise) and loosening (counter-clockwise) modes. Apply steady force to the handle to turn the fastener.

รูปที่ 4: Illustrating the application of the reversible ratchet for tightening a bolt, providing leverage and ease of use in various mechanical tasks.

Using Extensions and Universal Joint

Extensions are used to reach fasteners that are recessed or otherwise inaccessible with the standard tool length. The universal joint provides flexibility, allowing the tool to operate at an angle, which is useful in tight or obstructed spaces. Attach these accessories between the ratchet/handle and the socket/bit as needed.

การซ่อมบำรุง

Proper maintenance ensures the longevity and optimal performance of your Meister tool set.

• การทำความสะอาด: After each use, wipe down all tools with a clean, dry cloth to remove dirt, grease, or debris. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
• การหล่อลื่น: Periodically apply a light coat of machine oil to the moving parts of the ratchet mechanism to ensure smooth operation and prevent corrosion.
• พื้นที่จัดเก็บ: Always return all components to their designated slots in the plastic storage case after use. This prevents loss, protects the tools from damage, and keeps them organized. Store the case in a dry environment to prevent rust.
• การตรวจสอบ: Before each use, inspect tools for any signs of wear, damage, or corrosion. Do not use damaged tools; replace them if necessary.

การแก้ไขปัญหา

ส่วนนี้จะกล่าวถึงปัญหาทั่วไปที่คุณอาจพบเจอขณะใช้งานชุดเครื่องมือของคุณ

• Bits/Sockets Slipping: Ensure the correct size bit or socket is being used for the fastener. Make sure the bit/socket is fully seated in the handle or ratchet. If the fastener head is stripped, consider using a different type of bit or a specialized extractor.
• กลไกเฟืองไม่ทำงาน: Check the direction lever on the ratchet head. Ensure it is fully engaged in either the tightening or loosening position. If the mechanism feels stiff, apply a small amount of lubricant as described in the Maintenance section.
• Difficulty Loosening Tight Fasteners: For very tight fasteners, ensure you have a firm grip and apply steady, increasing pressure. Avoid sudden jerking motions. For extremely stubborn fasteners, consider using a penetrating oil or a breaker bar (not included) if compatible with the socket.
• การกัดกร่อน/สนิม: If tools show signs of rust, clean them thoroughly and apply a rust-inhibiting oil. Prevent future corrosion by storing tools in a dry environment and ensuring they are clean before storage.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

Specific warranty information for the Meister 8429600 Socket Wrench Set is not provided in this manual. For details regarding warranty coverage, claims, or technical support, please refer to the product packaging or contact Contmetall Meister GmbH directly through their official webเว็บไซต์หรือช่องทางการบริการลูกค้า

โปรดเก็บหลักฐานการซื้อไว้เสมอเพื่อใช้ในการสอบถามเกี่ยวกับเงื่อนไขการรับประกัน
