Alpine iLX-507 Multimedia Receiver User Manual

การแนะนำ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Alpine iLX-507 7" Multimedia Receiver. Please read this manual thoroughly before using the product to ensure proper and safe operation. Keep this manual for future reference.

The Alpine iLX-507 is a state-of-the-art digital multimedia receiver designed to enhance your in-car entertainment and connectivity. It features a 7-inch capacitive touchscreen display and offers seamless integration with modern smartphones through wireless Apple CarPlay and wireless Android Auto.

การติดตั้งและการตั้งค่า

การติดตั้งอย่างถูกต้องเป็นสิ่งสำคัญอย่างยิ่งต่อประสิทธิภาพและความปลอดภัยสูงสุด ขอแนะนำให้ติดตั้งโดยผู้เชี่ยวชาญที่มีคุณสมบัติเหมาะสม

การแกะกล่องและการตรวจสอบส่วนประกอบ

Before beginning installation, verify that all components are present in the packaging:

• Alpine iLX-507 Multimedia Receiver Unit
• ชุดสายไฟ
• เสาอากาศ GPS
• ไมโครโฟน
• ฮาร์ดแวร์สำหรับติดตั้ง
• คู่มือการใช้งาน (เอกสารนี้)

การเชื่อมต่อสายไฟ

Connect the wiring harness to the vehicle's power, ground, speaker, and accessory wires according to the wiring diagram provided with the unit. Ensure all connections are secure and properly insulated to prevent short circuits.

The iLX-507 supports various inputs and outputs, including USB for media playback and smartphone connectivity, and HDMI for external video sources.

รูปที่ 1 : ด้านหน้า view of the Alpine iLX-507 multimedia receiver displaying the radio interface with frequency selection and current song information.

Initial Power-On and Basic Settings

After installation, turn on your vehicle's ignition to power the unit. The initial setup wizard will guide you through basic configurations such as language, time, and region settings. Ensure the GPS antenna is positioned correctly for accurate time synchronization and navigation assistance.

คำแนะนำการใช้งาน

Touchscreen Interface Navigation

The iLX-507 features a responsive 7-inch capacitive touchscreen. Navigate through menus and select functions by tapping icons. Swipe gestures may be used for scrolling lists or changing screens.

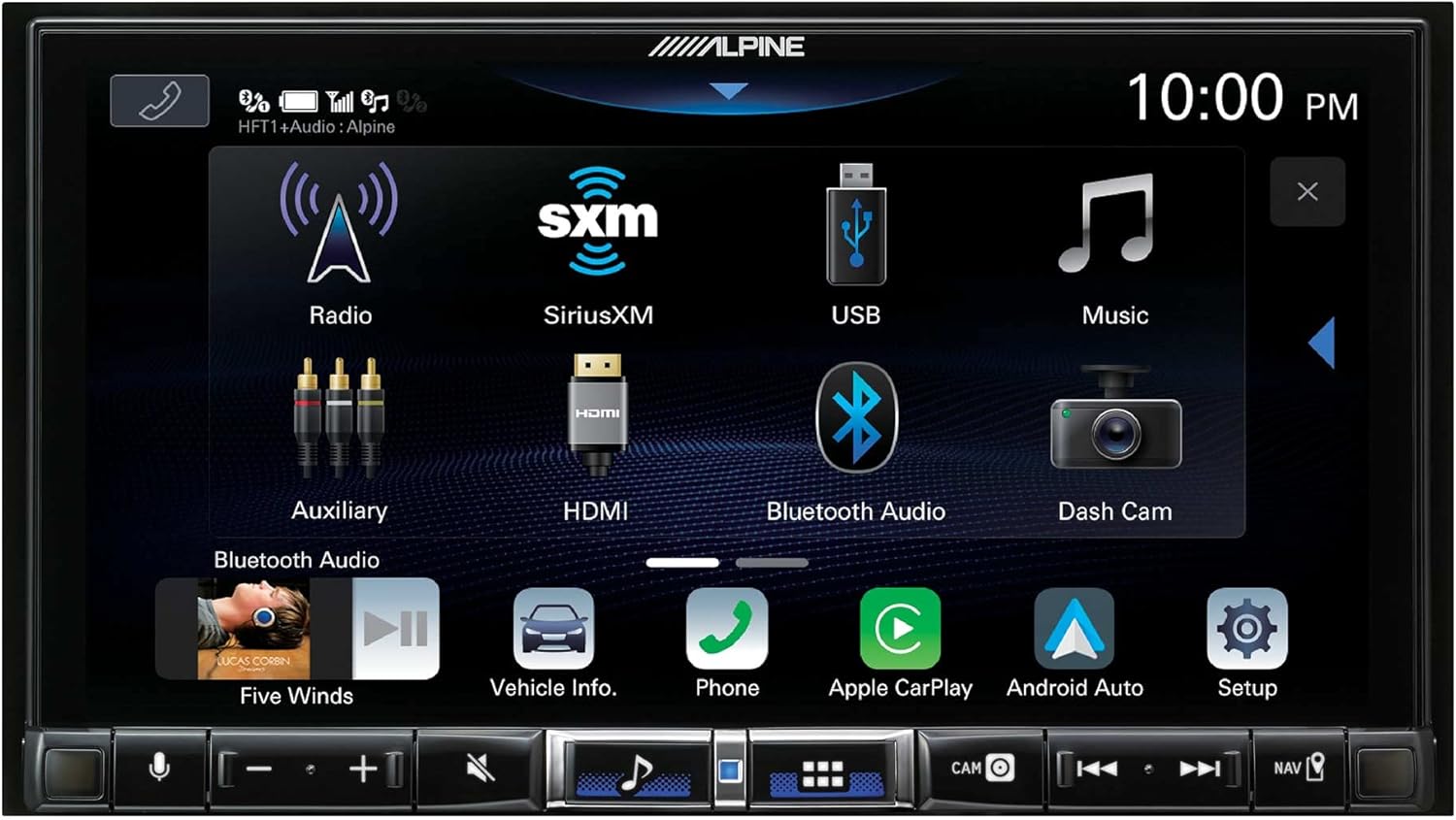

Figure 2: The main menu screen of the iLX-507, showing icons for Radio, SiriusXM, USB, Music, Auxiliary, HDMI, Bluetooth Audio, Dash Cam, Vehicle Info, Phone, Apple CarPlay, and Android Auto.

Apple CarPlay แบบไร้สายและ Android Auto

The iLX-507 supports both wired and wireless Apple CarPlay and Android Auto. To connect wirelessly, ensure Bluetooth is enabled on your smartphone and pair it with the receiver. Once paired, select the respective CarPlay or Android Auto icon on the receiver's screen to initiate the connection.

• แอปเปิล คาร์เพลย์: Access navigation, make calls, send and receive messages, and listen to music directly from your iPhone.
• แอนดรอยด์อัตโนมัติ: Utilize Google Maps, make calls, send messages, and control music from your Android device.

Figure 3: A visual comparison demonstrating the user interfaces for both Apple CarPlay and Android Auto as displayed on the Alpine iLX-507 screen.

การโทรแบบแฮนด์ฟรีผ่าน Bluetooth และการสตรีมเสียง

Pair your smartphone via Bluetooth for hands-free calling and wireless audio streaming. Access your phone's contact list, dial numbers, and manage calls directly from the receiver's screen. Stream music from your device's library or supported apps like Pandora, Spotify, and Tidal.

Audio Settings and Equalizer

The iLX-507 offers extensive audio customization options. Access the audio settings menu to adjust bass, treble, balance, fader, and subwoofer levels. Utilize the built-in equalizer for precise sound tuning to match your preferences and vehicle acoustics.

Figure 4: The audio settings screen of the Alpine iLX-507, showing options for MediaXpander, battery voltage display, sound presets, bass/treble adjustments, and time correction settings.

การซ่อมบำรุง

การทำความสะอาดจอแสดงผล

To clean the capacitive touchscreen, gently wipe it with a soft, lint-free cloth. For stubborn smudges, dampen the cloth slightly with water or a screen-safe cleaner. Avoid using abrasive materials or harsh chemicals, as these can damage the screen coating.

การอัพเดตซอฟต์แวร์

Alpine periodically releases software updates to improve performance, add features, or address issues. Check the official Alpine website for the latest firmware updates for your iLX-507 model. Follow the provided instructions carefully when performing updates, typically involving a USB drive.

การแก้ไขปัญหา

This section addresses common issues you might encounter with your Alpine iLX-507. For problems not listed here, please contact Alpine customer support.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For warranty information, please refer to the warranty card included with your product or visit the official Alpine website. Alpine provides customer support for technical assistance, troubleshooting, and service inquiries.

For the most up-to-date support resources, including FAQs and contact information, please visit the หน้าสนับสนุนของ Alpine.
