EMKE SFTR7640X1A-ADR Bathroom Radiator Towel Warmer Instruction Manual

1. บทนำ

Thank you for choosing the EMKE SFTR7640X1A-ADR Bathroom Radiator Towel Warmer. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new towel warmer. Please read these instructions carefully before installation and retain them for future reference.

ข้อมูลด้านความปลอดภัย

• การติดตั้งต้องดำเนินการโดยผู้เชี่ยวชาญที่มีคุณสมบัติเหมาะสม โดยเป็นไปตามข้อกำหนดด้านการก่อสร้างและการประปาของท้องถิ่น
• ตรวจสอบให้แน่ใจว่าได้ปิดแหล่งจ่ายน้ำแล้วก่อนที่จะเริ่มงานติดตั้งหรือบำรุงรักษาใดๆ
• Do not operate the towel warmer if it is damaged.
• Keep children away from the towel warmer during operation as surfaces can become hot.
• This product is designed for heating towels and providing ambient warmth in bathrooms. Do not use it for purposes other than its intended use.

2. สินค้าหมดview

The EMKE SFTR7640X1A-ADR is a flat bathroom radiator designed for efficient towel warming and supplementary room heating. Its anthracite finish and modern design complement various bathroom aesthetics.

ภาพที่ 2.1: The EMKE towel warmer providing cozy warmth and featuring high thermal conductivity for efficient heating.

คุณสมบัติหลัก:

• High Thermal Conductivity: Designed for rapid and effective heat distribution.
• Adjustable Wall Distance: Allows for flexible installation and optimal spacing from the wall.
• วัสดุคุณภาพสูง: Constructed from SPCC steel with an environmentally friendly coating for durability and safety.
• 360° Welding Process: Ensures a robust and leak-proof construction.

ภาพที่ 2.2: Close-up showing the adjustable wall distance from 99-115mm, the use of high-quality SPCC steel with an environmental protection coating, and the 360° welding process designed to prevent water leakage.

3. ข้อมูลจำเพาะ

Dimensions and Performance Table

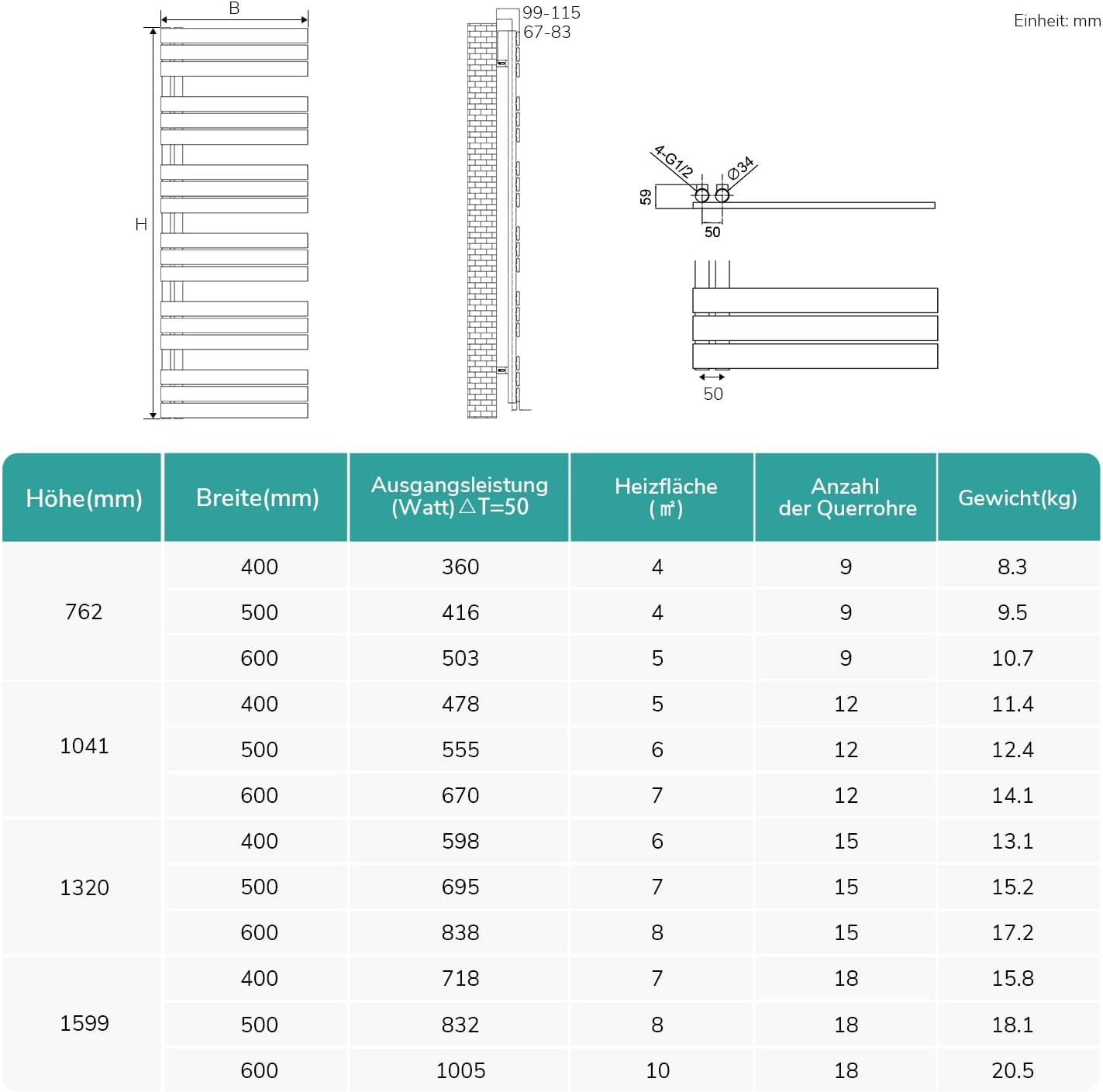

ภาพที่ 3.1: Technical drawing illustrating the dimensions and connection points, alongside a table detailing performance specifications for various sizes of EMKE towel warmers. This specific model is 762mm high and 400mm wide.

4. การตั้งค่าและการติดตั้ง

This section outlines the general steps for installing your EMKE towel warmer. Professional installation is highly recommended.

4.1 การตรวจสอบก่อนการติดตั้ง

• Verify all components listed in the 'Included Components' section are present.
• Ensure you have the necessary tools and additional parts (e.g., valves, not included).
• Confirm the chosen installation location is suitable and the wall can support the weight of the radiator when filled with water.

4.2 การติดตั้งหม้อน้ำ

1. Mark the drilling points on the wall according to the radiator's dimensions and the mounting bracket positions.
2. เจาะรูและเสียบเดือยที่ให้มา
3. Attach the mounting brackets securely to the wall using the long screws.
4. Mount the radiator onto the brackets, ensuring it is level and stable.

4.3 การเชื่อมต่อน้ำ

The radiator features a universal G1/2" thread with a 50mm connection distance, allowing for flexible left or right side connection.

ภาพที่ 4.1: Illustration of the flexible connection options (left or right) and a detailed view of the G1/2" universal thread with a 50mm connection distance. Note that valves are not included.

1. Connect the water inlet and outlet pipes to the radiator using appropriate valves (not included). Ensure all connections are sealed properly to prevent leaks.
2. The towel dryer can be installed upside down, allowing connections on either the left or right side.
3. Once connections are secure, slowly open the water supply to fill the radiator.
4. Bleed any air from the system using the bleed valve (if applicable to your valve setup) until water flows out steadily.

4.4 อุปกรณ์เสริมที่มีให้

ภาพที่ 4.2: The mounting kit includes 4 blind plugs, 4 dowels, 4 long screws, and 4 small screws. Valves are not included. The image also shows the four-layer packaging for product protection.

• 4 x Blind Plugs
• 4 x เดือย
• 4 x สกรูยาว
• 4 x สกรูขนาดเล็ก

5. การดำเนินการ

Once installed and filled with water, your EMKE towel warmer is ready for operation.

5.1 ฟังก์ชันการทำความร้อน

• The towel warmer integrates with your central heating system. Adjust the flow of hot water through the radiator using the installed valves.
• Recommended water inlet/outlet temperatures are 75°C / 65°C for optimal performance.
• The radiator will heat up, providing warmth to your bathroom and drying towels placed on its bars.

5.2 Towel Drying

Hang towels evenly over the bars of the radiator. Avoid overcrowding to ensure efficient drying and heat distribution.

6. การบำรุงรักษา

Regular maintenance ensures the longevity and efficient operation of your towel warmer.

6.1 การทำความสะอาด

• Clean the surface of the radiator regularly with a soft, damp ผ้า.
• Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the anthracite finish.
• For stubborn marks, use a mild soap solution and wipe thoroughly.

6.2 การตรวจสอบระบบ

• Periodically check for any signs of leaks around the connections.
• Ensure the system is properly bled of air to maintain heating efficiency.

7 การแก้ไขปัญหา

If you encounter issues with your EMKE towel warmer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact a qualified plumber or the EMKE customer support.

8. การรับประกันและการสนับสนุน

EMKE products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official EMKE webไซต์นี้ โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ยืนยันการรับประกัน

การสนับสนุนลูกค้า

For technical assistance, spare parts, or any other inquiries, please contact EMKE customer support through the contact information provided on your purchase documentation or the official EMKE webเว็บไซต์.
