UBeesize 170cm Tripod for Camera and Smartphone

การแนะนำ

ขอบคุณสำหรับการซื้อasing the UBeesize 170cm Tripod. This versatile tripod is designed to provide stable support for various devices, including cameras, smartphones, tablets, and video cameras. Its lightweight aluminum construction, 3-way pan head, and adjustable height make it suitable for a wide range of photography and videography needs, from family trips to live streaming. Please read this manual carefully to ensure proper setup and operation.

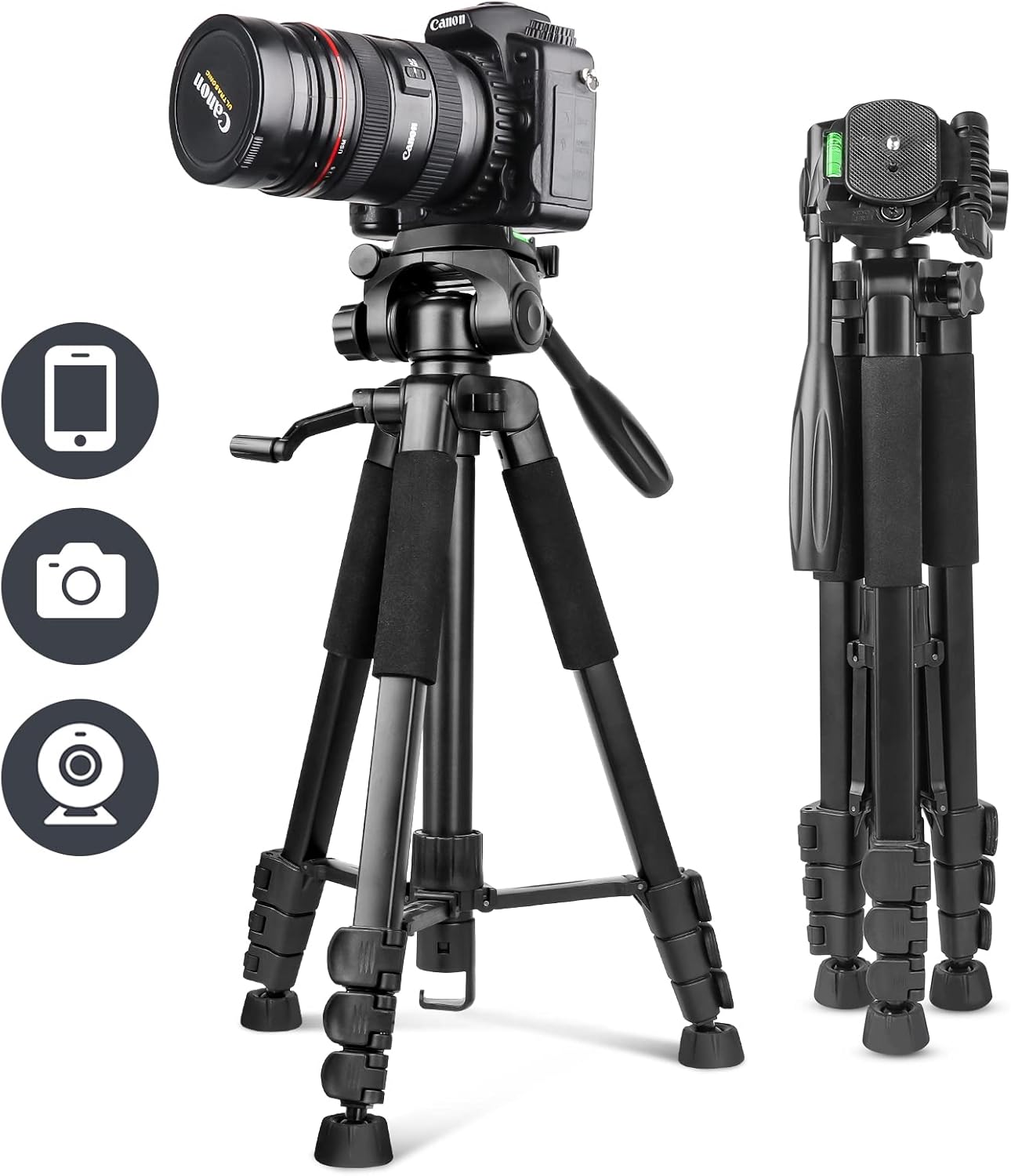

Image: The UBeesize 170cm Tripod shown fully extended with a camera attached, illustrating its primary use.

เนื้อหาแพ็คเกจ

โปรดตรวจสอบว่ารายการทั้งหมดที่ระบุไว้ด้านล่างมีอยู่ในแพ็คเกจของคุณหรือไม่:

• UBeesize Camera Tripod x 1
• Smartphone Clip x 1
• รีโมทคอนโทรลไร้สาย x 1
• กระเป๋าถือ x 1
• คู่มือการใช้งาน x 1

Image: Visual representation of the tripod and its accompanying accessories, including the smartphone clip, wireless remote, and carrying bag.

Product Diagram and Parts Identification

Familiarize yourself with the different components of your UBeesize tripod:

ภาพ: ระเบิด view diagram highlighting key parts such as the pan handle head, quick release plate, spirit level, center column, leg locks, anti-slip feet, and the hook for added stability.

• Pan Handle Head: Allows for smooth horizontal and vertical adjustments.
• แผ่นปลดเร็ว: For quick attachment and detachment of your device.
• Spirit Level: Helps ensure your setup is perfectly horizontal.
• คอลัมน์กลาง: Extends for additional height adjustment.
• Leg Locks: Secure the tripod legs at desired lengths.
• เท้ากันลื่น: Provide stability on various surfaces.
• ขอเกี่ยวอุปกรณ์เสริม: Located at the bottom of the center column, can be used to hang a weight (e.g., backpack) for increased stability.

คำแนะนำการตั้งค่า

1. การกางขาตั้งกล้อง

1. วางขาตั้งกล้องบนพื้นผิวที่เรียบและมั่นคง
2. คลายตัวล็อกขาแต่ละข้างออก
3. Extend the legs to the desired length and angle.
4. ล็อคขาโครงสร้างทุกส่วนให้แน่นสนิท เพื่อป้องกันการพับลงโดยไม่ตั้งใจ

2. การปรับความสูง

The tripod offers 4-stage height adjustment, from a minimum of 51cm to a maximum of 170cm.

1. To adjust the leg height, open the leg locks, extend the leg sections, and then close the locks firmly.
2. To adjust the center column height, loosen the center column lock knob, raise or lower the column, and then tighten the knob securely.

Image: A visual guide demonstrating the tripod's adjustable height settings, ranging from its folded state to its maximum extension of 170cm.

3. Attaching Devices (Camera, Smartphone)

1. สำหรับกล้อง: Unscrew the quick release plate from the tripod head. Attach the quick release plate to the bottom of your camera by screwing it into the camera's tripod mount. Then, slide the quick release plate with the camera back onto the tripod head until it clicks into place. Ensure it is securely locked.
2. สำหรับสมาร์ทโฟน: Attach the smartphone clip to the quick release plate. Insert your smartphone into the clip, ensuring it is held firmly. Then, attach the quick release plate with the smartphone clip to the tripod head.
3. สำคัญ: Always ensure the device is securely mounted and all screws are tightened to prevent accidental drops and maintain the maximum load capacity of 5.5kg.

4. Using the Wireless Remote Control

The included wireless remote control is compatible with both iOS and Android smartphones, offering a maximum effective range of 10 meters.

1. เปิดรีโมทคอนโทรลโดยใช้สวิตช์เปิด/ปิด
2. เปิดใช้งาน Bluetooth บนสมาร์ทโฟนของคุณและค้นหาอุปกรณ์ที่มีอยู่
3. Select the remote control (usually named 'AB Shutter3' or similar) from the list to pair.
4. Once paired, open your smartphone's camera app. Use the corresponding button on the remote (iOS or Android) to trigger the shutter.

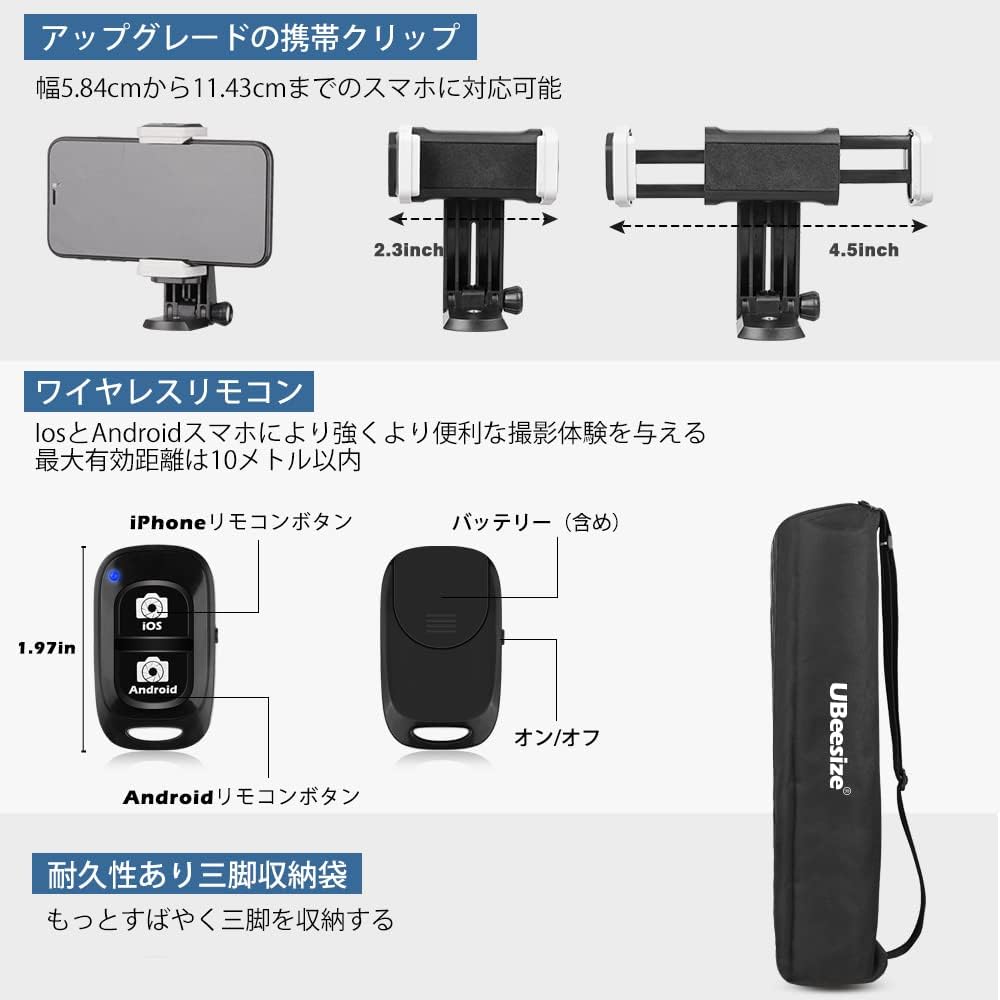

ภาพ: ระยะใกล้ view of the adjustable smartphone clip, the wireless Bluetooth remote control with iOS and Android buttons, and the compact carrying bag.

คำแนะนำการใช้งาน

1. Adjusting Shooting Angles with the 3-Way Pan Head

The 3-way pan head allows for flexible positioning of your device:

• Horizontal Panning: Loosen the horizontal lock knob on the pan head to rotate the device 360 degrees horizontally for panoramic shots. Tighten to secure.
• Vertical Tilting: Loosen the vertical tilt handle to adjust the device's angle up or down. Tighten the handle to secure the position.
• การวางแนวภาพ: แนวตั้ง/แนวนอน The quick release plate mount can be tilted 90 degrees to switch between landscape and portrait orientations. Loosen the side knob, adjust, and tighten.

ภาพ: อดีตamples of various shooting modes achievable with the 3-way pan head, including landscape, portrait, upward-angle, and downward-angle shots, along with an indicator for 360-degree rotation.

2. Enhancing Stability

For maximum stability, especially with heavier devices or in windy conditions:

• Ensure all leg locks and head adjustment knobs are firmly tightened.
• Hang a weight (e.g., your camera bag or backpack) from the accessory hook located at the bottom of the center column.
• Use the spirit level on the tripod head to ensure your setup is perfectly balanced.

Image: The tripod set up outdoors with a camera, showing a backpack attached to the center column hook to provide additional stability.

การซ่อมบำรุง

To ensure the longevity and optimal performance of your tripod:

• Clean the tripod regularly with a soft, dry cloth. Avoid abrasive cleaners or solvents.
• If used in dusty or sandy environments, carefully clean the leg sections and locks to prevent grit from affecting their operation.
• เมื่อไม่ใช้งาน ควรเก็บขาตั้งกล้องไว้ในกระเป๋าสำหรับพกพาในที่แห้งและเย็น
• Periodically check all screws and connections for tightness.

การแก้ไขปัญหา

1. Tripod is unstable:

• Ensure all leg locks are fully tightened.
• Verify that the quick release plate and your device are securely attached to the tripod head.
• Extend the legs evenly and ensure they are spread wide enough.
• Consider hanging a weight from the accessory hook for added stability.

2. Device is slipping or tilting:

• Tighten the pan handle and tilt adjustment knobs firmly.
• Ensure your device's weight does not exceed the maximum load capacity of 5.5kg.

3. Wireless remote control not pairing:

• Ensure the remote control is turned on and within 10 meters of your smartphone.
• ตรวจสอบว่าเปิดใช้งาน Bluetooth บนสมาร์ทโฟนของคุณแล้ว
• If previously paired, try unpairing and re-pairing the remote control in your smartphone's Bluetooth settings.
• เปลี่ยนแบตเตอรี่รีโมทคอนโทรลหากจำเป็น

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

Your UBeesize 170cm Tripod comes with a รับประกัน 12 เดือน from the date of purchase. If you encounter any issues or have questions regarding your product during this period, please do not hesitate to contact our customer support team. We are committed to providing reliable service and assistance.

For support, please refer to the contact information provided on the UBeesize official webไซต์หรือแพลตฟอร์มการซื้อของคุณ
