คู่มือการใช้งานเมาส์ไร้สายแบบพับได้ Bluetooth ระบบสัมผัส HXSJ รุ่น m52

การแนะนำ

Thank you for choosing the HXSJ Wireless Foldable Bluetooth Touch Mouse m52. This manual provides detailed instructions for setting up, operating, and maintaining your new mouse. Please read this manual thoroughly to ensure proper use and to maximize the performance of your device.

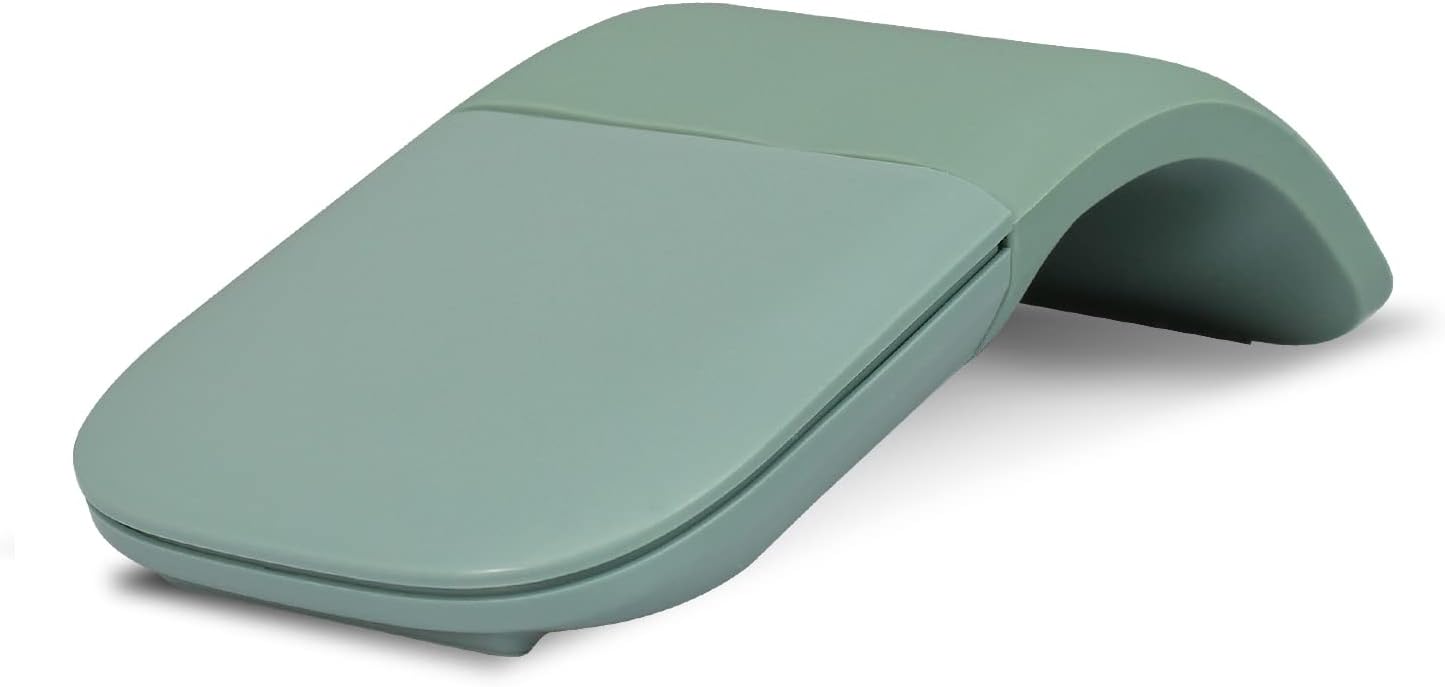

Image: The HXSJ Wireless Foldable Bluetooth Touch Mouse m52 in its arched, operational state. The mouse is green and features a sleek, minimalist design.

สินค้าเกินview

คุณสมบัติหลัก

• Innovative Full Touch Plane: The entire surface functions as a scroll plane, allowing for vertical scrolling.
• Ultra-Slim and Lightweight Design: Designed for portability, making it easy to carry anywhere.
• การเชื่อมต่อไร้สายบลูทูธ: Connects wirelessly to compatible devices via Bluetooth 4.0. No USB receiver is required.
• การออกแบบพับได้: The mouse powers on when bent into an arch and powers off when flattened.
• ความเข้ากันได้กว้าง: Works with Bluetooth-enabled devices running Windows Vista, 8, 10, Mac OS, Linux, and Android operating systems.

ส่วนประกอบและขนาด

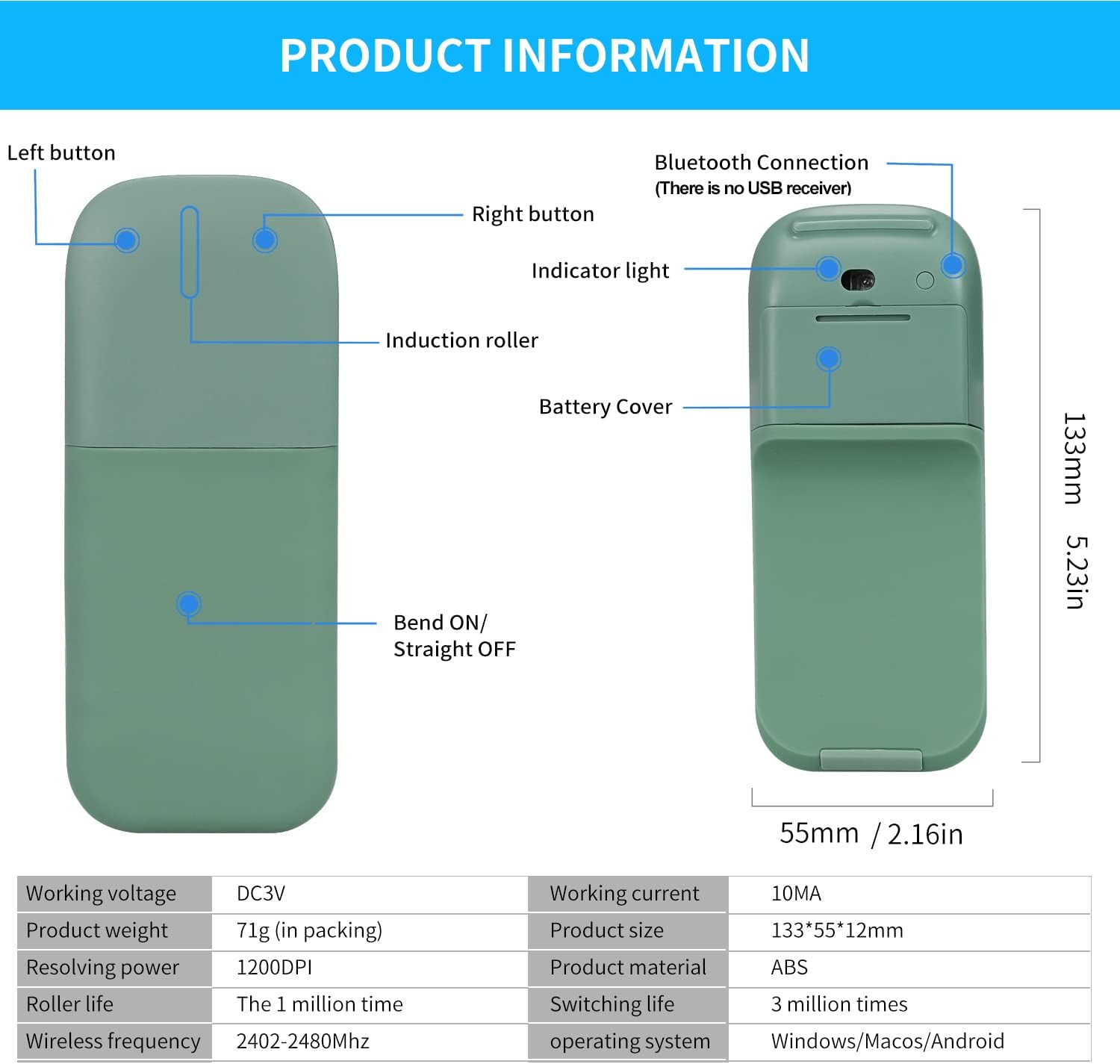

Image: A detailed diagram illustrating the components of the HXSJ m52 mouse, including the left button, right button, indicator light, induction roller, battery cover, and the bend point for power on/off. Dimensions are shown as 133mm (5.23in) length and 55mm (2.16in) width.

• ปุ่มซ้าย: ฟังก์ชั่นคลิกหลัก
• ปุ่มขวา: ฟังก์ชั่นคลิกรอง
• ไฟแสดงสถานะ: ให้ข้อเสนอแนะสถานะ
• Induction Roller: Touch-sensitive area for scrolling.
• ฝาครอบแบตเตอรี่: Located on the underside for battery access.
• Bend Point: Mechanism for powering the mouse on and off.

คำแนะนำการตั้งค่า

Follow these steps to set up your HXSJ Wireless Foldable Bluetooth Touch Mouse m52:

1. ใส่แบตเตอรี่: Open the battery cover on the underside of the mouse and insert two (2) AAA dry batteries (not included), ensuring correct polarity.
2. เปิดเครื่องเมาส์: Bend the mouse into its arched position. You will hear a sound, and the blue indicator light will flash, indicating the mouse is powered on and ready for pairing.
3. เปิดใช้งานการจับคู่บลูทูธ: Press the dedicated Bluetooth button on the mouse to initiate pairing mode.
4. Connect via Device Settings: On your computer, tablet, or smartphone, navigate to the Bluetooth settings.
5. Add Bluetooth Device: Select the option to 'Add Bluetooth device' or 'Pair new device'. Your device will search for available Bluetooth devices.
6. เลือกและเชื่อมต่อ: Locate 'HXSJ Mouse' (or similar identifier) in the list of found devices and click to connect. Once connected, the mouse is ready for use.

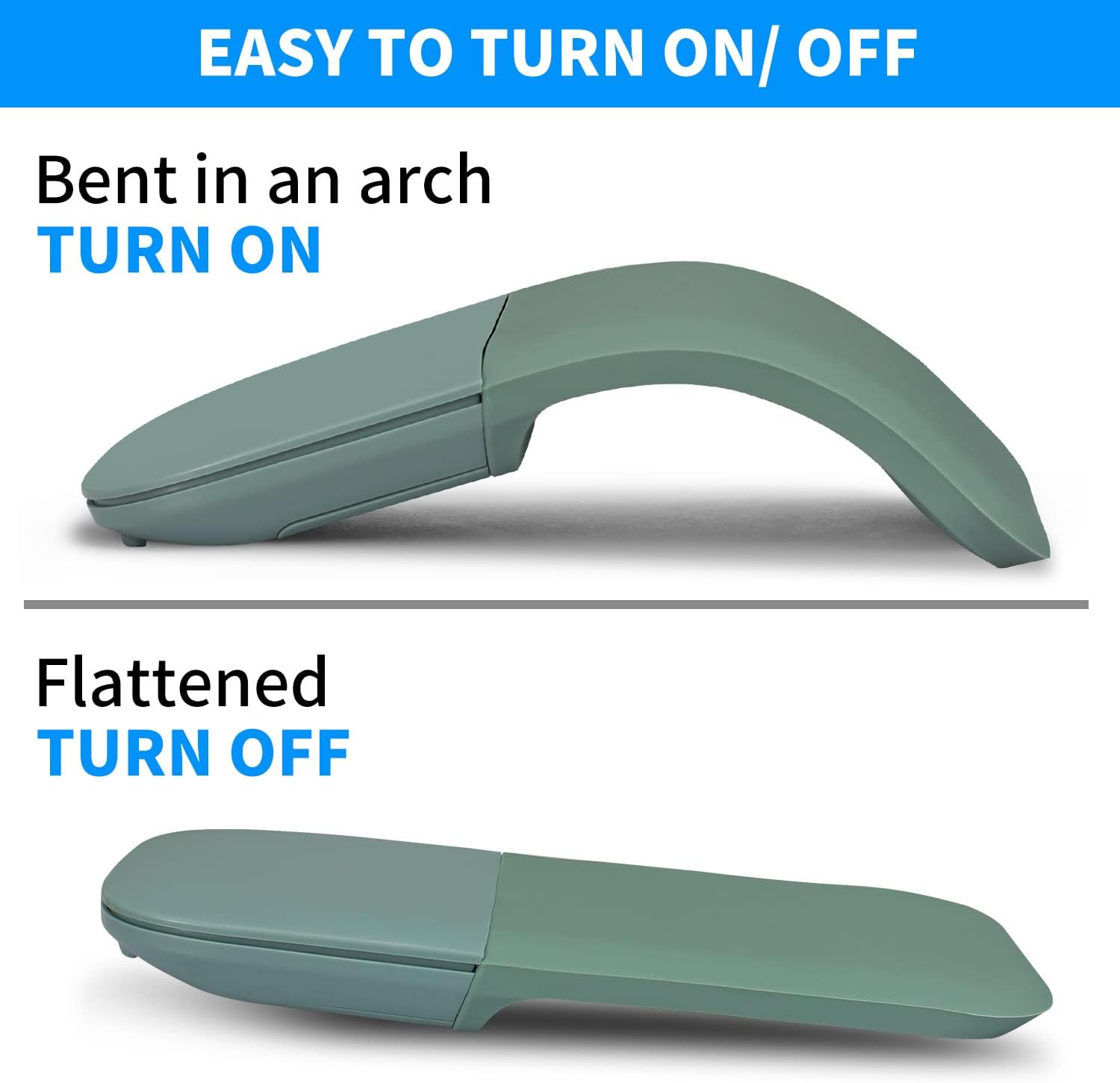

Image: Illustration demonstrating how bending the mouse into an arch turns it ON, and flattening it turns it OFF.

หมายเหตุสำคัญ:

• This is a Bluetooth mouse and does not require a USB receiver.
• The mouse is not compatible with Windows 7 or Windows XP operating systems.
• The mouse must be bent into the arched position to power on. If it remains flat, it will not turn on.

คำแนะนำการใช้งาน

The HXSJ m52 mouse features a touch-sensitive surface for intuitive control.

Image: A visual guide to the touch functions of the mouse, showing finger placement for vertical scrolling (slide to roll) and for left and right clicks.

• คลิกซ้าย: Tap the left side of the touch surface with your index finger.
• คลิกขวา: Tap the right side of the touch surface with your middle finger.
• การเลื่อน: Slide your finger up or down the center of the touch surface to scroll vertically. The full touch plane supports this function.
• เปิด/ปิดเครื่อง: Bend the mouse into an arch to turn it on. Flatten the mouse to turn it off.

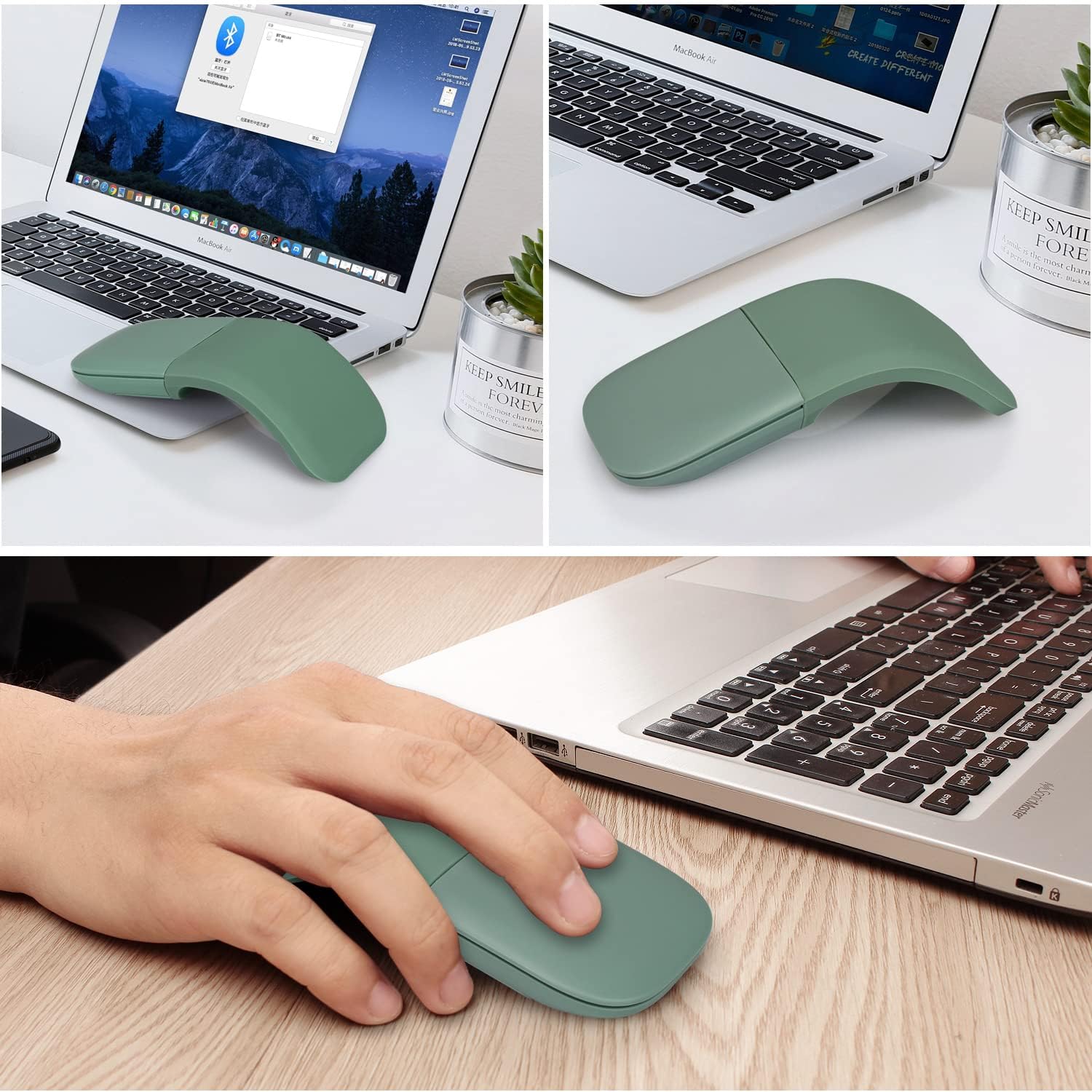

Image: The HXSJ m52 mouse in use, demonstrating its ergonomic design and compatibility with laptop setups.

การซ่อมบำรุง

To ensure the longevity and optimal performance of your HXSJ Wireless Foldable Bluetooth Touch Mouse m52, please follow these maintenance guidelines:

• การทำความสะอาด: Use a soft, dry cloth to clean the surface of the mouse. Avoid using harsh chemicals or abrasive materials.
• การเปลี่ยนแบตเตอรี่: Replace batteries when the mouse performance degrades or the indicator light signals low power. Always use new AAA batteries.
• พื้นที่จัดเก็บ: When not in use, flatten the mouse to turn it off and conserve battery life. Store it in a cool, dry place away from direct sunlight and extreme temperatures.
• การจัดการ: Avoid dropping the mouse or subjecting it to strong impacts. Do not attempt to disassemble the mouse, as this may void any potential warranty and cause damage.

การแก้ไขปัญหา

If you encounter issues with your HXSJ Wireless Foldable Bluetooth Touch Mouse m52, refer to the following common problems and solutions:

ข้อมูลจำเพาะ

Detailed technical specifications for the HXSJ Wireless Foldable Bluetooth Touch Mouse m52:

การรับประกันและการสนับสนุน

Specific warranty information for the HXSJ Wireless Foldable Bluetooth Touch Mouse m52 is not provided in the product details. For warranty claims or technical support, please refer to the retailer or manufacturer's official website where the product was purchased. Keep your purchase receipt as proof of purchase.
