คู่มือการใช้งานเตาเผาพื้น Blichmann HellFire XL

1. บทนำ

The Blichmann HellFire XL Floor Burner is a high-performance, dual-mode propane burner designed for heating large brew kettles up to 25 inches in diameter. It features a robust stainless steel construction and a patent-pending heat shield for optimal heat transfer and safety. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your HellFire XL burner.

2. ข้อมูลด้านความปลอดภัย

คำเตือน: อุปกรณ์นี้ใช้สำหรับ ใช้ภายนอกเท่านั้น. Do not operate indoors or in enclosed spaces. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always operate the burner in a well-ventilated area.
• Keep children and pets away from the burner during operation.
• รักษาระยะห่างที่ปลอดภัยจากวัสดุไวไฟ
• Check all gas connections for leaks before each use using a soapy water solution. Never use an open flame to check for leaks.
• Ensure the propane tank is upright and secured.
• Do not leave the operating burner unattended.
• Wear appropriate personal protective equipment, such as heat-resistant gloves, when handling hot equipment.

3. การตั้งค่า

3.1 การแกะบรรจุภัณฑ์และการตรวจสอบ

Carefully remove all components from the packaging. Inspect for any shipping damage. If any parts are damaged or missing, contact Blichmann Engineering customer support immediately.

3.2 การประกอบ

1. Attach the kettle retaining bars to the burner frame. These bars are infinitely adjustable and compatible with kettles up to 25 inches in diameter.
2. ตรวจสอบให้แน่ใจว่าขันสลักเกลียวทั้งหมดให้แน่นหนาดี

3.3 Propane Connection

1. Connect the regulator and hose assembly to the burner's gas inlet.
2. Connect the other end of the hose to a standard propane tank.
3. Ensure all connections are hand-tightened securely. Do not overtighten.

3.4 การทดสอบการรั่ว

Before first use and after any connection changes, perform a leak test:

1. ผสมน้ำยาล้างจานเหลวกับน้ำในอัตราส่วนเท่ากัน
2. Ensure the burner control valve is in the 'OFF' position.
3. เปิดวาล์วถังโพรเพนช้าๆ
4. Apply the soapy solution to all gas connections (burner inlet, regulator, tank connection).
5. If bubbles appear, there is a leak. Close the propane tank valve, tighten the connection, and retest. If the leak persists, do not use the burner and contact customer support.

Figure 1: The Blichmann HellFire XL Floor Burner, showcasing its robust stainless steel construction and the central burner element with blue flames.

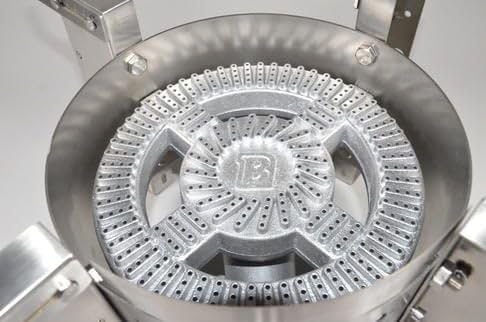

รูปที่ 2: รายละเอียด view of the Blichmann HellFire XL burner head, highlighting the intricate design of the gas ports for efficient combustion.

4. คู่มือการใช้งาน

4.1 Lighting the Burner

1. Ensure the burner is on a stable, non-combustible surface.
2. Place your brew kettle securely on the retaining bars.
3. Slowly open the propane tank valve.
4. Hold a long lighter or match near the burner head.
5. Slowly open the burner control valve to a low setting. The burner should ignite immediately. If it does not, close the valve, wait 5 minutes for gas to dissipate, and try again.

4.2 Adjusting Flame Output (Dual Mode)

The HellFire XL burner offers two primary modes of operation:

• High Efficiency Mode (80,000 BTU/hr): Adjust the control valve to achieve a stable, blue flame. This mode provides superb heat transfer and quiet operation, suitable for maintaining a rolling boil on batches up to 20 gallons.
• High Power Mode (140,000 BTU/hr): Fully open the control valve for maximum heat output. This mode is designed for rapid heating and achieving a boil quickly.

The patent-pending heat shield directs heat to your wort while protecting valves and thermometers from excessive heat.

4.3 Turning Off the Burner

1. Close the burner control valve completely.
2. ปิดวาล์วถังโพรเพน
3. Allow the burner to cool completely before handling or storing.

5. การบำรุงรักษา

Regular maintenance ensures the longevity and safe operation of your HellFire XL burner.

• การทำความสะอาด: After each use, allow the burner to cool. Wipe down the stainless steel frame and burner head with a damp cloth to remove any spills or residue. Avoid abrasive cleaners that could scratch the surface.
• การตรวจสอบสายยางและตัวควบคุมแรงดัน: Periodically inspect the gas hose and regulator for cracks, cuts, or signs of wear. Replace any damaged components immediately.
• พื้นที่จัดเก็บ: Store the burner in a dry, protected area when not in use. Disconnect the propane tank and store it separately in a well-ventilated outdoor space.

6 การแก้ไขปัญหา

If you encounter issues with your HellFire XL burner, consult the following table:

7. ข้อมูลจำเพาะ

• แบบอย่าง: aHellFireBurner-1BBL
• ยี่ห้อ: Blichmann Engineering
• ขนาดสินค้า : 25 x 19 x 11 นิ้ว
• น้ำหนักสินค้า: 32 ปอนด์
• ชนิดเชื้อเพลิง : โพรเพน
• แหล่งพลังงาน: ขับเคลื่อนด้วยก๊าซ
• วัสดุ: สแตนเลส
• Heat Output (High Power): 140,000 บีทียู/ชม.
• Heat Output (High Efficiency): 80,000 บีทียู/ชม.
• Kettle Compatibility: เส้นผ่านศูนย์กลางไม่เกิน 25 นิ้ว
• ยูพีซี: 733960926027
• มีจำหน่ายครั้งแรก: วันที่ 6 ธันวาคม 2021

8. การรับประกันและการสนับสนุน

For specific warranty details and terms, please refer to the documentation provided with your purchase or visit the official Blichmann Engineering website. For technical support, replacement parts, or any inquiries not covered in this manual, please contact Blichmann Engineering customer service directly.

ข้อมูลติดต่อ: Please refer to the Blichmann Engineering official webเว็บไซต์สำหรับรายละเอียดการติดต่อล่าสุด
