WOLFSTORM Headlights Instruction Manual

1. บทนำ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your WOLFSTORM Headlights. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your headlights.

Image 1.1: A pair of WOLFSTORM headlights, showcasing their design and clear lens.

2. ความเข้ากันได้

These WOLFSTORM Headlights are designed for direct OEM fitment on the following Dodge Ram models:

• ดอดจ์แรม 1994 ปี 2001-1500
• ดอดจ์แรม 1994 ปี 2002-2500
• ดอดจ์แรม 1994 ปี 2002-3500
• ดอดจ์แรม 1995 ปี 2002-4000

These headlights are compatible with models ปราศจาก the Sport Package.

Image 2.1: Visual guide indicating compatible Dodge Ram models and years for the headlights.

3. คุณสมบัติของผลิตภัณฑ์

• Direct OEM Fitment: Engineered to replace original factory headlights without modifications.
• การออกแบบกันน้ำ (IP67): The sealed chrome housing provides protection against dust, water, and moisture, enhancing durability.
• DOT & SAE Compliance: Manufactured to meet USA Department of Transportation (DOT) and Society of Automotive Engineers (SAE) standards.
• เลนส์ใส: Provides optimal light output and visibility.

Image 3.1: Illustration of the headlight's IP67 waterproof rating, showing resistance to water exposure.

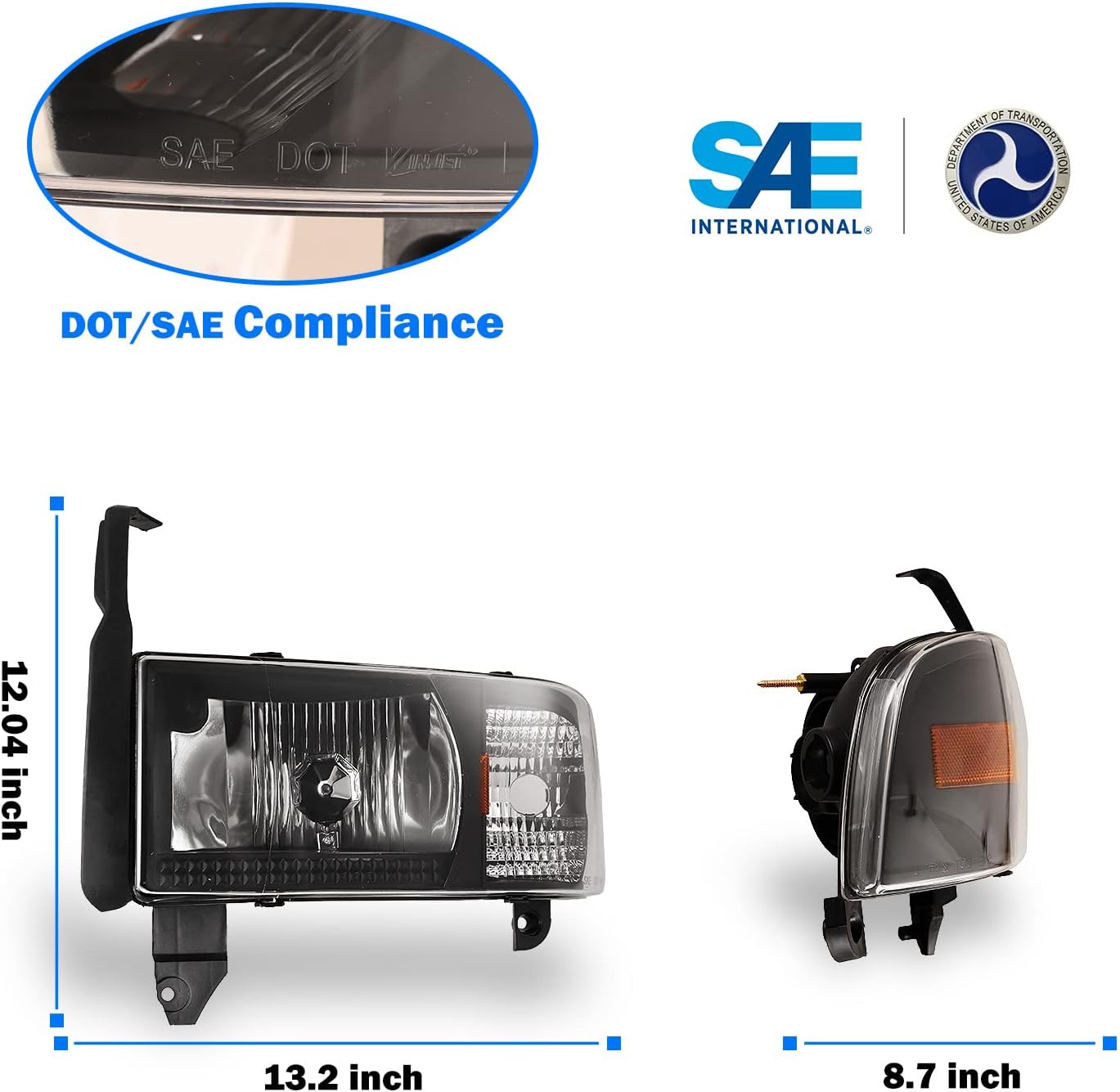

ภาพที่ 3.2: ภาพระยะใกล้ view of the headlight lens showing DOT and SAE compliance markings.

4. การตั้งค่าและการติดตั้ง

The WOLFSTORM Headlights are designed for plug-and-play installation, requiring no additional wiring or modifications. The kit includes direct plugs and connectors.

4.1 Required Bulb Type

The headlights utilize 9004 bulbs for both high and low beam functions. Bulbs are not included with the headlight assembly and must be purchased separately.

Image 4.1: Diagram indicating the bulb type (9004) required for the high/low beam light, noting that bulbs are not included.

4.2 ขั้นตอนการติดตั้ง (คู่มือทั่วไป)

1. การตระเตรียม: Ensure your vehicle is turned off and the battery is disconnected for safety.
2. Remove Old Headlights: Carefully unbolt and disconnect the wiring from your existing headlights.
3. ติดตั้งหลอดไฟ: Insert the appropriate 9004 bulbs into the new WOLFSTORM headlight assemblies. It is often easier to install bulbs before mounting the assembly to the vehicle.
4. Mount New Headlights: Position the new headlight assemblies into the vehicle's headlight housing. Secure them with the original mounting hardware.
5. การเชื่อมต่อสายไฟ: Attach the headlight's electrical connectors to the vehicle's wiring harness.
6. ทดสอบฟังก์ชันการทำงาน: Reconnect the battery and test all light functions (low beam, high beam, turn signal) before final adjustment.

ภาพที่ 4.2: View of the rear of the headlight assembly, showing the light position and bulb socket for installation.

5. การดำเนินการ

Your WOLFSTORM Headlights function identically to your vehicle's original equipment, providing both low beam and high beam illumination. Activate these functions using your vehicle's standard headlight switch and stalk controls.

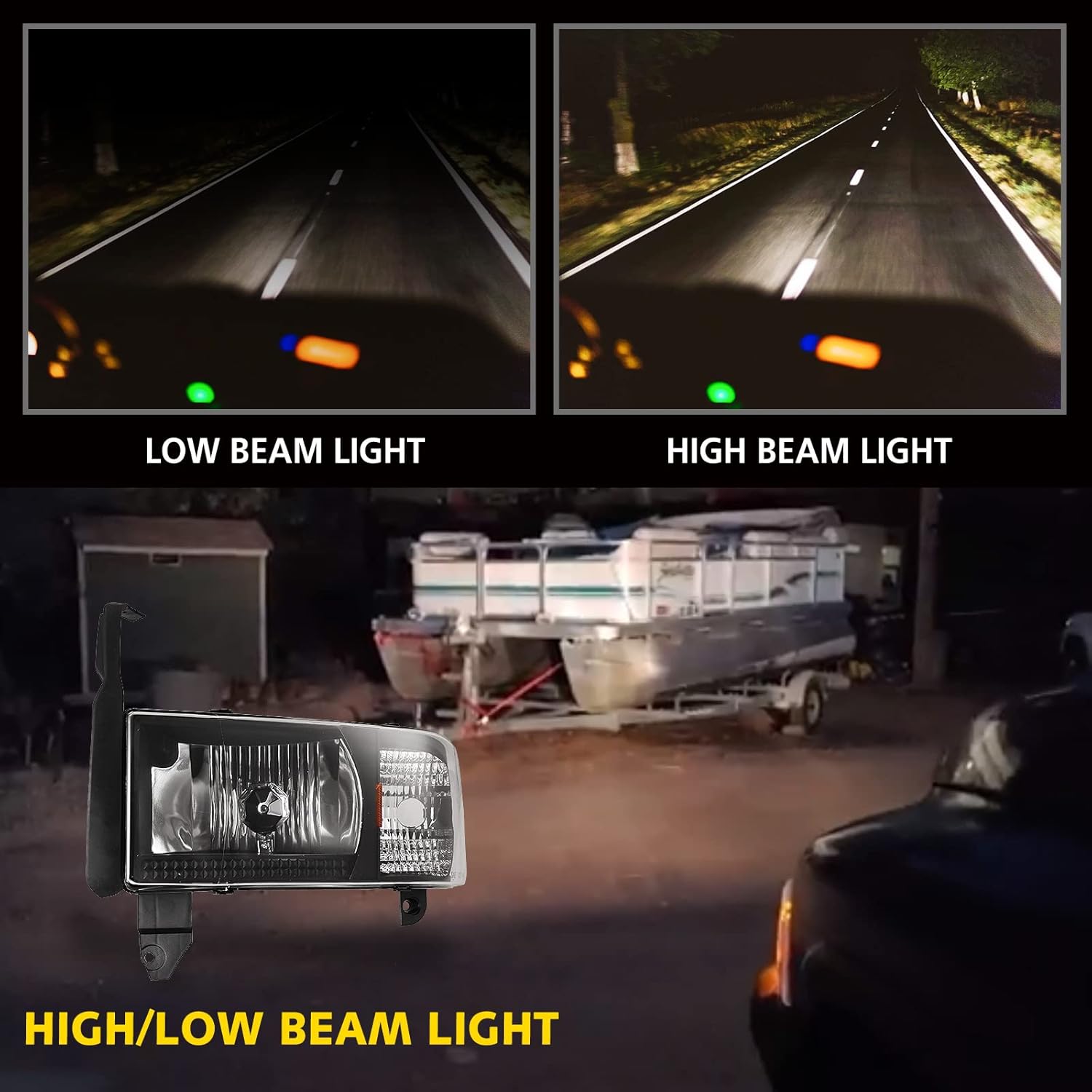

Image 5.1: Comparison of low beam and high beam light patterns on a road, demonstrating the difference in illumination range.

6. การบำรุงรักษา

The WOLFSTORM Headlights are designed for minimal maintenance due to their sealed, waterproof construction. Regular cleaning with a soft cloth and mild soap solution is recommended to maintain lens clarity. Avoid abrasive cleaners.

6.1 Moisture Management

Each headlight assembly includes a one-way vent designed to release any accumulated moisture from inside the housing, preventing condensation and maintaining light performance.

ภาพที่ 6.1: รายละเอียด view of the headlight's rear, highlighting the one-way vent for moisture release and the high/low beam adjuster.

7 การแก้ไขปัญหา

7.1 Beam Angle Adjustment

If the headlight beam appears too high or too low after installation, the beam angle can be adjusted. Locate the high/low beam adjuster screw on the back of the headlight assembly (refer to Image 6.1). Use an appropriate tool to turn the screw, adjusting the beam vertically until the desired alignment is achieved. It may be necessary to remove the headlight assembly to access the adjustment screw on some vehicle models.

7.2 Condensation Inside Lens

Minor condensation inside the headlight lens can occur due to temperature fluctuations. The integrated one-way vent is designed to manage this. If excessive or persistent condensation occurs, ensure the vent is clear and unobstructed. Verify that all seals and bulb covers are properly seated and intact.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

WOLFSTORM offers a นโยบายการคืนเงินภายใน 30 วัน และก รับประกันจำกัด 12 เดือน on these headlights. For any questions regarding purchase, installation, or after-sales support, please contact WOLFSTORM customer service. Technical support is available 24/7.

For assistance, please refer to the contact information provided with your purchase or visit the official WOLFSTORM webเว็บไซต์.
