Risco Lumin8 Bidirectional Radio External Siren

1. บทนำ

This manual provides essential information for the proper installation, operation, and maintenance of your Risco Lumin8 Bidirectional Radio External Siren. Please read this manual thoroughly before attempting to install or operate the device. Retain this manual for future reference.

The Risco Lumin8 is an advanced external siren designed to provide audible and visual alarm indications for security systems. Its bidirectional radio communication ensures reliable and secure interaction with compatible Risco control panels.

2. สินค้าหมดview

The Risco Lumin8 siren is a robust, weather-resistant unit intended for outdoor installation. It features a powerful sounder and a bright luminous indicator to effectively alert in case of an alarm event. Its bidirectional radio capability allows for real-time status reporting and remote diagnostics.

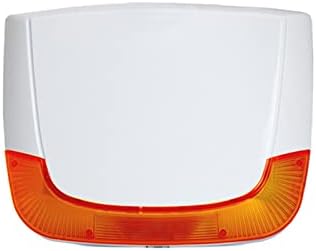

รูปที่ 1: ด้านหน้า view of the Risco Lumin8 Bidirectional Radio External Siren. This image displays the siren's compact design with a white main body and a prominent orange translucent section at the bottom, which serves as the luminous indicator.

คุณสมบัติหลัก:

• Bidirectional Radio Communication: Ensures reliable and secure wireless connection with the control panel.
• High Sound Output: Produces a loud 105 dB alarm sound.
• Luminous Indicator: Provides visual alarm indication and status feedback.
• การออกแบบที่ทนต่อสภาพอากาศ: เหมาะสำหรับติดตั้งภายนอกอาคาร
• Tampเอ้อคุ้มครอง: Built-in mechanisms to detect unauthorized removal or opening.

3. การตั้งค่า

3.1 การแกะกล่อง

Carefully unpack the siren and verify that all components are present. The package should contain the Risco Lumin8 siren unit and mounting hardware. If any items are missing or damaged, contact your supplier immediately.

3.2 ตำแหน่งการติดตั้ง

Select a suitable outdoor location for mounting the siren. Consider the following:

• การมองเห็น: Ensure the luminous indicator is clearly visible.
• Audibility: Position the siren where its sound can be heard effectively.
• การเข้าถึง: Avoid locations that are easily accessible to unauthorized persons.
• ปัจจัยด้านสิ่งแวดล้อม: Protect from direct exposure to extreme weather conditions if possible, although the unit is weather-resistant.

3.3 ขั้นตอนการติดตั้ง

1. เตรียมพื้นผิวการติดตั้ง: Ensure the surface is flat and secure.
2. ทำเครื่องหมายจุดเจาะ: Use the siren's backplate as a template to mark the drilling points.
3. เจาะรู: Drill appropriate holes for the mounting screws.
4. ยึดแผ่นด้านหลัง: Attach the siren's backplate to the wall using the provided screws and wall plugs.
5. การเชื่อมต่อไฟฟ้า: Connect the 15 Volt (DC) power supply to the designated terminals inside the siren. Ensure correct polarity. Refer to the wiring diagram provided with your specific control panel for detailed connection instructions.
6. Pairing with Control Panel: Follow the instructions in your Risco control panel's manual to pair the Lumin8 siren. This typically involves putting the control panel into pairing mode and activating the siren's pairing function.
7. Attach Siren to Backplate: Secure the main siren unit to the mounted backplate. Ensure the tamper switch is properly engaged.
8. ทดสอบฟังก์ชันการทำงาน: Perform a full system test to confirm the siren activates correctly and communicates with the control panel.

4. ปฏิบัติการ

The Risco Lumin8 siren operates in conjunction with a compatible Risco security control panel. It does not have user-operable controls on the unit itself.

4.1 การเปิดใช้งานสัญญาณเตือน

When the security system detects an intrusion or an alarm event, the control panel will send a signal to the Lumin8 siren. Upon receiving this signal, the siren will:

• Emit a loud audible alarm (105 dB).
• Activate its luminous indicator, typically flashing or illuminating steadily, depending on the alarm type and system configuration.

4.2 Bidirectional Communication

The bidirectional radio link allows the siren to send status updates back to the control panel, such as:

• Battery status (if applicable, for internal backup battery).
• Tampสถานะเอ้อ
• Communication supervision (heartbeat signals).

This ensures the control panel is aware of the siren's operational health.

5. การบำรุงรักษา

Regular maintenance helps ensure the longevity and optimal performance of your Risco Lumin8 siren.

5.1 การทำความสะอาด

Clean the exterior of the siren periodically using a soft, damp ใช้ผ้าเช็ดทำความสะอาดเท่านั้น ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อน ตัวทำละลาย หรือสารเคมีรุนแรง เพราะอาจทำให้ผ้าเสียหายได้asing or luminous cover.

5.2 การเปลี่ยนแบตเตอรี่ (ถ้ามี)

If your siren model includes an internal backup battery, it will require replacement after several years of service. The control panel will typically indicate a low battery condition. Refer to your control panel's manual and the siren's specific installation guide for instructions on safe battery replacement. Always disconnect main power before servicing.

5.3 การตรวจสอบตามปกติ

• การทดสอบการทำงาน: Periodically test the siren's operation by triggering an alarm from your control panel.
• การตรวจร่างกาย: Visually inspect the siren for any signs of damage, loose mounting, or obstruction.

6 การแก้ไขปัญหา

This section provides solutions to common issues you might encounter with your Risco Lumin8 siren.

6.1 Siren Does Not Activate

• ตรวจสอบพลังงาน: Ensure the siren is receiving 15V DC power. Verify connections.
• ตรวจสอบการจับคู่: Confirm the siren is properly paired with the control panel. Re-pair if necessary.
• ระยะการสื่อสาร: Ensure the siren is within the effective radio communication range of the control panel.
• Control Panel Status: Verify that the control panel is armed and functioning correctly.

6.2 Luminous Indicator Not Working

• ตรวจสอบพลังงาน: Insufficient power can affect light output.
• การกำหนดค่าระบบ: Ensure the control panel is configured to activate the luminous indicator for the specific alarm type.

6.3 ตampเอ้อปลุก

• การติดตั้งที่ปลอดภัย: Ensure the siren is securely mounted and the tamper switch is fully depressed.
• Casing Closure: Verify that the siren's casing is properly closed and secured.

If problems persist after attempting these solutions, contact a qualified technician or Risco technical support.

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

8.1 ข้อมูลการรับประกัน

Risco products are manufactured to the highest quality standards. This product is covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty are typically provided with the product packaging or available on the official Risco webไซต์ โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ในการเรียกร้องการรับประกัน

8.2 การสนับสนุนด้านเทคนิค

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your authorized Risco dealer or visit the official Risco support website. Provide your product model number (RWS401A8000B) and a detailed description of the issue when seeking support.
