Ozeri Touch III Digital Kitchen Scale with Calorie Counter User Manual

การแนะนำ

This manual provides detailed instructions for the Ozeri Touch III Digital Kitchen Scale with Calorie Counter. This scale is designed for precise measurement of food items and includes a built-in calorie counter for specific food types. Please read this manual thoroughly before using your scale to ensure proper operation and longevity.

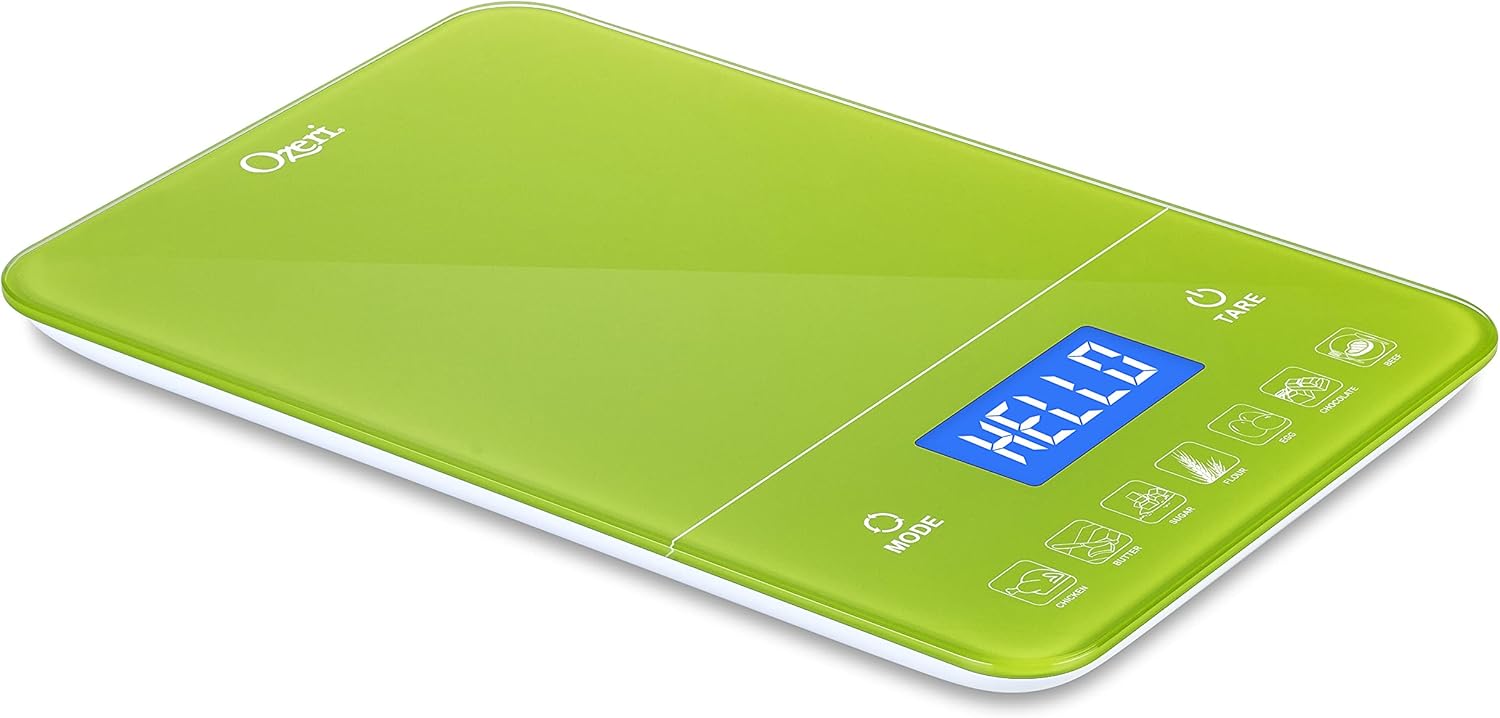

Figure 1: Ozeri Touch III Digital Kitchen Scale (Lime Green)

การตั้งค่า

การติดตั้งแบตเตอรี่

The Ozeri Touch III scale requires 4 AAA batteries (included). Locate the battery compartment on the underside of the scale. Open the compartment cover, insert the batteries, ensuring correct polarity (+/-), and then close the cover securely.

การสอบเทียบเบื้องต้น

Place the scale on a firm, flat, and stable surface. Press the 'ทดค่า' button to power on the scale. The display will show "HELLO" and then settle to "0 g". This indicates the scale is calibrated and ready for use. If using a container, place it on the scale ก่อน pressing 'ทดค่า' to zero out its weight.

Figure 2: Scale displaying "HELLO" during startup

คำแนะนำการใช้งาน

เปิด/ปิดเครื่อง

• To power on: Press the 'ทดค่า' button.
• To power off: Press and hold the 'ทดค่า' button until the display turns off. The scale will automatically turn off after approximately 2 minutes of inactivity to conserve battery life.

การแปลงหน่วย

The scale can measure in various units: grams (g), pounds and ounces (lb:oz), ounces (oz), milliliters for water (water ml), and milliliters for milk (milk ml). To switch between units, press the 'โหมด' button repeatedly until your desired unit is displayed.

Figure 3: Scale displaying weight in pounds and ounces

ฟังก์ชัน Tare

The Tare function allows you to subtract the weight of a container or previously added ingredients, enabling you to measure subsequent ingredients accurately within the same container.

1. วางภาชนะเปล่าบนเครื่องชั่ง
2. กดปุ่ม 'ทดค่า' button. The display will reset to "0 g" (or the currently selected unit).
3. Add your ingredient to the container. The display will show only the net weight of the ingredient.

Figure 4: Using the Tare function to weigh flour

Calorie Counter Function

The Ozeri Touch III includes a built-in calorie counter for 7 common food items: Chicken, Butter, Sugar, Flour, Egg, Chocolate, and Beef. This feature provides an estimated caloric (Kcal) value based on the weight of the selected food item.

1. Weigh the food item using the standard weighing function (ensure the display shows the weight in grams).
2. Press the corresponding food icon button located at the bottom of the scale (e.g., 'EGG' for eggs, 'BUTTER' for butter).
3. The display will then show the estimated caloric (Kcal) value for the weighed portion.

Figure 5: Scale displaying 352 Kcal for a food item

Figure 6: Weighing eggs before checking calorie count

การซ่อมบำรุง

การทำความสะอาด

The Ozeri Touch III scale features a tempered glass surface, which is designed for easy cleaning. To clean, simply wipe the surface with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or immersing the scale in water, as this can damage the electronic components.

การเปลี่ยนแบตเตอรี่

When the low battery indicator ("Lo") appears on the display, it is time to replace the batteries. Open the battery compartment on the underside of the scale and replace all 4 AAA batteries with new ones. Ensure proper polarity during installation.

การแก้ไขปัญหา

ปัญหาทั่วไปและแนวทางแก้ไข

• Display shows "Lo": This indicates low battery power. Replace all 4 AAA batteries.
• Display shows "O-Ld": This indicates an overload. The weight on the scale exceeds its maximum capacity of 22 lbs (10 kg). Remove items immediately to prevent damage to the scale.
• Inaccurate or Fluctuating Readings: Ensure the scale is placed on a completely flat, hard, and stable surface. Soft or uneven surfaces can affect accuracy. Try turning the scale off and on again to recalibrate. If using a container, ensure you use the Tare function correctly to zero out its weight before adding ingredients. Note that the scale may not register very small weights (typically below 5-6 grams) due to its power-saving design.
• เครื่องชั่งไม่เปิด: ตรวจสอบว่าใส่แบตเตอรี่ถูกต้องและขั้วถูกต้องหรือไม่ หากแบตเตอรี่เก่าหรือหมด ให้เปลี่ยนแบตเตอรี่ใหม่

ข้อมูลจำเพาะ

รายละเอียดสินค้า

การรับประกันและการสนับสนุน

For detailed warranty information, technical assistance, or any questions regarding your Ozeri Touch III Digital Kitchen Scale, please refer to the product packaging or visit the official Ozeri website. You can also visit the Ozeri Store on Amazon for more product information and support resources.

Visit the Ozeri Store on Amazon
