คู่มือผู้ใช้ไฟประดับรูปทรงน้ำแข็งย้อย LED สีขาวนวล รุ่น Quntis 400

1. บทนำ

Thank you for choosing Quntis 400 LED Warm White Icicle Lights. This manual provides essential information for the safe and effective use of your product. Please read it thoroughly before installation and operation, and retain it for future reference.

These icicle lights are designed for both indoor and outdoor decorative lighting, featuring a warm white glow, multiple lighting modes, a timer function, and an IP44 waterproof rating for the light string itself.

Image 1.1: Quntis 400 LED Warm White Icicle Lights installed on a house.

2. ข้อมูลด้านความปลอดภัย

เพื่อให้แน่ใจว่าการดำเนินงานจะปลอดภัย โปรดปฏิบัติตามข้อควรระวังต่อไปนี้:

• ความปลอดภัยทางไฟฟ้า: The product operates at a safe 31V low voltage. It is certified CE, ROHS, EMCCE, and CE-LVD.
• ความต้านทานน้ำ: The LED light string has an IP44 waterproof rating, making it suitable for outdoor use. However, the power plug and transformer are ไม่ waterproof. Ensure the power adapter remains dry when used outdoors.
• ความร้อนสูงเกินไป: The LED lights are designed not to overheat, even after extended hours of use.
• เด็ก: ระดับเสียงต่ำtage design ensures no risk to children if they touch the lights.
• การติดตั้ง: Do not install the lights in a way that could damage the wiring or insulation. Avoid sharp objects or abrasive surfaces.
• การเชื่อมต่อ: Only connect up to a maximum of 5 sets of these icicle lights end-to-end. Exceeding this limit may cause damage or safety hazards.

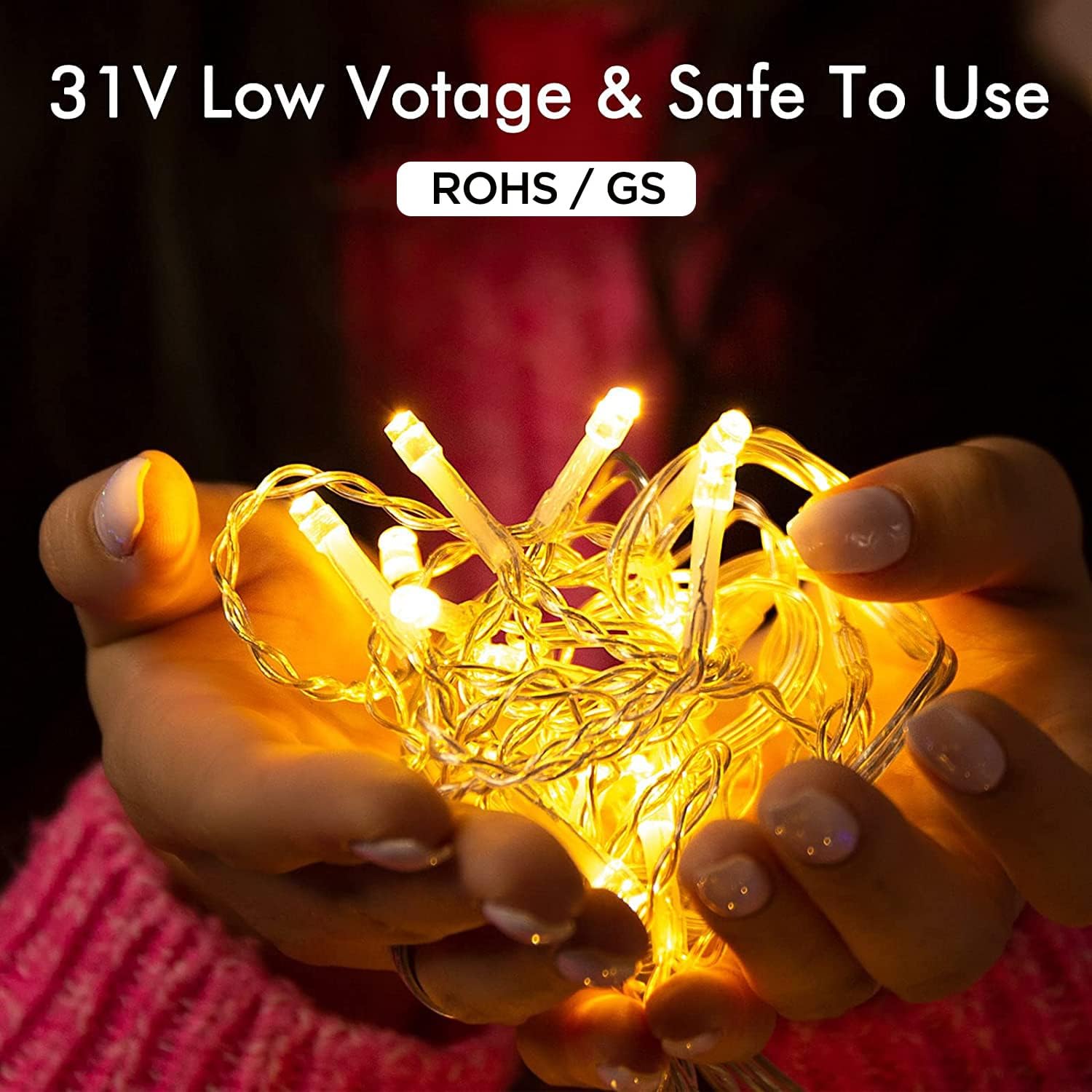

Image 2.1: Quntis LED lights demonstrating low voltagและความปลอดภัย

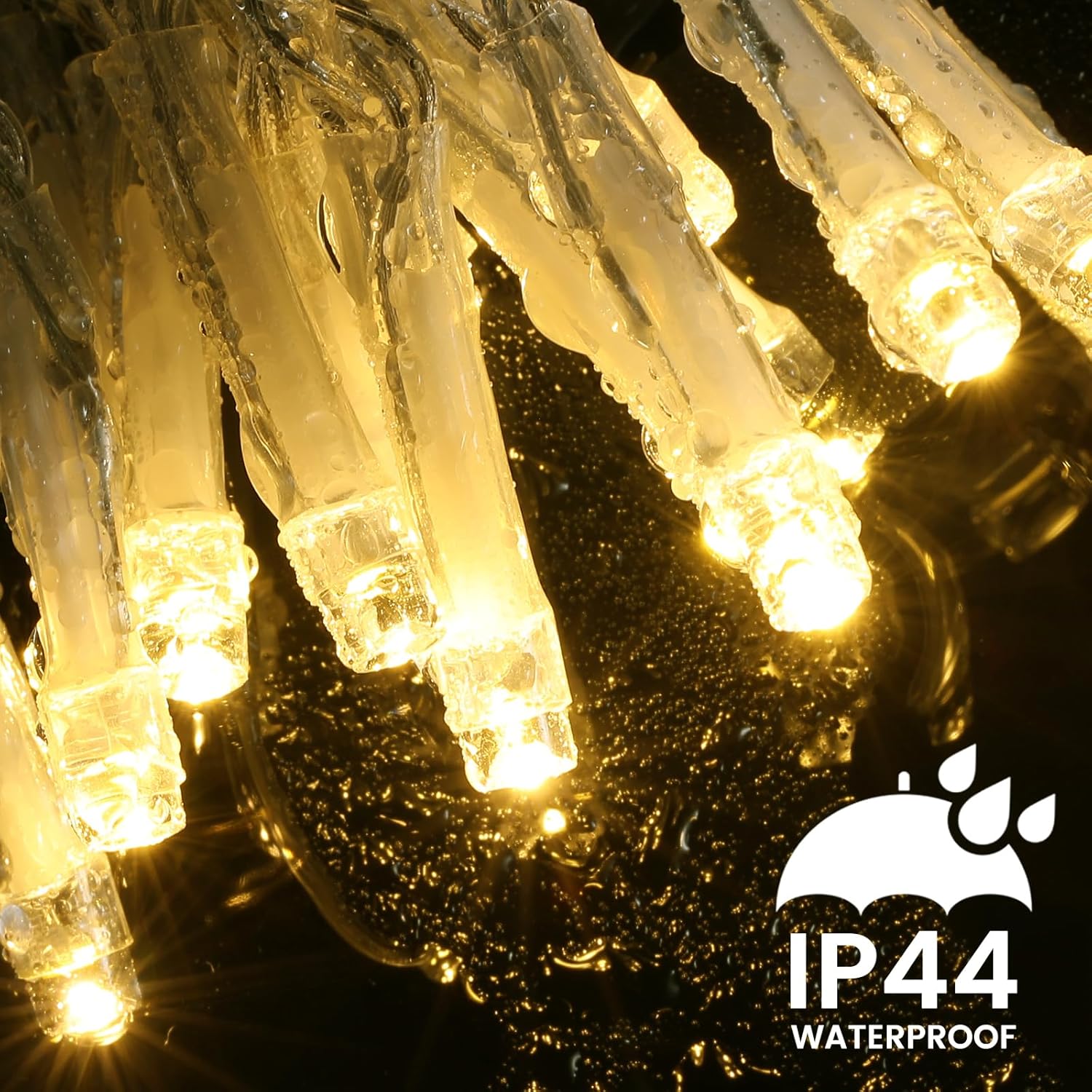

Image 2.2: IP44 Waterproof rating for the light string.

3. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่ามีส่วนประกอบทั้งหมดอยู่ในแพ็คเกจของคุณ:

• 1 x 400 LED Icicle Light String (10 meters wide)
• 1 x Transformer (Power Adapter)
• 1 x Mode Switch/Controller
• 1 x End Plug for connection
• 1 x 3-meter Removable Cable
• 25 x Transparent Cable Ties (20 cm length)
• 1 x คู่มือการใช้งาน

Image 3.1: Package contents.

4. คำแนะนำในการตั้งค่า

Follow these steps to set up your Quntis Icicle Lights:

1. แกะ: Carefully remove the light string and all components from the packaging.
2. คลี่คลาย: Gently unwind the light string. The lights are arranged with 80 drops, with varying lengths (30, 70, 40, 60 cm) and LED counts (3, 7, 4, 6 beads) per drop, spaced 12.5 cm apart. The main wire is 10 meters wide.
3. การวางตำแหน่ง: Determine the desired location for your icicle lights. Ensure the power adapter can be kept dry, especially for outdoor installations.
4. การติดตั้ง: Use the provided 25 transparent cable ties to secure the light string. These ties are 20 cm long and facilitate easy installation on various surfaces like eaves, railings, or branches.
5. การเชื่อมต่อชุดอุปกรณ์หลายชุด (ไม่บังคับ): If you wish to extend the lighting, connect up to 5 additional icicle light sets end-to-end using the integrated connectors. Ensure the connections are secure.
6. การเชื่อมต่อไฟฟ้า: Connect the 3-meter removable cable to the light string, then connect the transformer to the cable, and finally plug the transformer into a suitable power outlet.

Image 4.1: Diagram of icicle light dimensions and connectability.

Image 4.2: Using a cable tie for installation.

Image 4.3: End-to-end connection for multiple sets.

5. คู่มือการใช้งาน

Your Quntis Icicle Lights offer various modes and a convenient timer function:

1. เปิด/ปิดเครื่อง: Plug in the power adapter to turn the lights on. Unplug to turn them off.
2. การเปลี่ยนโหมดแสงสว่าง: Press the button on the mode switch/controller to cycle through the 8 available lighting modes. The modes include:
   • การผสมผสาน
   • ในคลื่น
   • ลำดับ
   • สโลว์โกล
   • Chasinจี/แฟลช
   • จางช้า
   • กระพริบตา/แฟลช
   • มั่นคงต่อไป
3. ฟังก์ชั่นหน่วยความจำ: The lights feature a memory function. The last selected lighting mode will be automatically recalled when the lights are turned on again.
4. Activating the Timer Function: To activate the timer, press and hold the button on the mode switch/controller for 3 seconds. A green light on the controller will illuminate, indicating the timer is active. The lights will then operate on a cycle of 6 hours ON and 18 hours OFF.
5. Deactivating the Timer Function: To deactivate the timer, press and hold the button on the mode switch/controller for 3 seconds again. The green light will turn off, and the timer function will be disabled. The lights will remain on continuously until manually turned off.

Image 5.1: Timer function and 8 lighting modes.

Image 5.2: Mode controller with timer indicator.

6. การบำรุงรักษา

Proper maintenance ensures the longevity and performance of your icicle lights:

• การทำความสะอาด: Disconnect the power before cleaning. Wipe the lights gently with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• พื้นที่จัดเก็บ: When not in use, carefully coil the light string and store it in a cool, dry place, away from direct sunlight and moisture. Keep it in its original packaging or a protective container to prevent tangling and damage.
• การตรวจสอบ: Periodically inspect the light string, cable, and transformer for any signs of damage, such as cuts, frayed wires, or cracked casings. Do not use if damaged.

7 การแก้ไขปัญหา

If you encounter issues with your Quntis Icicle Lights, refer to the following common solutions:

• ไฟไม่เปิด:
  • Ensure the power adapter is securely plugged into a working electrical outlet.
  • Check all connections between the light string, removable cable, and transformer.
  • ตรวจสอบว่าเต้ารับไฟฟ้าทำงานได้โดยการทดสอบกับอุปกรณ์อื่น
• ไฟกะพริบหรือหรี่ลง:
  • ตรวจสอบการเชื่อมต่อที่หลวม
  • Ensure you have not connected more than 5 sets of lights end-to-end, as this can cause power issues.
• ฟังก์ชั่นจับเวลาไม่ทำงาน:
  • Ensure the green indicator light on the controller is illuminated, confirming the timer is active. If not, press and hold the button for 3 seconds to activate it.
• Specific LEDs Not Lighting Up:
  • LEDs are generally durable. If a few individual LEDs are out, it typically does not affect the rest of the string. The product is not designed for individual LED replacement.

If problems persist after attempting these troubleshooting steps, please contact Quntis customer support.

8. ข้อมูลจำเพาะ

For detailed energy information, refer to the EU EPREL database: https://eprel.ec.europa.eu/qr/1638532

Image 8.1: Energy Label.

9. การรับประกันและการสนับสนุน

Specific warranty details for this product are not available in the provided information. Please refer to the product packaging, the retailer's return policy, or the official Quntis website for warranty terms and customer support contact information.

หากต้องการความช่วยเหลือเพิ่มเติม คุณสามารถไปที่ Quntis Brand Store.
