SmallRig R5 R5 C R6 Cage Kit Instruction Manual

สินค้าเกินview

The SmallRig R5 R5 C R6 Cage Kit is a comprehensive accessory designed to enhance the functionality and protection of your Canon R5, R5 C, or R6 mirrorless camera. This kit includes a form-fitting camera cage, a top handle, and a dedicated cable clamp, providing a robust framework for attaching various accessories while maintaining full access to camera controls and ports. Its lightweight yet durable aluminum alloy construction ensures reliable performance in diverse shooting environments.

เนื้อหาแพ็คเกจ

• Camera Cage: One (1) form-fitting cage for Canon R5 / R5 C / R6 cameras.
• ที่จับด้านบน: One (1) top handle with ARRI locating holes.
• สายเคเบิล Clamp: One (1) dedicated HDMI & USB-C cable clamp.
• สกรู M3: Two (2) M3 screws for cable clamp สิ่งที่แนบมา
• Built-in Screwdriver: One (1) integrated screwdriver for easy assembly/disassembly.

การติดตั้งและการตั้งค่า

Follow these steps to properly install your SmallRig R5 R5 C R6 Cage Kit:

1. เตรียมกล้อง: Ensure your Canon R5, R5 C, or R6 camera is powered off and remove any attached lenses or accessories that might obstruct the cage installation.
2. Attach the Cage: Align the camera with the cage. The cage secures to the camera via one 1/4"-20 screw at the bottom, along with locating pins and the left strap hole to prevent twisting. A built-in rubber pad protects your camera from scratches. Use the integrated screwdriver to tighten the screw securely.
3. Install the Top Handle: The top handle attaches to the cage via ARRI locating holes. Thread the handle onto the designated ARRI mount on the top of the cage and use an Allen wrench (or the built-in screwdriver) to ensure it is tool-tight for secure attachment.
4. ต่อสายเคเบิล Clamp: Position the HDMI & USB-C cable clamp on the side of the cage, aligning it with the camera's ports. Secure it using the provided M3 screws. This clamp helps ensure smooth data transmission and prevents accidental disconnections or damage to your cables during use.

Image: Secure installation points of the cage.

Image: Quick disassembly and assembly with Arca-Swiss plate.

Image: Cable and port protection.

วิดีโอการติดตั้ง

คุณสมบัติหลัก

• Form-fitting Design: The cage is precisely designed to fit the Canon R5, R5 C, and R6 cameras, ensuring a snug fit without obstructing any controls, buttons, or the battery compartment. This allows for seamless operation and quick battery changes.


Image: Full access to buttons and screen.

• ตัวเลือกการติดตั้งหลายตัว: Equipped with ARRI locating holes, 1/4"-20 and 3/8"-16 threaded holes, and a cold shoe mount, the cage provides extensive options for attaching microphones, monitors, lights, and other accessories.


Image: Rich mounting points.

• Secure and Anti-Twist Mounting: The cage locks onto the camera using a 1/4"-20 screw, locating pins, and the left strap hole, effectively preventing any twisting or movement of the camera within the cage. Integrated rubber pads further protect the camera from scratches.
• แผ่นปลดเร็ว: An integrated Arca-Swiss plate on the bottom of the cage allows for quick switching between tripods, DJI RS 2, RSC 2, and RS 3 / RS 3 Pro stabilizers, streamlining your workflow.
• Dedicated Cable Clamp: The included thumb-screw operated HDMI & USB-C cable clamp ensures stable data transmission and allows simultaneous use of microphone and headphone jacks.

ความเข้ากันได้

This SmallRig cage kit is specifically designed for the following Canon mirrorless camera models:

• แคนอน EOS R5
• แคนอน EOS R5 C
• แคนอน EOS R6

Image: Compatible camera models.

ข้อมูลจำเพาะ

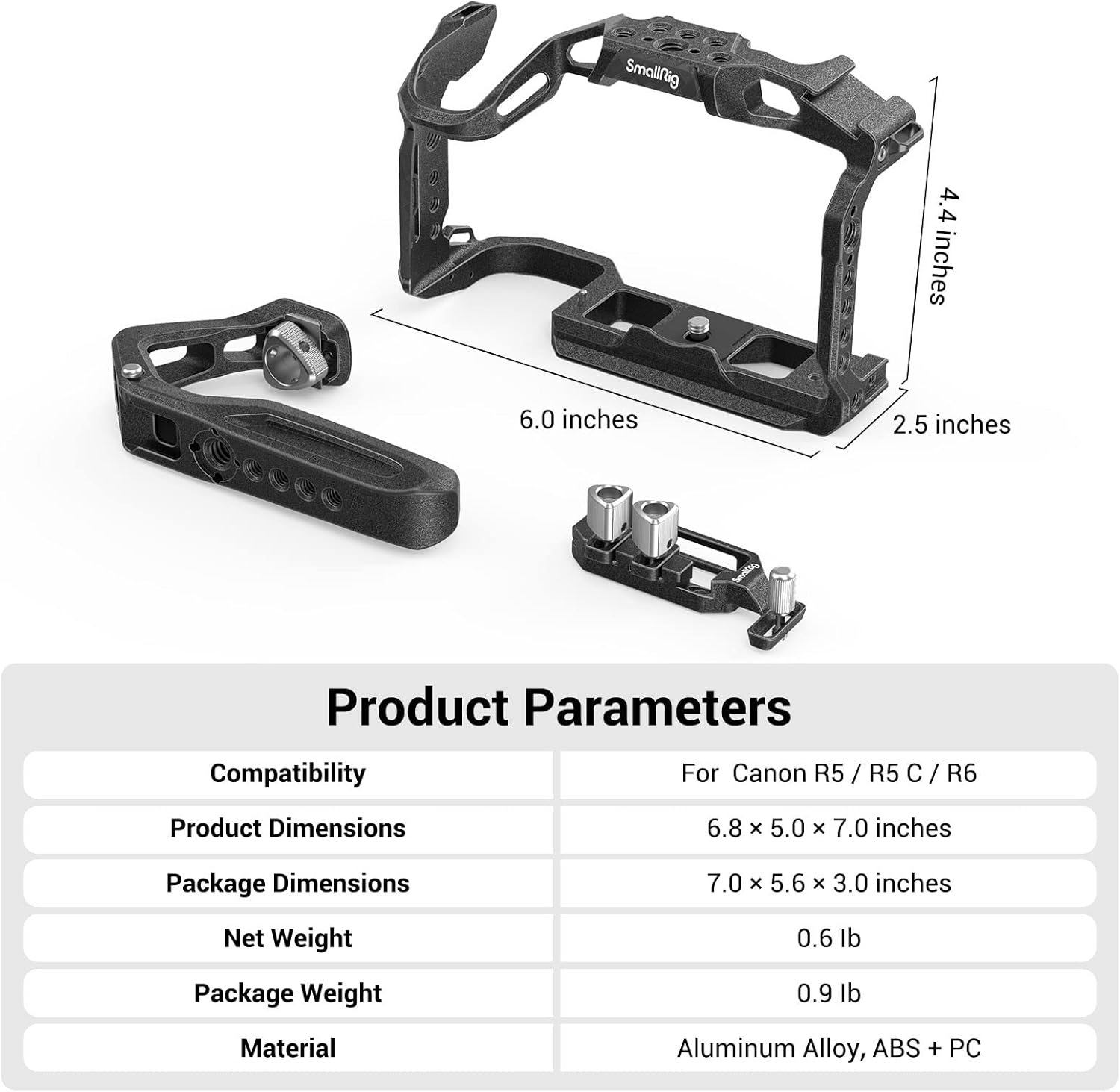

ภาพ: พารามิเตอร์และขนาดของผลิตภัณฑ์

การซ่อมบำรุง

To ensure the longevity and optimal performance of your SmallRig R5 R5 C R6 Cage Kit, follow these maintenance guidelines:

• การทำความสะอาด: Wipe the cage and accessories with a soft, dry cloth after each use to remove dust, dirt, and fingerprints. For stubborn grime, a slightly damp สามารถใช้ผ้าเช็ดทำความสะอาดได้ แล้วเช็ดให้แห้งทันที หลีกเลี่ยงการใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย
• พื้นที่จัดเก็บ: Store the cage kit in a dry, cool environment away from direct sunlight and extreme temperatures. If disassembled, keep all components organized to prevent loss.
• ความแน่นของสกรู: Periodically check all screws, especially the main 1/4"-20 camera mounting screw and the cable clamp screws, to ensure they remain tight. Re-tighten as necessary using the built-in screwdriver or an appropriate Allen wrench.

การแก้ไขปัญหา

ต่อไปนี้เป็นปัญหาทั่วไปและแนวทางแก้ไข:

• Camera feels loose in the cage: Ensure the 1/4"-20 screw at the bottom is fully tightened. Verify that the locating pins are properly seated in the camera's strap hole.
• Top handle or accessories are wobbly: Check that the ARRI locating pins are correctly aligned and the securing screw is tightened. For other accessories, ensure their mounting screws are firm.
• Difficulty accessing ports/buttons: Double-check that the camera is correctly seated within the cage and that no part of the cage is misaligned. The design is intended for full access.
• สายเคเบิล clamp not holding cables securely: Ensure the cables are properly routed through the clamp and the thumb-screws are tightened sufficiently to hold the cables without excessive force.

การรับประกันและการสนับสนุน

The SmallRig R5 R5 C R6 Cage Kit is manufactured by SmallRig. For specific warranty information, technical support, or service inquiries, please visit the official SmallRig webหรือติดต่อฝ่ายบริการลูกค้าโดยตรง โปรดเก็บใบเสร็จรับเงินไว้เป็นหลักฐานการซื้อสำหรับการเรียกร้องการรับประกันใดๆ
