Beta C24S/5-B Tool Storage Cabinet with Wheels Instruction Manual

การแนะนำ

This manual provides essential information for the proper setup, operation, and maintenance of your Beta C24S/5-B Tool Storage Cabinet. Designed for durability and functionality, this portable tool chest offers secure and organized storage for a variety of tools and equipment. Please read these instructions carefully before using the product to ensure safe and efficient operation and to maximize its lifespan.

Figure 1: Beta C24S/5-B Tool Storage Cabinet

คุณสมบัติผลิตภัณฑ์

• ความจุในการเก็บข้อมูล: Equipped with 5 spacious drawers for organized tool storage. This includes two 70mm tall drawers, two 140mm tall drawers, and one 280mm tall drawer.
• เคลื่อนย้ายง่าย: Features four 125mm castors for convenient movement. Two castors are fixed, and two are steering castors, one of which includes a brake for secure positioning.
• การออกแบบคุณภาพ: Constructed with ball-bearing slides for smooth drawer operation, foamed rubber mats protecting drawer bases, and a durable thermoplastic worktop.
• การใช้งานอเนกประสงค์: Ideal for various environments, from professional workshops to home garages, providing versatile storage and easy transport of tools.
• ความปลอดภัย: A front centralized safety lock ensures the security of your stored items.
• โครงสร้างแข็งแรงทนทาน: Designed to withstand significant weight, with a static load capacity of up to 800 kg (1763 lbs).

Figure 2: Durable Thermoplastic Worktop

Figure 3: Drawer Handle Detail

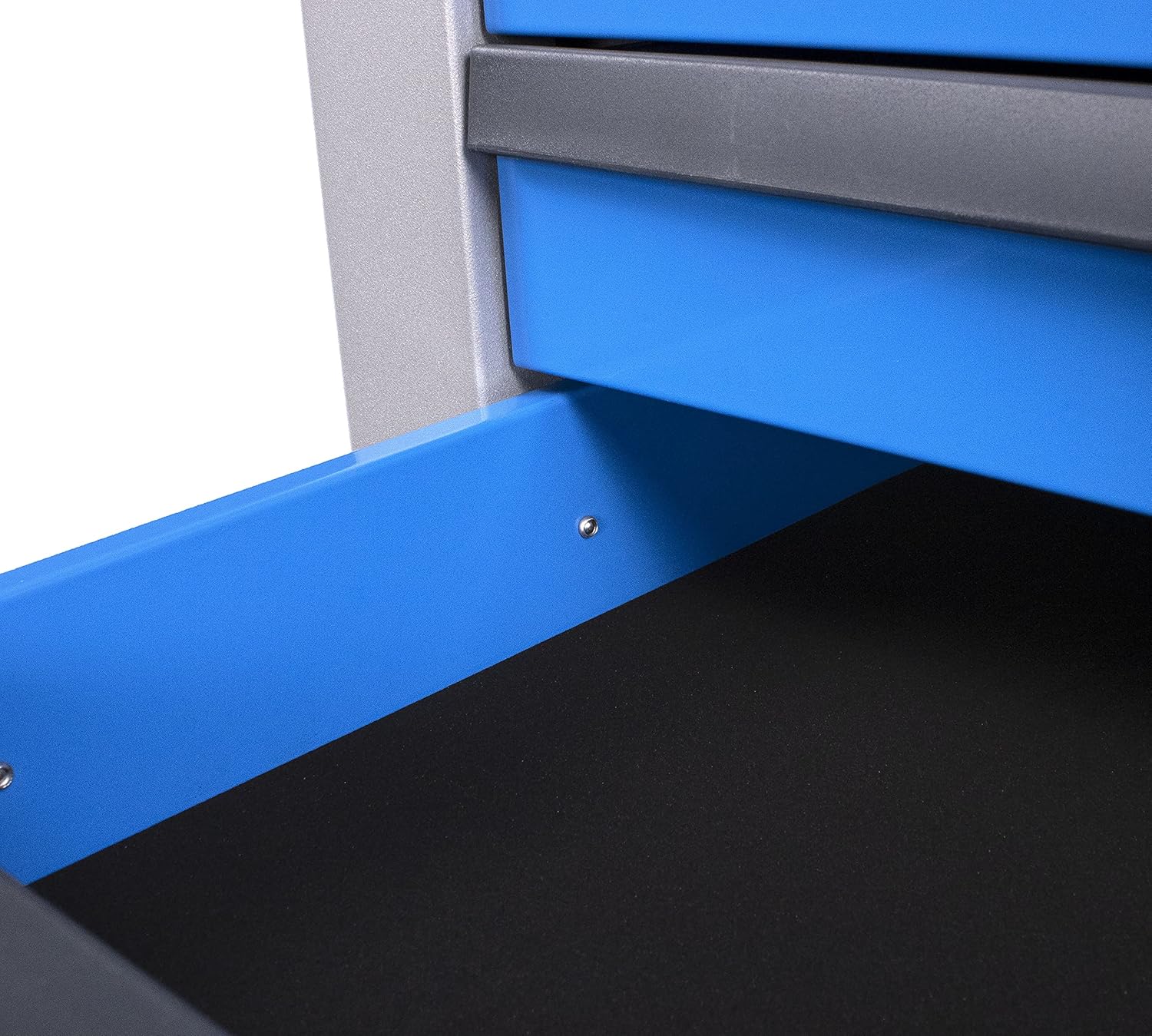

Figure 4: Drawer Interior with Protective Mat

การติดตั้งและการประกอบ

Your Beta C24S/5-B Tool Storage Cabinet comes largely pre-assembled. However, some components, such as the castors and side handle/storage, may require attachment. Follow these steps for initial setup:

1. การแกะกล่อง: Carefully remove all packaging materials. Inspect the cabinet for any signs of damage during transit. Retain packaging for future transport or returns if necessary.
2. Attaching Castors: Lay the cabinet on its side on a soft, protective surface to avoid scratching the finish. Attach the four 125mm castors to the designated mounting points on the bottom of the cabinet using the provided hardware. Ensure the two steering castors (one with a brake) are positioned at the front for easier maneuverability. Tighten all fasteners securely.
3. Attaching Side Handle: Locate the pre-drilled holes on one side of the cabinet. Align the metal side handle and secure it with the provided screws.
4. Attaching Side Storage (Optional): If included, attach the side storage bin to the opposite side of the cabinet or below the handle using the provided hardware.
5. การวางตำแหน่ง: Once all components are securely attached, carefully stand the cabinet upright. Position it on a flat, stable surface in your desired location. Engage the brake on the steering castor to prevent unintended movement.

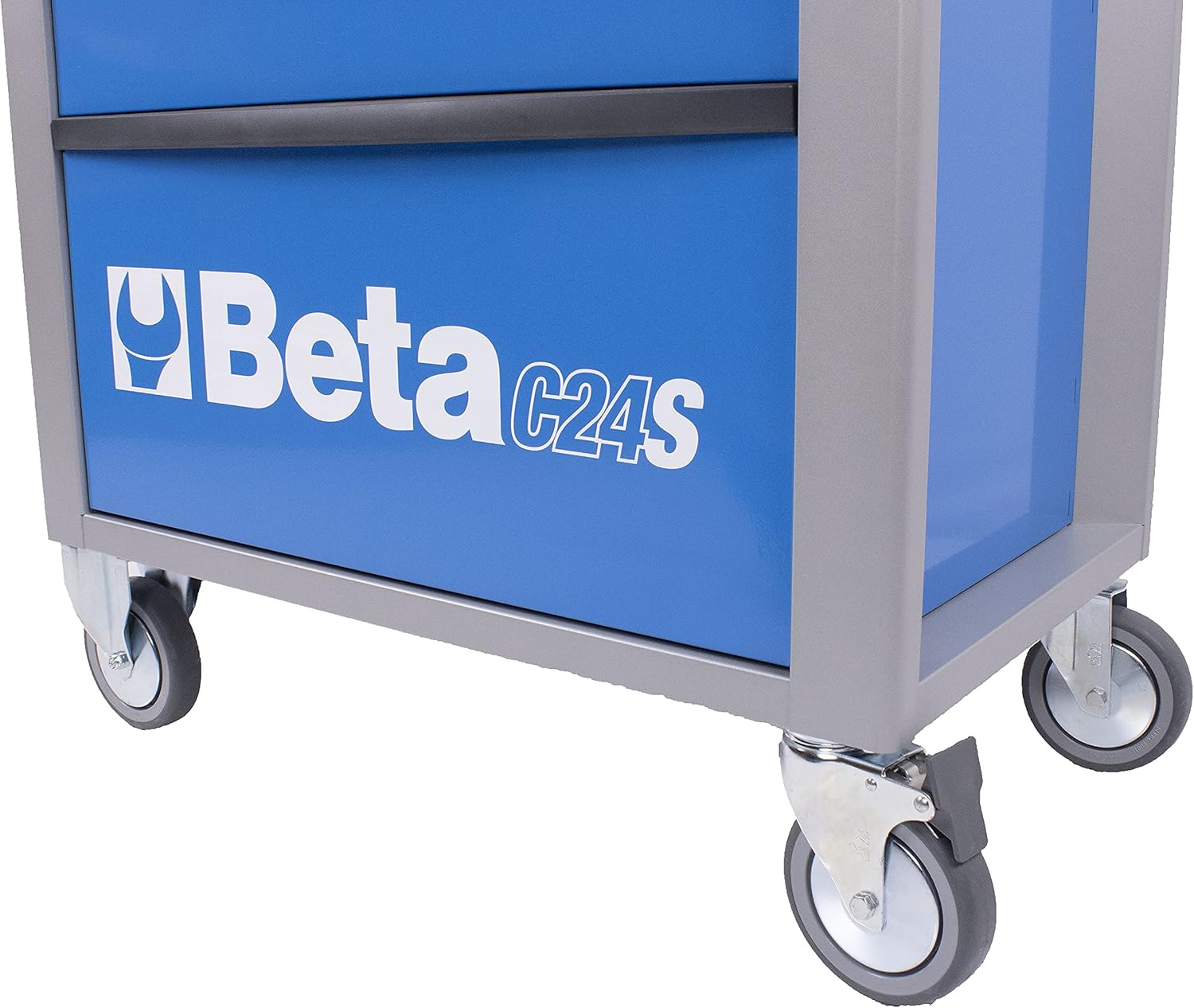

Figure 5: Castor with Brake

Figure 6: Side Handle and Storage

คำแนะนำการใช้งาน

Operating your Beta tool cabinet is straightforward. Follow these guidelines for optimal use:

• การทำงานของลิ้นชัก: The drawers are equipped with smooth ball-bearing slides. To open a drawer, gently pull the handle. To close, push the drawer firmly until it is fully seated. Avoid slamming drawers to ensure longevity of the slides.
• กลไกการล็อค: The cabinet features a front centralized safety lock. Insert the key into the lock cylinder located on the front side of the cabinet. Turn the key to lock all drawers simultaneously. Turn the key in the opposite direction to unlock. Remove the key when not in use to prevent loss.
• Mobility and Braking: To move the cabinet, ensure the castor brake is disengaged. Use the side handle to push or pull the cabinet to your desired location. Once positioned, engage the brake on the steering castor to stabilize the cabinet and prevent accidental rolling.
• การบรรจุสินค้าลงในลิ้นชัก: Distribute the weight evenly across the drawers. Avoid overloading individual drawers or the cabinet as a whole. The maximum static load capacity for the worktop is 800 kg (1763 lbs).

Figure 7: Centralized Safety Lock

Video 1: Beta C24IT Transformation Past to Now! - This video demonstrates the design evolution and key features of Beta tool cabinets, including drawer operation, mobility, and robust construction, highlighting the quality and functionality similar to the C24S/5-B model.

การซ่อมบำรุง

Regular maintenance will ensure the longevity and optimal performance of your tool cabinet:

• การทำความสะอาด: Wipe down the exterior surfaces and thermoplastic worktop regularly with a damp ผ้าและผงซักฟอกอ่อนๆ หลีกเลี่ยงน้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อนซึ่งอาจทำให้พื้นผิวเสียหายได้
• รางลิ้นชัก: Periodically inspect the ball-bearing drawer slides for debris or wear. Clean them as needed and apply a light lubricant (e.g., silicone spray) to ensure smooth operation.
• ลูกล้อ: Check the castors for accumulated dirt, dust, or tangled debris (e.g., hair, string). Clean them to ensure free rotation. If necessary, apply a small amount of lubricant to the castor axles.
• ตัวล็อค: Over time, screws and bolts may loosen. Periodically check all fasteners, especially those on the castors and handle, and tighten them if necessary.
• Drawer Mats: The foamed rubber mats in the drawers can be removed and cleaned if they become dirty. Ensure they are dry before placing them back in the drawers.

การแก้ไขปัญหา

If you encounter any issues with your tool cabinet, consider the following common solutions:

• Drawers are stiff or difficult to open/close:
  • Check if the cabinet is on a level surface. Uneven surfaces can cause misalignment.
  • Inspect drawer slides for obstructions or excessive dirt. Clean and lubricate as per the Maintenance section.
  • Ensure drawers are not overloaded or that weight is evenly distributed.
• Cabinet does not roll smoothly:
  • Verify that the castor brake is fully disengaged.
  • Check castors for debris (e.g., tangled hair, string) that might impede movement. Clean them thoroughly.
  • Ensure castor fasteners are securely tightened.
• Lock mechanism is not working:
  • Ensure all drawers are fully closed before attempting to lock the cabinet.
  • Check if the key is fully inserted and turning freely. Do not force the key.
  • Inspect the lock cylinder for any visible damage or obstructions.

If these steps do not resolve the issue, please contact Beta customer support for further assistance.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For information regarding warranty coverage, claims, or technical support for your Beta C24S/5-B Tool Storage Cabinet, please refer to the official Beta Tools webตรวจสอบข้อมูลในเว็บไซต์หรือติดต่อฝ่ายบริการลูกค้าโดยตรง เก็บใบเสร็จรับเงินไว้เป็นหลักฐานการซื้อสำหรับสอบถามเรื่องการรับประกัน

You can visit the Beta Store on Amazon for more information: Beta Store
