คู่มือการใช้งานเครื่องแยกไม้ซุงไฟฟ้า Scheppach HL760L

1. สินค้าหมดview

The Scheppach HL760L is a powerful electric log splitter designed for efficient and safe splitting of firewood. With a robust 2200W motor and 7 tons of splitting force, it can handle logs up to 520mm in length and 250mm in diameter. Its two-hand control system and integrated safety cage ensure user protection during operation.

Figure 1: The Scheppach HL760L Electric Log Splitter, showcasing its robust design and safety features.

Figure 2: Diagram illustrating the log splitter's capacity, including a maximum splitting length of 520mm and a log diameter range of 55-250mm, with a powerful 7-ton splitting force.

2. คำแนะนำด้านความปลอดภัยที่สำคัญ

Always prioritize safety when operating the log splitter. Failure to follow these instructions can result in serious injury or property damage.

• อ่านคู่มือ: Thoroughly read and understand all instructions before operating the machine.
• อุปกรณ์ป้องกันส่วนบุคคล (PPE): Always wear safety glasses, hearing protection, sturdy gloves, and steel-toed boots. Avoid loose clothing that could get caught in moving parts.
• การใช้งานด้วยสองมือ: The log splitter is designed for two-hand operation. Both hands must be on the controls for the splitting wedge to move. Never bypass this safety feature.
• พื้นที่ทำงาน : Operate the log splitter on a firm, level surface. Keep the work area clear of bystanders, children, and pets. Ensure adequate lighting.
• ตำแหน่งบันทึก: Only split one log at a time. Ensure the log is placed securely on the splitting table and against the end plate.
• Log Size: Do not attempt to split logs exceeding the specified maximum length (520mm) or diameter (250mm).
• ความปลอดภัยทางไฟฟ้า: Ensure the power supply matches the machine's requirements (230V). Use a ground fault circuit interrupter (GFCI) when operating outdoors. Do not operate in wet conditions.
• การซ่อมบำรุง: ตัดการเชื่อมต่อไฟฟ้าก่อนดำเนินการบำรุงรักษา ทำความสะอาด หรือปรับแต่งใดๆ

Figure 3: Proper operation demonstrating the two-hand control system and the protective safety cage, ensuring user safety during the splitting process.

3. การติดตั้งและการประกอบ

The Scheppach HL760L log splitter comes partially assembled. Follow these steps for final assembly and initial setup:

รูปที่ 4: เกินview of the log splitter components, including the main unit, safety cage, and splitting table extensions, ready for assembly.

1. การแกะกล่อง: นำส่วนประกอบทั้งหมดออกจากบรรจุภัณฑ์อย่างระมัดระวัง ตรวจสอบความเสียหายระหว่างการขนส่ง
2. Attach Legs/Stand: Securely attach the support legs or stand to the main body of the log splitter using the provided hardware. Ensure all bolts are tightened.
3. Install Safety Cage: Mount the protective safety cage over the splitting area. This cage is crucial for preventing wood chips from flying towards the operator.
4. Attach Splitting Table Extensions: If provided separately, attach the log support tables or extensions to ensure stable placement of logs.
5. Hydraulic Oil Check: Verify the hydraulic oil level. Refer to the oil reservoir cap or dipstick. Top up if necessary with recommended hydraulic oil.
6. การเชื่อมต่อไฟฟ้า: Connect the log splitter to a suitable 230V power outlet. Ensure the circuit can handle the 2200W power consumption.
7. Bleed Air (if applicable): Some hydraulic systems require bleeding air before first use. Consult the specific instructions for your model if this applies.

4. การดำเนินการ

Once the log splitter is set up and safety checks are complete, you can begin splitting logs.

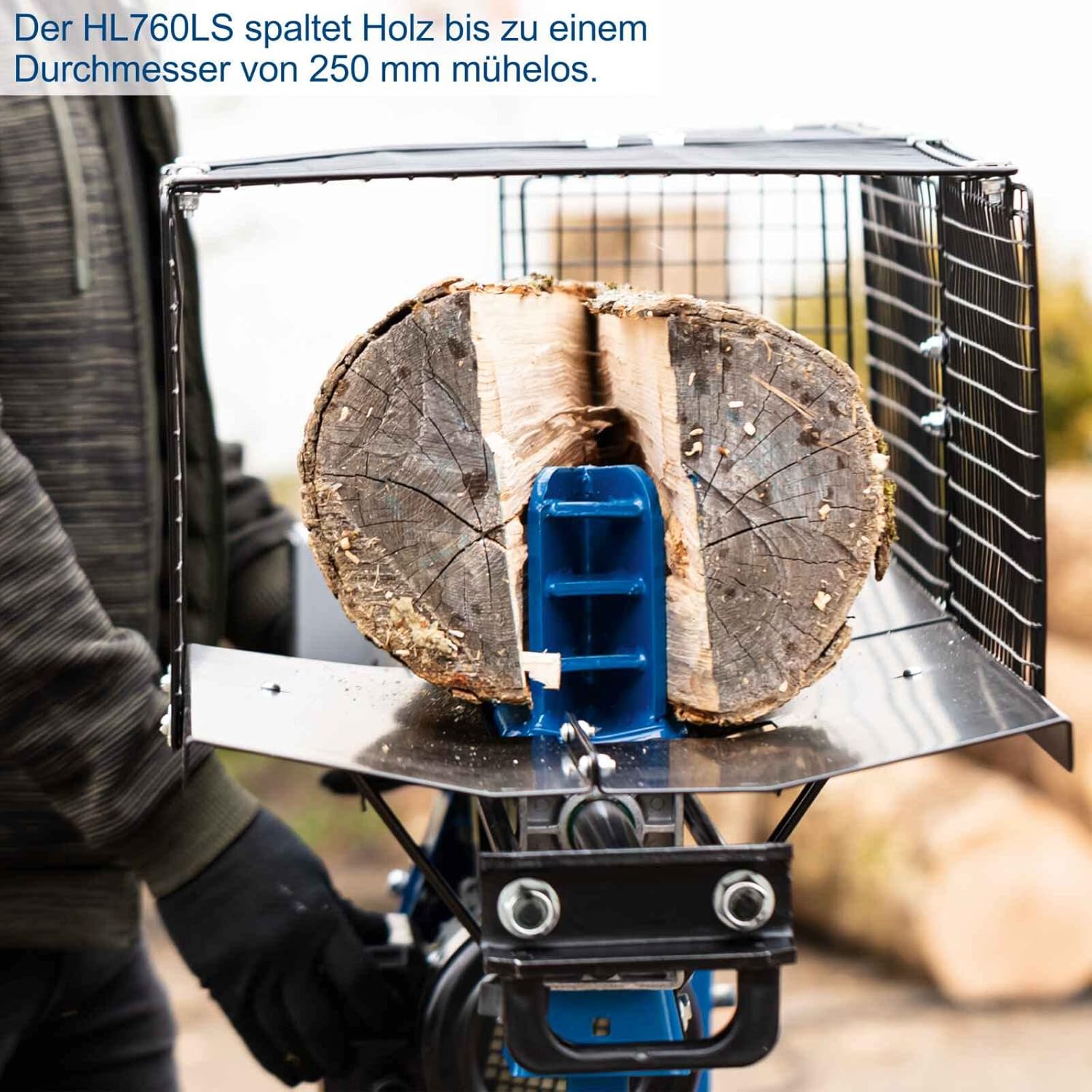

Figure 5: The log splitter in action, demonstrating its ability to effortlessly split logs up to 250mm in diameter.

1. Prepare Logs: Ensure logs are cut to appropriate lengths (max 520mm) and within the diameter limits (55-250mm). Remove any branches or knots that could interfere with splitting.
2. Position Log: Place one log horizontally on the splitting table, ensuring it rests firmly against the end plate and is centered under the splitting wedge.
3. Engage Controls: Simultaneously press and hold both control levers/buttons. The splitting wedge will advance and split the log.
4. Release Controls: Once the log is split, release both control levers/buttons. The splitting wedge will automatically retract to its starting position.
5. Remove Split Wood: Carefully remove the split wood from the splitting table. Be mindful of sharp edges and potential splinters.
6. Adjustable Splitting Stroke: The HL760L features a continuously adjustable splitting stroke. This allows you to set the return point of the wedge, optimizing efficiency for shorter logs. Adjust as needed for different log lengths.

Figure 6: The continuously adjustable splitting stroke feature, allowing for efficient operation by setting the optimal return point for the splitting wedge based on log length.

Tips for Efficient Splitting:

• Split fresh wood whenever possible, as it is generally easier to split than seasoned wood.
• For difficult logs, rotate them 90 degrees and try splitting again.
• Avoid splitting logs with large knots or embedded foreign objects, as this can damage the machine.

รูปที่ 7: อดีตamples of hardwood and softwood, indicating the machine's capability to split both. Also features an icon representing the protective cage against splintering wood.

5. การบำรุงรักษา

Regular maintenance ensures the longevity and safe operation of your log splitter. Always disconnect the power supply before performing any maintenance.

• การทำความสะอาด: After each use, clean the log splitter, especially the splitting wedge and table, to remove wood chips, sap, and debris. Use a stiff brush or compressed air.
• น้ำมันไฮดรอลิก: Check the hydraulic oil level regularly (e.g., every 50 hours of operation or annually). Replace the hydraulic oil according to the manufacturer's recommendations (typically every 300 hours or 2 years).
• การหล่อลื่น: Lubricate all moving parts, such as the wedge slide rails, with appropriate grease or oil to ensure smooth operation and prevent wear.
• การตรวจสอบ: Periodically inspect all bolts, nuts, and fasteners to ensure they are tight. Check the power cord for any damage. Inspect the splitting wedge for sharpness and damage.
• พื้นที่จัดเก็บ: Store the log splitter in a dry, protected area when not in use. Cover it to protect from dust and moisture.

รูปที่ 8: ภาพระยะใกล้ view of the stable splitting wedge, highlighting its robust construction designed for effective and durable performance.

6 การแก้ไขปัญหา

This section provides solutions to common issues you might encounter with your log splitter.

7. ข้อมูลจำเพาะทางเทคนิค

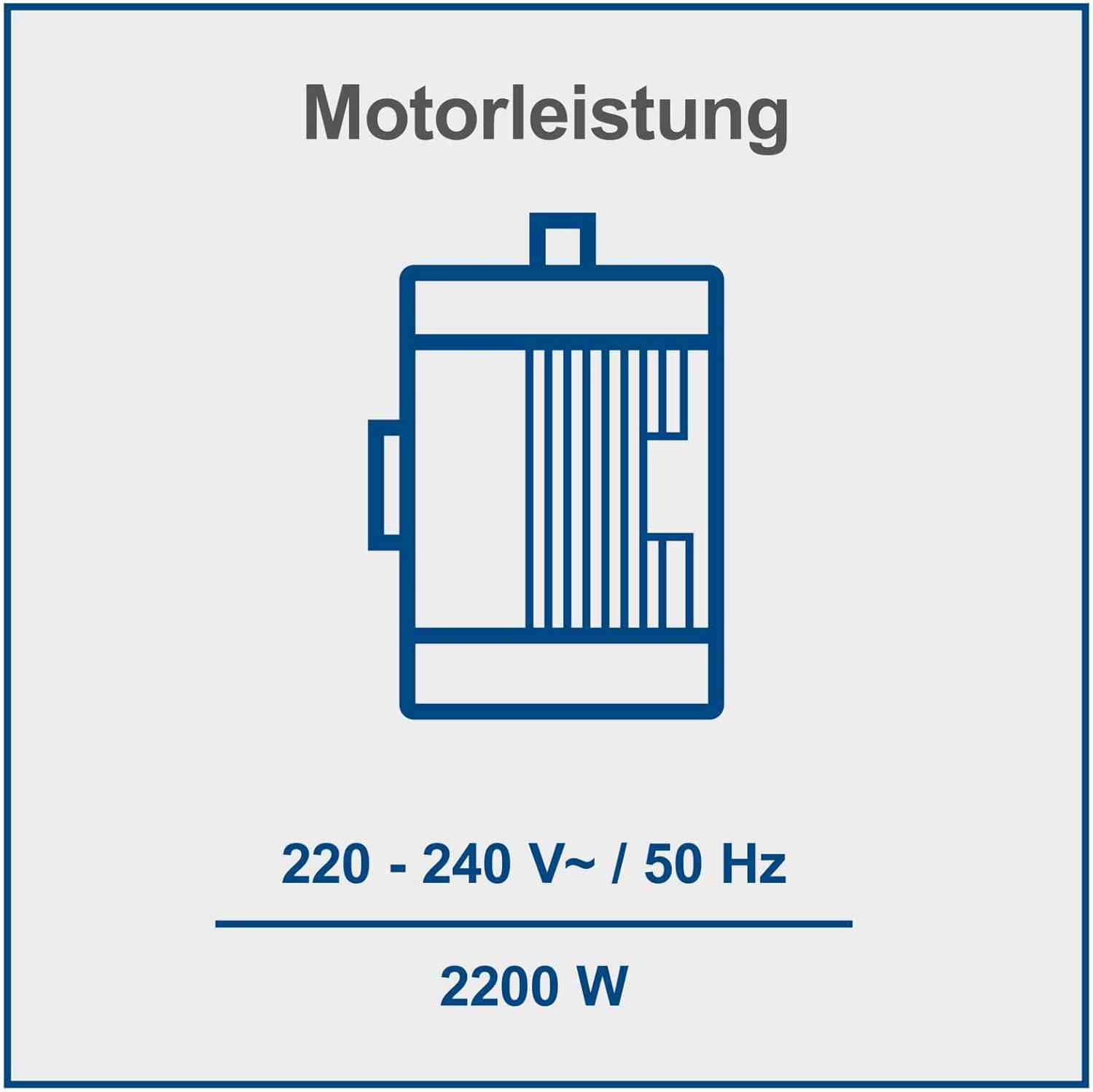

Figure 9: Diagram detailing the motor's electrical specifications: 220-240V~ / 50Hz and 2200W power output.

8. การรับประกันและการสนับสนุนลูกค้า

Scheppach products are manufactured to high-quality standards. For warranty information, service, or to order spare parts, please contact your local Scheppach dealer or visit the official Scheppach website. Please have your model number (HL760L or SC-HL760LS) and serial number ready when contacting support.

While specific spare parts availability information is not provided, Scheppach is committed to supporting its products. Always use genuine Scheppach spare parts for repairs to ensure safety and performance.

หากต้องการความช่วยเหลือเพิ่มเติม โปรดดูที่... Scheppach Brand Store on Amazon.
