YOUHA Wearable Electric Breast Pump User Manual

การแนะนำ

Thank you for choosing the YOUHA Wearable Electric Breast Pump. This innovative device is designed to provide a discreet, comfortable, and efficient breast milk expression experience. Its compact, hands-free design allows you to pump anywhere, anytime, without the hassle of tubes, wires, or dangling bottles. Please read this manual carefully before first use to ensure proper operation and maintenance.

Image: The YOUHA Wearable Electric Breast Pump, designed for discreet and hands-free use.

คุณสมบัติผลิตภัณฑ์

• สวมใส่ได้และใช้งานแบบแฮนด์ฟรี: Small and lightweight, designed to fit inside your bra for ultimate convenience and discretion.
• การออกแบบแบบออลอินวัน: No tubes, wires, or dangling bottles, allowing you to pump anywhere, anytime.
• Multiple Modes & Levels: Features 3 distinct modes (Massage, Suction, Mixed) with 9 adjustable levels each, allowing you to customize your pumping experience for maximum comfort and efficiency.
• การทำงานเงียบเป็นพิเศษ: Engineered with low noise technology (approx. 45-50 dB) to ensure a quiet environment for both mother and baby.
• ง่ายต่อการทำความสะอาด: Components (excluding the motor unit) are easy to assemble, disassemble, and can be cleaned and sterilized with boiling water or steam.
• BPA-Free & Safe: Made from food-grade, BPA-free materials for your safety and peace of mind.
• แบตเตอรี่แบบชาร์จไฟได้: Equipped with a built-in 1100mAh lithium battery, rechargeable via USB Type-C.

Image: Key features of the YOUHA breast pump, including portability, quiet operation, and hands-free design.

Image: Noise level comparison, demonstrating the quiet operation of the YOUHA breast pump (45-50dB).

เนื้อหาแพ็คเกจ

Each set of the YOUHA Wearable Electric Breast Pump includes the following components:

• 1 x Pump Motor
• 1 x 240ml Collection Cup
• 1 x Silicone Breast Shield (Flange)
• 1 x ฝาครอบ
• 1 x Silicone Connector
• 2 x Duckbill Valves
• สาย USB Type-C 1 เส้น
• 1 x คู่มือผู้ใช้ (ภาษาอังกฤษ)

การติดตั้งและการประกอบ

Before first use, please clean and sterilize all components that come into contact with breast milk. The motor unit should ไม่ be washed or sterilized.

1. Ensure all parts (silicone breast shield, silicone connector, duckbill valves, collection cup, and cover) are clean and dry.
2. Insert the duckbill valve firmly into the bottom of the silicone connector.
3. Attach the silicone breast shield to the silicone connector, ensuring a tight seal.
4. Connect the assembled silicone parts to the 240ml collection cup.
5. Place the pump motor securely on top of the collection cup, aligning it properly.
6. Ensure all connections are secure to prevent leaks and ensure optimal suction.

ภาพ: ระเบิด view diagram showing how to assemble the YOUHA breast pump components.

คำแนะนำการใช้งาน

การชาร์จอุปกรณ์

Before first use, fully charge the breast pump.

• Connect the provided Type-C USB cable to the charging port on the pump motor.
• Connect the other end of the USB cable to a 5V 1A power adapter (not included) or a USB port.
• The battery indicator light will show charging status:
  • สีเขียว: ชาร์จ 31% -100%
  • ส้ม: ชาร์จ 11% -30%
  • สีแดง: ชาร์จ 1% -10%
• A full charge typically takes about 2 hours and provides 2-4 pumping sessions, depending on usage.
• หมายเหตุสำคัญ: Do not charge the device for more than 24 hours, as this may damage the battery.

Image: The pump motor connected to its USB-C charging cable, illustrating the charging process.

ปฏิบัติการสูบน้ำ

Once assembled and charged, the pump is ready for use.

1. เปิด/ปิดเครื่อง: Long press the power button (center button with 'M' symbol) to turn the pump on or off.
2. การเลือกโหมด: Short press the power button to cycle through the 3 modes:
   • โหมดการนวด: Gentle stimulation to encourage milk let-down.
   • โหมดการดูด: Regular pumping for milk expression.
   • โหมดผสม: Combines massage and suction for optimal comfort and efficiency.
3. Adjusting Suction Level: Use the '+' and '-' buttons to adjust the suction intensity. Each mode has 9 adjustable levels.
   • If the indicator light flashes once, the level has been successfully changed.
   • If the indicator light keeps flashing, it indicates you are at the lowest (Level 1) or highest (Level 9) setting for that mode.
4. Pumping Session: The pump has a default working time of 30 minutes, after which it will automatically stop. You can manually stop it at any time by long-pressing the power button.
5. การเก็บรวบรวมน้ำนม: After pumping, carefully remove the pump from your breast. There is a small opening at the top of the collection cup to pour out the expressed milk.

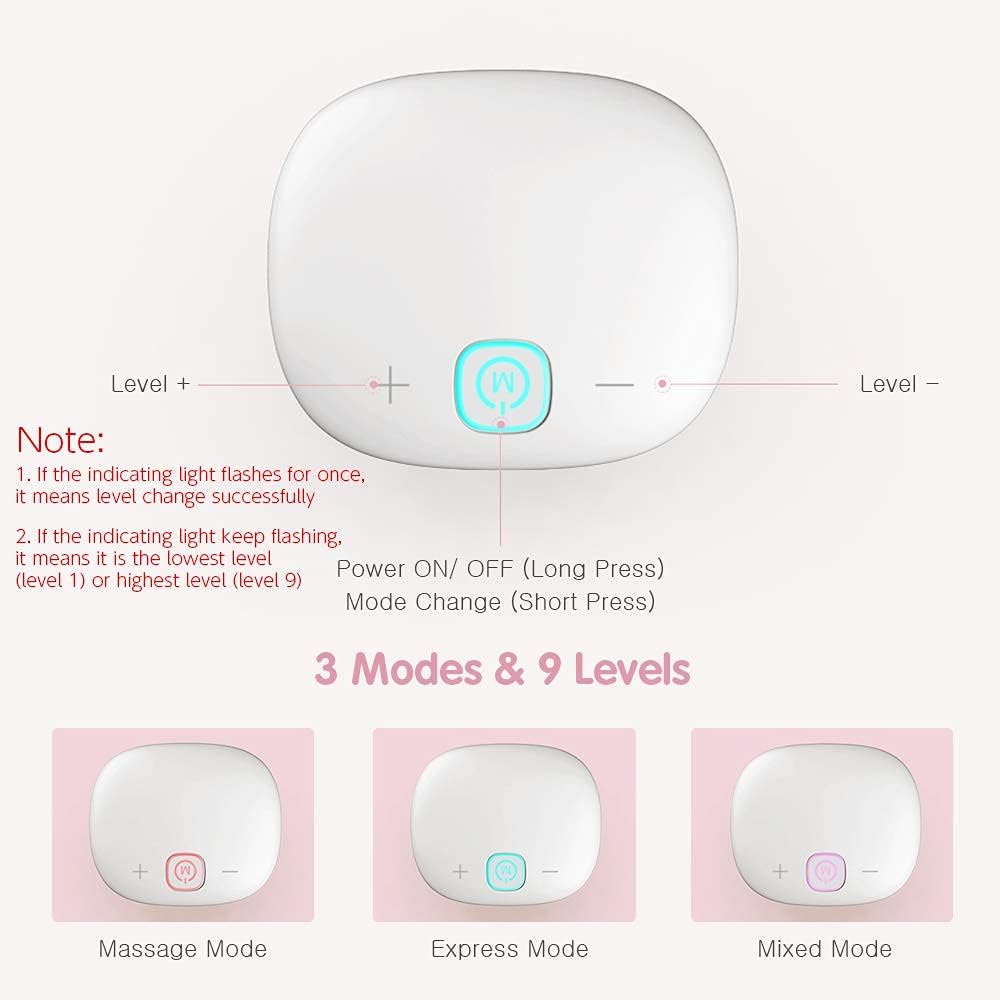

Image: The control panel, showing buttons for power, mode selection, and suction level adjustment.

การบำรุงรักษาและการทำความสะอาด

การทำความสะอาดและบำรุงรักษาอย่างถูกวิธีมีความสำคัญอย่างยิ่งต่อสุขอนามัยและอายุการใช้งานที่ยาวนานของเครื่องปั๊มนมของคุณ

1. ถอดชิ้นส่วน: After each use, disassemble all parts that came into contact with breast milk: the silicone breast shield, silicone connector, duckbill valves, and collection cup.
2. การทำความสะอาด: Wash these disassembled parts immediately after use with warm soapy water. Use a soft brush to clean hard-to-reach areas. Rinse thoroughly with clean water.
3. การฆ่าเชื้อ: These components can be sterilized by boiling water for 5 minutes or using a steam sterilizer. Ensure parts are completely dry before reassembly or storage.
4. หน่วยมอเตอร์: The pump motor unit should ไม่เคย be submerged in water or sterilized. Wipe it clean with a damp ผ้าถ้าจำเป็น
5. การอบแห้งและการเก็บรักษา: Allow all parts to air dry completely on a clean surface or drying rack. Store the clean, dry pump in a clean, dry place away from direct sunlight.

Image: Disassembled pump components ready for cleaning, emphasizing ease of maintenance.

Image: Illustrating the food-grade, BPA-free materials used in the breast pump components.

การแก้ไขปัญหา

If you encounter any issues with your YOUHA Wearable Electric Breast Pump, please refer to the following common problems and solutions:

หากปัญหายังคงมีอยู่หลังจากลองวิธีแก้ไขเหล่านี้แล้ว โปรดติดต่อฝ่ายสนับสนุนลูกค้า

ข้อมูลจำเพาะ

Image: Product dimensions and key parameters.

การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official YOUHA webไซต์ โปรดเก็บใบเสร็จรับเงินของคุณไว้เป็นหลักฐานการซื้อสำหรับการเรียกร้องการรับประกันใดๆ
