คู่มือการใช้งานเครื่องสแกนบาร์โค้ด Tera HW0002

การแนะนำ

This user manual provides comprehensive instructions for the Tera HW0002 Wireless Barcode Scanner. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device. The Tera HW0002 is a versatile 1D/2D QR barcode reader featuring a patented battery level indicator, 3-in-1 connectivity (Bluetooth, 2.4G Wireless, USB Wired), and a durable, shockproof design.

เนื้อหาแพ็คเกจ

• เครื่องสแกนบาร์โค้ด x1
• ขาตั้งเครื่องสแกนบาร์โค้ด x1
• สาย USB x1
• ดองเกิล x1
• คู่มือการใช้งาน x1

Image: The Tera HW0002 Barcode Scanner, its stand, USB cable, and 2.4G wireless dongle, illustrating the complete package contents.

การตั้งค่า

โหมดการเชื่อมต่อ 3-in-1

The Tera HW0002 offers flexible connectivity options to suit various environments and devices. You can connect the scanner via Bluetooth, 2.4G Wireless, or a wired USB connection.

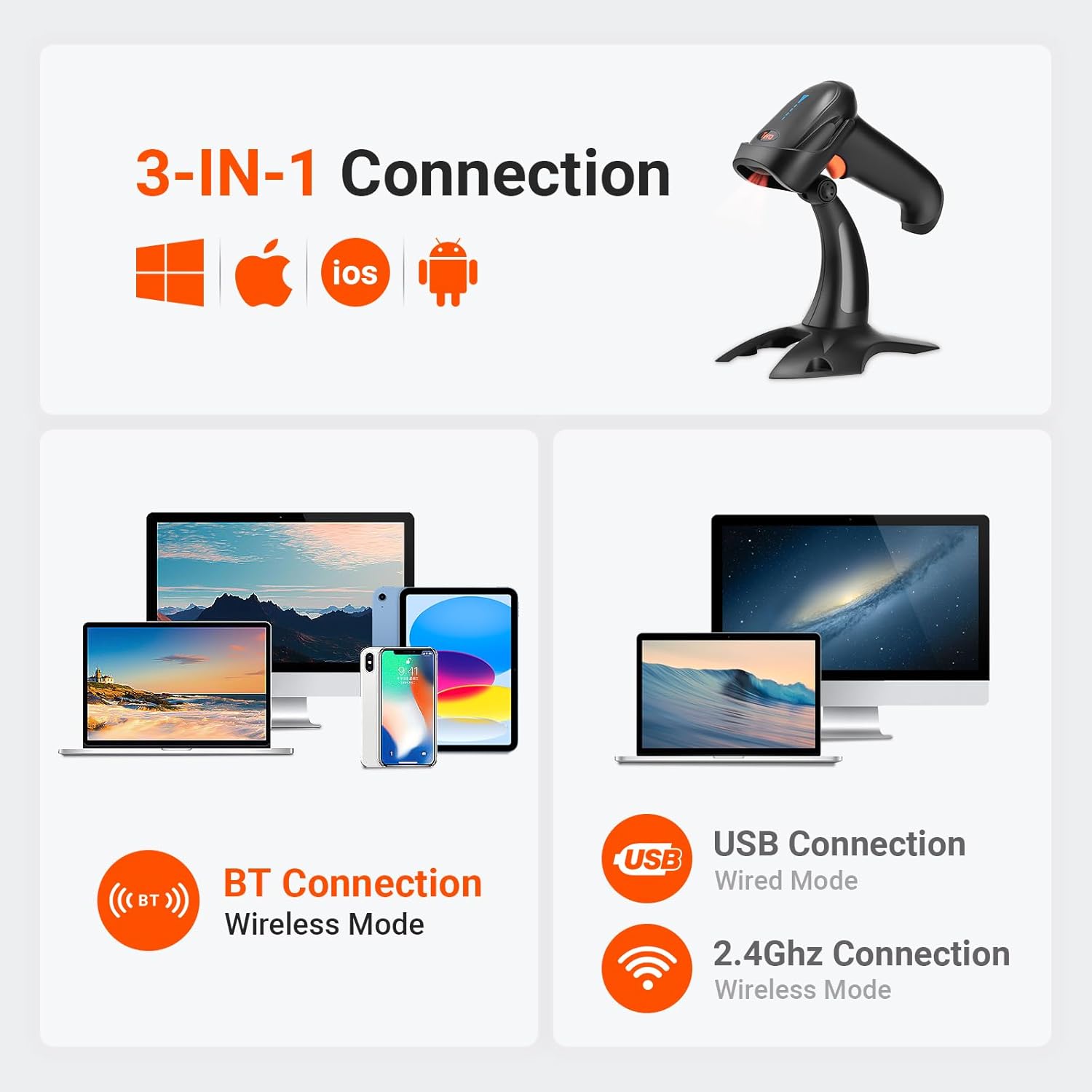

Image: Visual representation of the three connection modes: Bluetooth (BT), 2.4G Wireless via dongle, and USB Wired connection, compatible with various operating systems like Windows, Mac OS, iOS, Android, and Linux.

1. โหมดไร้สาย 2.4G

• Insert the 2.4G USB dongle into an available USB port on your computer or device.
• The scanner will automatically pair with the dongle. A successful connection is indicated by a specific sound or LED light pattern (refer to the full PDF manual for details).
• The transmission distance can reach 328ft in barrier-free environments and 114ft in environments with obstacles.

2. โหมดบลูทู ธ

• ตรวจสอบให้แน่ใจว่าอุปกรณ์ของคุณเปิดใช้งานบลูทูธแล้ว
• Scan the "Bluetooth Mode" barcode from the user manual (physical or PDF).
• On your device, search for "Barcode Scanner HW0002" in the Bluetooth settings and pair.
• This mode is compatible with smartphones, tablets, and computers running iOS, Android, Mac OS, and Windows.

3. โหมดใช้งานแบบมีสาย USB

• เชื่อมต่อเครื่องสแกนเข้ากับคอมพิวเตอร์โดยตรงโดยใช้สาย USB ที่ให้มา
• The scanner will function as a standard keyboard input device, requiring no additional drivers for most operating systems.
• This mode also charges the scanner's internal battery.

คำแนะนำการใช้งาน

ตัวระบุระดับแบตเตอรี่

The Tera HW0002 features a patented battery level indicator located on the top of the scanner. This allows for real-time monitoring of the remaining charge, helping to prevent unexpected power interruptions.

Image: A visual guide to the battery level indicator, displaying working time (>12H), charging time (3.5H), standby time (>720H), and battery percentage levels (25%, 50%, 75%, 100%) via LED dots.

สแกนบาร์โค้ด

The scanner utilizes Superior Global CMOS Imaging Scanning technology, enabling fast and accurate reading of both ordinary and high-density 1D and 2D barcodes. It can read barcodes from various surfaces, including paper, reflective materials, and digital screens.

Image: The barcode scanner actively scanning various types of 1D and 2D barcodes, including QR codes, Code 39, EAN-13, and Data Matrix, demonstrating its versatile scanning capabilities.

Supported Symbologies include: 1D (Codabar, Code 11, Code93, MSI, Code 128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, ISBN, Industrial 25, Interleaved 25, Standard25, Matrix) and 2D (QR, DataMatrix, PDF417, Aztec, Hanxin, Micro PDF417).

Image: A Tera barcode scanner being used to scan both 1D and 2D barcodes displayed on computer monitors, highlighting its ability to read from digital screens.

Hands-Free Automatic Scanning

When placed on its stand, the scanner can operate in hands-free automatic scanning mode. This is ideal for high-volume scanning tasks, allowing users to simply present items to the scanner for automatic data capture.

Image: The barcode scanner positioned on its stand, ready for hands-free automatic scanning, with a person preparing to scan a document next to a laptop.

Customizing Scan Output (Prefix/Suffix)

The Tera HW0002 allows for advanced data editing, such as adding custom prefixes or suffixes to scanned data. This feature is configured by scanning specific barcodes found in the full user manual.

Image: Illustrations showing how date and time can be added as either a prefix or a suffix to scanned barcode data, demonstrating the customization feature.

เช่นample, you can configure the scanner to delete the first 2 characters and add 2 TAB-characters when scanning Code39, while leaving other barcode types unedited. Refer to the full user manual for detailed programming barcodes.

Vibration Alert and Sound Settings

In addition to sound and LED illumination, the scanner provides a tactile vibration alert upon successful scans. The buzzer can be muted for quiet operation, which is useful in noise-sensitive environments.

Image: A graphic illustrating the volume settings (Off, Low, Medium, High) and vibration settings (Vibration On, Vibration Off) for the scanner, configurable via scanning specific barcodes.

การซ่อมบำรุง

To ensure the longevity and optimal performance of your Tera HW0002 barcode scanner, follow these general maintenance guidelines:

• การทำความสะอาด: ใช้ผ้าแห้งเนื้อนุ่มเช็ดทำความสะอาดภายนอกเครื่องสแกน สำหรับช่องสแกน ให้ใช้ผ้าที่ไม่เป็นขุยเช็ดเบาๆampล้างด้วยน้ำยาทำความสะอาดที่ไม่รุนแรงและไม่ทำให้เกิดรอยขีดข่วน หลีกเลี่ยงสารเคมีรุนแรงหรือวัสดุที่มีฤทธิ์กัดกร่อนที่อาจทำให้เลนส์เป็นรอยได้
• พื้นที่จัดเก็บ: Store the scanner in a cool, dry place away from direct sunlight and extreme temperatures. When not in use, place it on its stand or in a protective case to prevent accidental drops or damage.
• การดูแลแบตเตอรี่ While the scanner has a large 2000mAh battery, avoid completely draining the battery frequently. For long-term storage, charge the battery to about 50% to prolong its lifespan.
• การป้องกันทางกายภาพ: The scanner features a shockproof silicone protective cover. While designed to withstand drops, avoid unnecessary impacts to maintain its integrity.

การแก้ไขปัญหา

If you encounter issues with your Tera HW0002 barcode scanner, please refer to the following common troubleshooting steps:

• เครื่องสแกนไม่เชื่อมต่อ:
  • 2.4G ไร้สาย: Ensure the USB dongle is securely plugged in and the scanner is in 2.4G mode. Try a different USB port.
  • บลูทูธ: Confirm Bluetooth is enabled on your host device and the scanner is in Bluetooth pairing mode. Forget the device on your host and re-pair.
  • สาย USB: ตรวจสอบการเชื่อมต่อสาย USB ทั้งสองด้าน ลองใช้สาย USB หรือพอร์ตอื่นดู
• ไม่สามารถสแกนบาร์โค้ดได้:
  • ตรวจสอบให้แน่ใจว่าบาร์โค้ดสะอาดและไม่เสียหายมากเกินไป
  • ตรวจสอบระยะห่างและมุมของเครื่องสแกนกับบาร์โค้ด
  • Verify the scanner's light is active when attempting to scan.
  • Confirm the barcode symbology is supported by the scanner (refer to "Supported Symbologies" in the Operating Instructions).
  • If scanning from a screen, ensure screen brightness is adequate.
• ผลลัพธ์ข้อมูลไม่ถูกต้อง:
  • If data appears garbled or incorrect, ensure the keyboard language settings on your computer match the scanner's configuration (e.g., US English keyboard layout).
  • If custom prefixes/suffixes are causing issues, reset the scanner to factory defaults by scanning the appropriate barcode in the full user manual.
• No Vibration/Sound:
  • Check the volume and vibration settings by scanning the configuration barcodes in the manual. The buzzer might be set to mute.

For more detailed troubleshooting or advanced configurations, please refer to the comprehensive PDF User Manual available online.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

Tera products are designed for reliability and performance. For specific warranty details, please refer to the documentation included with your purchase or contact Tera customer support.

For further assistance, technical support, or to access the full user manual with detailed configuration barcodes, please visit the official Tera store or refer to the PDF user manual:

• เยี่ยมชมร้าน Tera บน Amazon
• ดาวน์โหลดคู่มือผู้ใช้ (PDF)
