คู่มือการใช้งานโต๊ะยืนทำงานไฟฟ้ากระจก FLEXISPOT

สินค้าเกินview

The FLEXISPOT EG8W 48-inch electric height adjustable desk is loaded with all the great features you need to boost your productivity and comfort. Featuring a spacious desk drawer, 3 USB charging ports, and an innovative quick-install design that enables an easy transportation and installation in under 5 minutes. The FlexiSpot EG8W gives you the most bang for your buck, allowing you to focus on finding the perfect balance of sitting and standing throughout the day.

The FLEXISPOT Electric Glass Standing Desk, showcasing its sleek design and integrated features in a typical workspace setup.

คุณสมบัติหลัก

• การปรับความสูงด้วยไฟฟ้า: Smooth transitions from 28.3" to 47.6" with a robust motor, supporting up to 110 lbs.
• Tempered Glass Table Top: Modern, durable, and easy-to-clean surface with rounded edges for safety.
• Embedded Multiple Functions: Four programmable height presets, child lock, and three integrated USB charging ports (Type-C and Type-A).
• ลิ้นชักเก็บของสะดวกสบาย: A pull-out drawer for seamless, integrated storage of office supplies.
• Quick-Install Design: Designed for easy transportation and installation.

เนื้อหาแพ็คเกจ

Your FLEXISPOT Electric Glass Standing Desk will arrive in two separate packages: one for the desk frame and one for the desktop. Please be aware that these packages may arrive on different days.

Illustration of the two separate packages for the desk frame and desktop, indicating they may arrive on different days.

คู่มือการติดตั้ง

Simple 3-Step Assembly

The FlexiSpot Electric Glass Standing Desk is designed for quick and straightforward assembly. Follow these steps for a hassle-free setup:

Visual guide for the simple 3-step assembly of the desk, highlighting the main components.

1. Attach Desk Feet: Securely attach the desk feet to the main desk frame using the provided hardware.
2. Connect Desktop to Frame: Carefully place the desktop onto the assembled frame and fasten it using the designated screws.
3. เชื่อมต่อสายไฟและสายเคเบิล: Plug the power cable into the desk's control box and then into a wall outlet. Ensure all internal cables are properly connected.

คำแนะนำการใช้งาน

การปรับความสูง

The desk features an intuitive control panel for easy height adjustments and memory settings.

The integrated control panel on the desk, featuring buttons for height adjustment, memory presets, and child lock.

• การเคลื่อนที่ขึ้น/ลง: ใช้ ▲ และ ▼ arrows to raise or lower the desk to your desired height. The current height is displayed digitally.
• Height Memory Presets (H1, H2, H3): To save a height, adjust the desk to the desired position, then press and hold one of the H1, H2, or H3 buttons until the display flashes or beeps. To recall a saved height, simply press the corresponding H button.
• Timer/Reminder Function: The clock icon button allows you to set a reminder to stand up or sit down at regular intervals, promoting healthy work habits.
• การล็อคเด็ก: Activate the child lock feature to prevent accidental height adjustments. Refer to the sticker on the desk for specific instructions on engaging and disengaging the child lock.

พอร์ตชาร์จ USB ในตัว

The desk is equipped with convenient USB ports for charging your devices directly from your workspace.

• พอร์ต USB: Includes one Type-C port (5V2.4A/9V2A/12V1.5A output) and two Type-A ports (3.6-6.5V2.4A/6.5-9V2A/12V1.5A output).
• บันทึก: USB ports may temporarily pause charging while the desk height is being adjusted. Laptop charging is not supported through these ports.

ลิ้นชักเก็บของ

A discreet pull-out drawer is integrated into the desktop, providing convenient storage for your office essentials.

The spacious under-desk drawer, designed to keep your desktop organized and clutter-free.

• Simply pull the drawer out to access your items and push it back in for a clean, minimalist look.

การบำรุงรักษาและการดูแล

Tempered Glass Desktop Care

The tempered glass desktop is designed for durability and easy cleaning, and can even be used as a dry-erase surface.

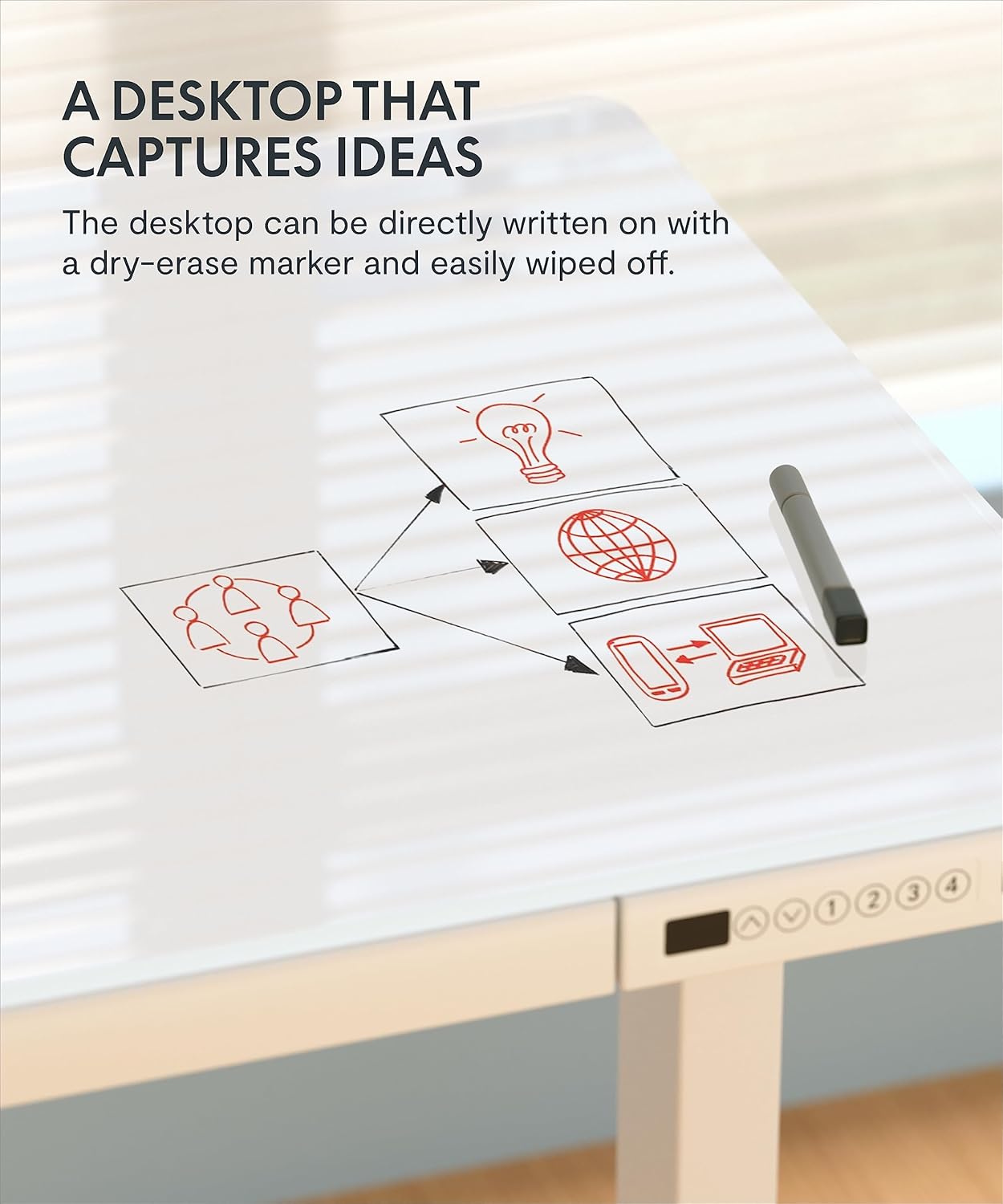

The tempered glass desktop can be directly written on with a dry-erase marker and easily wiped clean.

• การทำความสะอาด: ใช้แบบนุ่มๆamp cloth and a mild glass cleaner to wipe down the surface. Avoid abrasive cleaners or materials that could scratch the glass.
• หมายเหตุสำคัญ: ห้ามใช้ clamping monitor arms directly on the glass top, as this may cause damage.

การบำรุงรักษาโดยทั่วไป

• ตรวจสอบสกรูและจุดเชื่อมต่อทั้งหมดอย่างสม่ำเสมอ เพื่อให้แน่ใจว่ายังคงแน่นและปลอดภัย
• Keep the desk and its components free from dust and debris to ensure smooth operation of the motor and moving parts.

การแก้ไขปัญหา

ปัญหาทั่วไปและแนวทางแก้ไข

• โต๊ะไม่เคลื่อนไหว: Ensure the power cable is securely plugged into both the desk and a working wall outlet. Check if the child lock is engaged.
• การเคลื่อนไหวที่ไม่สม่ำเสมอ: If the desk moves unevenly, check for any obstructions under the desk or ensure the feet are level on the floor.
• Display Error Codes: Refer to the specific error code in your detailed product manual (not provided here) or contact customer support for assistance.
• พอร์ต USB ไม่ชาร์จ: Verify the desk is powered on. Note that charging may pause during height adjustments. Ensure your device is compatible with the provided USB outputs.

If you encounter persistent issues, please refer to the full product manual or contact FLEXISPOT customer support.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

ข้อมูลการรับประกัน

FLEXISPOT offers protection plans for your product:

• แผนคุ้มครอง 2 ปี: พร้อมจำหน่ายแล้ว
• แผนคุ้มครอง 3 ปี: พร้อมจำหน่ายแล้ว

Please refer to the specific terms and conditions of the protection plans at the time of purchase for full details.

การสนับสนุนลูกค้า

For any questions, assistance, or support regarding your FLEXISPOT Electric Glass Standing Desk, please contact FLEXISPOT customer service. You can also visit the official ร้านเฟล็กซิสพอท สำหรับข้อมูลและทรัพยากรเพิ่มเติม
