HECHT Gasoline Leaf Blower, Vacuum, and Shredder

1. บทนำ

Thank you for choosing the HECHT 9280 Gasoline Leaf Blower, Vacuum, and Shredder. This versatile 3-in-1 garden tool is designed to efficiently clear leaves and debris from your garden, lawn, and pathways. With its powerful 2-stroke engine, it offers reliable performance for blowing, vacuuming, and shredding garden waste.

This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your device. Please read it thoroughly before first use and keep it for future reference.

2. คำแนะนำด้านความปลอดภัย

Always observe basic safety precautions when using this product to reduce the risk of injury or damage. Failure to follow these instructions may result in serious injury.

• อุปกรณ์ป้องกันภัยส่วนบุคคล: Always wear appropriate personal protective equipment, including eye protection (safety glasses), hearing protection (ear defenders), and sturdy footwear. Long pants and gloves are also recommended.
• การจัดการเชื้อเพลิง: Gasoline is highly flammable. Handle fuel with extreme care. Always refuel outdoors in a well-ventilated area, away from sparks, open flames, or other ignition sources. Do not smoke while refueling.
• ความร้อนจากเครื่องยนต์: The engine and exhaust system become very hot during operation and remain hot for a short period after shutdown. Avoid contact with hot surfaces to prevent burns.
• ชิ้นส่วนที่เคลื่อนไหว: Keep hands, feet, and clothing away from all moving parts, especially the fan and shredding blades, during operation. Ensure the engine is off and the spark plug cap is removed before performing any maintenance or clearing blockages.
• พื้นที่ทำงานที่ชัดเจน: Ensure the work area is clear of people, children, and pets. Maintain a safe distance from others.
• ตรวจสอบก่อนใช้งาน: Before each use, inspect the device for any loose parts, damage, or wear. Do not operate a damaged machine.
• การระบายอากาศที่เหมาะสม: Do not operate the machine in enclosed spaces due to exhaust fumes.
• การยึดเกาะที่มั่นคง: Always hold the machine firmly with both hands during operation.

3. ส่วนประกอบและการประกอบ

Your HECHT 9280 comes with the following components:

• Main Unit (Engine and Fan Housing)
• ท่อเป่าลม
• Vacuum Tube (Suction Tube)
• 50 Liter Collection Bag
• Shoulder Strap for Collection Bag

ขั้นตอนการประกอบ:

1. การติดตั้งท่อเป่าลม: For blowing operations, securely attach the blower tube to the outlet port on the front of the main unit. Ensure it clicks into place or is fastened according to the locking mechanism.
2. Converting to Vacuum Mode: To switch to vacuum mode, first remove the blower tube. Then, attach the large suction tube to the main intake port, typically located on the side of the fan housing. Ensure the rotary lock is engaged to secure the tube.
3. Attaching the Collection Bag: Connect the 50-liter collection bag to the outlet port (where the blower tube was attached). The bag features a practical zipper for easy emptying and a shoulder strap for comfortable carrying during operation.

รูปที่ 3.1: เกินview of the HECHT 9280 in blower and vacuum configurations, including the collection bag.

Figure 3.2: The extra-long blowing tube, ideal for reaching into shafts or clearing hedges.

Figure 3.3: The large suction tube with its secure rotary lock mechanism for vacuuming.

Figure 3.4: The spacious 50-liter collection bag with a practical shoulder strap for comfortable use.

4. การดำเนินการ

Before starting, ensure all components are correctly assembled and secured.

4.1 การเติมน้ำมัน

This device uses a 2-stroke gasoline engine. Always use a fresh mixture of unleaded gasoline and high-quality 2-stroke engine oil at the ratio specified in the engine manual (typically 40:1 or 50:1). Refer to the label on the fuel tank for the exact mixing ratio.

• ตรวจสอบให้แน่ใจว่าเครื่องยนต์ดับและเย็นลงแล้วก่อนเติมน้ำมัน
• ทำความสะอาดบริเวณรอบฝาถังน้ำมันเพื่อป้องกันสิ่งสกปรกเข้าไปในถัง
• Slowly open the fuel cap to release any pressure.
• Fill the tank carefully, avoiding spills. Do not overfill.
• ปิดฝาถังน้ำมันให้สนิท

4.2 การสตาร์ทเครื่องยนต์

Figure 4.1: The reliable starting mechanism with an easy-to-pull recoil starter and fuel tank.

1. วางเครื่องบนพื้นผิวเรียบและมั่นคง
2. ตั้งสวิตช์เปิด/ปิดไปที่ตำแหน่ง 'เปิด'
3. Engage the choke lever (if the engine is cold).
4. กดปุ่มปั๊มน้ำมันหลายๆ ครั้งจนกว่าจะเห็นน้ำมันเชื้อเพลิงไหลกลับมาในท่อส่งกลับ
5. Pull the recoil starter handle firmly and smoothly until the engine starts. Do not pull the cord to its full extension.
6. Once the engine fires (or after a few pulls), disengage the choke lever.
7. ควรปล่อยให้เครื่องยนต์อุ่นเครื่องสักครู่ก่อนที่จะเร่งเครื่องเต็มที่

4.3 การใช้การควบคุม

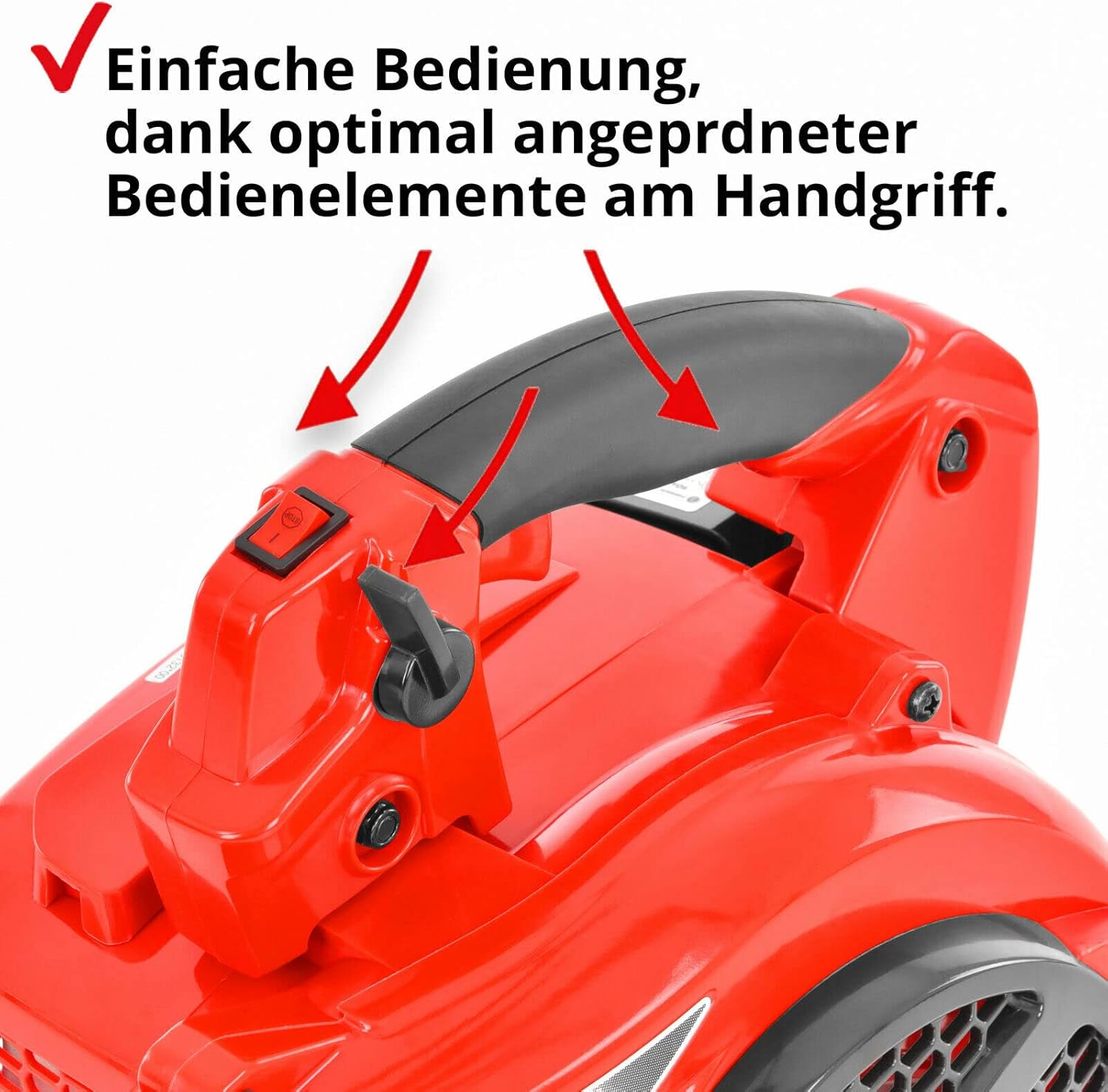

Figure 4.2: Easy operation thanks to optimally arranged controls on the handle.

The main controls, including the ON/OFF switch and throttle lever, are conveniently located on the handle for easy access during operation.

4.4 ฟังก์ชันการเป่าลม

Hold the unit firmly and direct the airflow towards the leaves or debris you wish to move. Use a sweeping motion to gather material into piles for easier collection.

4.5 Vacuuming and Shredding Function

With the vacuum tube and collection bag attached, guide the tube over the leaves. The powerful suction will draw the leaves into the unit, where the integrated 3-star metal shredding blade will reduce them to a ratio of 10:1 before depositing them into the 50-liter collection bag.

Figure 4.3: The shredding blade features three durable metal blades for efficient mulching.

ควรเทถุงเก็บฝุ่นทิ้งเป็นประจำ เพื่อรักษาประสิทธิภาพการดูดให้อยู่ในระดับสูงสุด

5. การบำรุงรักษา

Regular maintenance ensures the longevity and optimal performance of your HECHT 9280.

• การทำความสะอาด: After each use, clean the exterior of the unit. Remove any debris from the air intake vents and fan housing. Ensure the shredding chamber is clear of blockages.
• ตัวกรองอากาศ: Periodically check and clean the air filter. A clogged air filter can reduce engine performance. Refer to the engine manual for specific cleaning instructions.
• หัวเทียน: Inspect the spark plug regularly. Clean or replace it if it is fouled or worn.
• Shredding Blade: Inspect the shredding blade for wear or damage. A dull or damaged blade can reduce shredding efficiency. Replace if necessary.
• ระบบเชื้อเพลิง: For long-term storage, drain the fuel tank and run the engine until it stops to clear the carburetor of fuel. This prevents fuel degradation and carburetor issues.
• พื้นที่จัดเก็บ: Store the unit in a clean, dry place, away from direct sunlight and extreme temperatures.

6 การแก้ไขปัญหา

หัวข้อนี้จะกล่าวถึงปัญหาทั่วไปที่คุณอาจพบเจอ

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Hecht customer support.

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

Hecht products are known for their quality. For any warranty claims, technical support, or spare parts inquiries, please contact your authorized Hecht dealer or the Hecht customer service department. Keep your proof of purchase for warranty validation.

For further information, you may visit the official Hecht website or contact their support channels directly.
