คู่มือผู้ใช้เครื่องเล่นพินบอล 3 มิติ ROBOTIME

1. บทนำ

Welcome to the world of ROBOTIME 3D wooden puzzles! This manual provides detailed instructions for the assembly, operation, and care of your new ROBOTIME 3D Pinball Machine (Model: ROBOEG01). This vintage-style pinball game machine offers a unique building experience and brings the classic arcade fun to your home with its transmission model, live sound and light effects, and electronic scoring.

Please read this manual thoroughly before beginning assembly or operation to ensure a smooth and enjoyable experience.

2. การติดตั้งและการประกอบ

The ROBOTIME 3D Pinball Machine is a complex wooden puzzle kit designed for assembly. It consists of 482 pieces and has an estimated assembly time of 12 hours. Patience and attention to detail are key during this process.

2.1 การแกะกล่องและตรวจสอบส่วนประกอบ

Carefully unbox all components. Verify that all wooden sheets, electronic parts, and accessories are present and undamaged. Refer to the included visual guide for a complete list of parts.

Image: All components of the 3D Pinball Machine kit, including laser-cut wooden sheets, electronic modules, wires, and various small parts, laid out for assembly.

2.2 คำแนะนำในการประกอบ

1. Follow the step-by-step visual instructions provided in the separate assembly manual. Each wooden piece is numbered; match these numbers with the corresponding steps in the manual.
2. Carefully detach pieces from the wooden sheets. Use a craft knife or sandpaper if necessary to smooth edges.
3. Assemble components according to the diagrams, paying close attention to the orientation and connection points.
4. For electronic components, ensure correct polarity and secure connections as indicated in the manual.
5. Test electronic functions (lights, sound, scoring) at designated points during assembly if the manual suggests.

Image: The product packaging for the ROBOTIME 3D Pinball Machine, displaying the assembled model and highlighting features such as multiple shooting score challenges, transmission model, sound & light effects, and electronic scoring.

3. คู่มือการใช้งาน

Once fully assembled, your 3D Pinball Machine is ready for play. It features interactive elements, electronic scoring, and realistic sound and light effects to enhance the gaming experience.

3.1 การเปิดเครื่อง

Connect the machine to a suitable power source using the provided cable. Ensure all connections are secure. The machine should power on, and lights may illuminate.

3.2 การเริ่มเกม

Place the metal balls into the designated launching area. Use the plunger mechanism to launch a ball onto the playfield.

3.3 รูปแบบการเล่นเกม

Use the flipper buttons on the sides of the machine to control the flippers and keep the ball in play. Aim for targets and bumpers to score points. The electronic display will track your score.

Image: The fully assembled ROBOTIME 3D Pinball Machine, showcasing its intricate wooden design, illuminated playfield, and the classic pinball layout with targets and ramps.

3.4 Scoring and Features

The machine features various scoring zones and interactive elements. Hit specific targets to activate special effects or bonus points. The goal is to achieve the highest score possible before losing all balls.

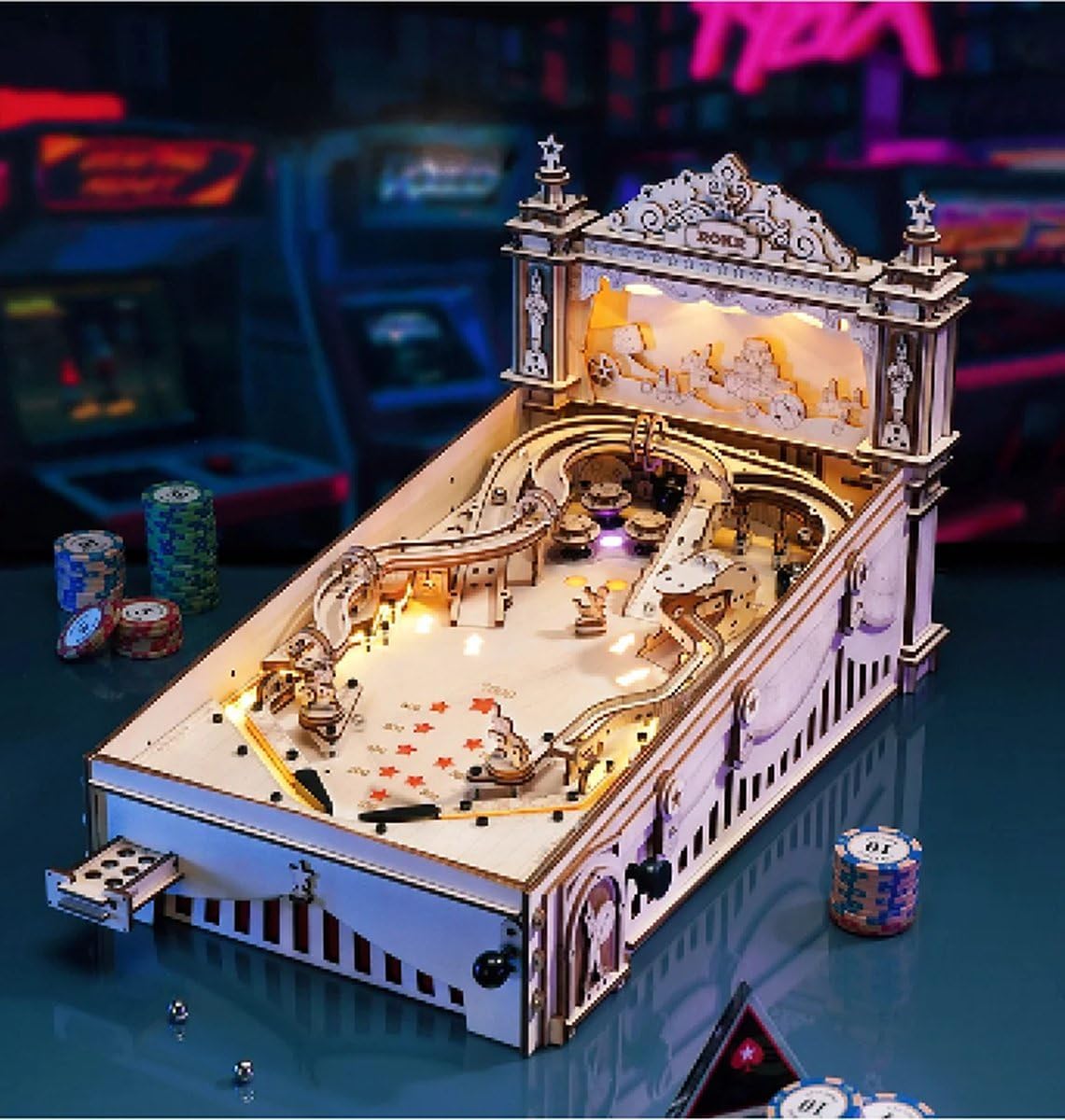

Image: The ROBOTIME 3D Pinball Machine in an active state, with its internal lights glowing, demonstrating its operational appearance within a gaming-themed setting.

4. การบำรุงรักษา

Proper maintenance will ensure the longevity and optimal performance of your 3D Pinball Machine.

• การทำความสะอาด: Use a soft, dry cloth to gently wipe down the wooden surfaces. Avoid using abrasive cleaners or excessive moisture, as this can damage the wood and electronic components.
• การกำจัดฝุ่น: Periodically use a soft brush or compressed air to remove dust from intricate areas and the playfield to prevent interference with ball movement or electronic sensors.
• พื้นที่จัดเก็บ: Store the machine in a dry environment, away from direct sunlight and extreme temperature fluctuations, to prevent warping or damage to the wood.
• การตรวจสอบส่วนประกอบ: Occasionally inspect all assembled parts for looseness. Tighten screws or re-secure connections as needed.

5 การแก้ไขปัญหา

If you encounter any issues with your 3D Pinball Machine, refer to the following common troubleshooting steps:

• เครื่องไม่เปิด:
  • ตรวจสอบให้แน่ใจว่าสายไฟเชื่อมต่อกับเครื่องและเต้ารับไฟฟ้าอย่างแน่นหนา
  • ตรวจสอบปลั๊กไฟด้วยอุปกรณ์อื่นเพื่อยืนยันว่าใช้งานได้ปกติ
• ไฟหรือเสียงไม่ทำงาน:
  • Verify all electronic connections and wires are properly seated and not loose.
  • Refer to the assembly manual to confirm correct wiring for lights and sound modules.
• ฟลิปเปอร์ไม่ตอบสนอง:
  • Check the connections to the flipper mechanisms and buttons.
  • Ensure no wooden pieces are obstructing the movement of the flippers.
• ลูกบอลติดอยู่:
  • Inspect the playfield for any loose or misaligned pieces that might be creating obstructions.
  • ตรวจสอบให้แน่ใจว่าวางเครื่องไว้บนพื้นผิวระดับ
• Electronic Scoring Issues:
  • Check all sensor connections on the playfield.
  • Ensure the scoring display unit is properly connected.

If problems persist, please contact ROBOTIME customer support for further assistance.

6. ข้อมูลจำเพาะ

ภาพ: มิติเหนือview of the assembled 3D Pinball Machine, indicating its height (11 inches / 28 cm), depth (10.82 inches / 27.5 cm), and width (18.7 inches / 47.5 cm).

7. การรับประกันและการสนับสนุน

For any questions regarding assembly, operation, or troubleshooting that are not covered in this manual, please contact ROBOTIME customer support. Please have your model number (ROBOEG01) and purchase information ready when contacting support.

Specific warranty details may vary by region and retailer. Please refer to your purchase documentation or the ROBOTIME official webเว็บไซต์สำหรับข้อมูลการรับประกันล่าสุด
