1. ข้อมูลด้านความปลอดภัยที่สำคัญ
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.
- ตรวจสอบให้แน่ใจว่าได้ตัดกระแสไฟฟ้าที่เบรกเกอร์ก่อนการติดตั้งหรือการบำรุงรักษา
- สายไฟทั้งหมดจะต้องเป็นไปตามมาตรฐานไฟฟ้าระดับชาติและระดับท้องถิ่น
- หากไม่แน่ใจเกี่ยวกับขั้นตอนการเดินสายไฟ ควรปรึกษาช่างไฟฟ้าที่มีคุณสมบัติเหมาะสม
- Mounting structure must be capable of supporting the fan's weight (approximately 13.85 lbs).
- Keep hands, feet, and other objects away from rotating fan blades.
2. เนื้อหาบรรจุภัณฑ์
- 3 × Fan Blades
- DC Motor Assembly
- LED Light Kit and Lampร่มเงา
- รีโมทคอนโทรล
- คู่มือการใช้งาน
- ฮาร์ดแวร์สำหรับติดตั้ง
3. ข้อมูลจำเพาะ
| ยี่ห้อ | โซฟูคอร์ |
| หมายเลขรุ่น | 52144HTM |
| สี | น้ำตาล+ดำ |
| การออกแบบพัดลมไฟฟ้า | พัดลมเพดาน |
| แหล่งพลังงาน | อินพุต 120V AC, มอเตอร์ DC |
| สไตล์ | ด้วยแสงสว่าง |
| ขนาดสินค้า | ลึก 52 นิ้ว x กว้าง 52 นิ้ว x สูง 11.81 นิ้ว |
| ประเภทห้อง | Bedroom, Dining Room, Farmhouse, Living Room, Patio |
| ระดับเสียง | 30 เดซิเบล |
| วัดtage | 35 วัตต์ |
| จำนวนใบมีด | 3 |
| ความจุการไหลของอากาศ | 5128 ลูกบาศก์ฟุตต่อนาที |
| เล่มที่tage | 120 โวลต์ |
| วิธีการควบคุม | ระยะไกล |
| ประเภทการติดตั้ง | ฟลัชเมาท์ |
| น้ำหนักสินค้า | 13.85 ปอนด์ |
4. การตั้งค่าและการติดตั้ง
This ceiling fan is designed for flush mounting and is suitable for indoor and covered outdoor spaces. It is not suitable for sloped or vaulted ceilings. For detailed wiring diagrams and step-by-step instructions, please refer to the included user manual.
ข้อควรพิจารณาในการติดตั้งที่สำคัญ:
- การติดตั้ง: ตรวจสอบให้แน่ใจว่ากล่องไฟฟ้าติดตั้งอย่างแน่นหนาและสามารถรับน้ำหนักของพัดลมได้
- การเดินสายไฟ: Connect the fan's wiring to your household wiring according to the provided diagrams. Always ensure power is off.
- สิ่งที่แนบมาของใบมีด: Securely attach the three solid wood blades to the motor housing.
- ชุดไฟ: Connect and attach the LED light kit and lampเงา

Image: Sofucor 52-inch ceiling fan showing product dimensions (52-inch diameter, 11.81-inch height) and recommended room sizes (12ft*12ft to 18ft*18ft, 100sq.ft to 300sq.ft).
Video: Official Sofucor video demonstrating the features and installation process of the 52-inch low profile ceiling fan. This video provides a visual guide to the fan's functionality and setup.
5. คู่มือการใช้งาน
The Sofucor ceiling fan is operated using the included remote control. Ensure the remote has working batteries and is paired with the fan according to the user manual.
ฟังก์ชั่นการควบคุมระยะไกล:
- ปุ่มเปิด/ปิด: เปิด/ปิดพัดลมและไฟ
- ความเร็วพัดลม: Select from 6 adjustable fan speeds for optimal airflow.
- มอเตอร์ DC แบบย้อนกลับ: Press the reverse button to change blade direction. Downward airflow for cooling in summer, upward airflow for circulating warm air in winter.
- การควบคุมแสง: Turn the LED light on/off independently from the fan.
- อุณหภูมิสี: Cycle through 3 light colors: 3000K (warm yellow), 4500K (bright daylight), and 6000K (cool white).
- dimming: ปรับความสว่างของแสงได้ตั้งแต่ 0% ถึง 100%
- ฟังก์ชั่นจับเวลา: ตั้งค่าพัดลมให้ปิดอัตโนมัติหลังจาก 1, 4 หรือ 8 ชั่วโมง

Image: The remote control for the Sofucor ceiling fan, highlighting buttons for power, 6 fan speeds, reversible function, 1/4/8 hour timer, and independent light control with dimming and color temperature adjustment.

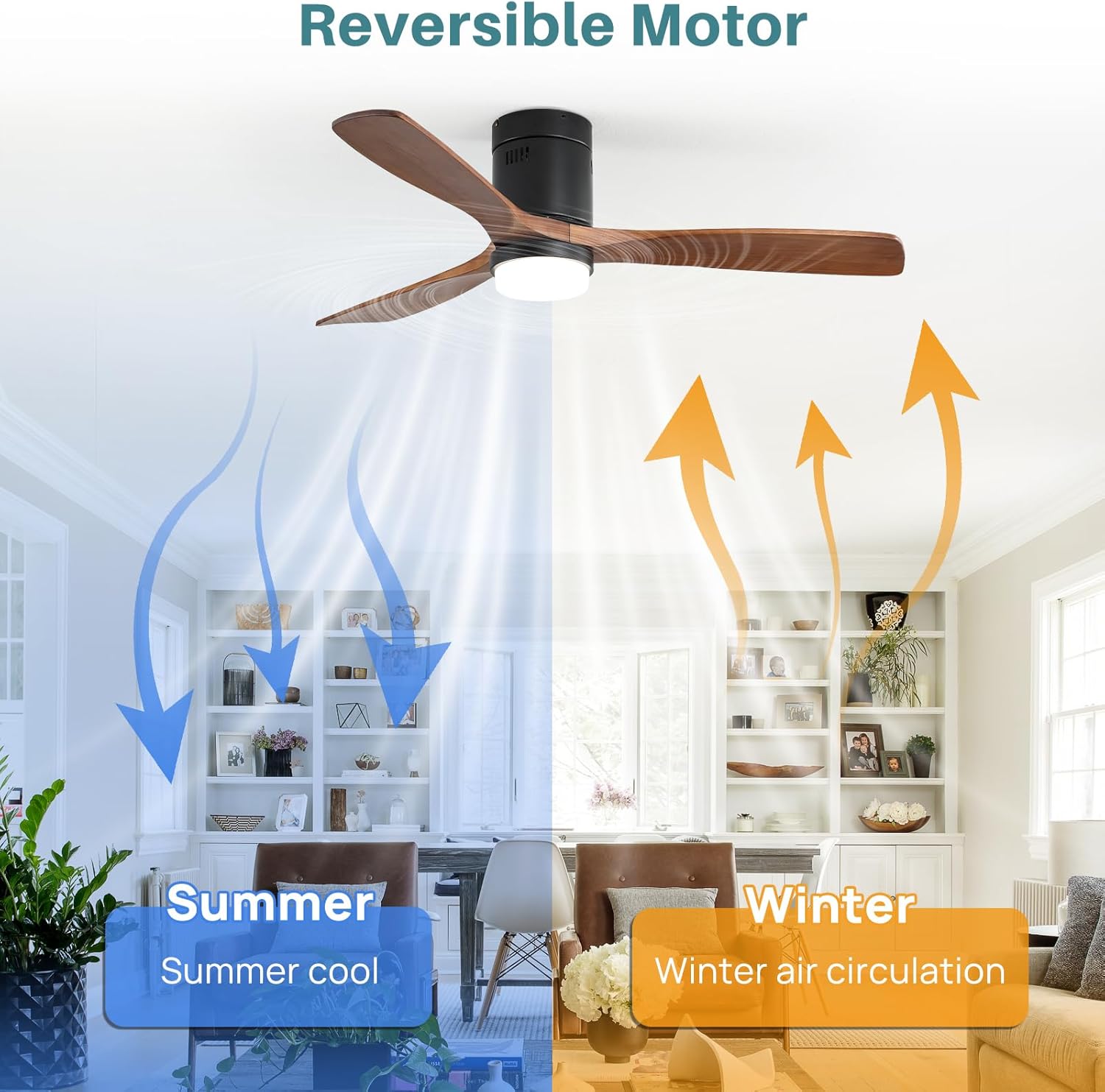

Image: Illustration of the reversible DC motor function, showing downward airflow for summer cooling and upward airflow for winter air circulation to optimize heating efficiency.
6. การบำรุงรักษา
Regular maintenance ensures optimal performance and longevity of your Sofucor ceiling fan.
- การทำความสะอาด: ใช้แบบนุ่มๆamp ผ้าสำหรับทำความสะอาดใบพัดลมและตัวเรือนมอเตอร์ ห้ามใช้น้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย
- การตรวจสอบใบมีด: ตรวจสอบความแน่นของสกรูยึดใบเลื่อยเป็นระยะ ใบเลื่อยที่หลวมอาจทำให้เครื่องสั่นและมีเสียงดัง
- ชุดไฟ LED: The integrated LED light kit is designed for long-term use. If replacement is ever needed, a replaceable LED light board is available.
- มอเตอร์: The high-quality DC motor is designed for durability and quiet operation. No lubrication is required.

ภาพ: ภาพระยะใกล้ view of the replaceable LED light board, indicating that replacements are available for continued bright and uniform lighting.
7 การแก้ไขปัญหา
If you experience issues with your Sofucor ceiling fan, consult the following common solutions:
- พัดลมไม่ทำงาน: Check that the circuit breaker is on and all wiring connections are secure. Ensure the remote control batteries are fresh and correctly inserted.
- ไฟไม่ทำงาน: Verify the light is turned on via the remote. Check wiring connections to the LED light kit.
- การโยกเยกมากเกินไป: ตรวจสอบให้แน่ใจว่าสกรูใบพัดทุกตัวขันแน่นดีแล้ว และตรวจสอบให้แน่ใจว่าขายึดติดตั้งติดกับเพดานอย่างแน่นหนา
- รีโมตไม่ตอบสนอง: Replace remote batteries. Re-pair the remote control with the fan according to the user manual instructions.
8. การรับประกันและการสนับสนุน
Sofucor stands by the quality of its products. This ceiling fan comes with a lifetime free replacement warranty for the DC motor.
- การรับประกันมอเตอร์: Enjoy a lifetime free replacement for the DC motor.
- การเปลี่ยนส่วนประกอบ: If your LED light board or remote control are damaged or lost, please contact Sofucor customer service for a free replacement.
- บริการลูกค้า: For any questions, support, or warranty claims, please refer to the contact information provided in your original product packaging or visit the official Sofucor webเว็บไซต์.

Image: Illustration of the Sofucor DC motor, emphasizing its high quality and the lifetime free replacement warranty.
