คู่มือการใช้งานเครื่องบัดกรีและซ่อมแซมระดับมืออาชีพ YIHUA 862BD+

1. บทนำ

The YIHUA 862BD+ Professional Soldering & Rework Station is designed to facilitate a broad range of soldering, rework, and desoldering applications. This comprehensive bundle includes the 862BD+ station and the M180 Professional Soldering Work Mat, ensuring you are fully equipped for your tasks. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your YIHUA 862BD+ station.

Important Safety Notice: All YIHUA products purchased on the North America Amazon site are specified to work on US mains electricity (110-127V). DO NOT use the product on mains electricity at 220V.

2. สินค้าหมดview และส่วนประกอบที่รวมอยู่ด้วย

The YIHUA 862BD+ bundle provides a complete set of tools and accessories for various electronic repair needs. Below is a list of the main components and accessories included:

• YIHUA 862BD+ Professional Soldering & Rework Station: The core unit featuring both hot air and soldering iron functions.
• M180 Professional Soldering Work Mat: A heat-resistant mat (17.32" x 12.20") designed to protect your work surface and organize components with integrated slots and rulers.
• หัวแร้ง: For precision soldering tasks.
• ปืนลมร้อน: For rework and desoldering applications.
• อุปกรณ์เสริมที่จำเป็น:
  • 1 x 50g 0.8mm LEAD-FREE solder wire
  • 5 x assorted iron tips
  • 4 x assorted hot air nozzles
  • 1 x cleaning sponge
  • 1 x pair ESD-safe tweezers
  • 1 x solder sucker
  • 2 x holders (for soldering iron and hot air gun)
  • 1 x cleaning kit (brass ball)
  • 1 x IC extractor

Figure 1: The YIHUA 862BD+ Professional Soldering & Rework Station with its comprehensive set of accessories, including the hot air gun, soldering iron, various tips, solder wire, and cleaning tools.

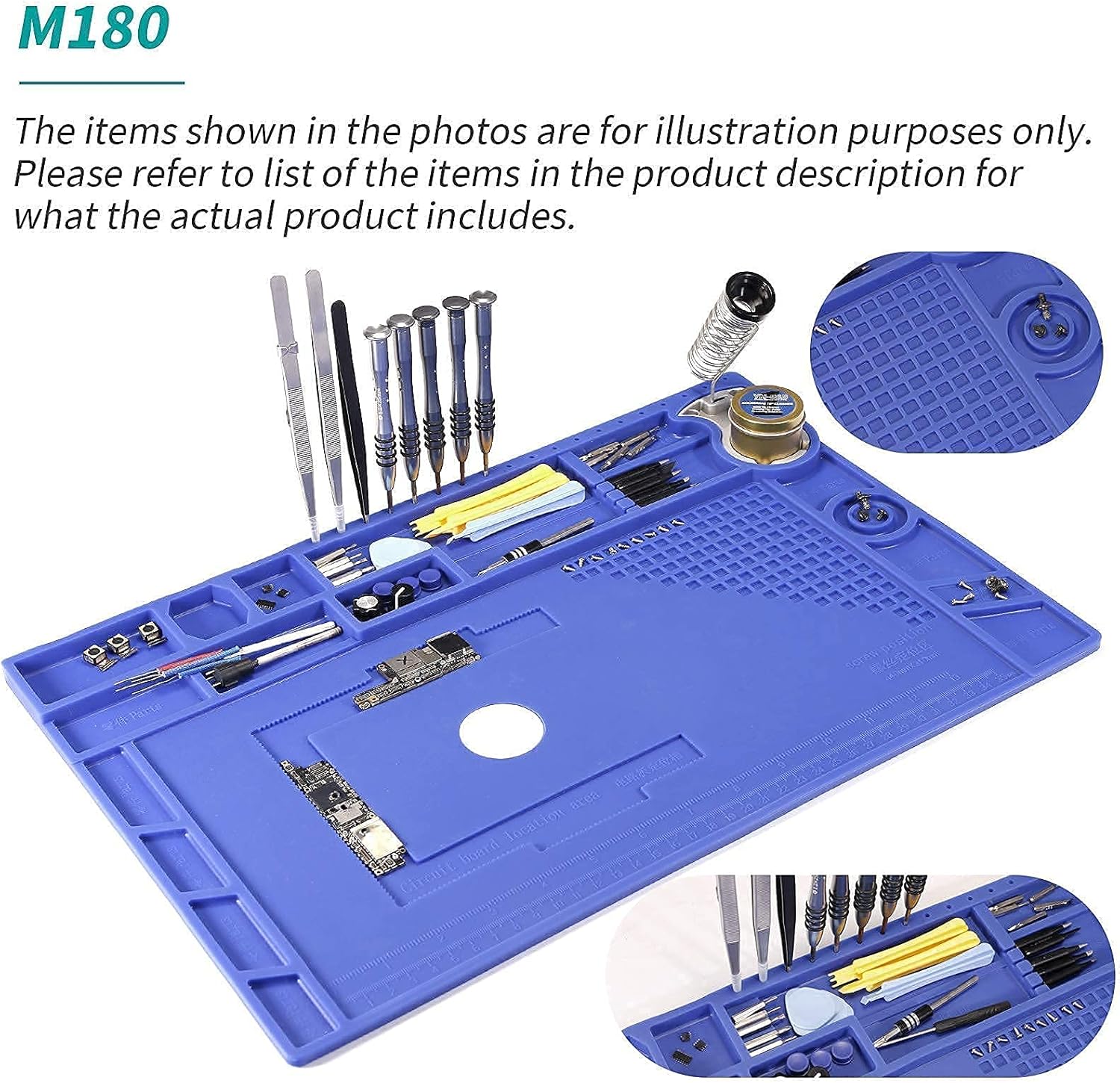

Figure 2: The M180 Professional Soldering Work Mat, a heat-resistant surface with integrated compartments and rulers for efficient organization during electronic repair tasks.

3. คำแนะนำด้านความปลอดภัย

Always prioritize safety when operating the soldering and rework station. Failure to follow safety guidelines can result in injury or damage to equipment.

• Ensure the station is connected to a 110-127V AC power supply. Do not use with 220V.
• ควรทำงานในบริเวณที่มีการระบายอากาศที่ดีเพื่อหลีกเลี่ยงการสูดดมควันบัดกรี
• สวมอุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสม รวมถึงแว่นตานิรภัยและถุงมือทนความร้อน
• Never touch the hot tip of the soldering iron or the hot air gun nozzle. Temperatures can reach up to 896°F (480°C).
• Place the hot air gun in its holder when not in use; the unit features an automatic cool-down and sleep function.
• ควรเก็บวัสดุไวไฟให้ห่างจากบริเวณทำงาน
• ถอดปลั๊กเครื่องออกจากแหล่งจ่ายไฟเมื่อไม่ใช้งานหรือก่อนทำการบำรุงรักษา
• เก็บให้พ้นมือเด็ก

4. การตั้งค่า

ทำตามขั้นตอนต่อไปนี้เพื่อตั้งค่าสถานี YIHUA 862BD+ ของคุณ:

1. Place the main unit on a stable, heat-resistant surface, preferably on the M180 Professional Soldering Work Mat.
2. Connect the soldering iron to the designated port on the front panel of the station.
3. Place the soldering iron in its holder.
4. Connect the hot air gun to its designated port on the front panel.
5. Place the hot air gun in its holder.
6. Ensure all accessories, such as the cleaning kit and solder wire, are within easy reach but not obstructing the workspace.
7. Plug the power cord into a compatible 110-127V AC outlet.

5. คู่มือการใช้งาน

5.1. การเปิด/ปิดเครื่อง

• Flip the main power switch located on the back of the unit to the 'ON' position.
• Use the individual 'POWER' switches on the front panel for the SMD Rework Station (Hot Air) and Soldering Station to turn them on or off independently.

5.2. Setting Temperature and Airflow

• สถานีบัดกรี: Use the 'UP' and 'DOWN' arrow buttons next to the 'SOLDERING STATION' display to adjust the temperature from 392-896°F (200-480°C). The station features temperature stabilization for consistent heat.
• SMD Rework Station (Hot Air): Use the 'UP' and 'DOWN' arrow buttons next to the 'SMD REWORK STATION' display to adjust the temperature from 212-896°F (100-480°C). The 'AIR' knob controls the digital wind speed.
• การเลือกหน่วยอุณหภูมิ (°F/°C):
  1. Turn on the SMD rework station power switch only.
  2. Simultaneously press and hold the 'REWORK STATION' UP button and the 'SOLDERING STATION' DOWN button for 2 seconds.
  3. Press the 'SOLDERING STATION' UP button to display °C or DOWN button to display °F.
  4. Stop operating for 4 seconds to save the setting and exit.

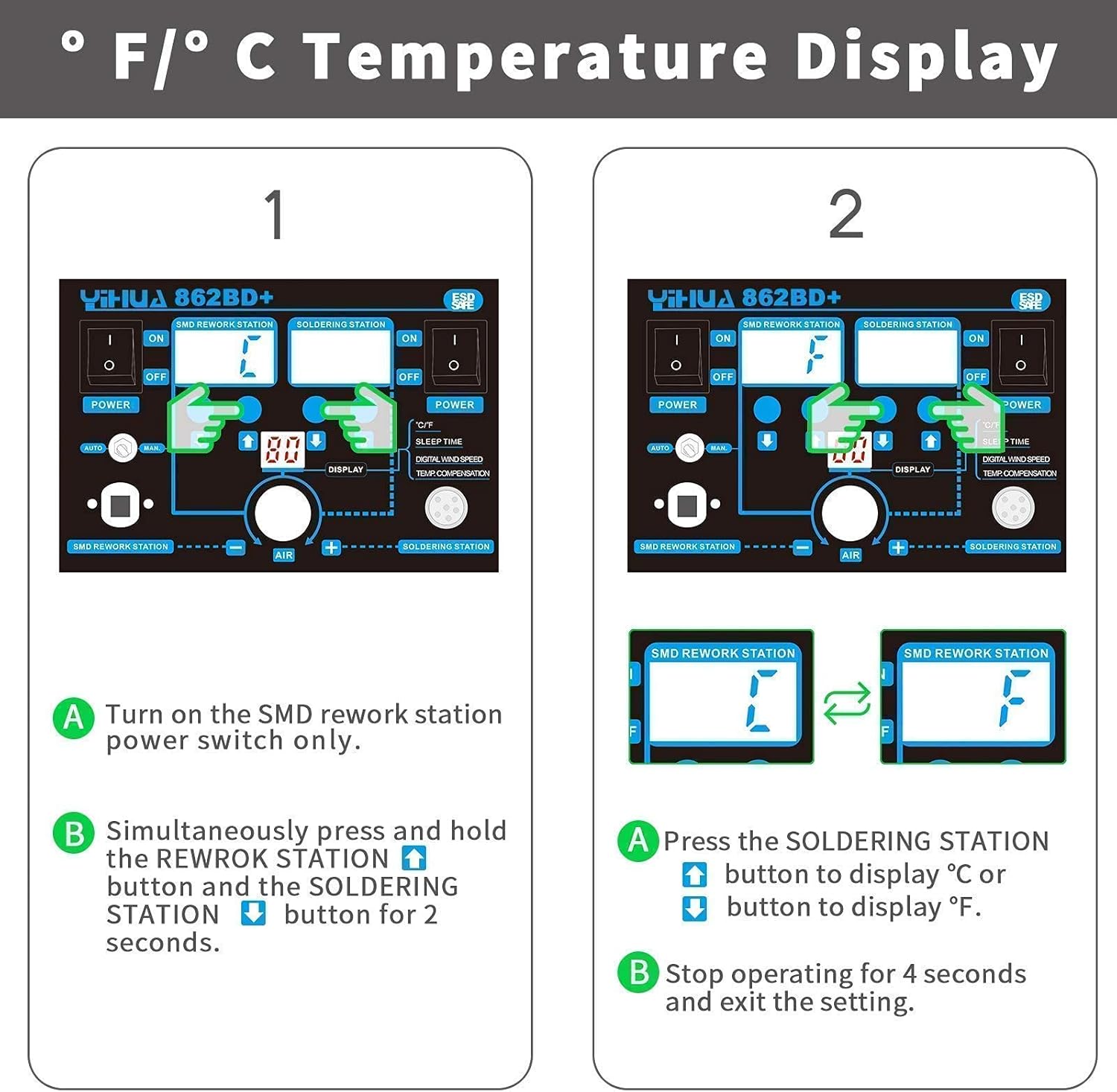

Figure 3: Visual guide for switching the temperature display between Fahrenheit and Celsius on the YIHUA 862BD+ control panel.

5.3. โหมดพักเครื่องอัตโนมัติ

Both the hot air gun and soldering iron feature an automatic sleep mode. When placed in their respective holders, the hot air gun will cool down and turn off, and the soldering iron will reduce its temperature to 350°F (177°C) to conserve energy and prolong tip life.

6. การบำรุงรักษา

Regular maintenance ensures the longevity and optimal performance of your station.

• การทำความสะอาดหัวแร้ง: Use the included cleaning sponge (dampened) or brass ball to clean the soldering iron tip regularly to remove oxidation and solder residue.
• การทำความสะอาดหัวฉีด: Ensure hot air nozzles are free from debris. Allow them to cool completely before handling.
• การทำความสะอาดทั่วไป: Keep the main unit and work mat clean and free of dust and solder splashes. Use a soft, dry cloth for cleaning.
• พื้นที่จัดเก็บ: Store the unit and accessories in a dry, dust-free environment when not in use.

Figure 4: The soldering iron resting in its holder, next to the brass tip cleaner, essential for maintaining tip longevity and performance.

7 การแก้ไขปัญหา

If you encounter issues with your YIHUA 862BD+ station, consider the following general troubleshooting steps:

• หน่วยไม่ได้เปิดเครื่อง: Check the main power switch on the back and the individual power switches on the front. Ensure the power cord is securely plugged into a functional 110-127V outlet.
• Soldering Iron/Hot Air Gun Not Heating: Verify that the respective power switch is on and the temperature is set correctly. Check connections to the main unit.
• อุณหภูมิไม่สม่ำเสมอ: Ensure the tip/nozzle is clean and properly seated. Allow the unit sufficient time to reach the set temperature.
• Low Airflow (Hot Air Gun): Check the 'AIR' knob setting. Ensure the hot air gun nozzle is not obstructed.

For persistent issues, please refer to the warranty and support information provided.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

YIHUA stands behind its products. The YIHUA 862BD+ Professional Soldering & Rework Station comes with:

• 12-month US-exclusive manufacturer technical coverage.
• 24/7 professional assistance on Amazon.

For any technical inquiries or support needs, please contact YIHUA customer service through the Amazon platform.
