คู่มือผู้ใช้เครื่องตรวจจับความเคลื่อนไหวไร้สาย PIR รุ่น PMD2P จาก Magellan

1. บทนำและเรื่องอื่นๆview

The Paradox PMD2P is a Magellan Wireless PIR Motion Detector designed for use with Magellan wireless receivers/transceivers. This device features built-in pet immunity, making it suitable for environments with animals weighing up to 18kg (40 pounds). It incorporates advanced features such as automatic temperature compensation and an innovative energy-saving mode to optimize battery life.

The PMD2P is also equipped with a dual tamper mechanism, providing enhanced security by triggering an alarm if the front cover is removed or if the detector is dismounted from its wall installation.

คุณสมบัติหลัก

• Single-Optic PIR Motion Detector with Built-In Pet Immunity (up to 18kg / 40lb)
• Battery-Powered with an innovative three-minute energy save mode after two detections within a five-minute period.
• ALIVE Software ensures the alarm LED continues to display in energy save mode without compromising battery life.
• ดูอัล ทีamper Protection: An alarm/tamper is generated if the front cover is removed or if the detector is removed from the wall.
• Dual Element Sensor, Patented Auto Pulse Signal Processing, and Automatic Temperature Compensation.
• Coverage: 11m x 11m (35ft x 35ft) with up to 15m (50ft) for center beams and an 88.5° viewมุมอิง
• Wireless Range: 35m (115ft) with MG6160, MG6130, & MG6250; 70m (230ft) with MG5000, MG5050, & RTX3 in typical residential environments.
• Slide switch to select high or low sensitivity.

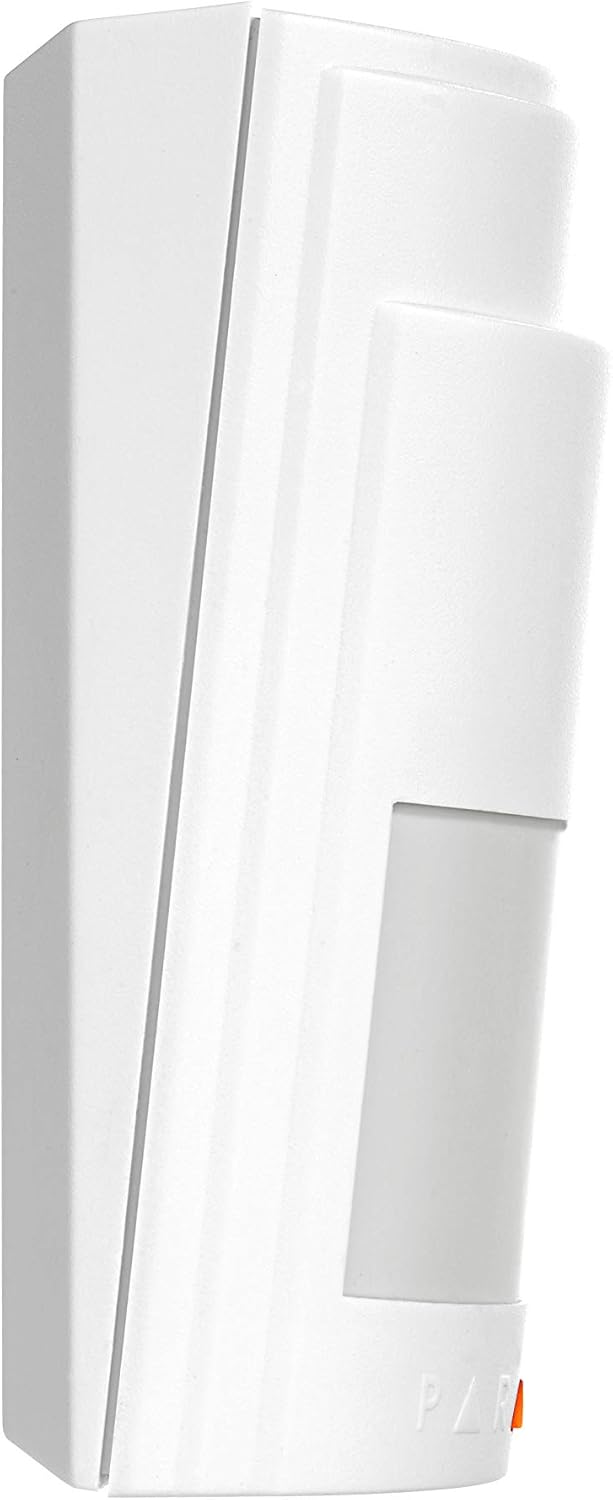

รูปที่ 1 : ด้านหน้า view of the PMD2P Motion Detector.

2. การตั้งค่าและการติดตั้ง

2.1 การแกะกล่องและส่วนประกอบ

Before installation, ensure all components are present: PMD2P motion detector unit, mounting screws, and 3 AAA batteries (included).

2.2 การติดตั้งแบตเตอรี่

1. Carefully open the front cover of the PMD2P unit.
2. ค้นหาช่องใส่แบตเตอรี่
3. Insert 3 x AAA alkaline batteries, ensuring correct polarity (+/-).
4. ปิดฝาครอบด้านหน้าอย่างแน่นหนา

Note: The device requires 3 AAA batteries. Battery life expectancy will vary according to the amount of traffic (movement) detected. Higher traffic levels will lower battery life.

2.3 แนวทางการติดตั้ง

The PMD2P is designed for wall mounting. Choose a location that provides optimal coverage of the desired area, avoiding direct sunlight, heat sources, or areas with significant air drafts that could cause false alarms.

• Mount the detector at a height appropriate for its detection pattern and pet immunity feature.
• For the wall tamper removal feature to be functional, a screw needs to be inserted into the designated wall tamper hole during mounting.
• ตรวจสอบให้แน่ใจว่าพื้นผิวการติดตั้งมีความมั่นคงและปลอดภัย

Figure 2: Side and Angled views for mounting reference.

3. คู่มือการใช้งาน

3.1 การตรวจจับการเคลื่อนไหว

The PMD2P uses a Passive Infrared (PIR) sensor to detect changes in infrared radiation caused by movement within its detection zone. When motion is detected, the device transmits a signal to the connected Magellan wireless receiver/transceiver.

The detector has a coverage area of 11m x 11m (35ft x 35ft) with center beams extending up to 15m (50ft) and an 88.5° viewing angle. Its pet immunity feature prevents false alarms from animals weighing up to 18kg (40lb).

3.2 Energy Save Mode

To conserve battery life, the PMD2P enters an energy save mode after two detections within a five-minute period. During this mode, the ALIVE software ensures that the alarm LED continues to display without compromising battery life, providing visual confirmation of activity.

3.3 การปรับความไว

A slide switch inside the unit allows you to select between high or low sensitivity settings. Adjust this setting based on your environment and specific detection needs to optimize performance and minimize false alarms.

Figure 3: PMD2P Detection Pattern.

4. การบำรุงรักษา

4.1 การเปลี่ยนแบตเตอรี่

When the batteries are low, the system will typically indicate a low battery condition. To replace the batteries:

1. Open the front cover of the detector.
2. Remove the old 3 x AAA alkaline batteries.
3. Insert new 3 x AAA alkaline batteries, observing correct polarity.
4. ปิดฝาครอบด้านหน้าอย่างแน่นหนา

กำจัดแบตเตอรี่เก่าตามข้อบังคับท้องถิ่น

4.2 การทำความสะอาด

To ensure optimal performance, periodically clean the exterior of the PMD2P detector. Use a soft, dry cloth to wipe away dust and dirt. Do not use abrasive cleaners or solvents, as these can damage the unit.

Avoid touching the sensor lens directly, as fingerprints or smudges can affect detection accuracy.

5 การแก้ไขปัญหา

5.1 สัญญาณเตือนภัยผิดพลาด

• ปัจจัยด้านสิ่งแวดล้อม: Ensure the detector is not mounted near heat sources (vents, radiators), direct sunlight, or areas with strong air currents (e.g., open windows, fans).
• ภูมิคุ้มกันสัตว์เลี้ยง: Verify that pets are within the specified weight limit (up to 18kg / 40lb). If larger pets are present, consider adjusting the mounting height or sensitivity.
• การตั้งค่าความไว: Try adjusting the sensitivity switch to the 'Low' setting if false alarms persist.

5.2 No Detection

• ระดับแบตเตอรี่: Check if the batteries are depleted. Replace them if necessary.
• สิ่งกีดขวาง: Ensure there are no physical obstructions blocking the detector's field of view.
• ความสูงในการติดตั้ง: Confirm the detector is mounted at an appropriate height for optimal coverage.
• การเชื่อมต่อแบบไร้สาย: Verify that the PMD2P is properly paired with its Magellan wireless receiver/transceiver and that the signal strength is adequate.

5.3 ตampเอ้อปลุก

• ปก Tampเอ่อ: Ensure the front cover is securely closed.
• วอลล์ ทูampเอ่อ: If the detector was removed from the wall, re-mount it securely, ensuring the screw is inserted into the wall tamper hole to engage the mechanism.

6. ข้อมูลจำเพาะทางเทคนิค

*Battery life expectancy will vary according to the amount of traffic (movement) detected. Higher traffic levels will lower battery life.

Figure 4: PMD2P Technical Specifications Table.

7. การรับประกันและการสนับสนุน

7.1 ข้อมูลการรับประกัน

For detailed warranty information regarding your Paradox PMD2P motion detector, please refer to the warranty card included with your product or visit the official Paradox Security Systems webไซต์ เงื่อนไขการรับประกันอาจแตกต่างกันไปในแต่ละภูมิภาค

7.2 การสนับสนุนลูกค้า

If you encounter any issues or have questions not covered in this manual, please contact Paradox customer support or visit their official website for further assistance, FAQs, and updated documentation.

เป็นทางการ Webเว็บไซต์: www.paradox.com
