CURT 58963 Custom Towed-Vehicle RV Wiring Harness

การแนะนำ

This manual provides detailed instructions for the installation, operation, and maintenance of the CURT 58963 Custom Towed-Vehicle RV Wiring Harness. This harness is designed to enable safe and effective dinghy towing of your vehicle behind an RV by synchronizing the towed vehicle's tail lights, turn signals, and brake lights with the RV's electrical system. It features a vehicle-specific, plug-and-play design for easy installation without cutting or splicing, and includes integrated block diodes to protect your vehicle's sensitive electronics.

ข้อมูลด้านความปลอดภัย

Always read and understand all instructions before installation and operation. Failure to follow instructions could result in property damage or personal injury. Ensure all connections are secure and properly insulated. Disconnect the vehicle's battery before beginning any electrical work.

คำเตือนข้อเสนอ 65:

ผลิตภัณฑ์นี้อาจมีสารเคมีที่รัฐแคลิฟอร์เนียทราบว่าก่อให้เกิดมะเร็ง ความพิการแต่กำเนิด หรืออันตรายต่อระบบสืบพันธุ์อื่นๆ ล้างมือหลังจากจับต้อง

มีอะไรอยู่ในกล่อง

The CURT 58963 RV Wiring Harness package includes the following components:

• Custom Towed-Vehicle RV Wiring Harness
• 4-way flat extension
• Connector mounting bracket
• Necessary hardware (screws, zip ties)

Image: The main components of the CURT 58963 RV Wiring Harness, including the coiled green wire, black connectors, and a ground wire with a ring terminal.

Image: A 4-way flat extension, a metal mounting bracket, and three self-tapping screws, which are included with the harness.

Image: A bundle of black zip ties, provided for securing the wiring during installation.

การติดตั้งและการตั้งค่า

The CURT 58963 wiring harness is designed for a vehicle-specific, plug-and-play installation, eliminating the need for cutting, splicing, or soldering. This harness is specifically designed for select years of the Jeep Cherokee. Always verify fitment for your specific vehicle model year.

ขั้นตอนการติดตั้ง:

1. เตรียมยานพาหนะ: Ensure the vehicle is parked on a level surface with the engine off and the parking brake engaged. Disconnect the vehicle's battery to prevent electrical shorts during installation.
2. Access Tail Light Wiring: Locate and access the existing tail light wiring connectors on your Jeep Cherokee. This typically involves removing tail light assemblies or accessing wiring behind the bumper. Refer to your vehicle's service manual for specific access points.
3. เชื่อมต่อสายรัด: The CURT harness features original-equipment-compatible connectors. Plug the harness connectors directly into your vehicle's existing tail light wiring system. Ensure a secure and tight connection.


   Image: A diagram illustrating the plug-and-play nature of the harness, showing how it connects to existing sockets on the vehicle and provides a standard 4-way flat connector.

4. Route the Wiring: Carefully route the main wiring harness from the rear of the vehicle to the front, where it will connect to the RV. Use the included zip ties to secure the wiring along the vehicle's frame, away from hot or moving parts, to prevent damage.
5. Install the 4-Way Flat Connector: Mount the provided connector mounting bracket in a suitable location at the front of the towed vehicle, typically near the hitch or bumper. Secure the 4-way flat connector to this bracket. The 4-way flat extension can be used to provide additional length if needed.


   Image: A graphic depicting the male end of a 4-way flat trailer connector, which connects to the RV.


   Image: A graphic depicting a 4-way flat loop connector, showing both male and female ends, which can be used as an extension.

6. ต่อสายดิน: Secure the white ground wire with the ring terminal to a clean, unpainted metal surface on the vehicle's frame using a self-tapping screw. A good ground connection is crucial for proper operation.
7. เชื่อมต่อแบตเตอรี่อีกครั้ง: Once all connections are made and secured, reconnect the vehicle's battery.

การดำเนินการ

The CURT 58963 RV Wiring Harness synchronizes the towed vehicle's lighting with your RV's electrical system. When connected, the towed vehicle's tail lights, turn signals, and brake lights will operate in conjunction with the RV's signals, ensuring visibility and compliance with towing regulations.

To operate, simply connect the 4-way flat connector from the towed vehicle to the corresponding 4-way flat socket on your RV. The integrated block diodes protect the towed vehicle's circuits by isolating its sensitive electronics from the RV signals, preventing overheating and short circuiting.

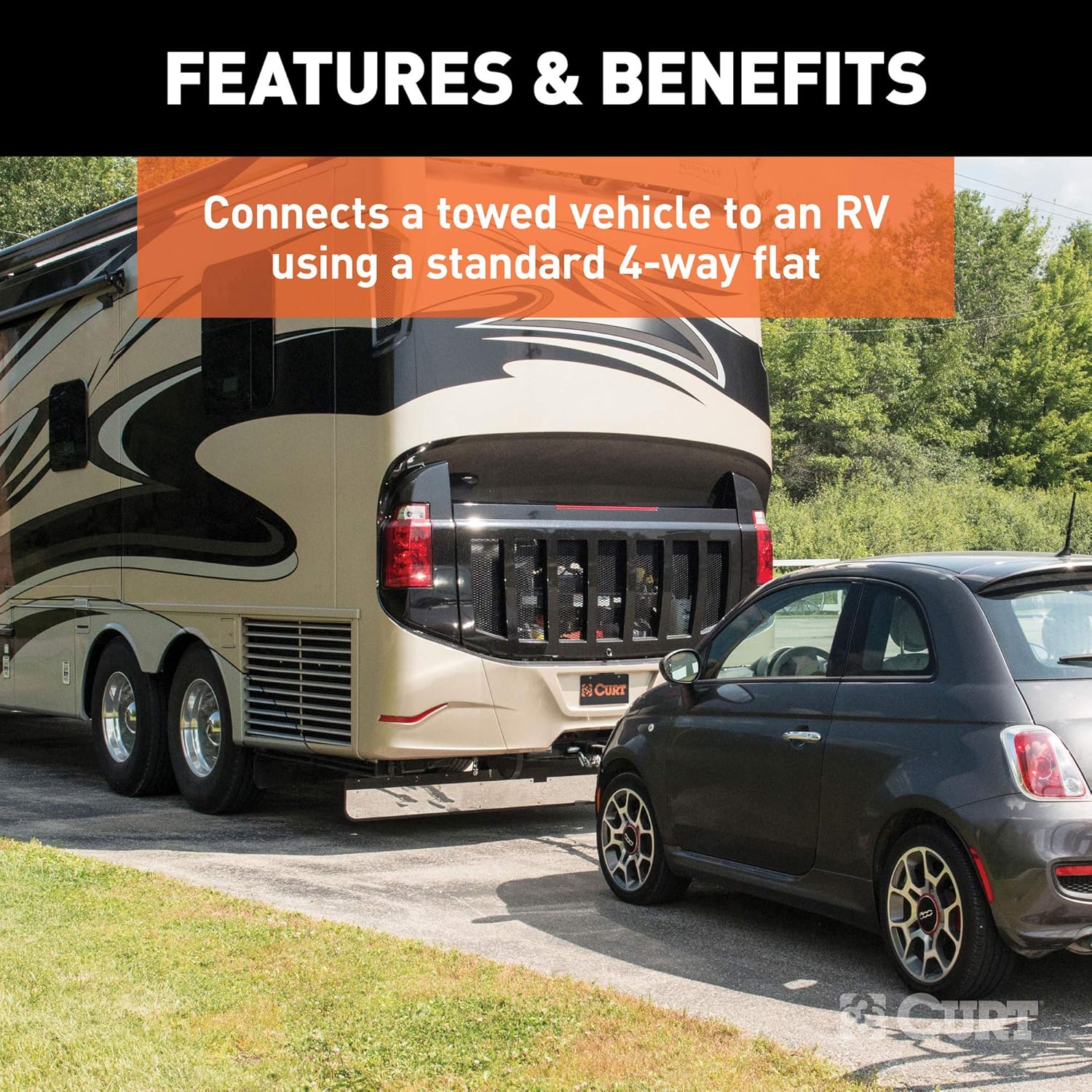

Image: A small car being towed behind a large RV, demonstrating the typical use case for the wiring harness.

การซ่อมบำรุง

Regular maintenance of your CURT RV wiring harness will ensure its longevity and reliable performance:

• ตรวจสอบการเชื่อมต่อ: Before each towing trip, visually inspect all wiring connections, including the 4-way flat connector, for any signs of corrosion, fraying, or damage.
• ทำความสะอาดตัวเชื่อมต่อ: Keep the 4-way flat connector clean and free of dirt, moisture, and debris. Use a dielectric grease on the pins to prevent corrosion.
• Check Wiring Routing: Periodically check that the wiring remains securely fastened and is not rubbing against sharp edges or hot components. Re-secure with zip ties if necessary.
• จัดเก็บอย่างถูกต้อง: When not in use, store the 4-way flat connector in a protected location to prevent exposure to elements.

การแก้ไขปัญหา

If you experience issues with your CURT 58963 RV Wiring Harness, consider the following troubleshooting steps:

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For warranty information or technical support regarding your CURT 58963 Custom Towed-Vehicle RV Wiring Harness, please contact CURT customer service directly. Refer to the contact information provided on the product packaging or the official CURT webเว็บไซต์.

Webเว็บไซต์: www.curtmfg.com
