WELCARE WC4648I

WELCARE WC4648I Folding Treadmill User Manual

Model: WC4648I

การแนะนำ

Thank you for choosing the WELCARE WC4648I Folding Treadmill. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new exercise machine. Please read all instructions carefully before use and retain this manual for future reference.

คำแนะนำด้านความปลอดภัยที่สำคัญ

  • ควรปรึกษาแพทย์ก่อนเริ่มโปรแกรมออกกำลังกายใดๆ เสมอ
  • ให้เด็กและสัตว์เลี้ยงอยู่ห่างจากลู่วิ่งไฟฟ้าระหว่างการใช้งาน
  • วางลู่วิ่งบนพื้นราบที่มั่นคงและมีพื้นที่ว่างรอบๆ อย่างเหมาะสม
  • Ensure the safety key is properly attached before beginning your workout.
  • ห้ามใช้งานลู่วิ่งหากเครื่องชำรุดหรือทำงานผิดปกติ
  • สวมใส่รองเท้าและเสื้อผ้ากีฬาที่เหมาะสม
  • Maximum user weight capacity: 115 kg. Do not exceed this limit.
  • ถอดปลั๊กเครื่องวิ่งออกจากแหล่งจ่ายไฟเมื่อไม่ใช้งานหรือก่อนทำความสะอาด/บำรุงรักษา

เนื้อหาแพ็คเกจ

กรุณาทำเครื่องหมายในช่องสำหรับรายการต่อไปนี้:

  • WELCARE WC4648I Treadmill Unit
  • คู่มือการใช้งาน
  • สายไฟ
  • สารหล่อลื่น (สำหรับบำรุงรักษา)
  • Assembly Tools (if applicable, refer to assembly guide)

การติดตั้งและการประกอบ

The WELCARE WC4648I Treadmill is designed for DIY installation. Follow the instructions provided in the separate assembly guide (if included) or refer to the video call assistance for detailed steps.

จุดประกอบที่สำคัญ:

  • แกะส่วนประกอบทั้งหมดออกและตรวจสอบกับรายการเนื้อหาในแพ็คเกจ
  • ตรวจสอบให้แน่ใจว่าน็อตและสกรูทั้งหมดขันแน่นดีแล้วหลังจากประกอบเสร็จ
  • วางลู่วิ่งไว้บนพื้นผิวเรียบ
  • ต่อสายไฟเข้ากับเต้ารับที่มีสายดิน
WELCARE WC4648I Folding Treadmill, fully assembled

รูปที่ 1: Fully assembled WELCARE WC4648I Treadmill, showcasing its red and black design and control panel.

คำแนะนำการใช้งาน

แผงควบคุมโอเวอร์view

Close-up of WELCARE WC4648I Treadmill control panel

รูปที่ 2: รายละเอียด view of the treadmill's LCD control panel, showing buttons for speed, incline, programs, and display metrics.

The control panel features an LCD screen displaying key workout metrics and buttons for various functions.

การเริ่มต้น

  1. เปิดเครื่อง: Connect the power cord and press the main power switch (if available). The LCD screen will illuminate.
  2. รหัสความปลอดภัย: ติดคลิปหนีบกุญแจนิรภัยเข้ากับเสื้อผ้าของคุณ เครื่องวิ่งจะไม่ทำงานหากไม่มีกุญแจนิรภัยติดอยู่
  3. เริ่มการออกกำลังกาย: กดปุ่ม เริ่ม button to begin the treadmill belt movement. The speed will gradually increase from a low setting.

การปรับแต่งการตั้งค่า

  • ความเร็ว: ใช้ ความเร็ว + และ ความเร็ว - buttons to adjust the running speed from 1 to 16 km/h. Quick speed buttons (e.g., 3, 6, 9, 12) are also available.
  • ทางลาด: ใช้ เอียง + และ ทางลาด - buttons to adjust the automatic incline level up to 15 levels. Quick incline buttons (e.g., 3, 6, 9, 12) are also available.
  • โปรแกรม: กดปุ่ม โปรเจกต์ button to cycle through the 15 preset workout programs. Select a program and press เริ่ม ที่จะเริ่มต้น
  • แสดงเมตริก: The LCD screen displays distance covered, speed, calories burned, and time.
  • Hand Pulse: Grip the hand pulse sensors on the handlebars to monitor your heart rate.
  • เครื่องเล่น MP3: Connect your device to the treadmill's MP3 input to play audio through the integrated speakers.

Ending Your Workout

กดปุ่ม หยุด button to gradually slow down and stop the treadmill belt. Remove the safety key to power off the console. Unplug the treadmill from the power outlet when finished.

การซ่อมบำรุง

Regular maintenance ensures the longevity and optimal performance of your WELCARE WC4648I Treadmill.

การหล่อลื่น

The treadmill features an easy oil lubrication system. Refer to the specific instructions for applying the provided lubricant to the running belt. Proper lubrication reduces friction and extends the life of the motor and belt.

การทำความสะอาด

  • เช็ดทำความสะอาดพื้นผิวลู่วิ่งด้วยน้ำยาทำความสะอาดamp ผ้าหลังการใช้ทุกครั้งเพื่อเช็ดเหงื่อและฝุ่นละออง
  • ห้ามใช้น้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย
  • Periodically vacuum underneath the treadmill to prevent dust buildup.

การปรับสายพาน

If the running belt becomes misaligned or too loose/tight, consult the assembly guide or contact customer support for instructions on how to adjust it. Incorrect adjustment can damage the treadmill.

การพับและการจัดเก็บ

The WELCARE WC4648I Treadmill features a foldable design for convenient storage.

พับลู่วิ่ง

  1. โปรดตรวจสอบให้แน่ใจว่าลู่วิ่งปิดเครื่องและถอดปลั๊กออกแล้ว
  2. Carefully lift the running deck until it locks into an upright position.
  3. Confirm the locking mechanism is engaged for safety.

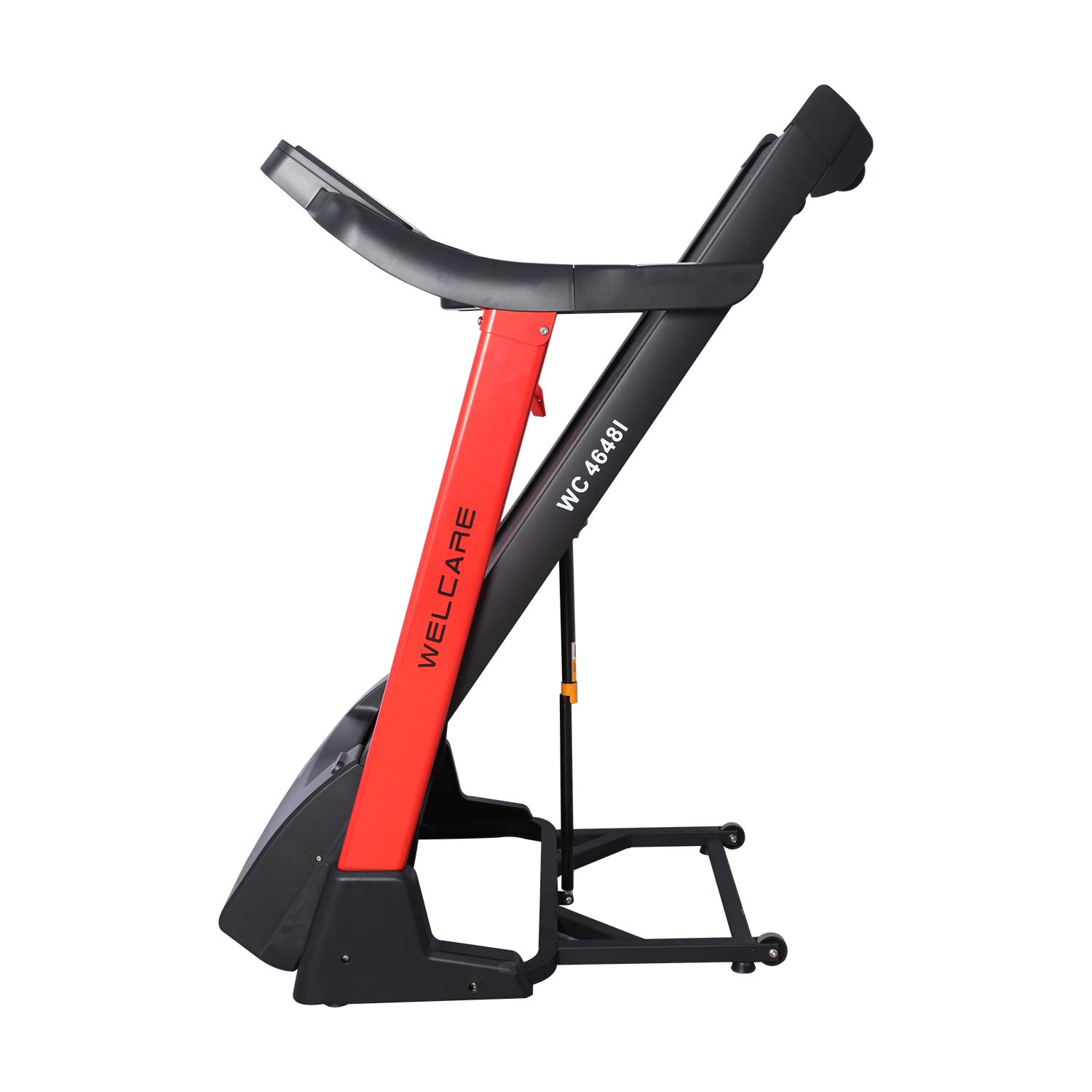

WELCARE WC4648I Treadmill in folded position

รูปที่ 3: The treadmill in its fully folded, upright position, ready for compact storage.

การเคลื่อนย้ายและการจัดเก็บ

Once folded, the treadmill can be easily moved using its integrated transportation wheels. Store it in a dry, safe place away from direct sunlight and moisture.

ด้านข้าง view of WELCARE WC4648I Treadmill, partially folded

รูปที่ 4: ด้านข้าง view illustrating the treadmill's folding mechanism, showing the deck partially raised.

ด้านข้าง view of WELCARE WC4648I Treadmill, unfolded

รูปที่ 5: ด้านข้าง view of the treadmill in its fully unfolded, operational position.

การแก้ไขปัญหา

หากคุณพบปัญหาใดๆ กับลู่วิ่งไฟฟ้า โปรดดูปัญหาและวิธีแก้ไขที่พบบ่อยต่อไปนี้:

  • เครื่องวิ่งไฟฟ้าไม่เปิดใช้งาน: ตรวจสอบให้แน่ใจว่าสายไฟเสียบเข้ากับเต้ารับที่ใช้งานได้แน่นหนา และสวิตช์ไฟหลักเปิดอยู่ ตรวจสอบเบรกเกอร์วงจรด้วย
  • สายพานไม่ขยับ: Verify that the safety key is correctly placed in the console.
  • เสียงรบกวนที่ผิดปกติ: Check for loose parts. Ensure the belt is properly lubricated and aligned.
  • ความเร็วไม่สม่ำเสมอ: Ensure the power supply is stable. The motor may require servicing if the issue persists.

For problems not listed here or if solutions do not resolve the issue, please contact WELCARE customer support.

ข้อมูลจำเพาะทางเทคนิค

คุณสมบัติข้อมูลจำเพาะ
แบบอย่างWC4648I
มอเตอร์2 HP (4 HP Peak) DC Motor
พื้นที่วิ่ง (ยาว x กว้าง)1300 x 480 มม. (52 x 19 นิ้ว)
ช่วงความเร็ว1 - 16 กม./ชม.
ระดับความลาดเอียงเอียงอัตโนมัติ 15 ระดับ
โปรแกรมที่ตั้งไว้ล่วงหน้า15
น้ำหนักผู้ใช้สูงสุด115 กก.
ประเภทจอภาพLCD (Distance, Speed, Calories, Time)
คุณสมบัติพิเศษFoldable, Easy Oil Lubrication, MP3 Player, Hand Pulse Sensors, Wheels for Easy Transportation
วัสดุโครงเหล็กอัลลอย
น้ำหนักสินค้า66 กก.

การรับประกันและการสนับสนุนลูกค้า

Your WELCARE WC4648I Treadmill comes with the following warranty:

  • กรอบ: รับประกันตลอดอายุการใช้งาน
  • มอเตอร์: รับประกัน 1 ปี
  • ส่วน: รับประกัน 1 ปี

For warranty claims, technical assistance, or any questions regarding your product, please contact WELCARE customer support. Please have your model number (WC4648I) and purchase information ready.

ข้อมูลติดต่อ: Refer to your purchase documentation or the official WELCARE webเว็บไซต์สำหรับรายละเอียดการติดต่อฝ่ายสนับสนุนลูกค้าล่าสุด
