คู่มือการใช้งานแผงเต้ารับ 4-in-1 Nilight

1. บทนำ

This manual provides detailed instructions for the installation, operation, and maintenance of your Nilight 4-in-1 Outlet Socket Panel. This versatile panel integrates a dual USB charger, an LED voltmeter, a 12V cigarette lighter outlet, and an ON/OFF toggle switch into a single unit, designed for various 12-24V DC automotive and marine applications.

Figure 1: Nilight 4-in-1 Outlet Socket Panel

2. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่ารายการทั้งหมดที่ระบุไว้ด้านล่างนี้รวมอยู่ในแพ็คเกจของคุณ:

• 1 x 4-in-1 Toggle Switch Panel
• 3 x Connecting Wires (pre-wired)
• 9 x Insulated Terminals
• สกรูยึด 4 ตัว
• 1 x แผนผังสายไฟ

รูปที่ 2: ส่วนประกอบที่รวมอยู่

3. ข้อมูลจำเพาะ

รูปที่ 3: ขนาดผลิตภัณฑ์

4. ข้อมูลด้านความปลอดภัย

• Ensure the power source is disconnected before installation to prevent electrical shock.
• Always use appropriate wiring and fuses for your application to prevent overload and damage. The panel includes a built-in 10A fuse for over-load protection.
• Verify correct polarity (+/-) when connecting the panel to the power source.
• ไม่เกินปริมาตรสูงสุดtage and current ratings of the panel or individual components.
• Keep the panel and connections dry to avoid short circuits.
• หากคุณไม่แน่ใจเกี่ยวกับขั้นตอนการติดตั้งใดๆ โปรดปรึกษาผู้เชี่ยวชาญที่มีคุณสมบัติเหมาะสม

5. การตั้งค่าและการติดตั้ง

5.1. วิธีการเดินสายไฟ

The panel offers two primary wiring configurations:

1. Power Cut-off Switch: The main switch controls the power supply to the entire panel. This is suitable for applications where you want to completely disconnect power to all components on the panel.
2. Control Loads Only: Use the switch independently to control specific loads, allowing other components on the panel to remain powered.

Figure 4: Two Wiring Methods

5.2. Jumper Wire Disconnection

The pre-wired jumper wires can be easily disconnected if you need to reconfigure the panel or replace individual components. To disconnect:

1. Locate the clips on the insulated terminals.
2. Press down on the clips firmly.
3. Gently pull the jumper wire from the blade terminal.

Note: Do not pull the jumper wires directly without pressing the clips to avoid damaging the terminals.

Figure 5: Easy Disconnection of Jumper Wires

5.3. Component Removal and Replacement

The individual components (switch, voltmeter, USB charger, 12V outlet) are designed to be removable from the panel. This allows for customization or replacement if needed. To remove a component, unscrew the retaining nut from the back and gently push the component out from the front.

Figure 6: Replaceable Components

5.4. ขั้นตอนการติดตั้งทั่วไป

After selecting your desired wiring method and ensuring all connections are secure, mount the panel in your chosen location using the provided screws. Ensure adequate space behind the panel for wiring and component depth.

รูปที่ 7: ขั้นตอนการติดตั้ง

6. คู่มือการใช้งาน

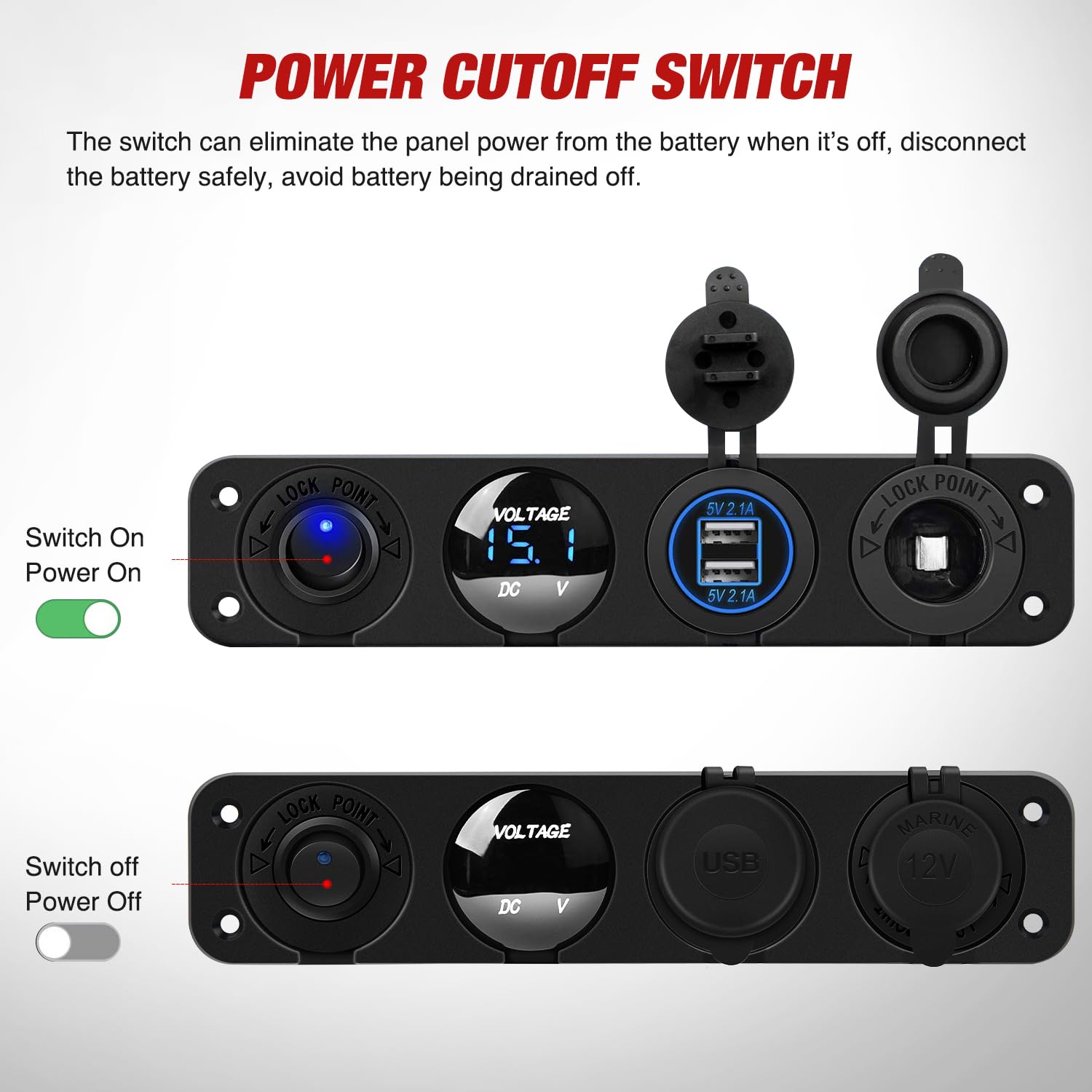

6.1. เปิด/ปิดสวิตช์สลับ

The integrated toggle switch controls the power to the panel or specific loads, depending on your wiring configuration. Press the switch to the 'ON' position to activate, and to the 'OFF' position to deactivate. The switch features an LED indicator.

Figure 8: Power Cutoff Switch Operation

6.2. LED Voltmeter

The LED voltmeter provides real-time voltage readings of your vehicle's electrical system. This helps monitor battery health and ensures the voltage is within a normal operating range.

• <12V: บ่งชี้ปริมาณต่ำtage. Charge or replace the battery as soon as possible.
• 12V-12.8V: เล่มปกติtage range before starting the engine.
• 12V-14.8V: เล่มปกติtage range after starting the engine.

Figure 9: Real-Time Voltmeter Display

6.3. Dual USB Charger

The dual USB charging ports provide 5V/2.1A output each, allowing you to charge two devices simultaneously. This is suitable for smartphones, tablets, GPS devices, and other USB-powered electronics.

Figure 10: Dual USB Charger

6.4. 12V Cigarette Lighter Outlet

The 12V cigarette lighter outlet provides power for various accessories, with a total power output of up to 150W (at 12V) or 300W (at 24V). This can power devices such as car DVRs, air purifiers, GPS units, vacuum cleaners, and air compressors.

Figure 11: 12V Cigarette Lighter Outlet

6.5. วิดีโอผลิตภัณฑ์view

7. การบำรุงรักษา

• ตรวจสอบความแน่นหนาและการกัดกร่อนของจุดเชื่อมต่อสายไฟทั้งหมดอย่างสม่ำเสมอ
• Keep the panel clean and free from dust and debris. Use a soft, dry cloth for cleaning.
• Ensure the protective caps for the USB ports and 12V outlet are securely closed when not in use to prevent moisture and dust ingress.
• Check the fuse periodically. If a component stops working, inspect the fuse for the panel. Replace with a fuse of the same rating (10A).

8 การแก้ไขปัญหา

• No Power to Panel: Check the main power connection to the panel. Verify the vehicle's battery is charged. Inspect the inline fuse for the panel and replace if blown.
• พอร์ต USB ไม่ชาร์จ: Ensure the panel's main switch is ON. Check the USB cable and the device being charged. Verify the vehicle's voltage is within the normal operating range using the voltmeter.
• 12V Outlet Not Working: Ensure the panel's main switch is ON. Check the connected device. Verify the vehicle's voltage ก็เพียงพอแล้ว
• Voltmeter Not Displaying: Check power connections to the voltmeter. Ensure the panel is receiving power.

9. การรับประกันและการสนับสนุน

Nilight products are designed for durability and performance. For specific warranty details, please refer to the product packaging or contact Nilight customer support directly. Nilight is committed to providing quality products and support.

For technical assistance or inquiries, please visit the official Nilight store or contact their support channels.

• Nilight Store: Visit Nilight Store on Amazon
