1. สินค้าหมดview
The Mighty Mule MM572W Solar Package is a heavy-duty dual smart gate opener system designed for swing gates. This system is capable of operating dual swing gates up to 18 feet long or weighing up to 850 lbs per side. It integrates smart features for convenient control via a smartphone app (requires MMS100 Wireless Connectivity Kit, sold separately).
คุณสมบัติที่สำคัญ ได้แก่:
- Designed for heavy-duty dual swing gates up to 18 ft long or 850 lbs per side.
- Smart features allow control from anywhere using a smartphone app (MMS100 Wireless Connectivity Kit sold separately).
- Suitable for various dual gate types: ornamental, chain link, tube, panel, vinyl, and wood.
- Includes a 30 Watt Solar Panel for power.
Image: The Mighty Mule MM572W dual gate opener system, showcasing the two gate arms, control box, remote, battery, and the 30-watt solar panel.
2. ข้อมูลด้านความปลอดภัย
It is critical to read and understand all safety warnings and instructions before installing and operating the gate opener. Failure to follow these instructions may result in serious injury or property damage.
- คำเตือน: This gate opener is designed for DUAL SWING GATES UP TO 18 FT. PER SIDE ONLY. Do not exceed specified gate length or weight limits.
- Ensure the installation area is clear of obstructions and people during operation.
- ควรตัดการเชื่อมต่อไฟฟ้าทุกครั้งก่อนดำเนินการบำรุงรักษาหรือบริการใดๆ
- For gates that open away from the property (push-to-open), Push-To-Open Brackets (FM148) are required for each gate.
- Keep children and pets away from the gate area.
Image: The Mighty Mule control box, featuring a prominent warning label regarding gate safety and operation.
3. เนื้อหาบรรจุภัณฑ์
ตรวจสอบว่าส่วนประกอบทั้งหมดที่ระบุไว้ด้านล่างนี้รวมอยู่ในแพ็คเกจของคุณ:
- (1) MM572W Gate Opener (two arms for dual gates)
- (1) 30 Watt Solar Panel with Mounting Bracket & 8 ft. Wires
- (1) Remote with Visor Clip
- (1) AC Transformer (Cannot be used simultaneously with solar panel)
- (1) 12 Volt Battery
- (1) กล่องควบคุม
- (1) Set of Mounting Hardware
- (1) Instruction Manual (this document)

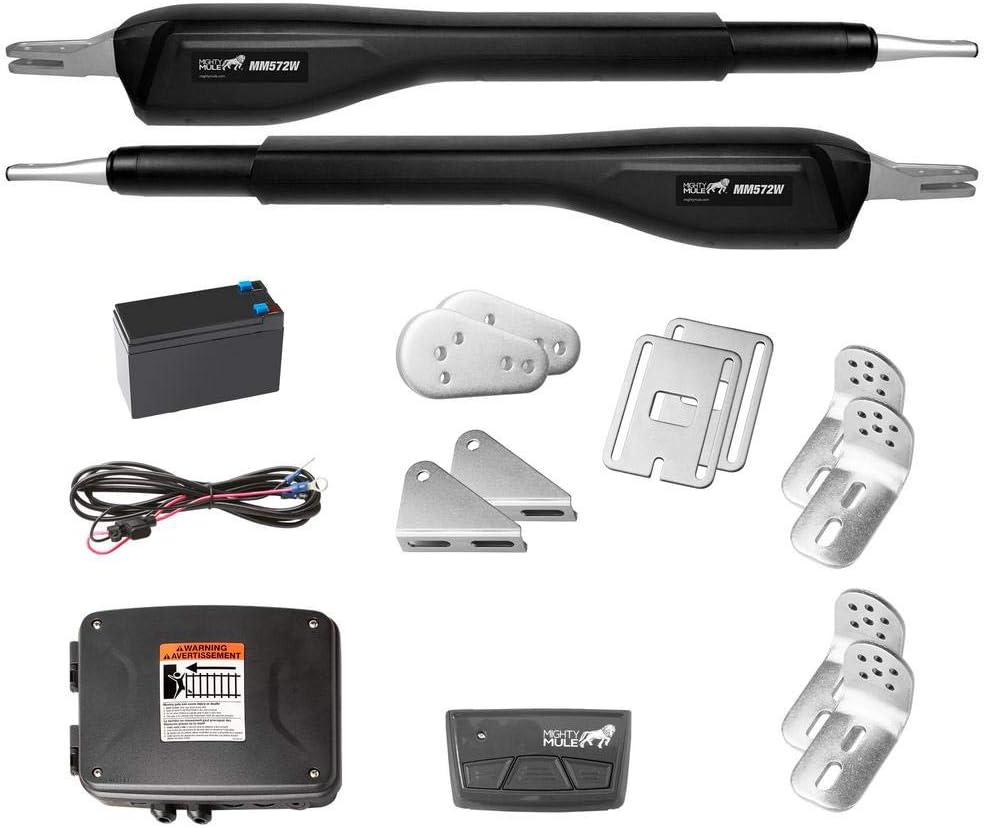

ภาพ: ครอบคลุม view of the Mighty Mule MM572W components, including the gate arms, control box, battery, remote, and various mounting hardware pieces.
4. การตั้งค่าและการติดตั้ง
The MM572W is designed for DIY installation. For detailed, step-by-step instructions, please refer to the comprehensive instruction manual included in your package and the online how-to videos provided by Mighty Mule.
ขั้นตอนการติดตั้งทั่วไป:
- การเตรียมสถานที่: Ensure your gate and posts are structurally sound and can support the opener. Clear the area around the gate for proper operation.
- Mounting the Gate Arms: Securely attach the gate opener arms to your gate and gate posts using the provided mounting hardware. Ensure proper alignment for smooth operation.
- Control Box and Battery Installation: Mount the control box in a secure, weather-protected location near the gate. Connect the 12-volt battery to the control board.
- การติดตั้งแผงโซล่าเซลล์: Position the 30 Watt solar panel in a location that receives maximum direct sunlight throughout the day. Connect the solar panel to the control box.
- การเดินสายไฟ: Connect the gate opener arms to the control box according to the wiring diagram in the full manual.
- การเขียนโปรแกรม: Follow the instructions to program your remote control and set the gate's open/close limits.
Image: The 30-watt solar panel included in the package, designed to provide power to the gate opener system.
Image: Diagram illustrating the assembly of the SGF L-bracket for mounting the solar panel, showing the solar panel, bolt, washer, and nut components.

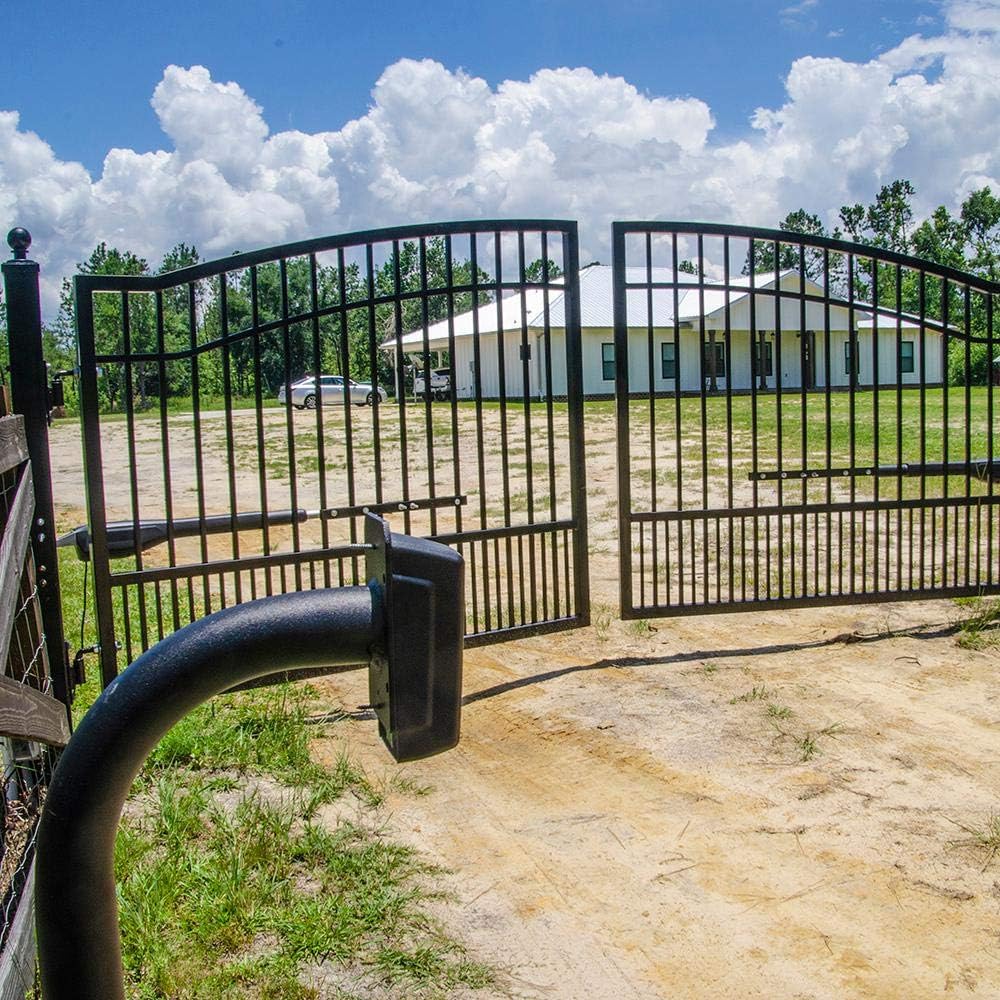

Image: An installed Mighty Mule gate opener system on a large dual swing gate, demonstrating its integration with the gate structure.
5. คู่มือการใช้งาน
Your Mighty Mule MM572W gate opener can be operated using the included remote control or, with the optional MMS100 Wireless Connectivity Kit, via a smartphone app.
การใช้รีโมทคอนโทรล:
- Press the button on your remote control once to open the gate.
- Press the button again while the gate is in motion to stop it.
- Press the button a third time to reverse the gate's direction (if stopped mid-cycle) or close it (if fully open).
Smartphone App Control (with MMS100 Kit - Sold Separately):
- Install the Mighty Mule app on your smartphone.
- Follow the instructions provided with the MMS100 Wireless Connectivity Kit to pair it with your gate opener and connect it to your home network.
- Once configured, you can open, close, and monitor your gate's status from anywhere using the app.
6. การบำรุงรักษา
Regular maintenance ensures the longevity and optimal performance of your Mighty Mule gate opener. Perform these checks periodically:
- ตรวจสอบชิ้นส่วนที่เคลื่อนไหว: Check the gate hinges, wheels, and the opener arms for any signs of wear, damage, or obstruction. Lubricate moving parts as recommended in the full manual.
- แผงโซล่าเซลล์สะอาด: Keep the surface of the solar panel clean from dirt, dust, and debris to ensure maximum charging efficiency.
- การตรวจสอบแบตเตอรี่: Periodically check the 12-volt battery connections for corrosion and ensure it is securely in place.
- เส้นทางที่ชัดเจน: Ensure the gate's path is clear of vegetation, rocks, or other obstacles that could impede its movement.
7 การแก้ไขปัญหา
If you encounter issues with your Mighty Mule gate opener, refer to the following general troubleshooting tips. For comprehensive solutions and error codes, consult the detailed instruction manual.
- ประตูไม่ตอบสนอง:
- ตรวจสอบการเชื่อมต่อแบตเตอรี่และให้แน่ใจว่าแบตเตอรี่มีประจุเพียงพอ
- Verify the remote control battery is functional.
- Ensure there are no power interruptions to the control box (if using AC transformer).
- ประตูหยุดกลางรอบ:
- ตรวจสอบสิ่งกีดขวางทางกายภาพในเส้นทางของประตู
- Inspect gate hinges and wheels for binding or damage.
- Ensure the gate is balanced and moves freely manually.
- ปัญหาช่วงการควบคุมระยะไกล:
- Ensure there are no large metal objects or structures blocking the signal.
- เปลี่ยนแบตเตอรี่รีโมทคอนโทรล
If problems persist, contact Mighty Mule Technical Support for assistance.
8. ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| หมายเลขรุ่น | MM572W-30W |
| ประเภทเกท | Dual Swing Gates |
| Max Gate Length (per side) | สูงถึง 18 ฟุต |
| Max Gate Weight (per side) | สูงสุด 850 ปอนด์ |
| แหล่งพลังงาน | 12 Volt Battery (included), charged by 30 Watt Solar Panel or AC Transformer |
| ส่วนประกอบที่รวมอยู่ | MM572W Gate Opener, 30W Solar Panel, Remote, AC Transformer, 12V Battery, Control Box, Mounting Hardware, Instruction Manual |
| น้ำหนักสินค้า | 64.5 ปอนด์ |
| ผู้ผลิต | ล่ออันทรงพลัง |

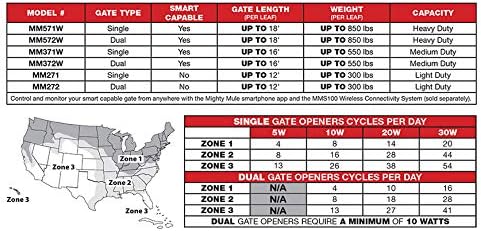

Image: A chart comparing different Mighty Mule gate opener models, detailing gate type, smart capability, length, weight, and capacity, including the MM572W model.
9. การรับประกันและการสนับสนุนทางเทคนิค
Your Mighty Mule MM572W Solar Package is backed by an 18-month Mighty Mule Warranty.
For any questions, installation assistance, or troubleshooting, you have unlimited access to การสนับสนุนทางเทคนิคตลอด 24 ชั่วโมง. Please refer to the contact information provided in your full instruction manual or visit the official Mighty Mule webเว็บไซต์สำหรับรายละเอียดการสนับสนุน
