ROBOTIME Apatosaurus Wooden 3D Puzzle Instruction Manual

1. บทนำ

Welcome to the ROBOTIME Apatosaurus Wooden 3D Puzzle. This instruction manual provides detailed guidance for assembling, operating, and maintaining your voice-controlled dinosaur model. Designed for engaging and educational assembly, this kit allows you to construct a functional Apatosaurus that can walk, roar, and respond to sound.

โปรดอ่านคำแนะนำทั้งหมดอย่างละเอียดก่อนเริ่มประกอบ เพื่อให้การประกอบเป็นไปอย่างราบรื่นและสนุกสนาน

2. เนื้อหาบรรจุภัณฑ์

Before starting, verify that all components listed below are present in your package.

• Pre-cut Plywood Sheets (containing 71 pieces)
• หน่วยมอเตอร์
• หน่วยเซ็นเซอร์
• Electronic Components (wires, battery compartment, speaker)
• Detailed Assembly Instructions Booklet
• Small Accessories (e.g., screws, plastic gears, springs)

ภาพที่ 1: เกินview of the ROBOTIME Apatosaurus puzzle components, including pre-cut wooden sheets, electronic parts, and the assembly instruction booklet.

ภาพที่ 2: ใกล้ชิดยิ่งขึ้น view of the pre-cut plywood sheets with numbered parts, alongside various electronic components such as the speaker and plastic gears.

3. คำแนะนำในการประกอบ

The ROBOTIME Apatosaurus is a DIY assembly kit designed to engage both hands and mind. Follow the numbered steps in the included instruction booklet carefully.

1. การตระเตรียม: Unpack all components and lay them out on a clean, flat surface. Identify the plywood sheets and the separate electronic parts.
2. การระบุชิ้นส่วน: Each wooden piece is numbered. Refer to the instruction booklet to identify the correct parts for each step. Gently push out the pieces from the plywood sheets. Avoid forcing them to prevent damage.
3. การประกอบเบื้องต้น: Begin by assembling the core body structure using the interlocking wooden pieces as guided by the manual. Pay close attention to the orientation of each piece.
4. Electronic Integration: As instructed, integrate the motor, sensor, and other electronic components into the wooden structure. Ensure all wires are connected correctly and securely. Incorrect wiring may prevent the model from functioning.
5. Leg and Tail Assembly: Attach the legs and tail sections, ensuring that the joints allow for proper movement. The mechanical parts should move freely without excessive friction.
6. Head and Neck Assembly: Assemble the head and neck, connecting them to the main body.
7. การตรวจสอบขั้นสุดท้าย: Once all parts are assembled, double-check all connections and ensure no pieces are loose. Insert the required batteries (not included) into the designated compartment.

เคล็ดลับ: Some parts may require gentle sanding or a small amount of glue for a more secure fit, though typically not necessary if assembled correctly. Always refer to the specific instructions provided in your kit.

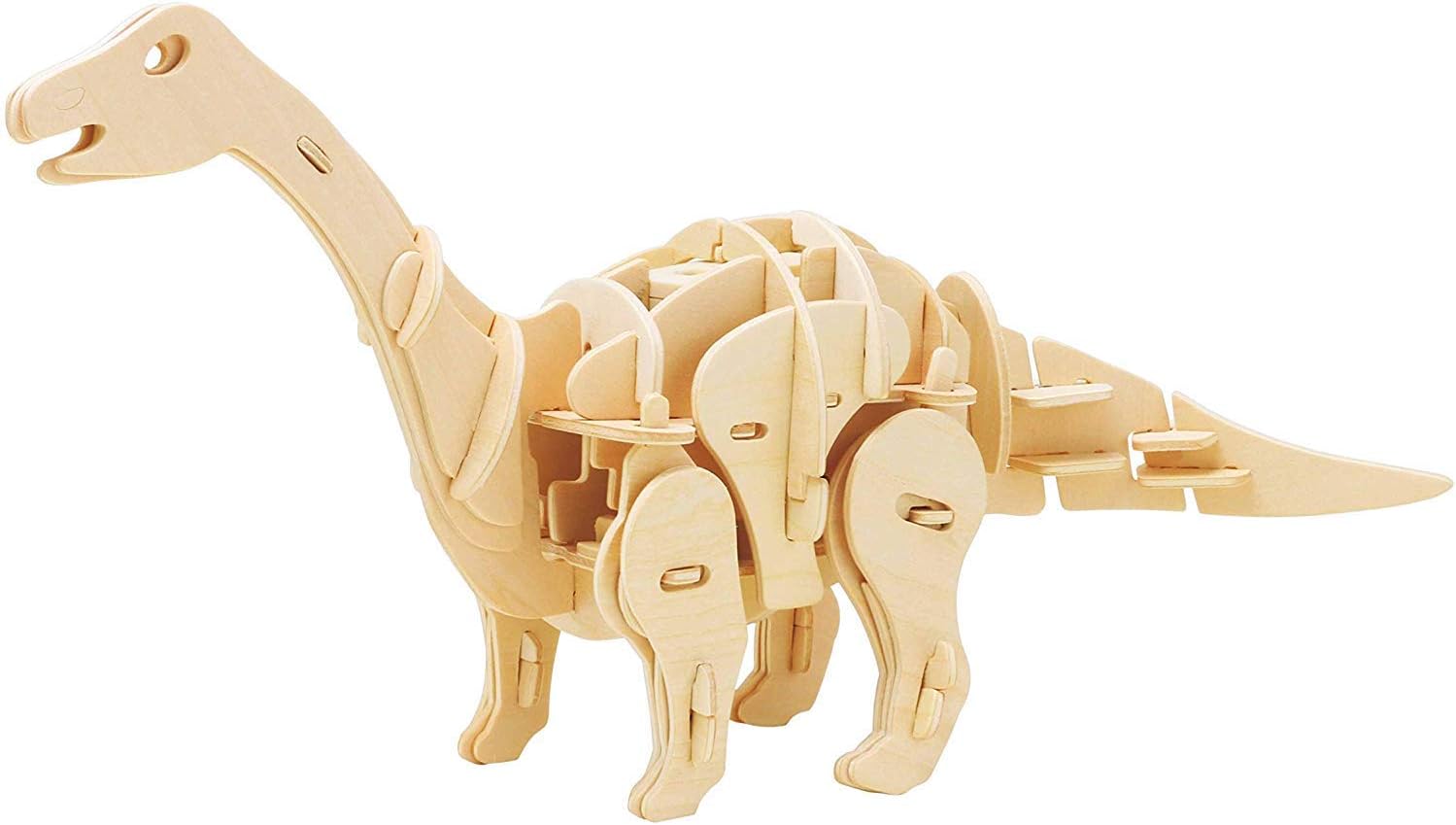

ภาพที่ 3: The completed ROBOTIME Apatosaurus wooden 3D puzzle, showcasing its intricate design and structural integrity.

4. คู่มือการใช้งาน

Your ROBOTIME Apatosaurus model is designed with voice control functionality.

1. เปิดเครื่อง: Ensure batteries are correctly installed. Locate the power switch (if present, usually near the battery compartment) and turn the model ON.
2. การเปิดใช้งานด้วยเสียง: The Apatosaurus responds to sound. A clap of hands or a clear, distinct sound will activate its movements and sounds.
3. ฟังก์ชันการทำงาน: Upon activation, the dinosaur will walk, roar, and may exhibit biting motions, simulating a real Apatosaurus.
4. สภาพแวดล้อมที่เหมาะสมที่สุด: For best performance, operate the model in a relatively quiet environment to ensure clear detection of voice commands.

5. การบำรุงรักษา

To ensure the longevity and proper functioning of your ROBOTIME Apatosaurus model, follow these maintenance guidelines:

• การทำความสะอาด: Wipe the wooden surfaces with a dry, soft cloth. Avoid using water or chemical cleaners, as they can damage the wood and electronic components.
• พื้นที่จัดเก็บ: Store the model in a dry place away from direct sunlight and extreme temperatures to prevent warping or damage to the wood and electronics.
• การดูแลแบตเตอรี่ Remove batteries if the model will not be used for an extended period to prevent leakage and damage to the electronic circuit.
• การจัดการ: Handle the assembled model with care, especially delicate parts like the neck and tail, to avoid breakage.

6 การแก้ไขปัญหา

If your ROBOTIME Apatosaurus model is not functioning as expected, consider the following:

7. ข้อมูลจำเพาะ

• แบบอย่าง: TSP-D-part (Apatosaurus)
• ยี่ห้อ: โรโบไทม์
• วัสดุ: Engineered Wood (Plywood), Motor, Sensor
• จำนวนชิ้น: 71
• จำเป็นต้องประกอบ: ใช่
• คุณสมบัติพิเศษ: Durable, Sound, Voice Control, Walking Motion
• อายุที่แนะนำ: 3 years and up (Manufacturer recommended age: 36 months and up)
• ขนาดแพ็คเกจ: Approximately 320 x 235 x 55 mm (31 x 23 x 5.1 cm)
• ASIN: B081CQKMD1

8. การรับประกันและการสนับสนุน

ROBOTIME products are manufactured with quality in mind. For any questions regarding assembly, missing parts, or operational issues not covered in this manual, please contact ROBOTIME customer support directly.

Please retain your proof of purchase for any warranty claims. Specific warranty terms and conditions may vary by region.
