Masterbuilt 30-inch Analog Electric Smoker Instruction Manual

1. บทนำ

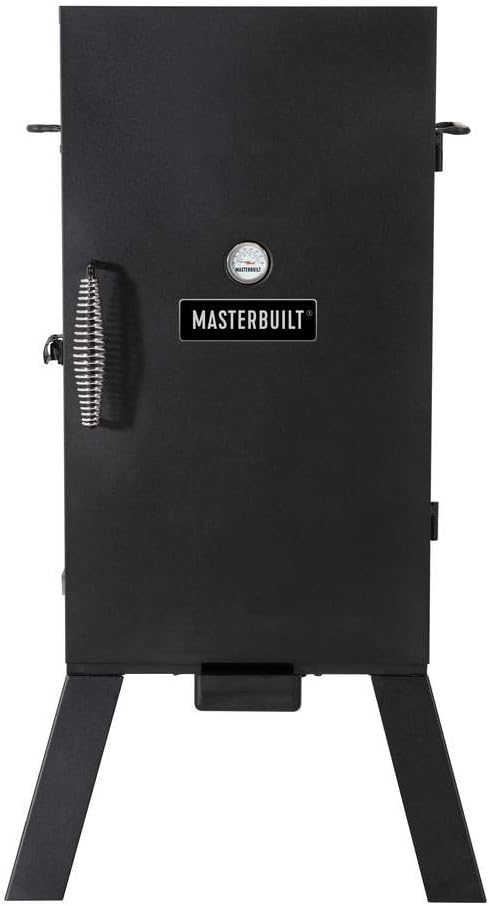

The Masterbuilt 30-inch Analog Electric Smoker is designed to make slow smoking simple and enjoyable. Its robust construction and intuitive controls allow for consistent results, whether you're a seasoned pitmaster or just starting out. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your smoker.

คุณสมบัติหลัก:

• พื้นที่ทำอาหารกว้างขวาง: 548 sq. inches with 3 chrome-coated racks.
• เครื่องทำความร้อนอันทรงพลัง: 1500 watt heating element for consistent temperatures.
• ฉนวนกันความร้อนประสิทธิภาพสูง: Dual-wall insulation helps maintain stable temperatures.
• การเข้าถึงที่สะดวก: Front-loading wood chips tray and removable water/drip pan for easy use and cleaning.
• การตรวจติดตามอุณหภูมิ: Built-in temperature gauge in the door for precise control.

2. การติดตั้งและการประกอบ

Before first use, ensure all packaging materials are removed from inside the smoker. Assembly is straightforward and requires minimal tools.

ขั้นตอนการประกอบ:

1. แนบขา: Turn the smoker upside down. Secure each of the four legs to the corners of the smoker using the provided screws.
2. ติดที่จับ: Once the legs are attached, stand the smoker upright. Line up the holes on the side of the smoker and attach the side handles using the appropriate screws.
3. Install Door Handle and Temperature Gauge: Attach the door handle to the door using the designated screws. Then, secure the temperature gauge to the door with the wingnut, ensuring not to overtighten.
4. Insert Racks and Trays: Slide the three chrome-coated smoking racks into the guides on the sidewalls, ensuring the bent side of the rack faces the rear. Place the wood chip bowl and water bowl onto the wood chip grate, then slide this assembly into place at the bottom of the smoker.
5. Slide in Drip Tray: Insert the grease drip tray into the grooves located underneath the smoker.
6. เชื่อมต่อตัวควบคุมอนาล็อก: Insert the analog temperature control unit into the side of the smoker.

วิดีโอประกอบ:

Video 1: Detailed assembly instructions for the Masterbuilt 30-inch Analog Electric Smoker. This video demonstrates how to attach the legs, handles, and internal components.

3. คู่มือการใช้งาน

The Masterbuilt Electric Smoker is designed for ease of use, allowing you to achieve delicious smoked results with minimal effort.

Pre-Seasoning (Before First Use):

Before cooking any food, it is crucial to pre-season your smoker. This process burns off any manufacturing oils and prepares the interior for smoking, enhancing flavor and performance.

1. Ensure the water pan and wood chip tray are empty.
2. Plug in the smoker and set the temperature control to 275°F (135°C).
3. Allow the smoker to run for 3 hours.
4. After 3 hours, turn off the smoker and let it cool completely.

ขั้นตอนการรมควัน:

1. Prepare Wood Chips: For optimal smoke flavor, soak wood chips in water for at least 30 minutes before placing them in the wood chip tray.
2. Add Water to Pan: Fill the water pan with water, juice, or other liquids to add moisture and flavor to your food.
3. Preheat Smoker: Plug in the smoker and set the desired temperature using the analog control dial. Allow the smoker to preheat for 15-20 minutes, or until the internal temperature gauge reaches the set point.
4. โหลดอาหาร: Carefully place your food on the chrome-coated racks. Utilize all three racks for larger quantities or different items.
5. ตรวจวัดอุณหภูมิ: Use the built-in temperature gauge on the door to monitor the internal temperature of the smoker throughout the cooking process. Adjust the analog control as needed to maintain your desired temperature.
6. Add Wood Chips (as needed): The front-loading wood chip tray allows you to add more wood chips without opening the main door, minimizing heat loss.

สินค้าเกินview วีดีโอ:

วิดีโอ 2: ข้อมูลผลิตภัณฑ์โดยย่อview highlighting the features and benefits of the Masterbuilt 30-inch Analog Electric Smoker.

4. การบำรุงรักษาและการดูแล

Regular cleaning and maintenance will extend the life of your Masterbuilt Electric Smoker and ensure consistent performance.

การทำความสะอาด:

• หลังการใช้แต่ละครั้ง: Allow the smoker to cool completely. Remove the chrome-coated racks, wood chip tray, water pan, and drip pan. Wash these components with warm, soapy water.
• การทำความสะอาดภายใน: Wipe down the interior of the smoker with a damp cloth. For stubborn grease, a mild degreaser can be used. Avoid abrasive cleaners that could damage the finish.
• การทำความสะอาดภายนอก: ทำความสะอาดภายนอกด้วยโฆษณาamp ผ้าและผงซักฟอกอ่อนๆ เช็ดให้แห้งสนิท

พื้นที่จัดเก็บ:

Store the smoker in a dry, protected area when not in use. If storing outdoors, consider using a weather-resistant cover to protect it from the elements.

5 การแก้ไขปัญหา

If you encounter issues with your Masterbuilt Electric Smoker, refer to the following common troubleshooting tips:

• เครื่องรมควันไม่ทำงาน: Ensure the power cord is securely plugged into a grounded outlet. Check the analog temperature control dial to confirm it is set to a desired temperature. Verify that the heating element is not obstructed or damaged.
• ปริมาณควันไม่เพียงพอ: Ensure wood chips are properly soaked and placed in the wood chip tray directly above the heating element. Check that the temperature is set high enough to generate smoke (typically above 200°F).
• ความผันผวนของอุณหภูมิ: Ensure the smoker door is properly latched and sealed. Avoid opening the door frequently, as this causes heat loss. Check for any blockages in the vents.
• อาหารไม่สุกทั่วถึง: Rotate racks periodically for more even cooking. Ensure the smoker is not overloaded, allowing for proper air circulation around the food.

For more detailed troubleshooting or persistent issues, please refer to the official user guide or contact Masterbuilt customer support.

6. ข้อมูลจำเพาะ

7. การรับประกันและการสนับสนุน

For detailed warranty information and customer support, please refer to the official user guide or contact Masterbuilt directly.

• คู่มือผู้ใช้ (PDF): ดาวน์โหลดคู่มือผู้ใช้
• การสนับสนุนลูกค้า: Refer to the contact information provided in your user guide or on the official Masterbuilt webเว็บไซต์.
