PERLESMITH Universal TV Stand (Model PSTVS11) Instruction Manual

1. สินค้าหมดview

The PERLESMITH Universal TV Stand (Model PSTVS11) is a height-adjustable table top TV base designed to securely hold most 32-82 inch LCD, LED, OLED, and 4K flat screen televisions. It features a tempered glass base for stability and integrated cable management to maintain a tidy appearance. This stand offers a versatile solution for placing your TV on a surface without requiring wall mounting.

Image: The PERLESMITH Universal TV Stand supporting a large television on a media console.

2. เนื้อหาบรรจุภัณฑ์

ก่อนเริ่มการประกอบ โปรดตรวจสอบให้แน่ใจว่าส่วนประกอบทั้งหมดที่ระบุไว้ด้านล่างนี้อยู่ในสภาพสมบูรณ์และไม่มีความเสียหาย หากมีชิ้นส่วนใดสูญหายหรือเสียหาย โปรดติดต่อฝ่ายสนับสนุนลูกค้า

• TV Stand Base (Tempered Glass)
• เสารองรับ
• ขายึดทีวี
• Mounting Hardware Kit (various screws, washers, spacers for TV attachment)
• Assembly Tools (Allen wrench, small wrench)
• คู่มือการใช้งาน

3. การติดตั้งและการประกอบ

This TV stand features a one-piece design for simplified assembly. Follow these steps for quick and easy installation, typically completed within 15 minutes.

3.1 Attaching the Support Pillar to the Base

1. Carefully place the tempered glass base on a soft, clean surface to prevent scratches.
2. Align the bottom of the support pillar with the designated holes on the tempered glass base.
3. Secure the pillar to the base using the provided screws and the appropriate tools. Ensure all screws are tightened firmly.

3.2 Attaching the TV Mounting Bracket to the TV

1. Identify the VESA mounting holes on the back of your television.
2. Select the correct size screws, washers, and spacers from the hardware kit that fit your TV's VESA pattern.
3. Attach the vertical mounting arms to the back of your TV, ensuring they are securely fastened. The arms should be positioned to allow for height adjustment later.

3.3 Mounting the TV to the Stand

1. With assistance, carefully lift the TV and hook the attached mounting arms onto the support pillar's bracket.
2. Ensure the TV is level and securely seated on the stand.
3. Engage any safety locks or screws to prevent accidental dislodgement.

Image: Visual guide for the one-piece installation process and integrated cable management system.

4. คู่มือการใช้งาน

4.1 การปรับความสูง

The TV stand offers 9 mounting height options to achieve an optimal viewประสบการณ์การใช้งาน วิธีปรับความสูง:

1. With assistance, carefully lift the TV slightly to disengage the mounting arms from their current position on the support pillar.
2. Slide the TV up or down to the desired height setting.
3. Ensure the mounting arms are securely re-engaged in the new position and any safety locks are fastened.

Image: Illustration of the multiple height adjustment options available for the TV mounting plate and hooks.

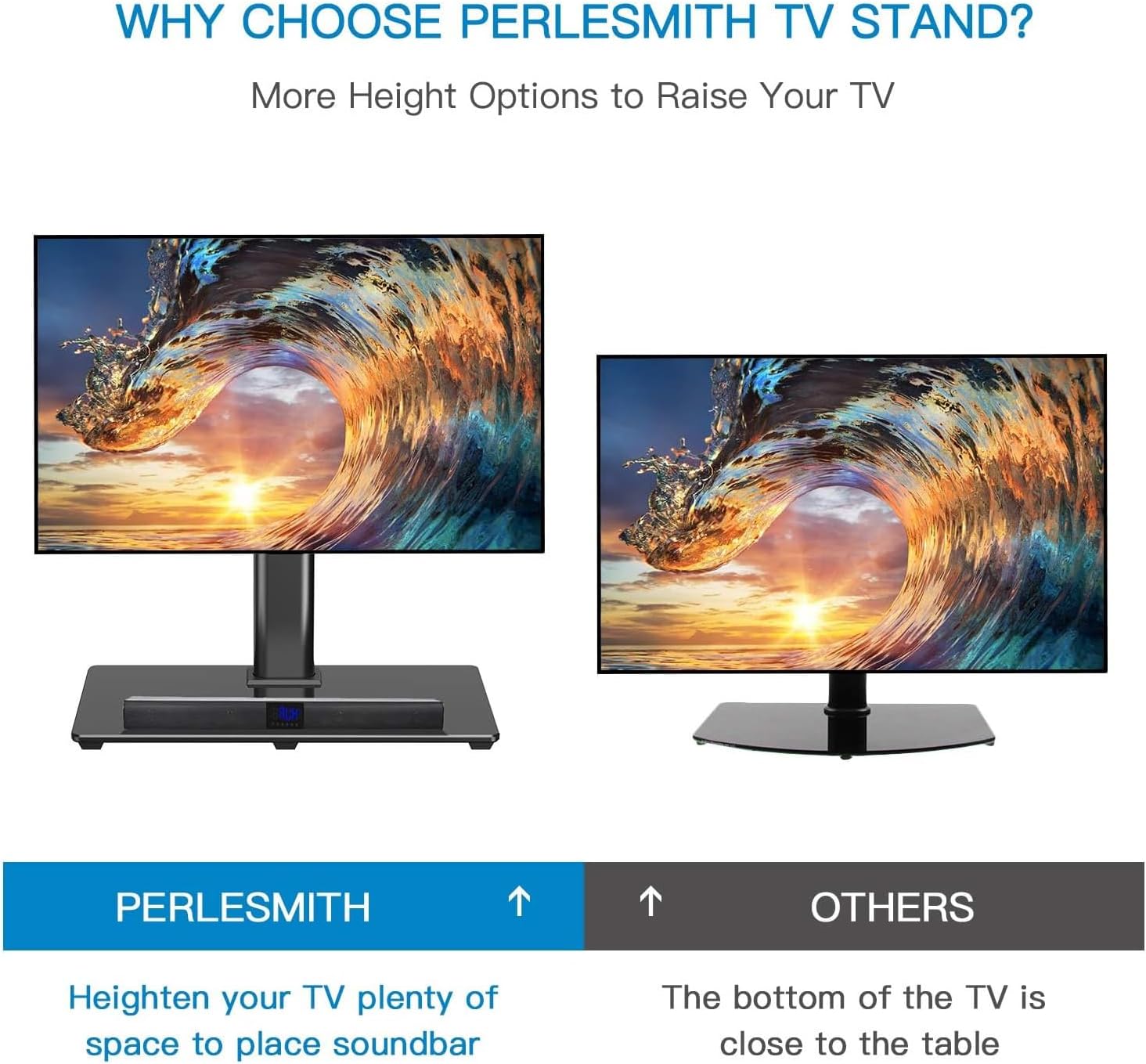

Image: Visual comparison demonstrating how the adjustable height provides ample space for a soundbar or other accessories beneath the TV.

4.2 Swivel Functionality

The stand allows for a swivel of 30 degrees to the right or left, providing flexible viewing angles. Gently rotate the television to the desired position.

4.3 การจัดการสายเคเบิล

Utilize the integrated cable management clips along the back of the support pillar to keep wires neat, organized, and out of sight.

ภาพ: ระยะใกล้ view of the stand's design features, highlighting the cable management system, non-slip feet, and safety lock mechanism.

5. การบำรุงรักษา

To ensure the longevity and optimal performance of your PERLESMITH TV stand, follow these maintenance guidelines:

• การทำความสะอาด: ใช้แบบนุ่มๆamp cloth to clean the tempered glass base and metal components. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• การตรวจสอบปกติ: ตรวจสอบสกรูและจุดเชื่อมต่อทั้งหมดเป็นระยะ เพื่อให้แน่ใจว่ายังแน่นและปลอดภัยดี ขันให้แน่นอีกครั้งหากจำเป็น
• น้ำหนักจำกัด: Do not exceed the maximum weight capacity of 99 lbs (45 kg) to prevent damage or instability.

6 การแก้ไขปัญหา

If you encounter any issues with your TV stand, please refer to the following common solutions:

• ความไม่เสถียร: Ensure the stand is placed on a flat, level surface. Verify all assembly screws are securely tightened.
• TV Not Fitting: Double-check your TV's VESA mounting pattern against the stand's compatibility (100x100mm to 600x400mm). Ensure you are using the correct screws and spacers for your TV model.
• ส่วนที่หายไป: If any parts were missing from the package, please contact PERLESMITH customer service immediately for assistance.

7. ข้อมูลจำเพาะ

Image: Detailed dimensions and VESA compatibility range for the PERLESMITH Universal TV Stand.

Image: The tempered glass base, highlighting its dimensions of 20.47 inches by 11.02 inches for enhanced stability.

8. การรับประกันและการสนับสนุน

The PERLESMITH Universal TV Stand (Model PSTVS11) comes with a รับประกัน 3 ปี, ensuring confidence in its value and performance.

For any questions, assistance, or warranty claims, please contact our US-based product support team. Refer to the product packaging or the official PERLESMITH webเว็บไซต์สำหรับข้อมูลการติดต่อล่าสุด
