Proster Multi Test Leads Kit (Model PST175b) Instruction Manual

1. ข้อมูลด้านความปลอดภัย

Always observe basic safety precautions when using electrical test equipment to reduce the risk of fire, electric shock, or personal injury.

• Rated Category: This test leads kit is rated CAT III 1000 V, 20 A. Ensure your multimeter and application match or are below these ratings.
• ตรวจสอบก่อนใช้งาน: Before each use, inspect the test leads and accessories for any damage, cracks, or exposed wiring. Do not use if damaged.
• การเชื่อมต่อที่ถูกต้อง: Always connect the common (black) test lead first, then the live (red) test lead. When disconnecting, remove the live (red) test lead first, then the common (black) test lead.
• ฉนวนกันความร้อน: Ensure all connections are fully insulated to prevent accidental contact with live circuits.
• หลีกเลี่ยงการสัมผัส: Do not touch the metal parts of the probes or clips when connected to a circuit.
• ใช้อย่างถูกต้อง: Use the appropriate test lead and accessory for the specific measurement and voltagระดับอี/ปัจจุบัน

2. สินค้าหมดview

The Proster Multi Test Leads Kit provides a versatile set of accessories for electrical testing with multimeters, clamp meters, and other test instruments. It includes various interchangeable tips and connectors to expand testing capabilities.

Package Contents (21-piece set)

Image: All components included in the Proster Multi Test Leads Kit, laid out for inspection.

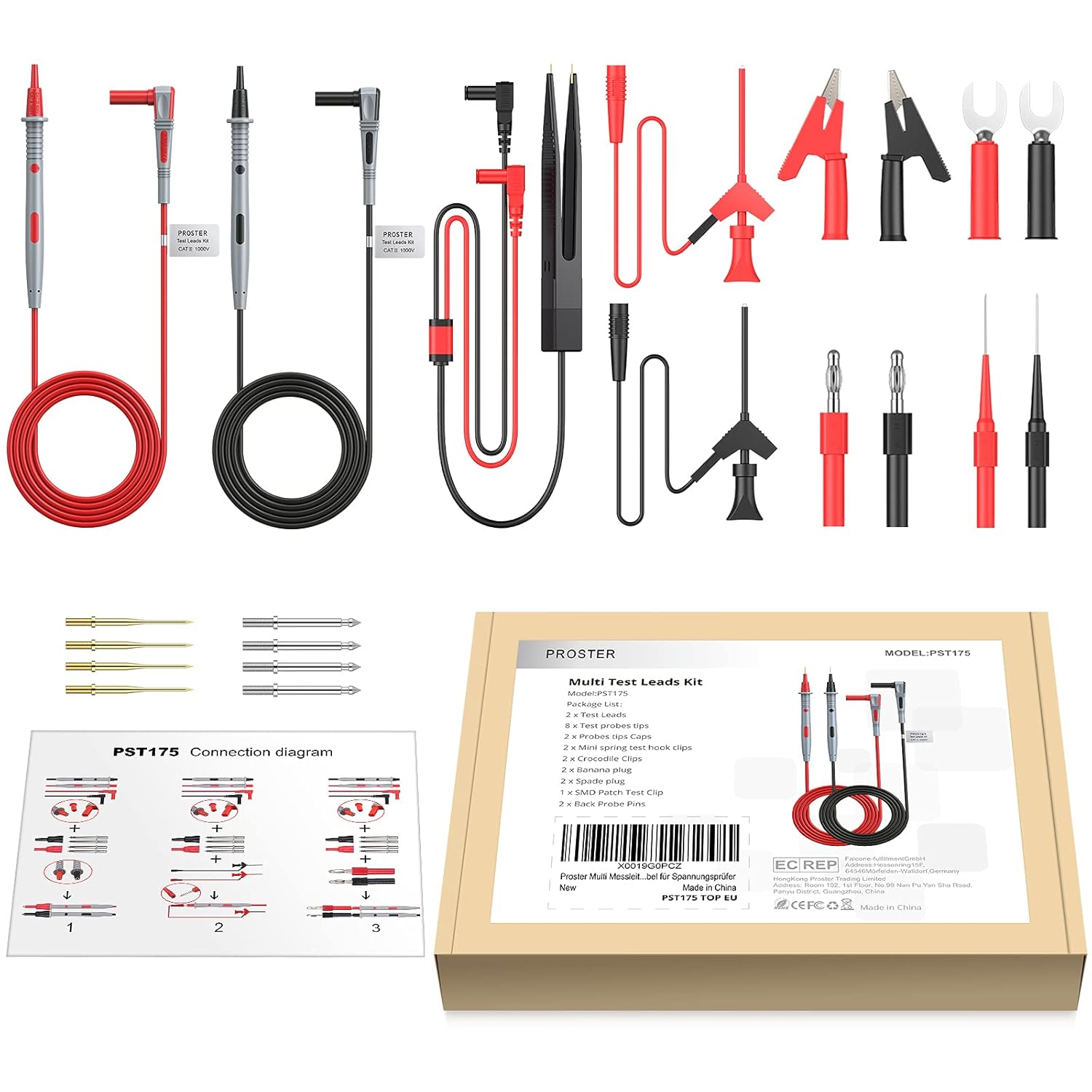

Image: The Proster Multi Test Leads Kit neatly packaged in its box, showing the various components.

3. คำแนะนำในการตั้งค่า

Attaching Test Probe Tips

The test leads feature removable tips, allowing for various testing scenarios. To change a tip:

1. Gently pull off the existing probe tip or protective cap from the test lead.
2. Select the desired replaceable tip (e.g., needle tip, banana plug, spade plug).
3. Firmly push the new tip onto the end of the test lead until it is securely seated.
4. Ensure a snug fit to maintain proper electrical contact and safety.

Image: A hand demonstrating the process of attaching different interchangeable probe tips to the test leads, showing various tip types.

4. คู่มือการใช้งาน

Connecting to a Multimeter

The main test leads connect to your multimeter via standard banana plugs. Insert the black lead into the 'COM' (common) jack and the red lead into the appropriate input jack for your measurement (e.g., 'VΩmA' for voltage, resistance, or current).

Image: A visual connection diagram illustrating how to properly connect the test leads to a multimeter for various measurements.

การใช้สิ่งที่แนบมาที่แตกต่างกัน

The kit includes various attachments for different testing needs:

• คลิปหนีบจระเข้: These clips provide a secure, hands-free connection to terminals or wires. Simply attach them to the probe tips or banana plugs.
• Mini Spring Test Hook Clips: Ideal for connecting to small components or wires where a delicate, yet firm, grip is needed.
• Banana Plugs & Spade Plugs: Use these for connecting to banana jacks or screw terminals, respectively.
• SMD Patch Test Clip: Designed for testing surface-mount devices on circuit boards, offering precision and stability.

ภาพ: รายละเอียด view of the various test lead attachments, including alligator clips, banana plugs, spade plugs, and different probe tips, with their respective dimensions.

Image: The test leads shown with mini spring test hook clips attached, demonstrating their use for small connections.

Image: The test leads configured with banana plugs and crocodile clips, illustrating their adaptability for different connection types.

Image: The SMD patch test clip shown in use, demonstrating its application for testing surface-mount components on a circuit board.

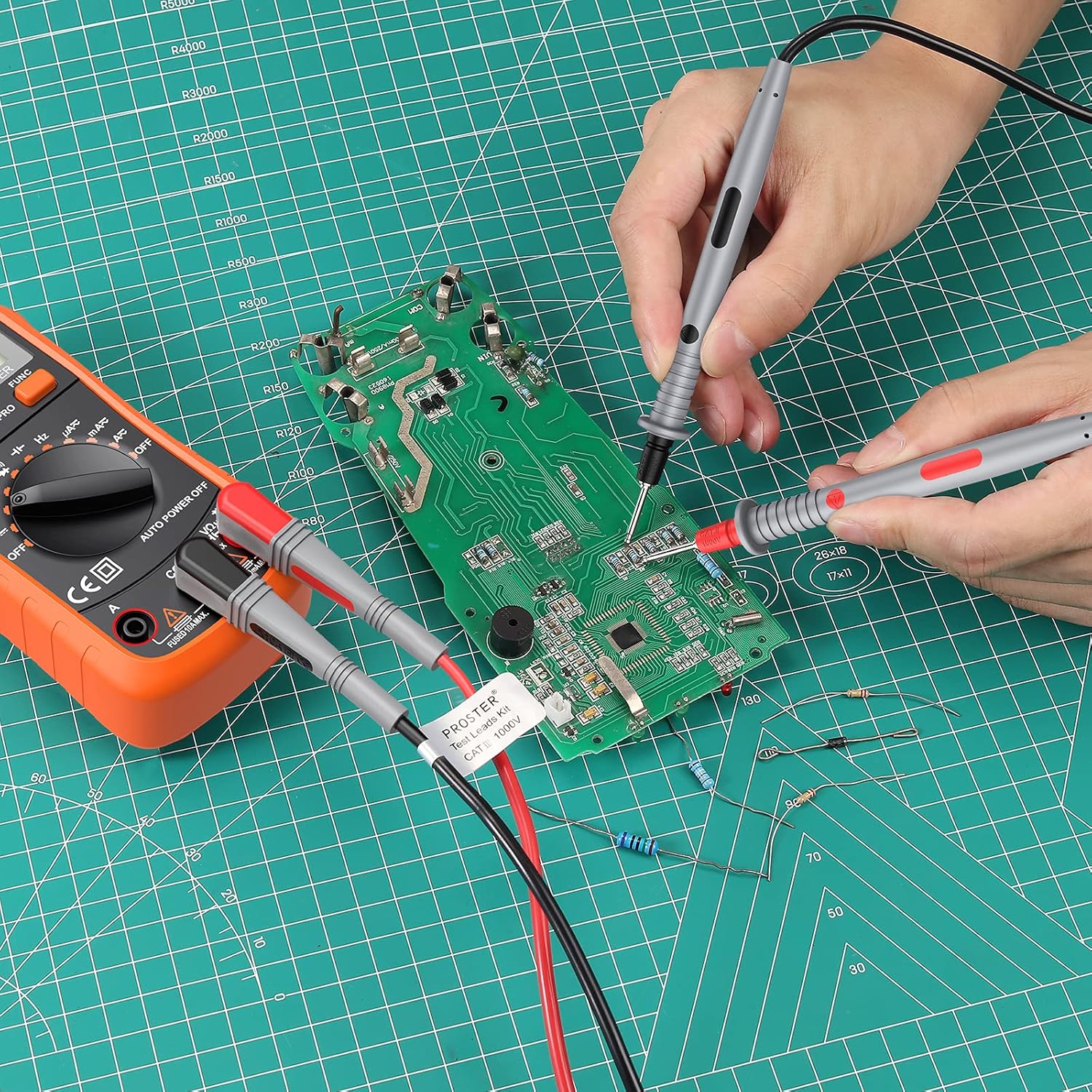

Image: A person using the test probes to measure points on a circuit board, highlighting the precision of the tips.

5. การบำรุงรักษา

• การทำความสะอาด: After each use, wipe the test leads and accessories with a clean, dry cloth to remove any dirt, dust, or residue. Do not use abrasive cleaners or solvents.
• พื้นที่จัดเก็บ: Store the test leads kit in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided carrying case to keep all components organized and protected.
• การตรวจสอบ: Regularly inspect the leads for any signs of wear, cuts, or damage to the insulation. Replace any damaged components immediately to ensure safety and accurate measurements.

6 การแก้ไขปัญหา

• การอ่านค่าที่ไม่ถูกต้อง: Ensure all connections are secure and clean. Check that the correct test lead tips are used for the measurement. Verify your multimeter settings are appropriate for the circuit being tested.
• No Reading/Open Circuit: Check for continuity in the test leads themselves by touching the tips together (if your multimeter has a continuity function). Ensure the leads are fully inserted into the multimeter and the circuit points.
• Damaged Leads: If any part of the test lead or accessory is visibly damaged (e.g., frayed wire, cracked insulation), discontinue use immediately and replace the affected component.

7. ข้อมูลจำเพาะ

• หมายเลขรุ่น: PST175b
• ระดับความปลอดภัย: CAT III 1000 V, 20 A
• Test Lead Material: Double Insulation PVC
• Banana Plug Diameter: มาตรฐาน
• น้ำหนักสินค้า: 0.25 กิโลกรัม (8.82 ออนซ์)
• สี: สีดำและสีแดง
• ผู้ผลิต: พรอสเตอร์ เทรดดิ้ง จำกัด
• วันที่พร้อมใช้งานครั้งแรก: 23 พฤศจิกายน 2020

8. การรับประกันและการสนับสนุน

For warranty information, technical support, or inquiries regarding your Proster Multi Test Leads Kit, please refer to the official Proster webหรือติดต่อฝ่ายบริการลูกค้าโดยตรง เก็บใบเสร็จรับเงินไว้เพื่อใช้ในการเคลมประกัน
