Joie Tilt Car Seat User Manual

1. บทนำ

This manual provides essential instructions for the safe installation, operation, and maintenance of your Joie Tilt Car Seat. The Joie Tilt Car Seat is designed to provide secure and comfortable travel for children from birth up to approximately 4 years of age, covering Group 0+ (rear-facing, 2.2 kg to 18 kg) and Group 1 (forward-facing, 9 kg to 18 kg).

Please read this manual thoroughly before using the car seat and retain it for future reference. For any questions or concerns, contact your retailer or Joie customer support.

ภาพที่ 1.1: ด้านหน้า view of the Joie Tilt Car Seat. This image displays the car seat in its upright position, showcasing the padded seating area, 5-point harness, and headrest.

2. ข้อมูลด้านความปลอดภัย

The Joie Tilt Car Seat is ECE R44/04 Safety Certified, ensuring it meets European safety standards for child restraint systems. Adherence to these instructions is crucial for your child's safety.

• Side Impact Security: The car seat features Side Impact Security, designed to protect your child's head, body, and hips in the event of a side collision.
• เข็มขัดนิรภัย 5 จุด: Always secure your child using the SoftTouch 5-point harness system. Ensure the harness straps are snug and correctly positioned over the shoulders and hips.
• การติดตั้งเข็มขัดนิรภัยในรถยนต์: The car seat must be installed using your vehicle's 3-point seat belt. Follow the color-coded belt guides and dual lock-offs for a secure installation.
• อย่าทิ้งเด็กไว้โดยไม่มีใครดูแล in the car seat.
• Do not modify the car seat in any way. Any modifications can compromise its safety features.

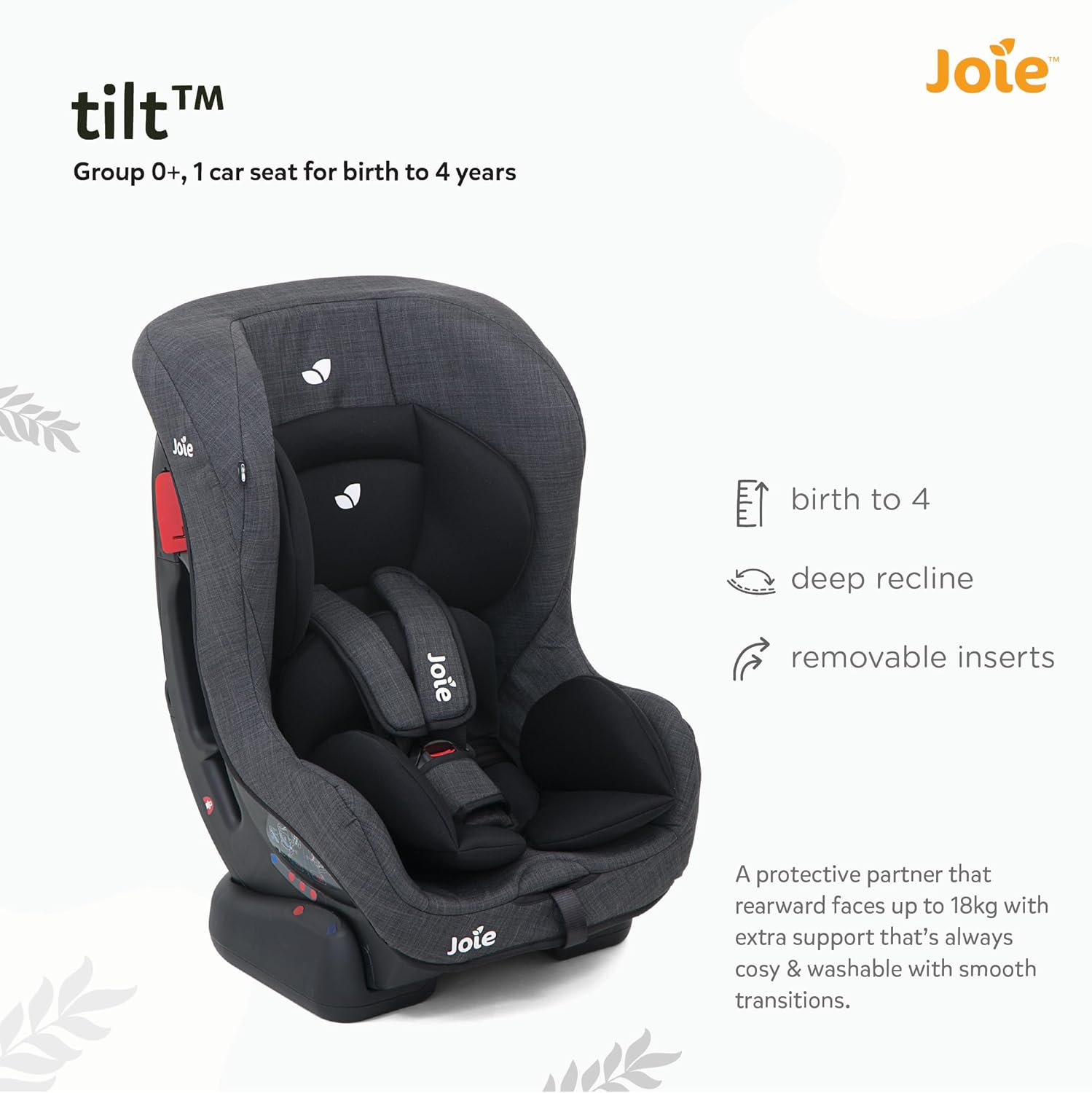

ภาพที่ 2.1: เกินview of the Joie Tilt Car Seat highlighting key features. This image shows the car seat with text indicating its suitability from birth to 4 years, deep recline capability, and removable inserts.

3 ส่วนประกอบ

Familiarize yourself with the main components of your Joie Tilt Car Seat:

• Car Seat Shell: The main structure providing protection.
• ระบบเข็มขัดนิรภัย 5 จุด: Includes shoulder straps, buckle, and crotch strap.
• Harness Adjustment Strap: Located at the front for tightening the harness.
• Recline Adjustment Handle: Used to change the seat's recline position.
• Removable Infant Insert: Provides additional comfort and support for newborns and smaller infants.
• Shoulder Pads and Buckle Cover: For child comfort and protection.
• Color-Coded Belt Guides: Indicate the correct path for the vehicle's seat belt during installation.

4. การตั้งค่าและการติดตั้ง

The Joie Tilt Car Seat can be installed in two orientations:

• หันหน้าไปทางด้านหลัง: For children from birth up to 18 kg (approximately 4 years). This is the safest position for infants and toddlers.
• หันหน้าไปทาง: For children from 9 kg to 18 kg (approximately 1 to 4 years).

การติดตั้ง 4.1 ทั่วไปหมายเหตุ

• Always install the car seat in a vehicle seat equipped with a 3-point seat belt.
• Ensure the car seat is firmly secured and does not move more than 2.5 cm (1 inch) in any direction at the belt path.
• Refer to your vehicle's owner's manual for specific instructions regarding child restraint installation.

4.2 Rear-Facing Installation (Birth to 18 kg)

1. Place the car seat on the vehicle seat in the rear-facing position.
2. Adjust the recline to the most reclined position (Position 1).
3. Route the vehicle's lap and shoulder belt through the blue-colored rear-facing belt guides.
4. คาดเข็มขัดนิรภัยในรถยนต์
5. Press down firmly on the car seat while pulling the vehicle seat belt tight to remove all slack. Engage the dual lock-offs.
6. Check for a secure installation.

4.3 Forward-Facing Installation (9 kg to 18 kg)

1. Place the car seat on the vehicle seat in the forward-facing position.
2. Adjust the recline to one of the three forward-facing positions (Positions 2, 3, or 4).
3. Route the vehicle's lap and shoulder belt through the red-colored forward-facing belt guides.
4. คาดเข็มขัดนิรภัยในรถยนต์
5. Press down firmly on the car seat while pulling the vehicle seat belt tight to remove all slack. Engage the dual lock-offs.
6. Check for a secure installation.

ภาพที่ 4.1: Illustration of the seat belt installation path. This image highlights the area where the vehicle's seat belt is routed for secure installation, emphasizing the ease and precision of the process.

5. คู่มือการใช้งาน

5.1 การปรับสายรัด

• กระชับ: Pull the harness adjustment strap located at the front of the car seat until the harness is snug against your child's body. Ensure you can only fit one finger between the harness and your child's collarbone.
• คลาย: Press the harness release button (usually under a flap at the front) and pull the shoulder straps outwards.
• ความสูงของสายรัดไหล่: The shoulder harness should be at or just below your child's shoulders when rear-facing, and at or just above your child's shoulders when forward-facing. Adjust the harness height as your child grows.

5.2 ตำแหน่งการเอนหลัง

The Joie Tilt Car Seat offers 4 recline positions:

• ตำแหน่งที่ 1: For rear-facing use only.
• ตำแหน่ง 2, 3, 4: For forward-facing use.

To adjust the recline, locate the recline adjustment handle (typically at the front or base of the seat), squeeze it, and move the seat to the desired position. Release the handle to lock the recline.

ภาพที่ 5.1: View of the car seat demonstrating the deep recline feature. This image illustrates the car seat in a reclined position, highlighting its adaptability for different stages of a child's growth from birth to 4 years.

5.3 Removable Infant Insert

The car seat includes a padded, removable infant insert for comfort and proper positioning of newborns and smaller infants. Remove the insert when your child outgrows it to ensure adequate space and harness fit.

ภาพที่ 5.2: Depiction of the removable infant insert. This image shows the car seat with and without the infant insert, demonstrating how it can be easily removed to accommodate a growing child.

6. การบำรุงรักษา

6.1 คำแนะนำในการทำความสะอาด

• Soft Goods (Fabrics): The soft goods can be machine washed with cold water (under 30°C) on a delicate cycle. Do not bleach, tumble dry, or dry clean. Hang to dry.
• สายรัดนิรภัย: เช็ดสายรัดนิรภัยด้วยน้ำยาทำความสะอาดamp ทำจากผ้า ห้ามซักด้วยเครื่องซักผ้าหรือแช่สายรัดในน้ำ เพราะอาจทำให้สายรัดอ่อนตัวลงได้
• ชิ้นส่วนพลาสติกและโลหะ: เช็ดชิ้นส่วนพลาสติกและโลหะด้วยน้ำยาทำความสะอาดamp ผ้าและสบู่อ่อนๆ ห้ามใช้น้ำยาทำความสะอาดหรือตัวทำละลายที่มีฤทธิ์กัดกร่อน

6.2 พื้นที่จัดเก็บ

เมื่อไม่ใช้งาน ควรเก็บเบาะรถยนต์ไว้ในที่สะอาดและแห้ง หลีกเลี่ยงแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป

7 การแก้ไขปัญหา

If you encounter any issues with your Joie Tilt Car Seat, refer to the following common solutions:

• Harness difficult to tighten/loosen: Check for twists in the harness straps or obstructions in the harness adjustment mechanism. Ensure the harness release button is fully pressed when loosening.
• Car seat feels loose after installation: Re-read the installation instructions carefully. Ensure the vehicle seat belt is routed correctly through the color-coded guides and pulled as tight as possible, engaging the lock-offs. Apply firm pressure to the car seat while tightening the belt.
• Buckle not latching: Ensure both buckle tongues are inserted fully into the buckle until a click is heard. Check for debris in the buckle mechanism.

If problems persist, contact Joie customer support or your retailer for assistance.

8. ข้อมูลจำเพาะ

ภาพที่ 8.1: Product dimensions and specifications. This image provides a visual representation of the car seat's measurements (length, width, height) and confirms its weight and usage range.

9. การรับประกันและการสนับสนุน

Your Joie Tilt Car Seat comes with a รับประกัน 24 เดือน นับจากวันที่ซื้อ โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ในการเคลมประกัน

For warranty service, technical support, or any product-related inquiries, please contact your authorized Joie retailer or visit the official Joie webเว็บไซต์สำหรับข้อมูลติดต่อฝ่ายบริการลูกค้า

ผู้ผลิต: โจอี้
