1. บทนำและเรื่องอื่นๆview
The Vortex TK600 is a versatile and powerful LED flashlight designed for various outdoor and everyday carry (EDC) applications. It features a Cree XP-L LED, delivering up to 600 lumens of brightness. Its unique design allows compatibility with both 14500 Lithium batteries and standard AA dry cells, offering flexibility in power sources. The flashlight includes an extension tube to accommodate two AA batteries for extended runtime. Key features include a single-button control for multiple functions, brightness level indication, memory for the last used mode, a convenient belt clip, an orange head ring for easy identification, and a magnetic base for hands-free use.
Figure 1.1: The Vortex TK600 Flashlight, showcasing its compact design and orange head ring.
2. คุณสมบัติของผลิตภัณฑ์
- Cree XP-L LED: Delivers up to 600 lumens of bright illumination.
- Dual Battery Compatibility: Operates with either a 14500 Lithium battery or AA dry cells.
- ท่อต่อ: Allows conversion to a 2AA size for extended runtime.
- Direct USB Charging (14500 Battery): The 14500 Lithium battery can be charged directly via a USB cable (5V 1A output or lower).
- การควบคุมปุ่มเดียว: Manages all functions including dimming, Strobe, and SOS modes.
- Brightness Level Indication: Provides visual cues for current brightness (High/Middle/Low).
- โหมดหน่วยความจำ: Remembers the last used mode before turning off.
- คลิปหนีบเข็มขัด: Attached for convenient carrying.
- Orange Head Ring: Enhances visibility and identification.
- ฐานแม่เหล็ก: Allows attachment to metal surfaces for hands-free lighting.
- Hand Strap Hole: Integrated plastic hole at the bottom for attaching a hand strap.
- การกระจายความร้อน: Tailor-made grooves for efficient heat management.
- ความทนทาน: IPX8 water resistance rating and Type III hard anodized aluminum case.
3. เนื้อหาบรรจุภัณฑ์
เมื่อเปิดบรรจุภัณฑ์ ให้แน่ใจว่ามีสิ่งของทั้งหมดต่อไปนี้อยู่:
- Vortex TK600 Flashlight Unit
- ท่อต่อ
- 14500 Lithium Rechargeable Battery (included)
- สายชาร์จ USB
- คู่มือการใช้งาน (เอกสารนี้)
- สายคล้องมือ

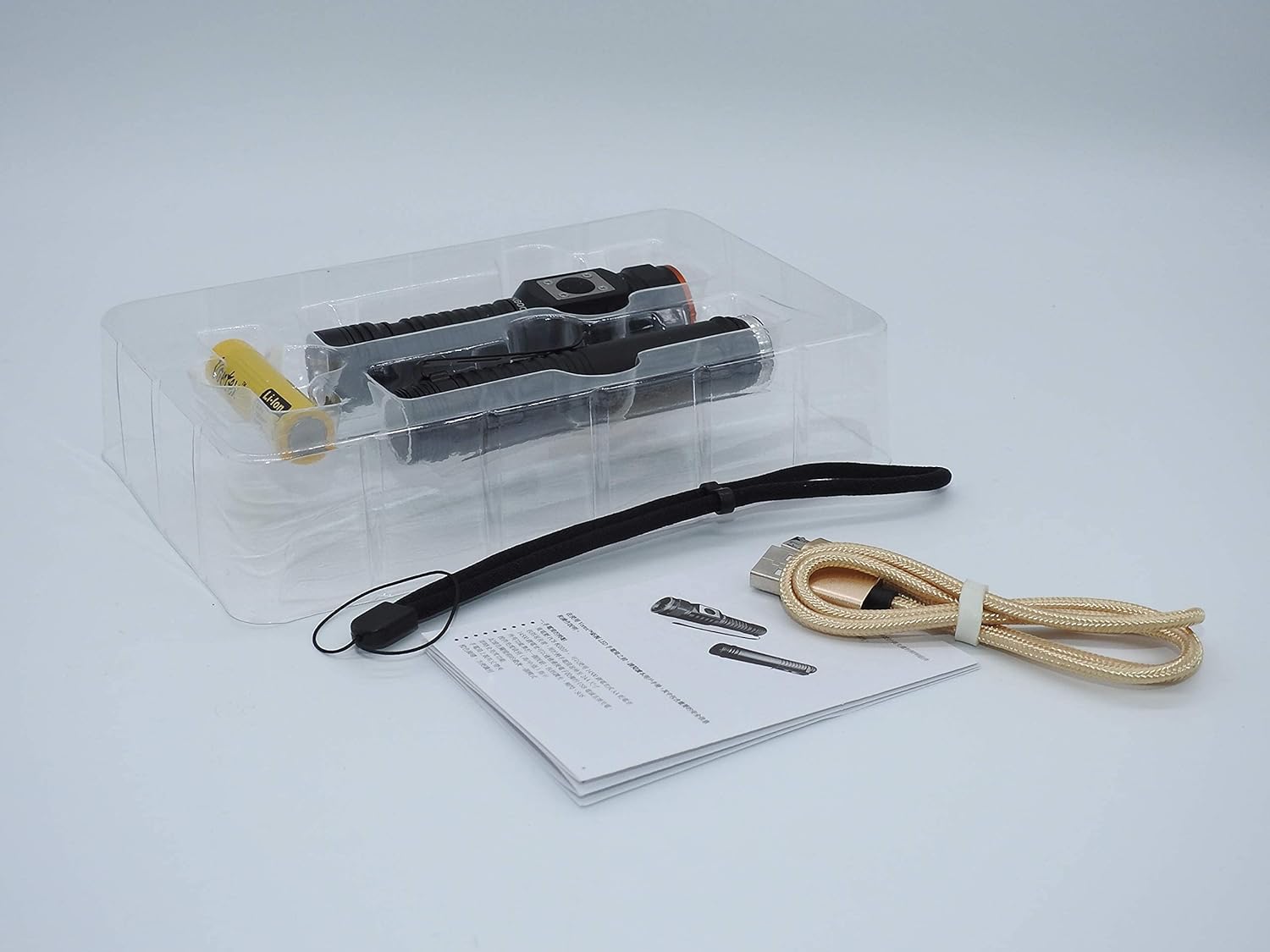

Figure 3.1: Contents of the Vortex TK600 package, including the flashlight, extension tube, battery, and charging cable.
4. การตั้งค่าและการติดตั้งแบตเตอรี่
4.1. Battery Installation (14500 Lithium Battery)
- คลายเกลียวฝาท้ายของไฟฉาย
- Insert the provided 14500 Lithium battery with the positive (+) end facing towards the flashlight head.
- ขันฝาท้ายกลับเข้าที่อย่างแน่นหนา
4.2. Using with AA Dry Cells (with Extension Tube)
The TK600 can be extended to use two AA dry cells for longer runtime. This requires the included extension tube.
- Unscrew the tail cap and remove the 14500 battery if installed.
- Unscrew the head of the flashlight from the main body.
- Screw the extension tube onto the main body of the flashlight.
- Insert two AA dry cells into the extension tube, ensuring correct polarity (positive (+) end towards the flashlight head).
- Screw the flashlight head back onto the extension tube securely.
Figure 4.1: The Vortex TK600 flashlight with its extension tube detached, illustrating the modular design for battery options.
Figure 4.2: The flashlight body, extension tube, and a 14500 Lithium battery, demonstrating the components for different power configurations.
Video 4.1: This video demonstrates the assembly of the Vortex TK600 flashlight, including how to attach the extension tube and install batteries for both 14500 and AA configurations.
5. คู่มือการใช้งาน
5.1. เปิด/ปิดเครื่อง
Press the side button once to turn the flashlight on or off.
5.2. Brightness Adjustment (Dimming)
When the flashlight is on, press and hold the side button to cycle through brightness levels (dimming function). Release the button at your desired brightness. The flashlight will blink to indicate the current brightness level:
- Blink 3 times: Full Brightness (100%)
- Blink 2 times: 50% Brightness
- Blink 1 time: 1% Brightness
Video 5.1: This video illustrates the brightness adjustment feature of the TK600, showing how to dim the light and the corresponding blink indications for different brightness levels.
5.3. โหมดสโตรบ
From the ON state, quickly press the side button three times to activate the Strobe mode.
5.4. SOS Mode
From the ON state, press and hold the side button for an extended period (beyond dimming) to activate the SOS mode.
5.5. Charging (14500 Lithium Battery)
The included 14500 Lithium battery can be charged directly. Locate the micro USB port on the battery itself. Connect the provided USB cable to the battery and a power source (e.g., computer USB port, wall adapter) with an output of 5V 1A or lower. The battery will indicate charging status (e.g., red light for charging, green light for full).
Video 5.2: This short video demonstrates the charging process of the 14500 Lithium battery, highlighting the direct USB charging capability.
6. การบำรุงรักษา
- การทำความสะอาด: เช็ดตัวไฟฉายด้วยผ้านุ่มๆamp ผ้า ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย
- การหล่อลื่น: Periodically apply silicone grease to the O-rings and threads to maintain water resistance and smooth operation.
- การดูแลแบตเตอรี่ If not using the flashlight for an extended period, remove the batteries to prevent leakage and damage. Store batteries in a cool, dry place.
- พื้นที่จัดเก็บ: Store the flashlight in a dry environment away from direct sunlight and extreme temperatures.
7 การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ไฟฉายไม่ติด | Low or dead battery. Incorrect battery installation. Loose connections. | Charge or replace battery. Ensure correct polarity. Tighten all sections of the flashlight body. |
| ไฟกระพริบหรือสลัว | Low battery. Loose connections. Dirty contacts. | Charge or replace battery. Tighten all sections. Clean battery contacts with a clean cloth. |
| Cannot switch modes. | ปุ่มกดทำงานผิดปกติ | Ensure the button is clean and free of debris. If problem persists, contact customer support. |
8. ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| แหล่งกำเนิดแสง | Cree XP-L LED |
| ความสว่างสูงสุด | 600 ลูเมน |
| แหล่งพลังงาน | 14500 Lithium Battery (included) or 2x AA Dry Cells (with extension tube) |
| เล่มที่tage | 3.7 Volts (14500 battery) |
| วัสดุ | Type III Hard Anodized Aluminum |
| ความต้านทานต่อน้ำ | ระดับ IPX8 |
| ขนาด | Approx. 1 x 1 x 4 inches (compact mode) |
| น้ำหนัก | Approx. 2.4 ounces (without extension tube/batteries) |
| สี | แมตต์สีดำ |
Figure 8.1: Detailed diagram illustrating various features and specifications of the Vortex TK600 flashlight.
Figure 8.2: The magnetic base of the TK600 allows it to be attached to metal surfaces for convenient, hands-free illumination.
9. การรับประกันและการสนับสนุน
The Vortex TK600 flashlight comes with a 3-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
For warranty claims, technical support, or any inquiries, please contact Vortex customer service through the official channels provided at the point of purchase or on the manufacturer's webไซต์ โปรดเก็บหลักฐานการซื้อไว้เพื่อยืนยันการรับประกัน
