การแนะนำ
This manual provides detailed instructions for the safe and effective use of your Dorcy Ultra HD Series Foldable Flashlight. Please read this manual thoroughly before operating the device and retain it for future reference.
สินค้าเกินview
The Dorcy Ultra HD Series Foldable Flashlight is a versatile LED lighting tool designed for various applications. It features a unique fold-up light mechanism, 360-degree twist functionality, and a magnetic base for hands-free operation. Its durable, water-resistant construction ensures reliable performance.
คุณสมบัติหลัก
- Fold-up Light: Allows illumination in tight or confined spaces.
- 360-Degree Twist Action: Directs light precisely where needed.
- 500 ลูเมนส์ Provides bright illumination.
- ฐานแม่เหล็ก: Secures the flashlight to metal surfaces for hands-free use.
- สวิตช์ปุ่มกด: Enables simple, single-handed operation.
- โครงสร้างทนทาน: Impact-resistant and water-resistant design.
เนื้อหาแพ็คเกจ
ตรวจสอบว่ามีสินค้าทั้งหมดที่ระบุไว้ด้านล่างอยู่ในแพ็คเกจของคุณ:
- Dorcy Ultra HD Series Foldable Flashlight (Model 414350)
- แบตเตอรี่ AAA 3 ก้อน (รวมอยู่ด้วย)

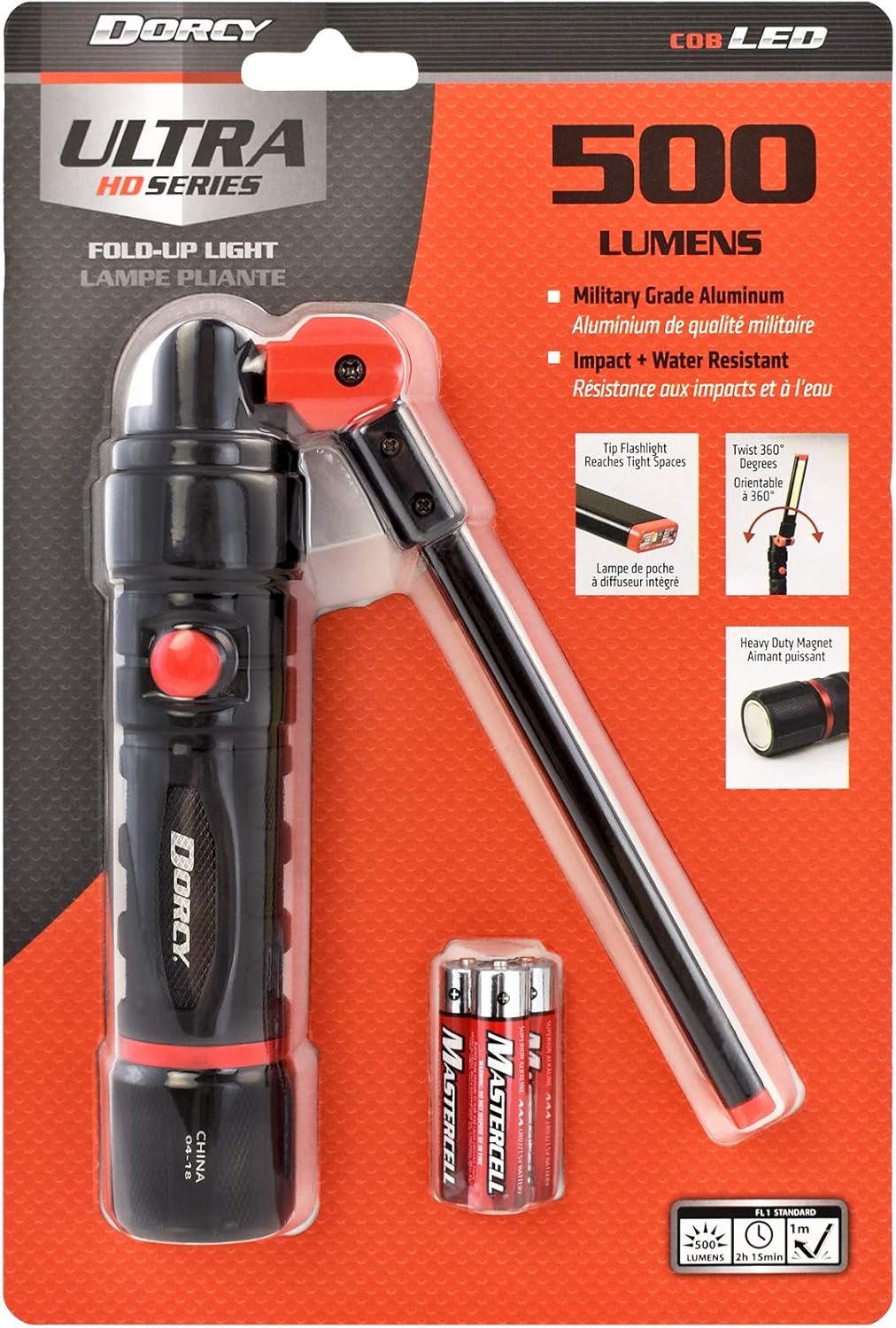

Image: Packaging of the Dorcy Ultra HD Series Foldable Flashlight, showing the flashlight and included AAA batteries.
การระบุชิ้นส่วน
Familiarize yourself with the components of your flashlight:
- Foldable LED Light Bar
- Pivot Joint (for folding and twisting)
- ปุ่มเปิดปิด
- Main Body/Handle
- Magnetic Base/Battery Compartment

Image: The Dorcy Foldable Flashlight with its LED light bar extended, illustrating the main components.

ภาพ: ระยะใกล้ view of the flashlight's base, highlighting the integrated magnet for secure attachment to metal surfaces.
การตั้งค่า: การติดตั้งแบตเตอรี่
Your Dorcy flashlight requires 3 AAA batteries. Batteries are included with the product.
- Unscrew the Base: Grasp the main body of the flashlight firmly and twist the magnetic base counter-clockwise to remove it.
- ใส่แบตเตอรี่: Insert three (3) AAA batteries into the battery compartment, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment. Incorrect insertion can damage the device.
- ยึดฐานให้แน่น: Replace the magnetic base by twisting it clockwise until it is securely tightened. Do not overtighten.
สำคัญ: Always use fresh batteries of the same type and brand. Do not mix old and new batteries, or different types of batteries. Remove batteries if the flashlight will not be used for an extended period to prevent leakage.
คำแนะนำการใช้งาน
โหมดเปิด/ปิดและโหมดแสงสว่าง
- เปิด: Press the power button located on the side of the flashlight.
- โหมดการปั่นจักรยาน: Press the power button repeatedly to cycle through available light modes (e.g., High, Low, Off). The specific modes may vary.
- วิธีปิด: Continue pressing the power button until the light turns off, or hold the button for a few seconds (if applicable to your model).
Folding and Twisting Mechanism
The flashlight features a versatile design for directing light.
- Folding the Light Bar: The LED light bar can be folded out from the main body. Gently pivot the light bar at the joint to achieve the desired angle. This allows for illumination in tight or hard-to-reach areas.
- 360-Degree Twist: The light bar can also be rotated 360 degrees at the pivot joint. This feature enables precise light direction without repositioning the entire flashlight.

Image: The flashlight with its LED light bar partially folded, demonstrating its adjustable nature.
การใช้ฐานแม่เหล็ก
The integrated magnetic base provides convenient hands-free lighting.
- สิ่งที่แนบมา: Simply place the magnetic base onto any ferrous metal surface. Ensure the surface is clean and stable to prevent the flashlight from falling.
- การวางตำแหน่ง: Once attached, you can adjust the angle of the light bar using the folding and twisting mechanism to direct illumination.

ภาพ: ด้านหลัง view of the flashlight, showing the magnetic base and the textured grip of the main body.
การซ่อมบำรุง
- การทำความสะอาด: เช็ดไฟฉายด้วยผ้านุ่มๆamp ใช้ผ้าเช็ดทำความสะอาดเท่านั้น ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย เพราะอาจทำให้พื้นผิวหรือชิ้นส่วนภายในเสียหายได้
- การเปลี่ยนแบตเตอรี่: Replace all three AAA batteries when the light output diminishes. Refer to the "Setup: Battery Installation" section for instructions.
- พื้นที่จัดเก็บ: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods.
การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ไฟฉายไม่ติด |
|
|
| แสงที่ออกมาสลัวหรือมีการกระพริบ |
|
|
| ฐานแม่เหล็กยึดไม่แน่น |
|
|
ข้อมูลจำเพาะ
| หมายเลขรุ่น | 414350 |
| ประเภทแหล่งกำเนิดแสง | นำ |
| ความสว่าง | 500 ลูเมน |
| แหล่งพลังงาน | ใช้พลังงานจากแบตเตอรี่ |
| ประเภทแบตเตอรี่ | แบตเตอรี่ AAA (อัลคาไลน์) 3 ก้อน |
| เล่มที่tage | 4.5 โวลต์ |
| วัสดุ | โลหะ |
| สี | สีดำ, สีแดง |
| ขนาด (กว้าง x ยาว x สูง) | ขนาด 1.4 x 2.1 x 1.8 นิ้ว (โดยประมาณ) |
| น้ำหนักสินค้า | 10.1 ออนซ์ (โดยประมาณ) |
| คุณสมบัติพิเศษ | Durable, Water Resistant, Magnetic Base, Foldable |
ข้อมูลด้านความปลอดภัย
- อย่ามองตรงไปยังแสงไฟ LED เพราะอาจทำให้การมองเห็นบกพร่องชั่วคราวได้
- เก็บให้พ้นจากมือเด็ก
- Do not attempt to disassemble or modify the flashlight. This will void any warranty and may cause damage or injury.
- ทิ้งแบตเตอรี่ที่ใช้แล้วอย่างรับผิดชอบตามข้อบังคับท้องถิ่น
- ผลิตภัณฑ์นี้อาจมีสารเคมีที่รัฐแคลิฟอร์เนียระบุว่าอาจก่อให้เกิดมะเร็ง ความพิการแต่กำเนิด หรืออันตรายต่อระบบสืบพันธุ์ (คำเตือนตามข้อเสนอ 65)
การรับประกันและการสนับสนุน
Specific warranty information for the Dorcy Ultra HD Series Foldable Flashlight is not provided in the available product data. For warranty details, technical support, or customer service inquiries, please contact Dorcy International, Inc. directly or refer to their official webเว็บไซต์.
ผู้ผลิต: Dorcy International, Inc.
