Linkstyle 4-in-1 Car Charger Panel Instruction Manual

1. บทนำ

This manual provides detailed instructions for the installation, operation, and maintenance of your Linkstyle 4-in-1 Car Charger Panel, Model LS-CR08. This multifunctional panel integrates a dual USB charger, an LED voltmeter, a 12V cigarette lighter socket, and an LED rocker switch, designed for 12V/24V vehicle applications such as cars, marine boats, RVs, and trucks. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. สินค้าหมดview

The Linkstyle 4-in-1 Car Charger Panel combines essential power and monitoring functions into a single, compact unit. Each component is designed for durability and ease of use in various vehicle environments.

รูปที่ 2.1: ด้านหน้า view of the Linkstyle 4-in-1 Car Charger Panel, showcasing its integrated components: two USB charging ports, a digital LED voltmeter, a 12V cigarette lighter socket, and an illuminated rocker switch.

2.1 ส่วนประกอบ

รูปที่ 2.2: An annotated diagram highlighting each component of the 4-hole panel: the ON-OFF Switch, LED Voltmeter (display range 6-24V), 12V Power Outlet, and 2 USB Charger Sockets (Output DC 5V/4.2A).

• เครื่องชาร์จ USB คู่: Two 5V/2.1A USB ports (total 4.2A) for simultaneous charging of two devices.
• LED Voltmeter: Digital display showing real-time voltage (5-48V) of your vehicle's battery.
• ซ็อกเก็ตที่จุดบุหรี่ 12V: Standard power outlet for various 12V accessories.
• LED Rocker Switch: An easy-to-operate ON/OFF switch with an LED indicator, rated for up to 10,000 cycles.

2.2 เนื้อหาบรรจุภัณฑ์

รูปที่ 2.3: Image showing the package contents: the assembled 4-in-1 panel, blue insulated crimp terminals, and mounting screws.

• 1 x 4-in-1 Charger Panel (pre-assembled)
• 9 x Blue Insulated Crimp Terminals
• สกรูยึด 4 ตัว

3. การตั้งค่าและการติดตั้ง

Proper installation is crucial for the safe and effective operation of the charger panel. It is recommended to disconnect the vehicle's battery before beginning installation.

3.1 การประกอบ

The individual components (USB charger, voltmeter, cigarette lighter, and switch) are designed for easy integration into the panel. They can be installed or replaced by screwing them into the designated holes on the panel.

3.2 คำแนะนำในการเดินสายไฟ

Refer to the wiring diagram below for correct electrical connections. Ensure all connections are secure and properly insulated.

รูปที่ 3.1: Detailed wiring diagram illustrating the connections for the power outlet, voltmeter, USB charger, and switch. It specifies that the brass prong is negative ('-') and the silver prong is positive ('+') for the outlet, charger, and voltmeter, while the switch has specific silver and gold prongs for positive and negative connections.

1. ระบุเทอร์มินัล: For the Power Outlet, Voltmeter, and USB Charger, the silver prong is the positive (+) terminal, and the brass prong is the negative (-) terminal.
2. สายไฟสวิตช์: The rocker switch typically has three prongs. Connect the positive (+) input to one of the silver prongs, the positive (+) output to the other silver prong, and the gold prong to the negative (-) circuit.
3. เชื่อมต่อส่วนประกอบ: Wire the positive terminals of the USB Charger, Voltmeter, and Power Outlet to the positive output of the rocker switch.
4. การต่อลงดิน: Connect all negative terminals of the USB Charger, Voltmeter, and Power Outlet, along with the gold prong of the switch, to a common ground point or the vehicle's negative battery terminal.
5. แหล่งพลังงาน: Connect the positive input of the rocker switch to a fused 12V/24V power source from your vehicle's battery or accessory circuit.

บันทึก: Always use appropriate gauge wiring and an inline fuse (not included) for protection against overcurrent. Consult a professional if you are unsure about electrical wiring.

4. การดำเนินการ

4.1 การเปิด/ปิดเครื่อง

Use the integrated LED rocker switch to turn the entire panel's power supply ON or OFF. The LED indicator on the switch will illuminate when power is active.

4.2 Using the Dual USB Charger

Plug your USB-compatible devices into either of the two USB ports. The charger automatically detects your device and delivers optimal charging speed up to 2.1A per port, with a total output of 4.2A.

4.3 Monitoring Voltage with the LED Voltmeter

The digital LED voltmeter continuously displays the real-time voltage of your vehicle's battery (5-48V). This allows you to monitor battery health and prevent unexpected power issues.

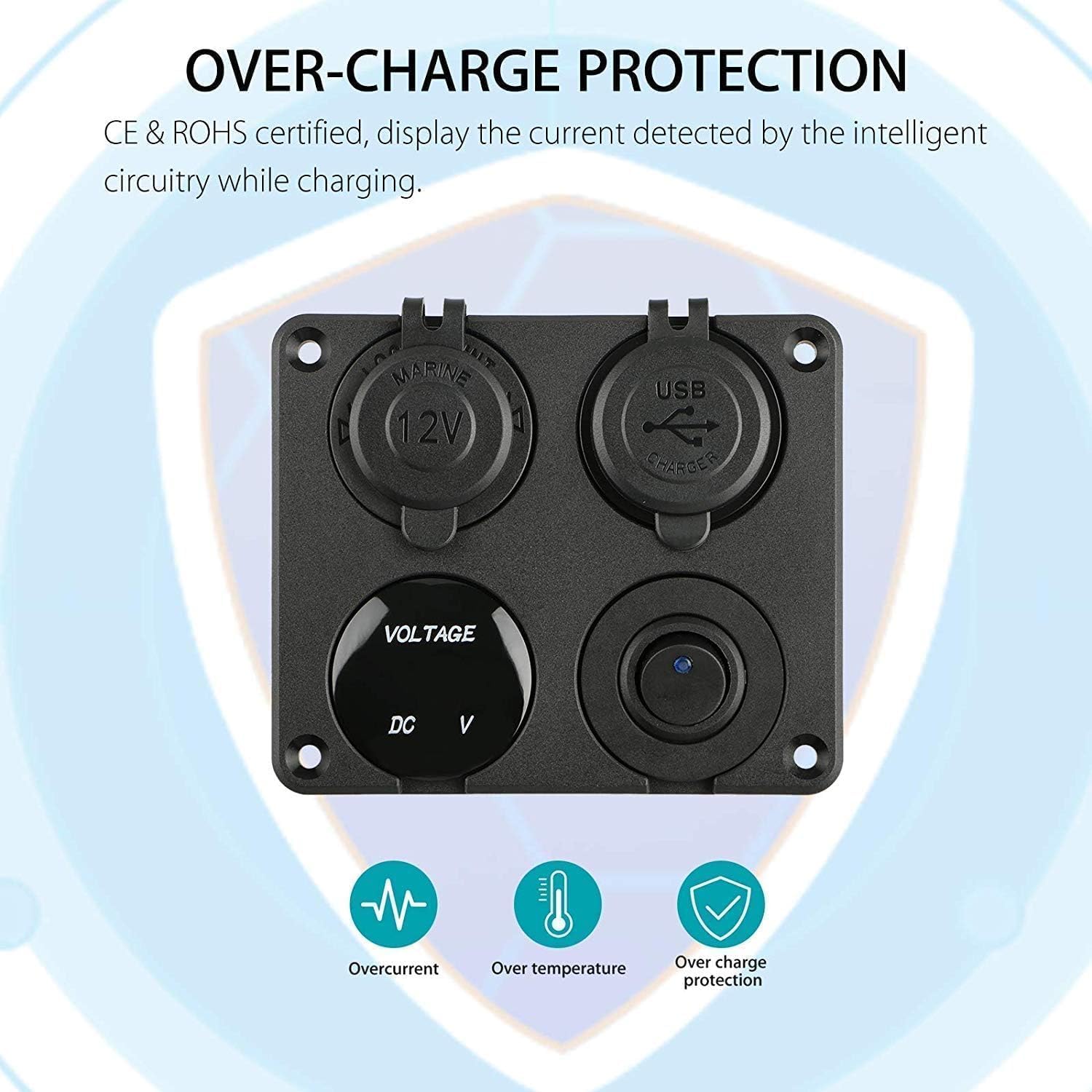

รูปที่ 4.1: Diagram illustrating the built-in protection features of the panel, including safeguards against overcurrent, over-temperature, and over-charge, certified by CE & ROHS.

เล่มปกติtage ช่วง:

• ก่อนสตาร์ทรถ: 13.4V - 14.8V
• After starting the vehicle: 12.2V - 12.8V

หากมีเล่มtage drops below 12V, it indicates an abnormal voltage, and the battery should be checked or replaced as soon as possible.

4.4 Using the 12V Cigarette Lighter Socket

Insert any compatible 12V accessory into the cigarette lighter socket. Ensure the accessory's power requirements do not exceed the panel's maximum current rating.

5. ข้อมูลด้านความปลอดภัย

• ควรตัดการเชื่อมต่อแบตเตอรี่รถยนต์ทุกครั้งก่อนทำการซ่อมแซมหรือดัดแปลงระบบไฟฟ้า
• Ensure proper wiring polarity (positive to positive, negative to negative) to prevent damage to the device and vehicle.
• Use an appropriate inline fuse for the main power input to protect against overcurrent.
• Do not exceed the maximum current rating of the panel or individual components.
• Keep the rubber caps on the USB ports and cigarette lighter socket when not in use to protect against water and dust.
• This product is designed for 12V/24V DC systems only. Do not connect to AC power.

รูปที่ 5.1: The Linkstyle 4-in-1 Car Charger Panel features protective rubber caps for the USB ports and cigarette lighter socket, enhancing its waterproof and dustproof capabilities.

6. ข้อมูลจำเพาะ

รูปที่ 6.1: Image displaying the physical dimensions of the panel, measuring approximately 10.5 cm (4.13 inches) in width and 8.7 cm (3.42 inches) in height.

รูปที่ 6.2: Illustrates the wide compatibility of the charger panel, suitable for installation in various vehicles including cars, motorcycles, trucks, ATVs, boats, and RVs.

7 การแก้ไขปัญหา

• No Power to Panel:
  • ตรวจสอบการเชื่อมต่อสายไฟทั้งหมดว่าหลวมหรือมีสนิมหรือไม่
  • ตรวจสอบให้แน่ใจว่าแบตเตอรี่รถยนต์มีประจุไฟเพียงพอ
  • Inspect the inline fuse (if installed) for being blown and replace if necessary.
  • Ensure the rocker switch is in the 'ON' position.
• พอร์ต USB ไม่ชาร์จ:
  • Confirm the panel has power (voltmeter or switch LED should be active).
  • Try a different USB cable or device to rule out cable/device issues.
  • Ensure the device's power requirements do not exceed the USB port's output (2.1A per port).
• Voltmeter Displaying Incorrect Readings:
  • Check the voltmeter's wiring connections for secure contact.
  • Compare the reading with another known accurate voltmeter to verify.
• Cigarette Lighter Socket Not Working:
  • Ensure the panel is powered on.
  • Test with a different 12V accessory to confirm the issue is not with the accessory.
  • Check for any debris or foreign objects inside the socket.

8. การบำรุงรักษา

• ตรวจสอบสายไฟและจุดเชื่อมต่อทั้งหมดอย่างสม่ำเสมอเพื่อหาสัญญาณของการสึกหรอ การกัดกร่อน หรือความเสียหาย
• Keep the panel clean and free from dust and debris. Use a soft, dry cloth for cleaning.
• Ensure the rubber caps are properly seated over the USB ports and cigarette lighter socket when not in use to maintain their waterproof and dustproof properties.
• Avoid exposing the panel to extreme temperatures or harsh chemicals.

9. การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the product packaging or contact Linkstyle customer service through their official website or the retailer where the product was purchased. Please have your model number (LS-CR08) and purchase details available when contacting support.
